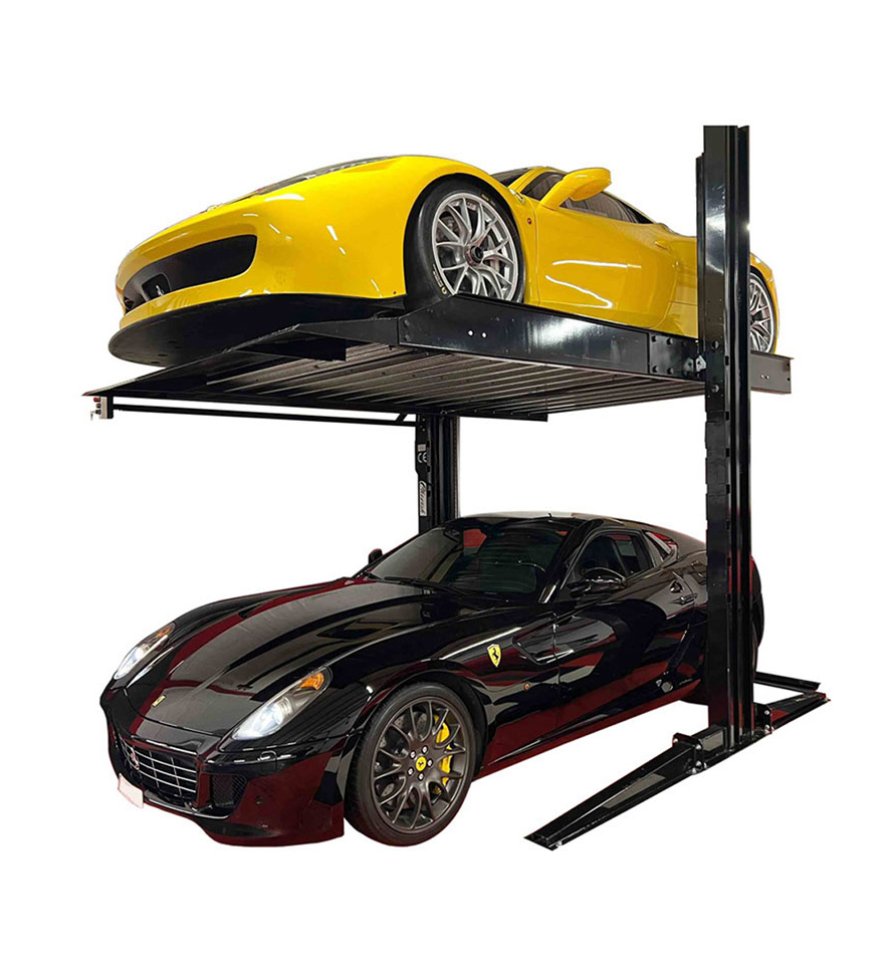

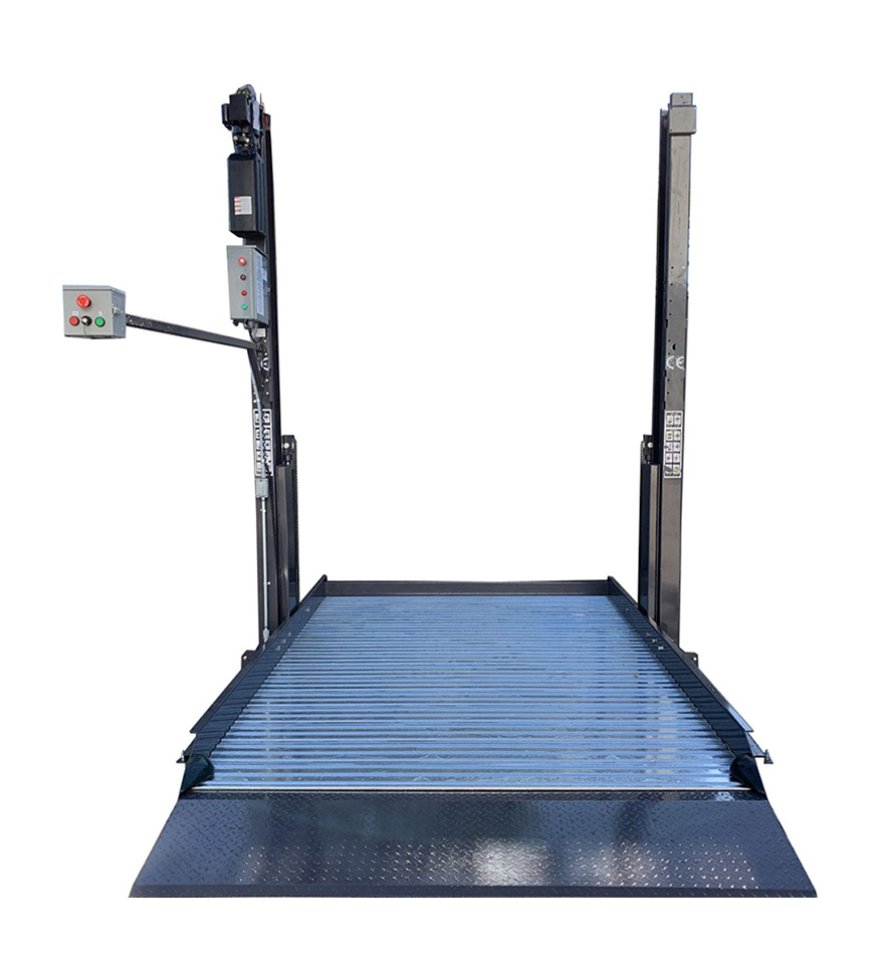

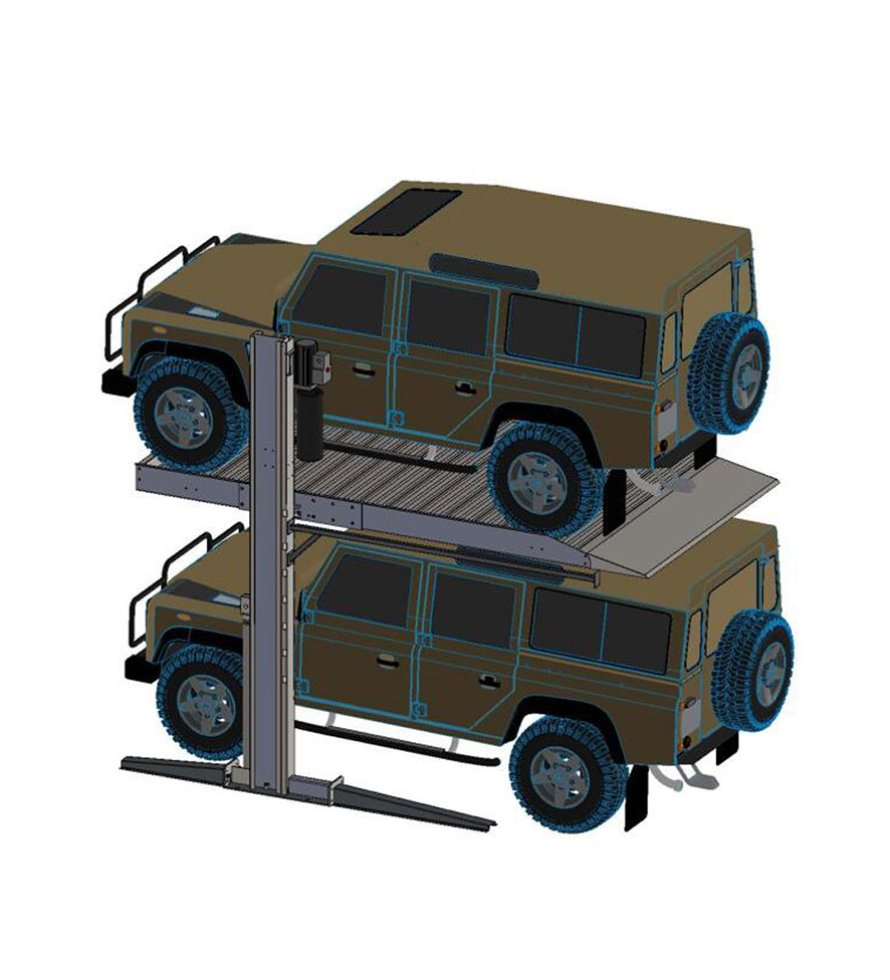

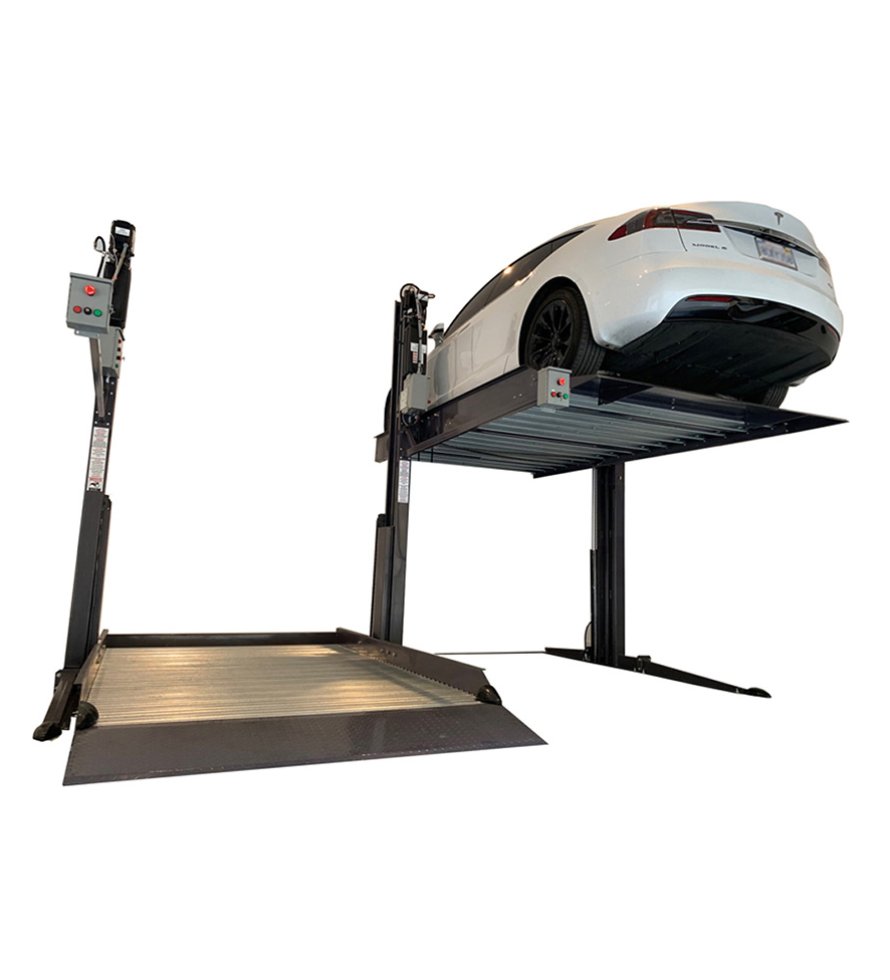

Double Level Two Post Parking Lift

Description

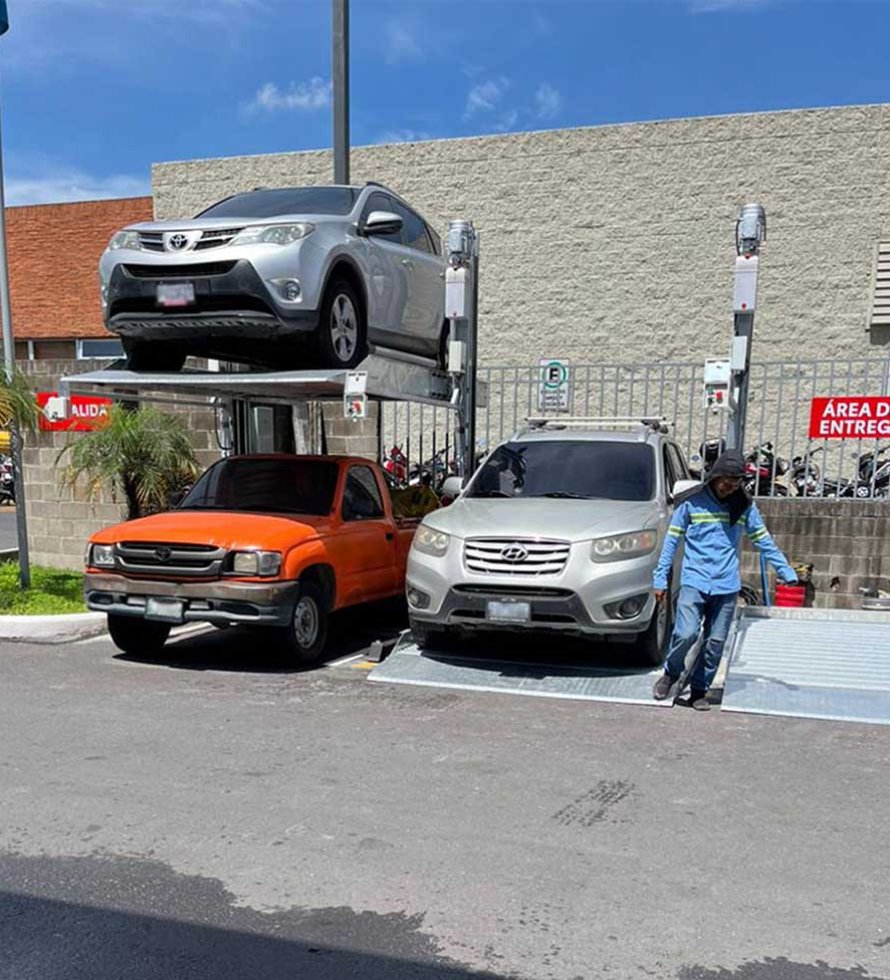

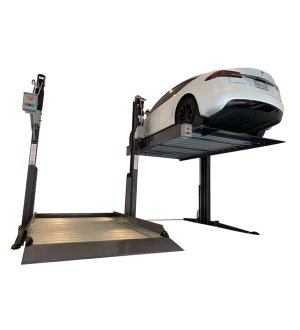

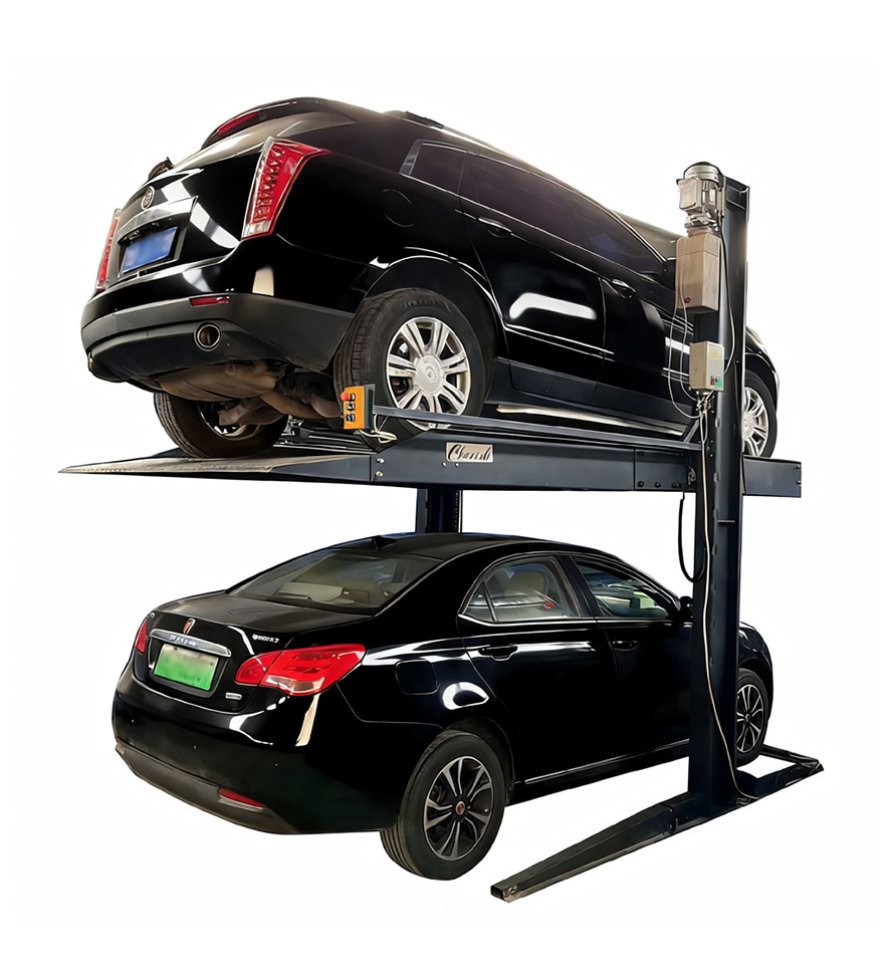

CHPLA2300 & CHPLA2700 Two Post Parking Lift is engineered to accommodate a wide variety of vehicles, including SUVs, sedans and sports cars. It delivers an ideal solution for both long-term and short-term parking, with the upper platform commonly used for long-term storage and the lower level for convenient short-term parking. Specially developed to meet the demands of real estate developers, architects, car dealers, commercial parking operators and residential users, this two-post lift can be installed within a standard parking space and fits most cars and light trucks.

(0 Customer Reviews)

Product Feature

Feature:

• Robust freestanding structure for flexible installation

• Innovative shared column design enables multiple units in minimal space

• Commercial-grade design and heavy-duty construction

• Suitable for installation on standard concrete surfaces

• Galvanized anti-slip platform with corrugated surface for enhanced safety

• Overhead power unit ensures smooth and quiet hydraulic operation

• Adjustable platform stops at multiple heights for different vehicles and ceiling clearances

• Wide deck platform accommodates pickups, vans, and passenger cars

• Dual-cylinder drive system for faster, smoother and more stable operation

• Electric key switch for improved security and operational safety

• Automatic shut-off upon releasing the key switch

• Built-in hydraulic overload protection for safe and reliable performance

Product Introduction

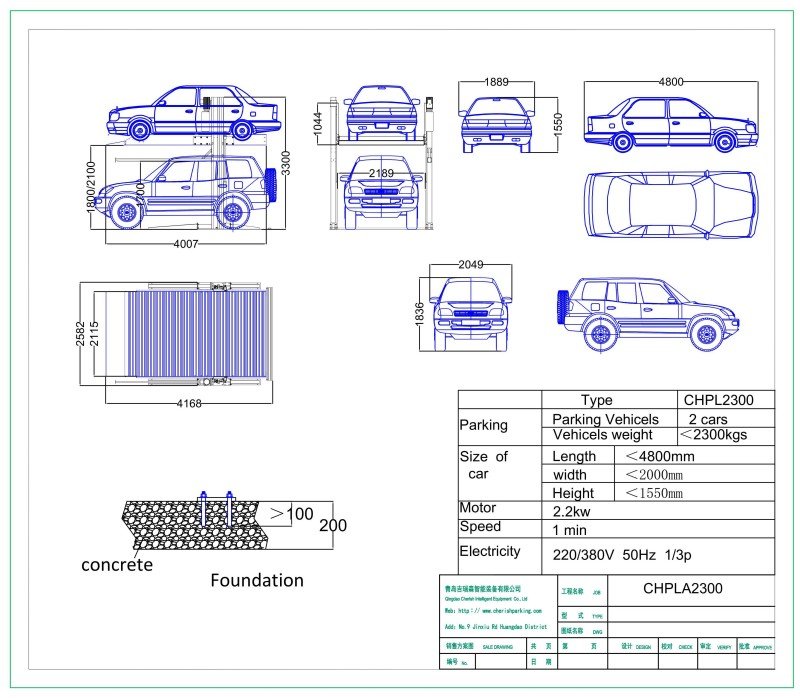

Model No.	CHPLA2300	CHPLA2700
Lifting Capacity	2300 kg	2700 kg
Lifting Height	2100 mm	2100 mm
Usable Platform Width	2115 mm	2115 mm
Overall Height	3300 mm	3520 mm
Overall Length	4168 mm	4200 mm
Overall Width	2582 mm	2582 mm
Power Supply / Motor Capacity	220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw 50/45s
Lock Device	Multistage Dynamic Lock
Lock Release	Electric Release (Also could choose manual release)
Drive Mode	Hydraulic Drive + Chain

2-6 Level Puzzle Type PSH

Puzzle With A Pit PSH

Back to Back Puzzle Type PSH

1 Level Sliding Platform PSH-1

Car Rotating Turntable ZT

Two Post Parking Lift CHPLA2300/2700

Tilting Parking Lift CHPLB2500

Motor Drive Parking Lift CHPLC2000

Four Post Parking Lift CHFL3700

New Triple Car Stacker CHFL4-3

Three Level Parking Lift CHFL4-3

4 Cars Parking Stacker CHFL2+2

Single Post Parking Lifts CHSPL2500

Scissor Parking Lift CHSPL2700

Vertical Parking Lift CPS

Vertical 2 Cars Pit Parking Lift CPL-2

Vertical 4 Cars Pit Parking Lift CPL-4

Tilting 2 Cars Pit Parking Lift CPT-2

Tilting 4 Cars Pit Parking Lift CPT-4

Tilting 2/4 Cars Pit Parking Lift CPT-2A/4A

Motor Drive Pit Parking Lift PJS

Single Decks Scissor Car Lift CSL-3

Double Deck Scissor Car Lift CSL-3

Four Post Car Lift FP-4

Rail Car Lift CSL-3

Standard Type GH

Home Lift with Elevator Car GH-HE

Home Lift with Shaft GH-VA

5-9 Level Rotary Parking System PCX

Mechanical Automated Parking System PPY

Multi Levels Tower Parking System PCS

Double Level Two Post Parking Lift

Double Level Two Post Parking Lift

Description

Product Feature

Product Introduction

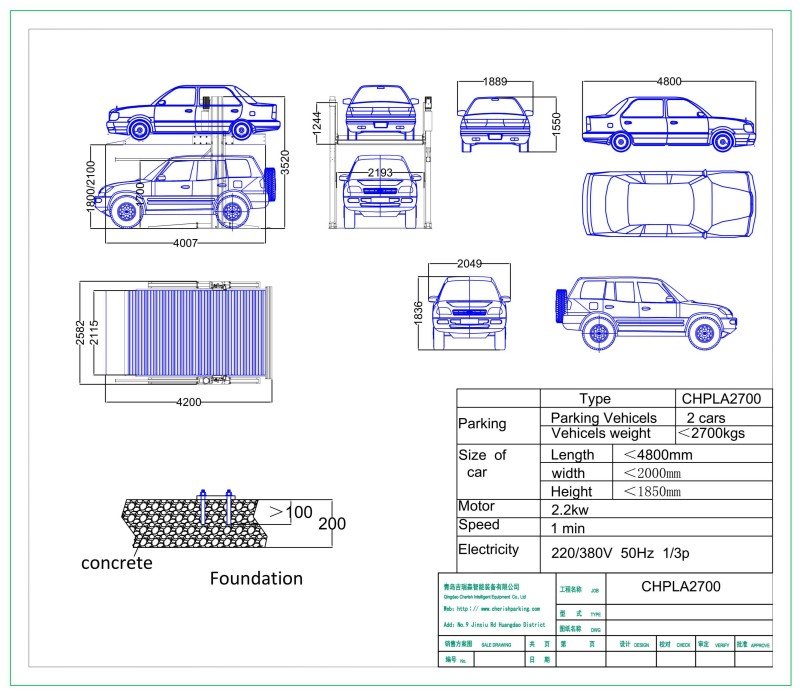

Drawing
