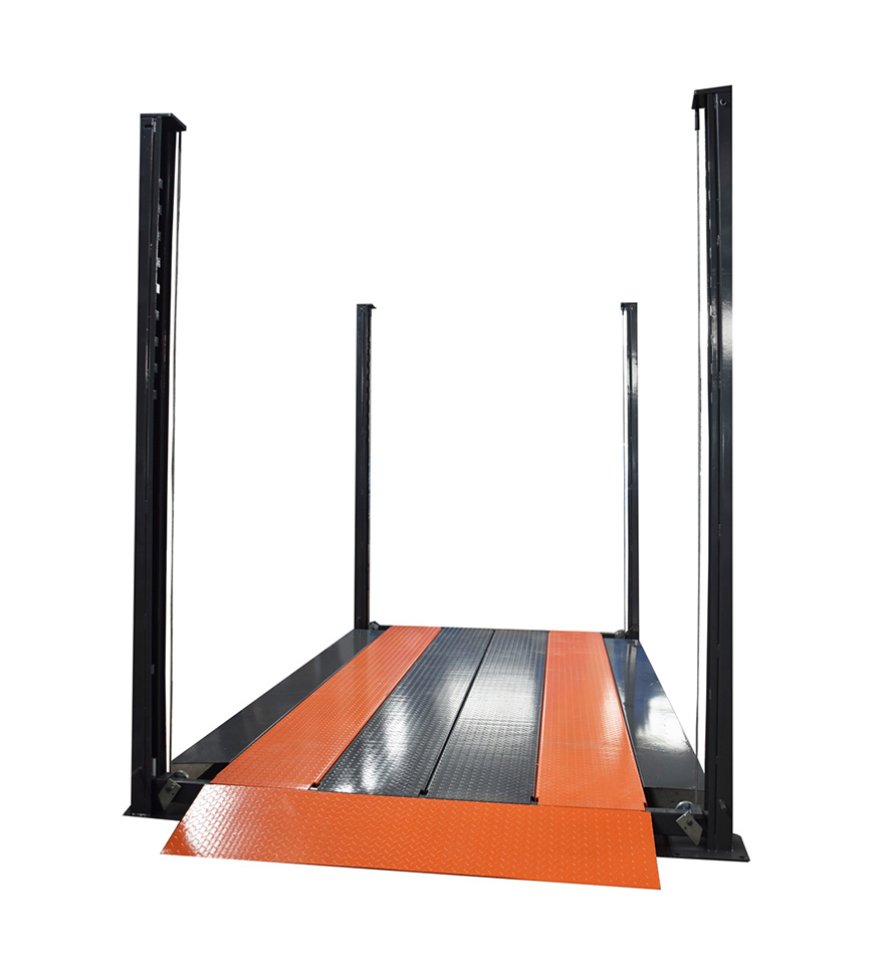

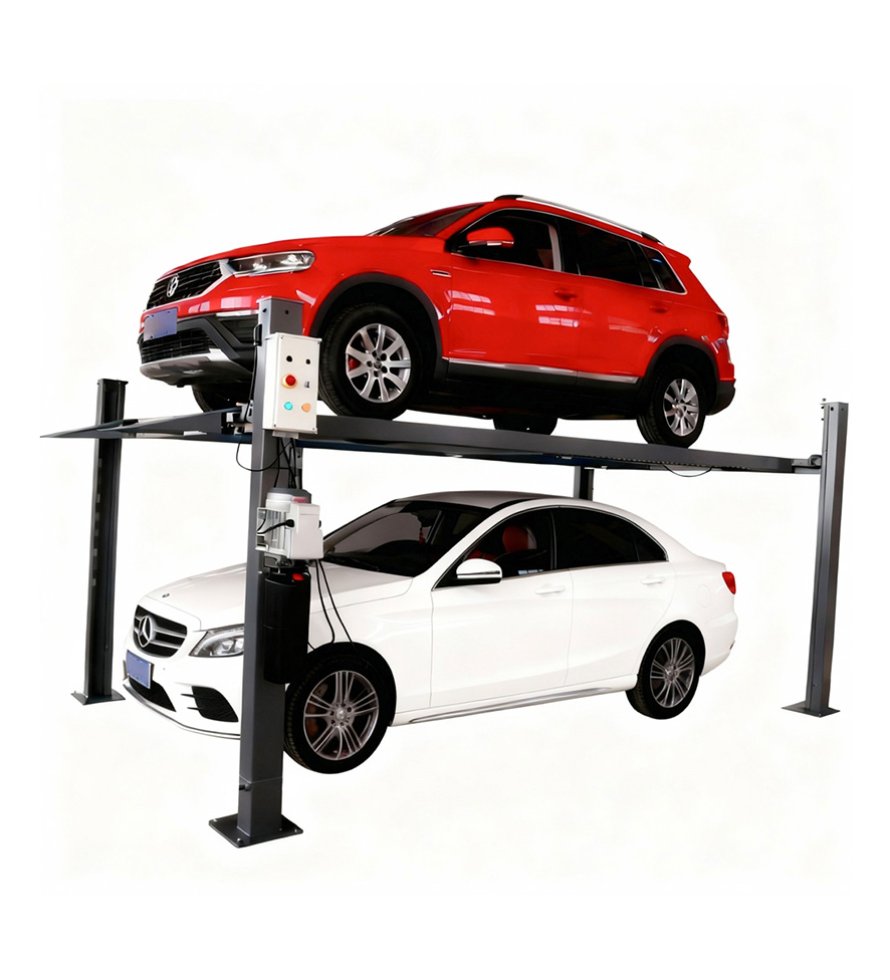

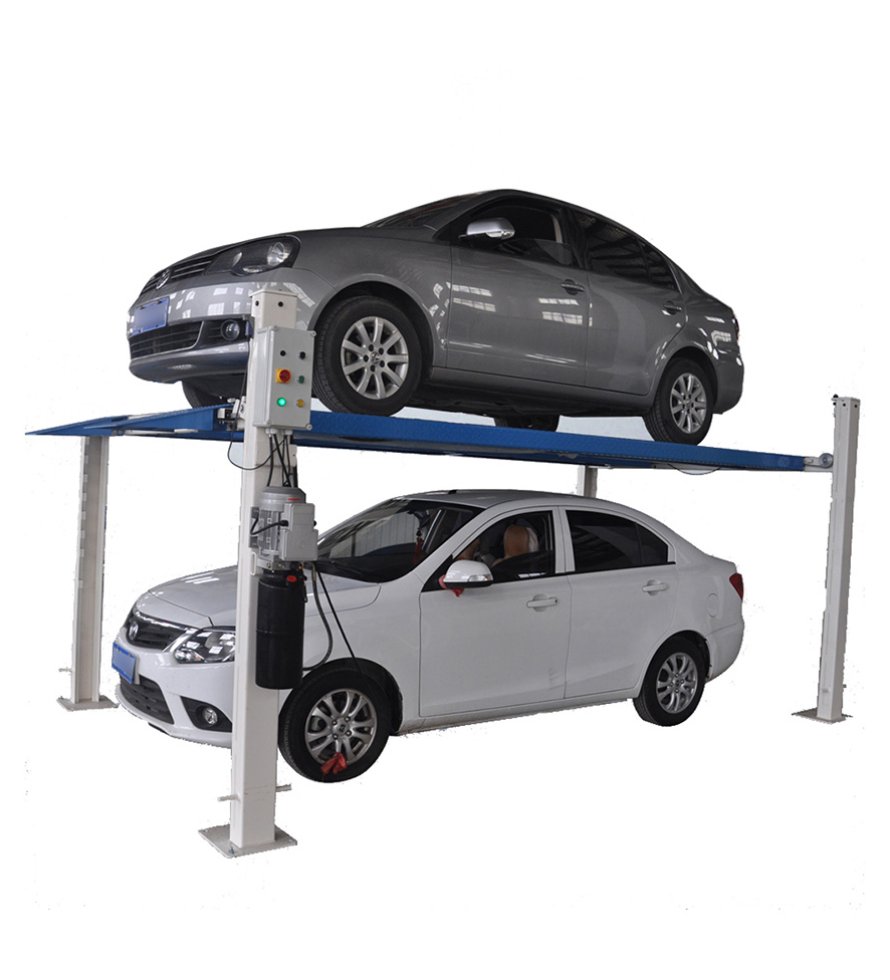

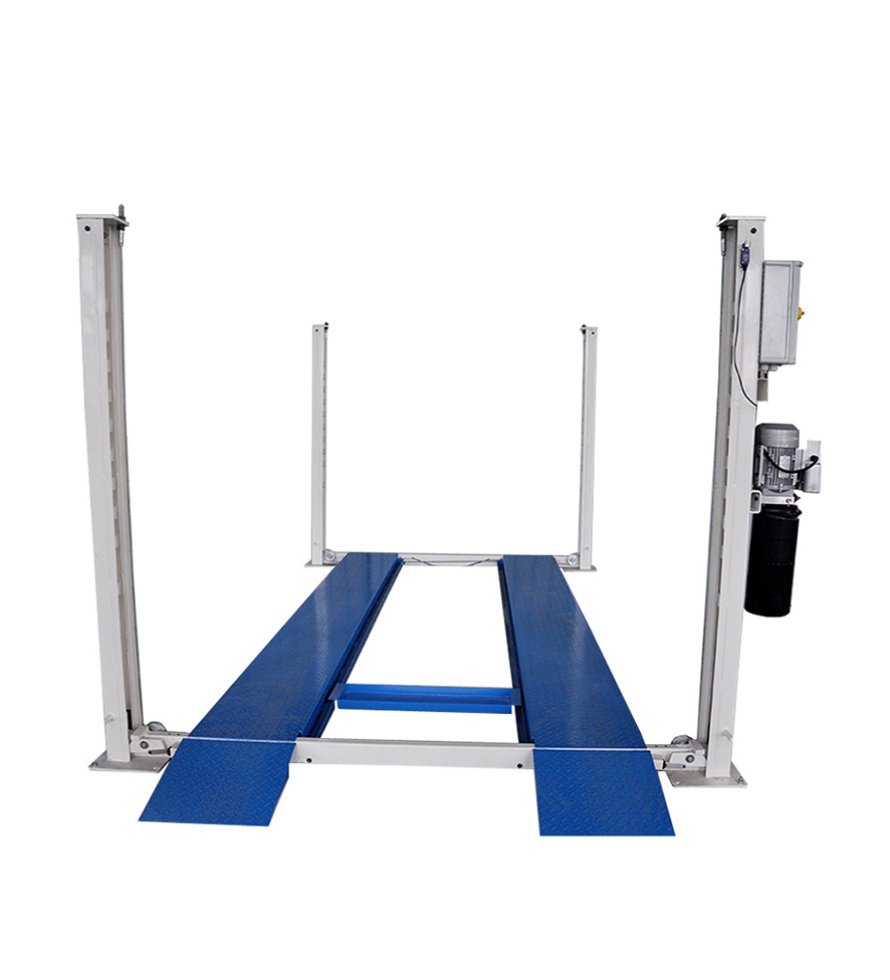

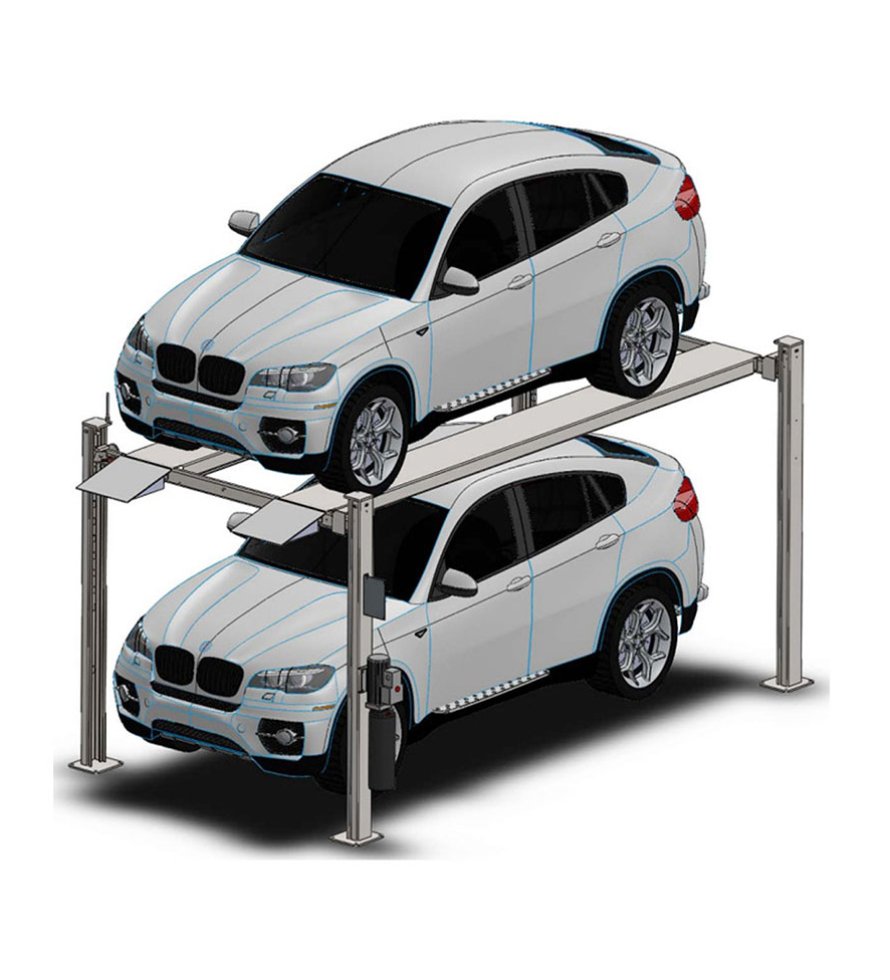

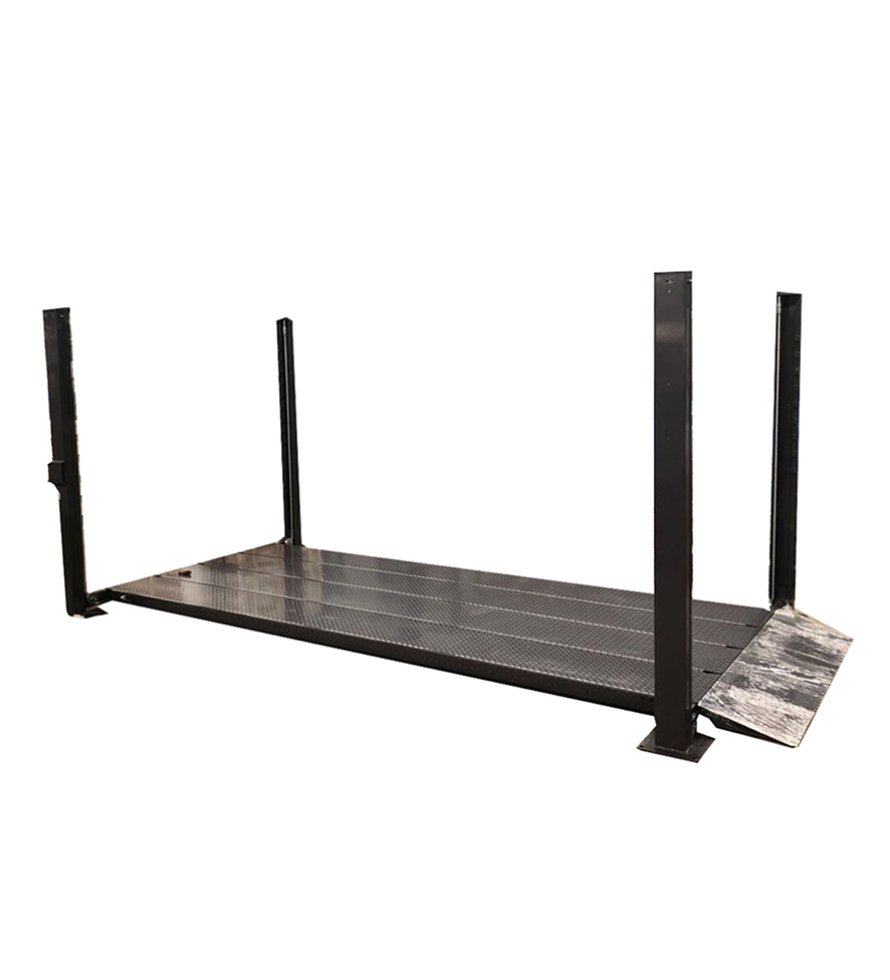

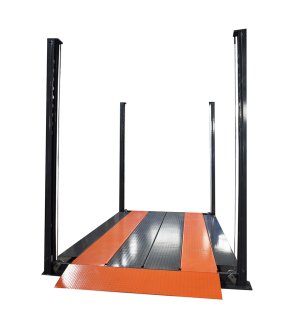

Four-Post Double-Level Car Parking Lift

Description

CHFL3700 is a heavy-duty two-level parking lift that efficiently doubles parking capacity. Built to support heavy-duty vehicles, it features a simple, robust structure for easy and stable installation. Highly versatile, this reliable system also supports safe boat parking and storage, making it an ideal space-saving solution for both commercial and residential use.

(0 Customer Reviews)

Product Feature

Feature:

· User-friendly operation and robust design with 3700kg loading capacity.

· Platform can be locked at variable heights to suit different vehicles and ceiling clearances.

· Platform runways and ramps constructed from heavy-duty diamond steel plates.

· Anti-slip ramp surface for enhanced safety and stability.

· Built-in anti-sway slider blocks inside each column for extra rigidity.

· Reliable electric-hydraulic power system.

· Single hydraulic cylinder installed underneath the runway.

· Multi-height mechanical anti-fall locks on four posts to ensure maximum safety.

· Powder-coated finish for indoor use; hot-dip galvanized for outdoor applications.

Product Introduction

Model No.	CHFL3700
Lifting Capacity	Max 3700kg
Lifting Height	1965mm
Height of Post	2276mm
Outside Edge of Runways	1897mm
Overall Width	2667mm
Outside Length	4883mm
Operation Mode	Key Switch + Button
Power Supply / Motor Capacity	220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw
Drive Mode	Hydraulic Drive + Steel Wire Rope

2-6 Level Puzzle Type PSH

Puzzle With A Pit PSH

Back to Back Puzzle Type PSH

1 Level Sliding Platform PSH-1

Car Rotating Turntable ZT

Two Post Parking Lift CHPLA2300/2700

Tilting Parking Lift CHPLB2500

Motor Drive Parking Lift CHPLC2000

Four Post Parking Lift CHFL3700

New Triple Car Stacker CHFL4-3

Three Level Parking Lift CHFL4-3

4 Cars Parking Stacker CHFL2+2

Single Post Parking Lifts CHSPL2500

Scissor Parking Lift CHSPL2700

Vertical Parking Lift CPS

Vertical 2 Cars Pit Parking Lift CPL-2

Vertical 4 Cars Pit Parking Lift CPL-4

Tilting 2 Cars Pit Parking Lift CPT-2

Tilting 4 Cars Pit Parking Lift CPT-4

Tilting 2/4 Cars Pit Parking Lift CPT-2A/4A

Motor Drive Pit Parking Lift PJS

Single Decks Scissor Car Lift CSL-3

Double Deck Scissor Car Lift CSL-3

Four Post Car Lift FP-4

Rail Car Lift CSL-3

Standard Type GH

Home Lift with Elevator Car GH-HE

Home Lift with Shaft GH-VA

5-9 Level Rotary Parking System PCX

Mechanical Automated Parking System PPY

Multi Levels Tower Parking System PCS

Four-Post Double-Level Car Parking Lift

Four-Post Double-Level Car Parking Lift

Description

Product Feature

Product Introduction

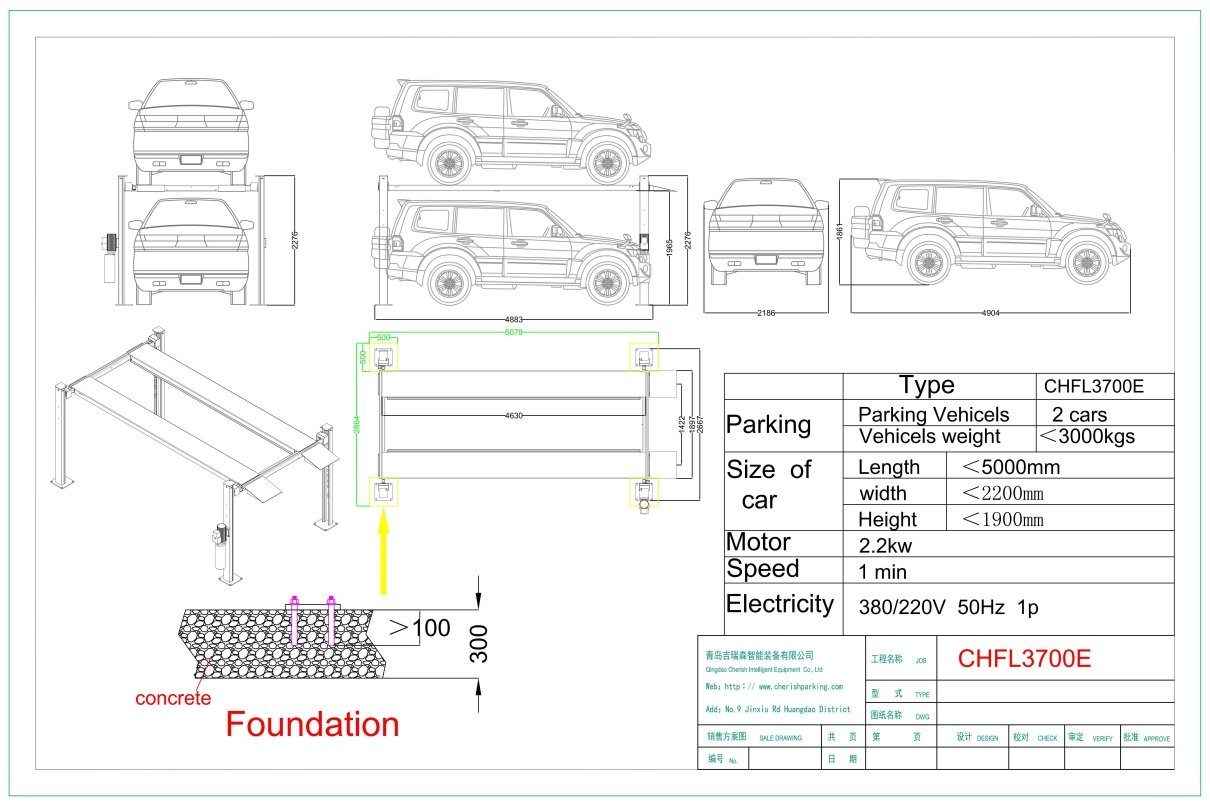

Drawing
