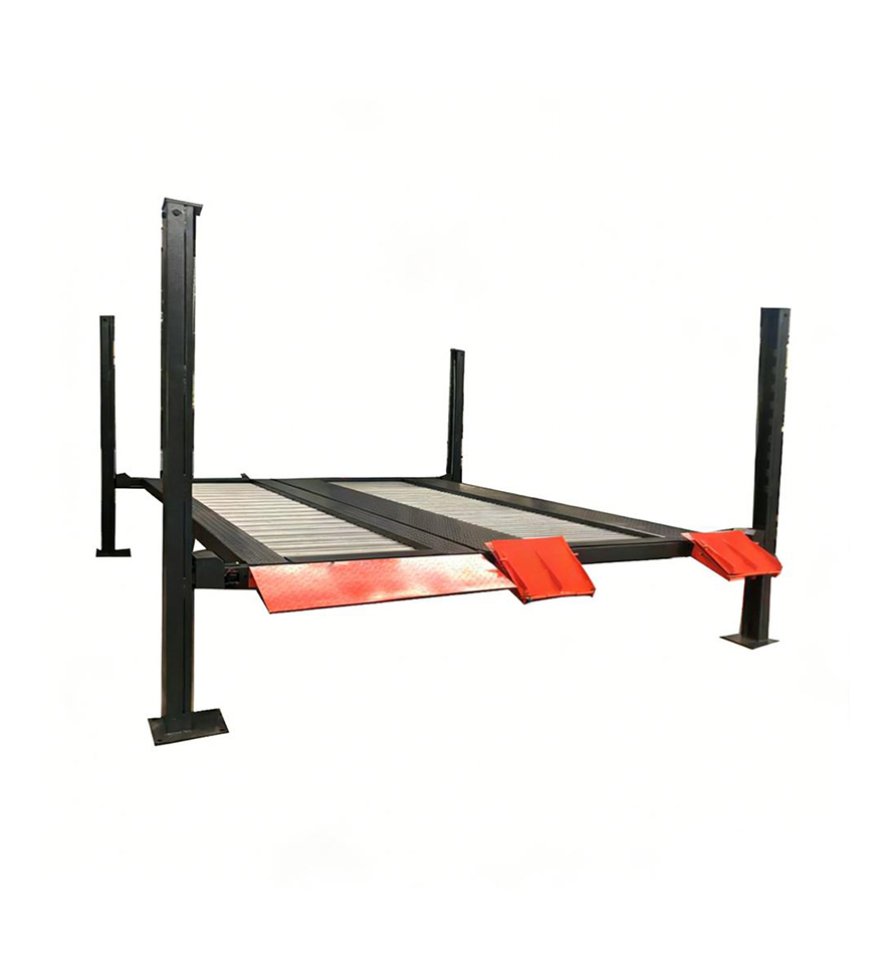

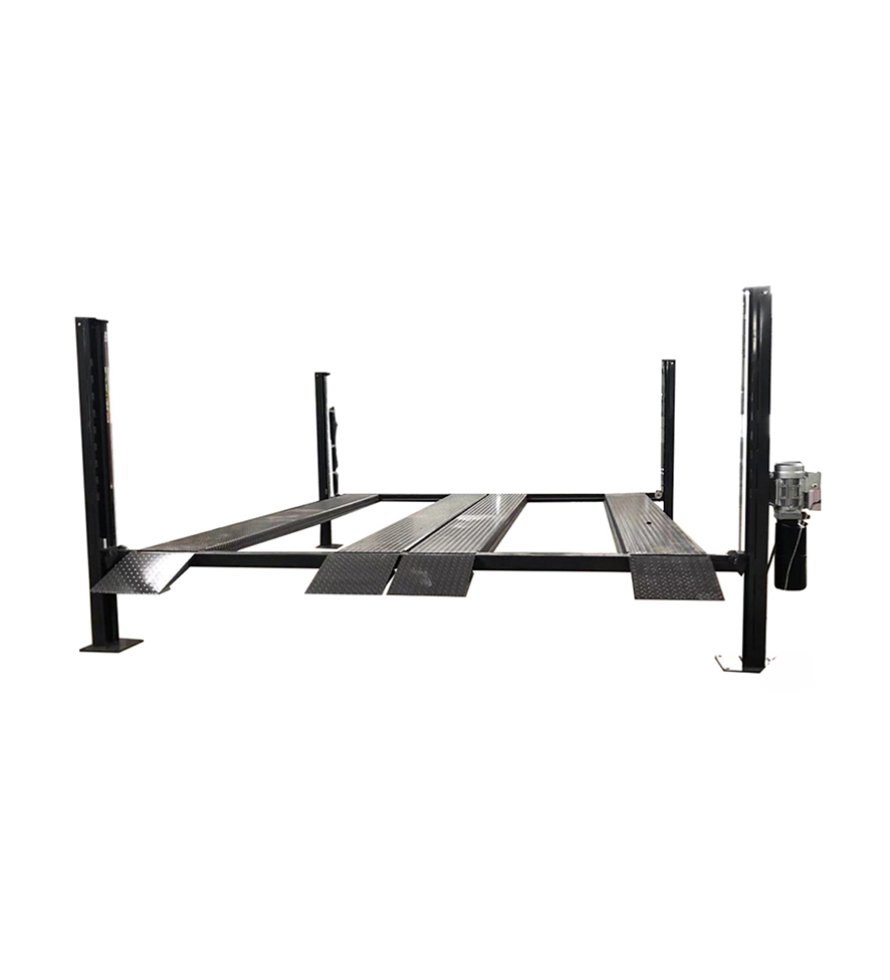

Four Post 4 Cars Parking Lift

Description

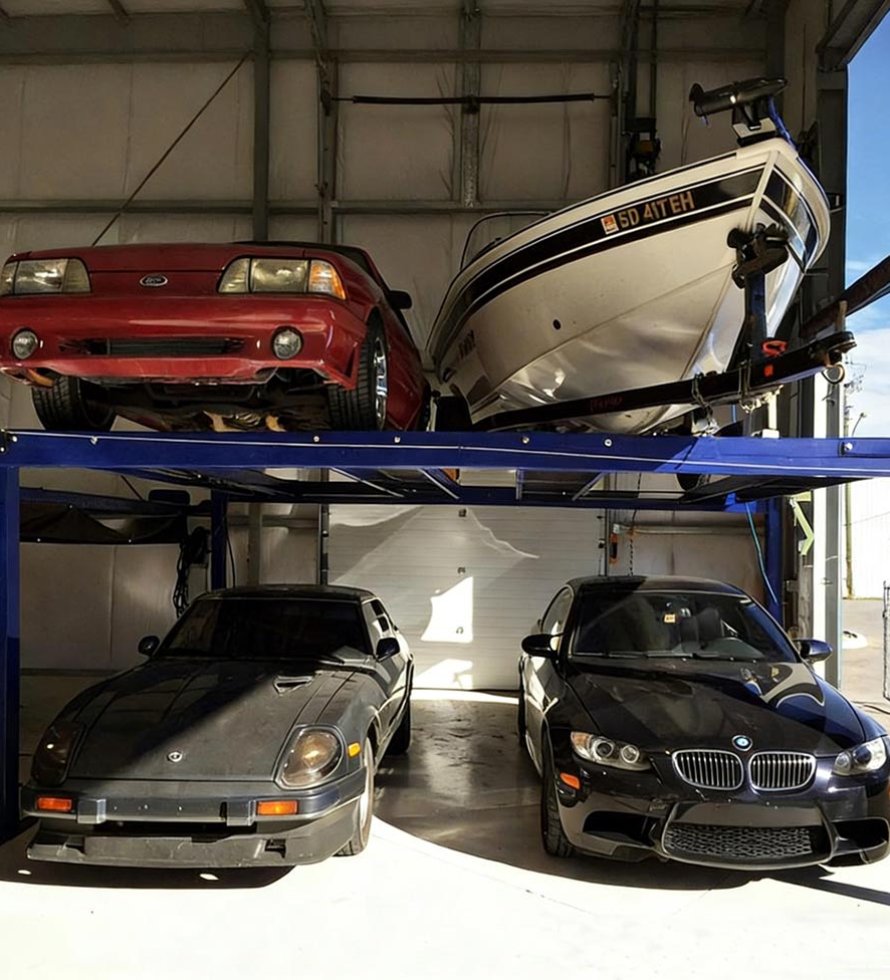

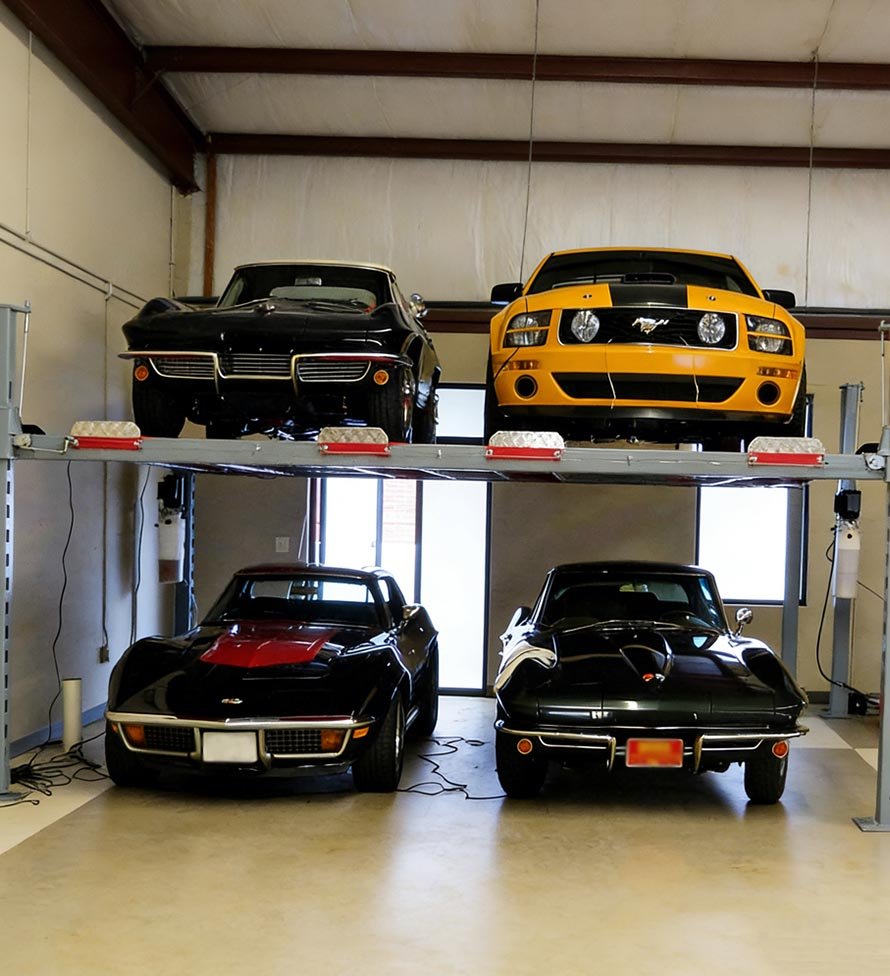

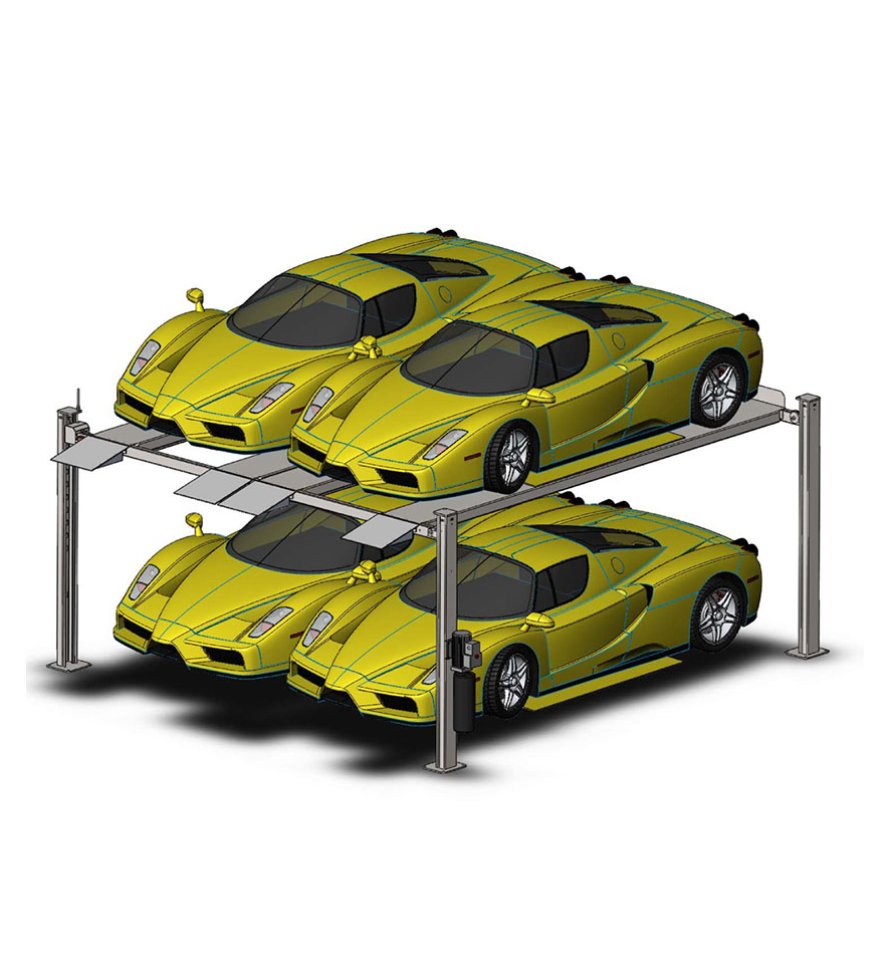

CHFL2+2 is a two-level parking lift featuring two upper parking spaces and two lower spaces. With a combined capacity of 3000kg, it efficiently accommodates up to four vehicles for parking and storage. Its unique double-wide design allows simultaneous lifting and secure storage of two vehicles, making it a highly efficient space-saving solution for both commercial and residential parking facilities.

(0 Customer Reviews)

Product Feature

Feature:

· Unique double-wide design suitable for up to 4 vehicles

· Customizable to fit different layouts; compact structure saves space and cost

· Dual safety locks: one-piece adjustable safety lock ladder and automatic lock in case of wire rope rupture

· Versatile runways compatible with both wide and narrow vehicles

· Total lifting capacity up to 3000kg

· Multi-position safety locks on each column

· Concealed single hydraulic cylinder

· Larger sheave diameter reduces cable fatigue and extends service life

· Mechanical anti-fall locks enable safe stopping at multiple heights

· Adjustable power unit installation position

· Flexible control panel placement

· Durable powder-coated surface finish

Product Introduction

Model No.	CHFL2+2
Lifting Capacity	3000 kg
Lifting Height	1965 mm
Width between Runways	3823mm
Lock Device	Dynamic
Lock release	Electric auto release
Drive Mode	Hydraulic Driven + Cable
Power Supply / Motor Capacity	220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw
Safety Device	Anti-falling Device
Operation Mode	Hydraulic Drive + Steel Wire Rope
