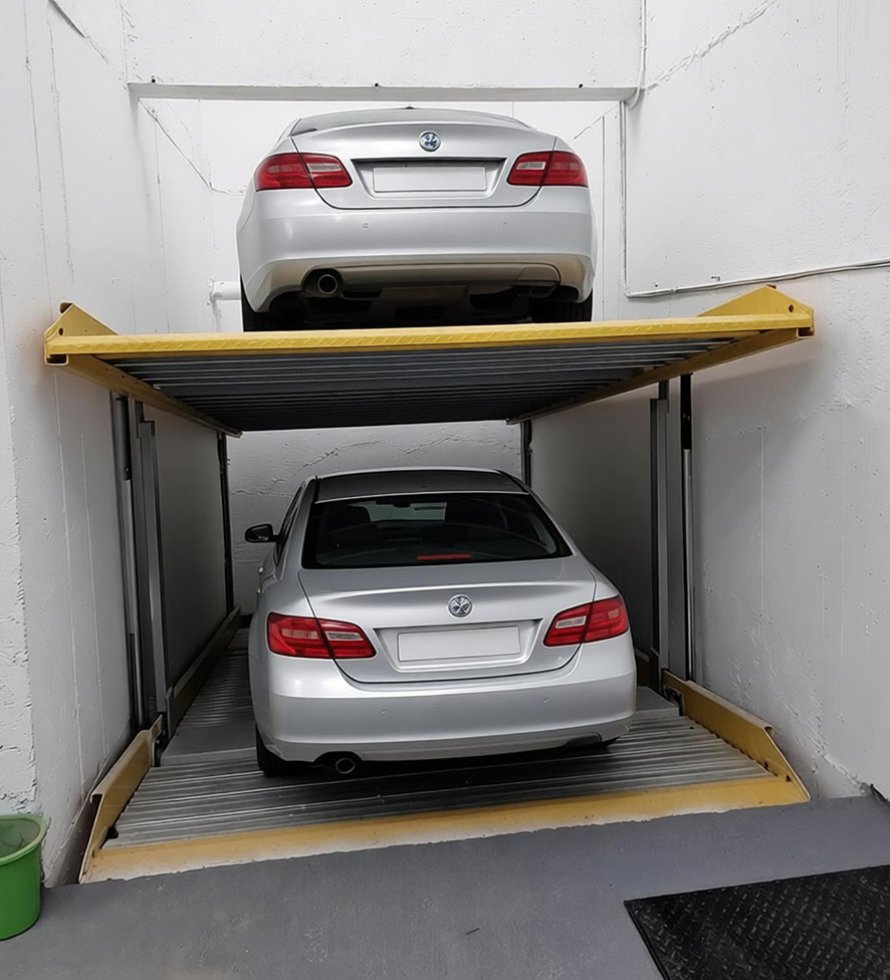

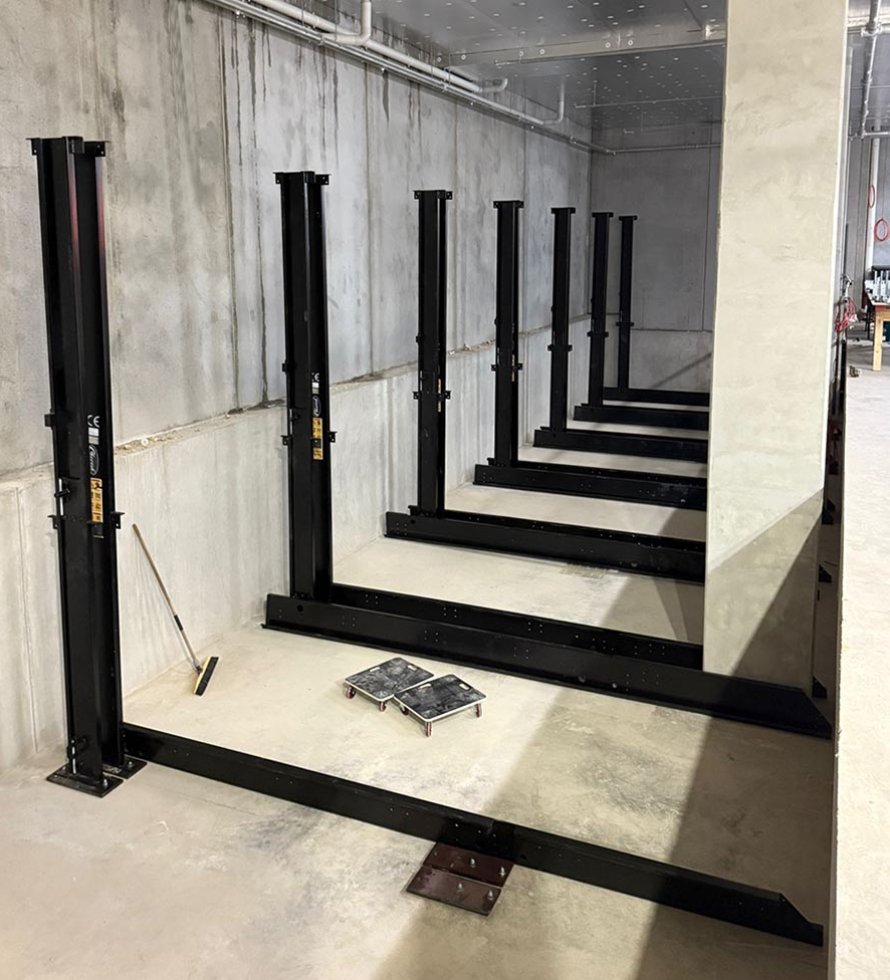

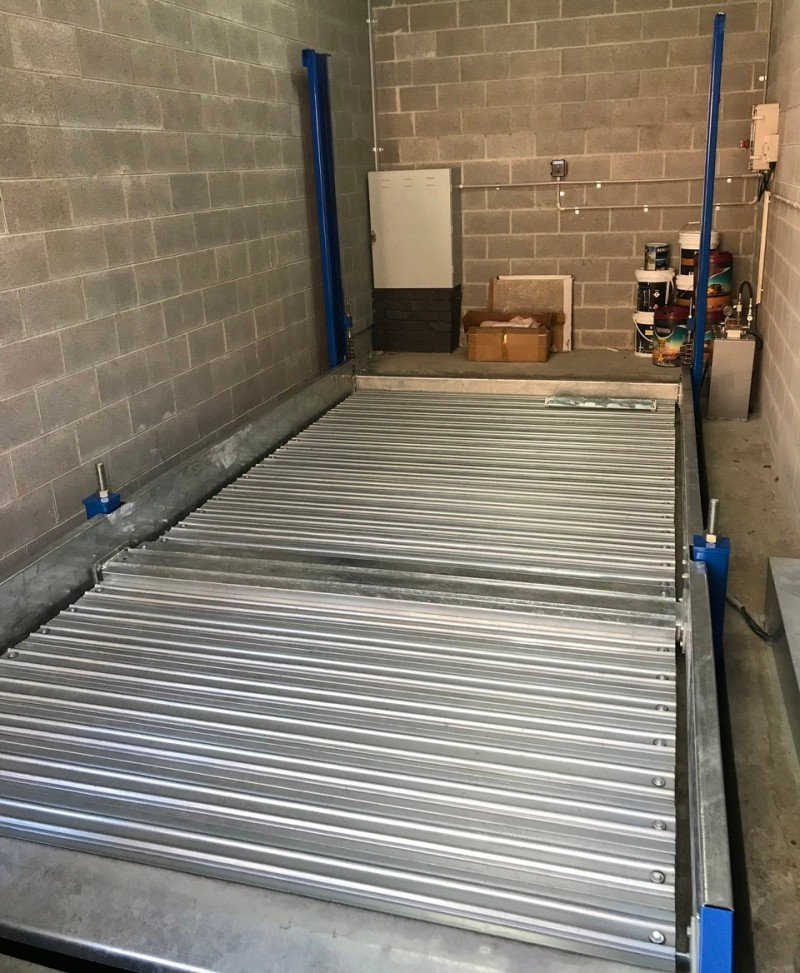

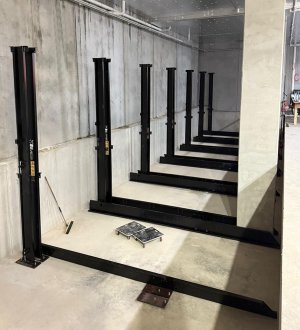

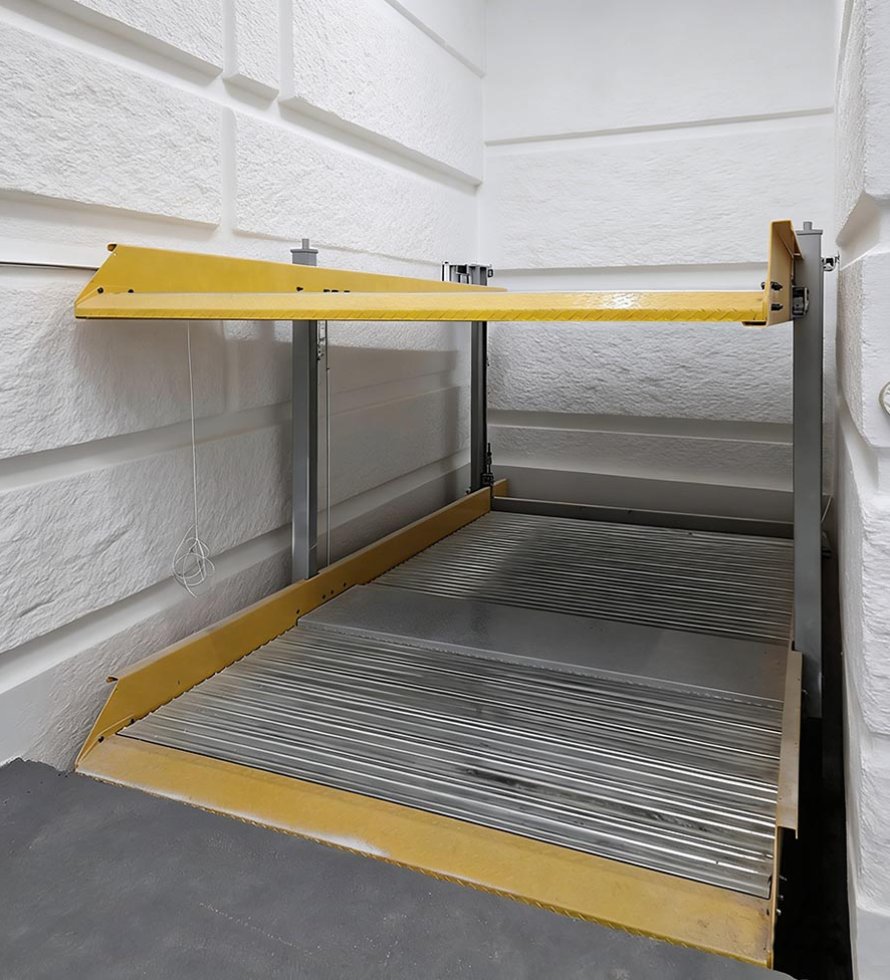

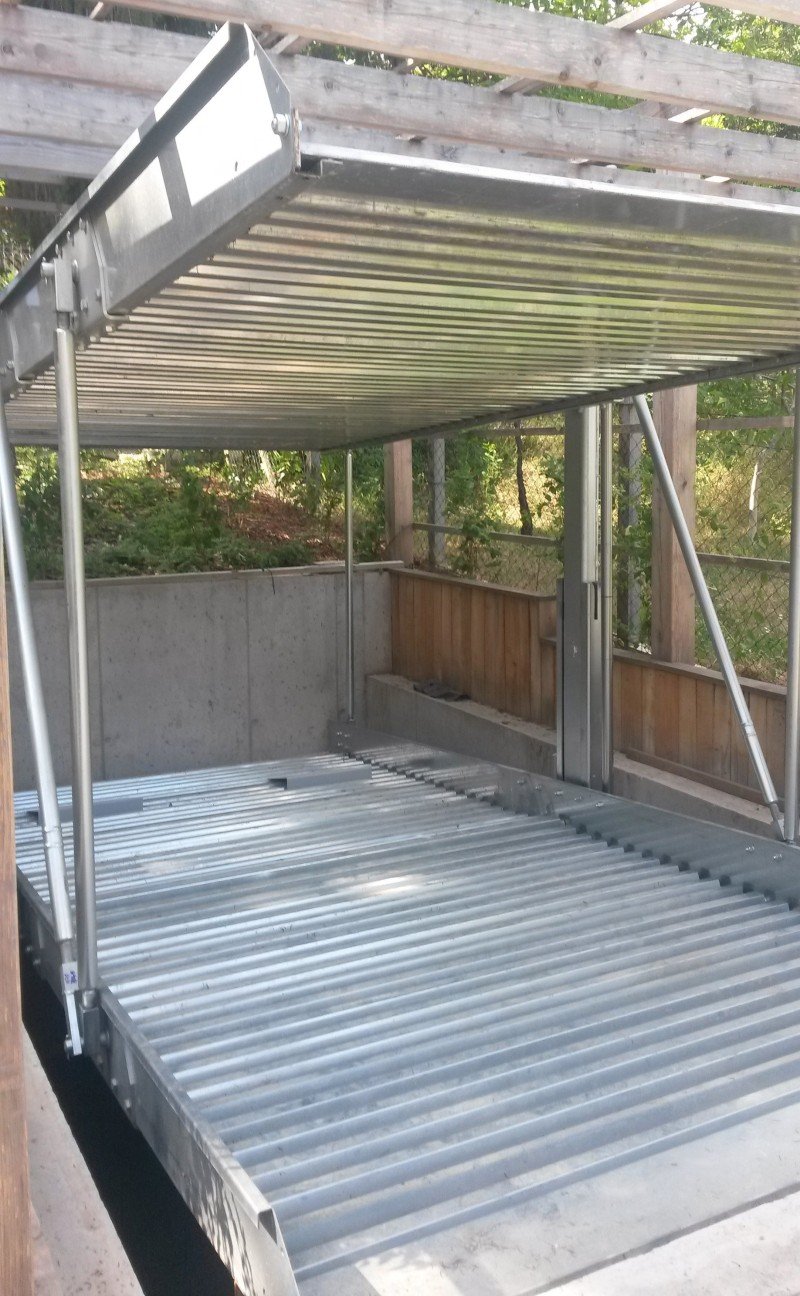

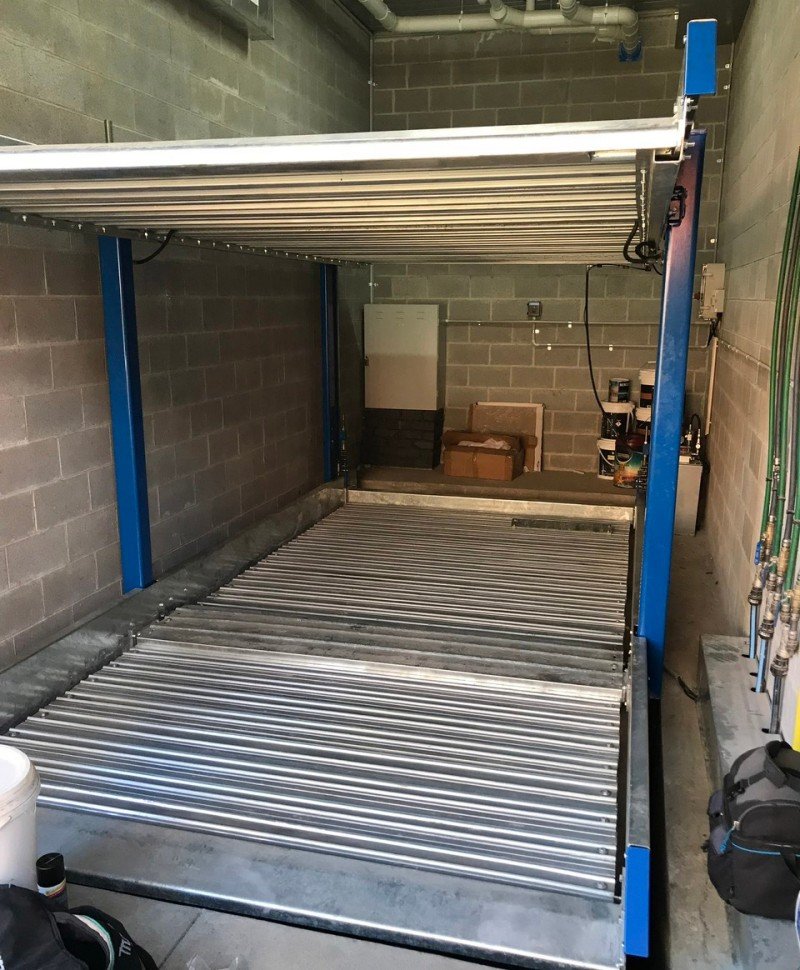

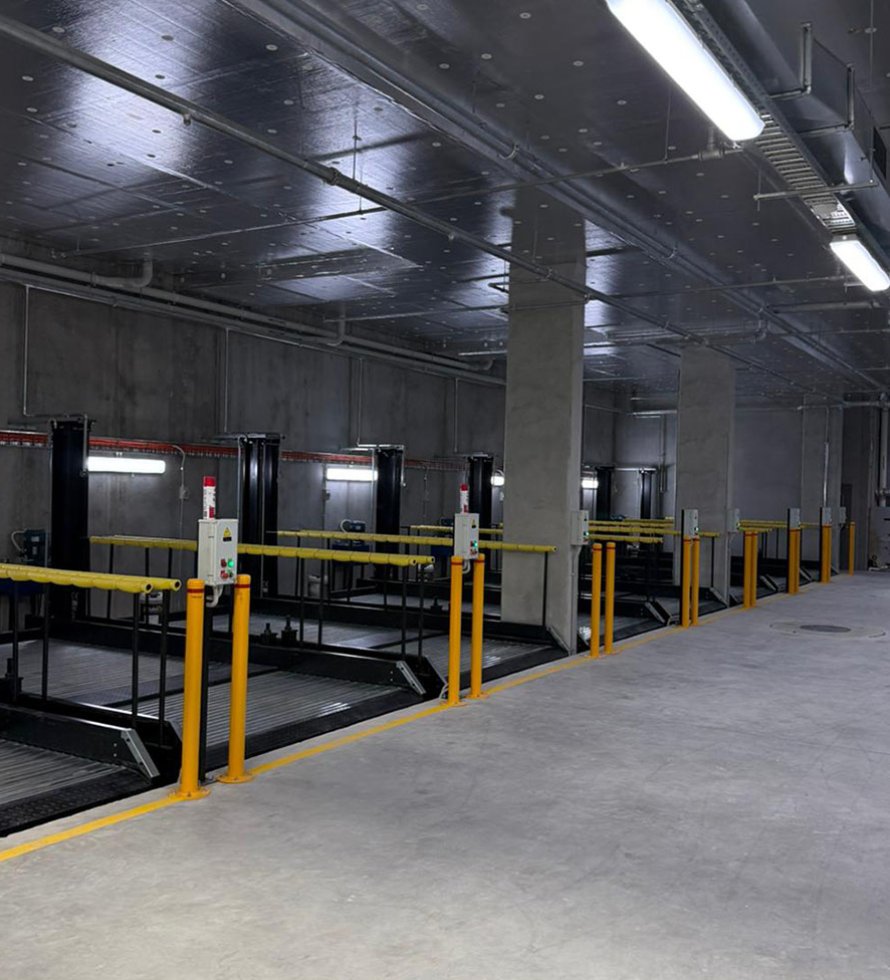

The CPL-2 parking system parks vehicles in a space-efficient manner. Featuring a two-level design, it can vertically park 2 vehicles, making it an ideal choice for multi-level parking in shopping malls, apartments, residences and other places. When you want to drive the vehicle parked on the upper level, there is no need to move the one on the lower level. This system can be installed in basements or pits, thus saving more ground space.

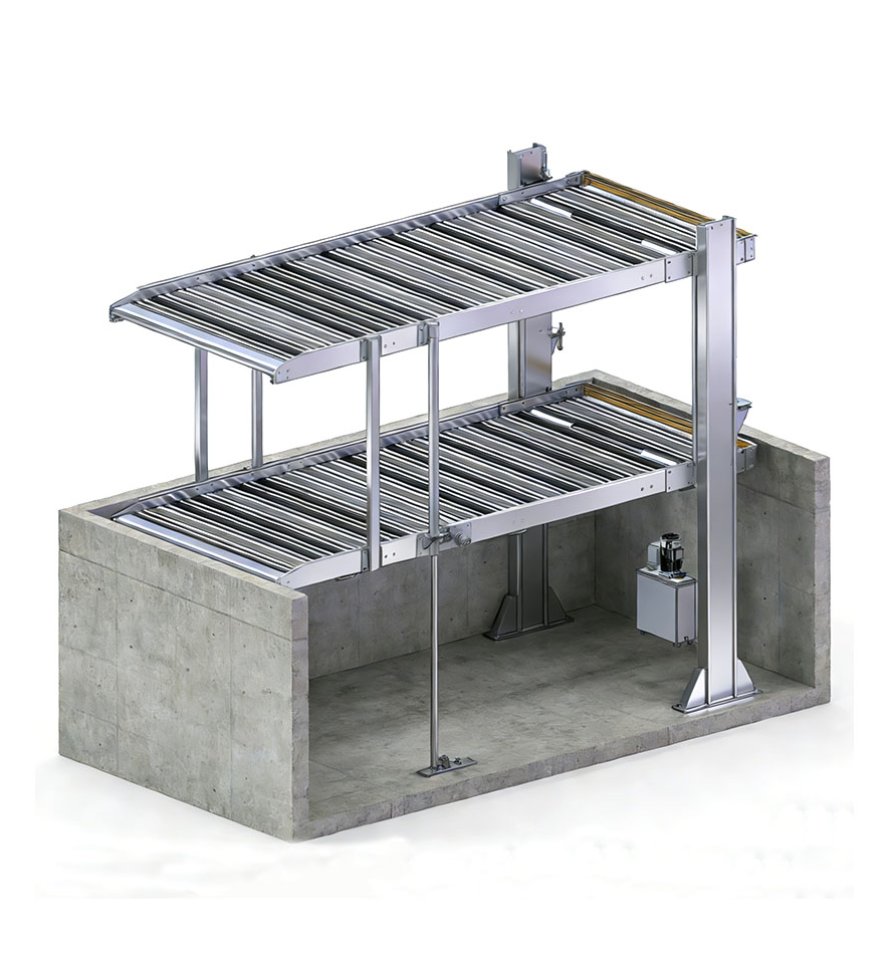

Directly driven by dual master-slave hydraulic lifting cylinders, it is equipped with an independent hydraulic power unit and control panel. With a load-bearing capacity of up to 2000kg, it is suitable for all vehicle series. The equipment shuts down automatically once the operator releases the key switch. It is suitable for independent parking, with a single platform capable of parking 2 vehicles. All parking levels are accessible horizontally. It features low operating costs: the platform is driven by gravity when descending, eliminating the need for an electric motor. Our professional packaging team ensures that products are delivered to customers intact; the compact package size simplifies the unloading and handling processes.
![]()
![]()
![]()
Model No. | CPL-2 |
Lifting Capacity | 2000kgs |
Lifting Height | 1885mm |
Usable Platform width | 2237mm |
Overall Height | 4270mm |
Overall Length | 5078mm |
Overall Width | 2696mm |
Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw |
Lock Release | Electric Release |
Drive Mode | Hydraulic Drive + Chain |
![]()
