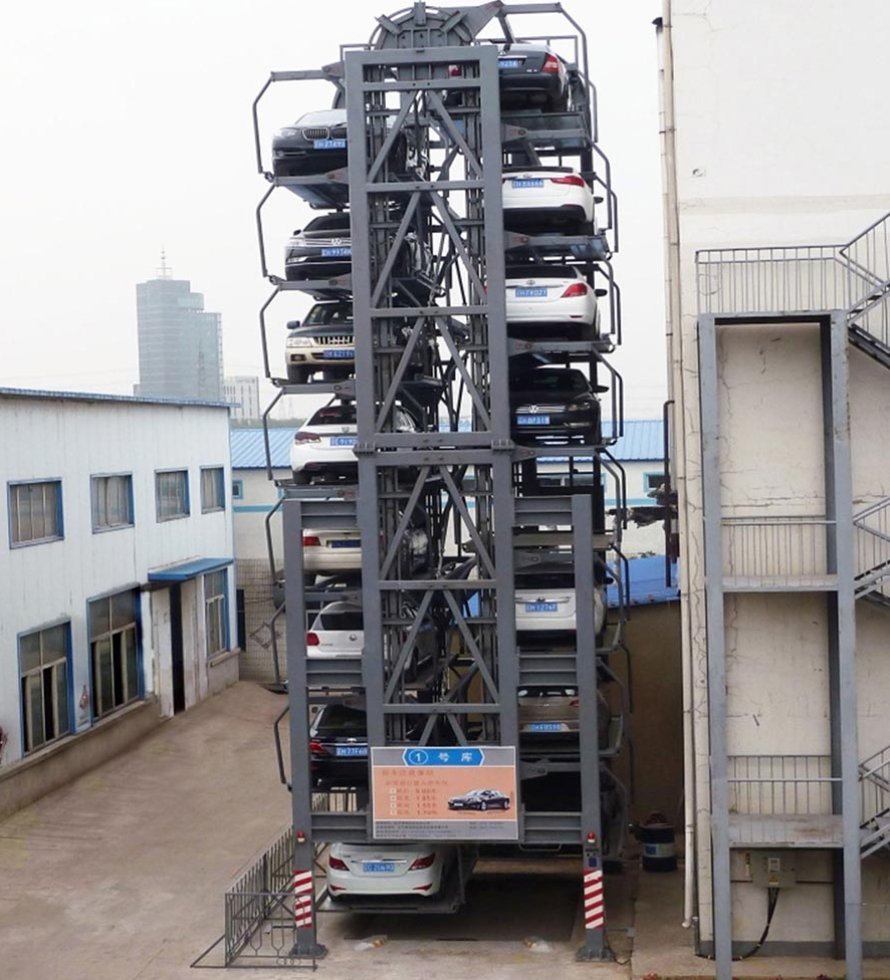

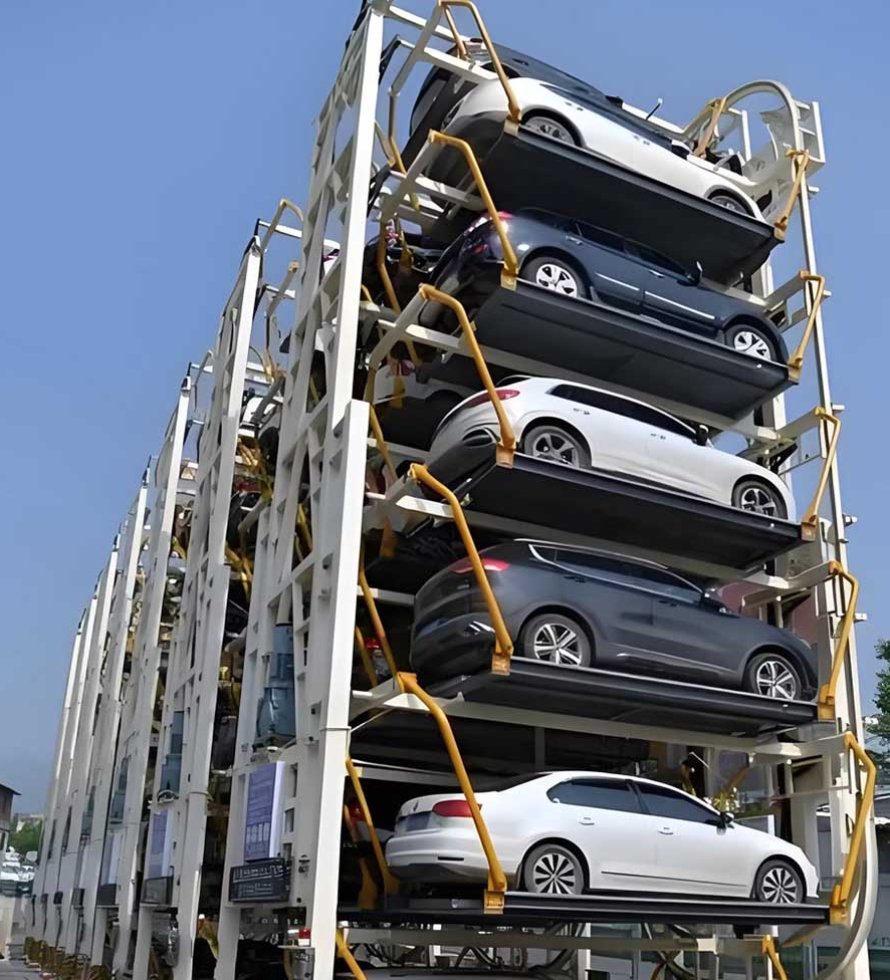

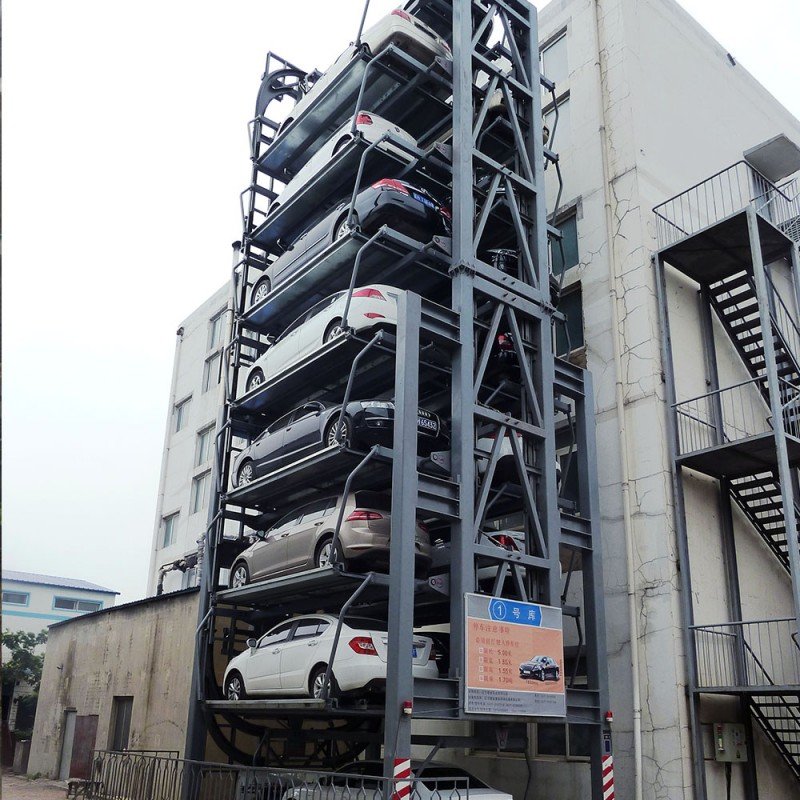

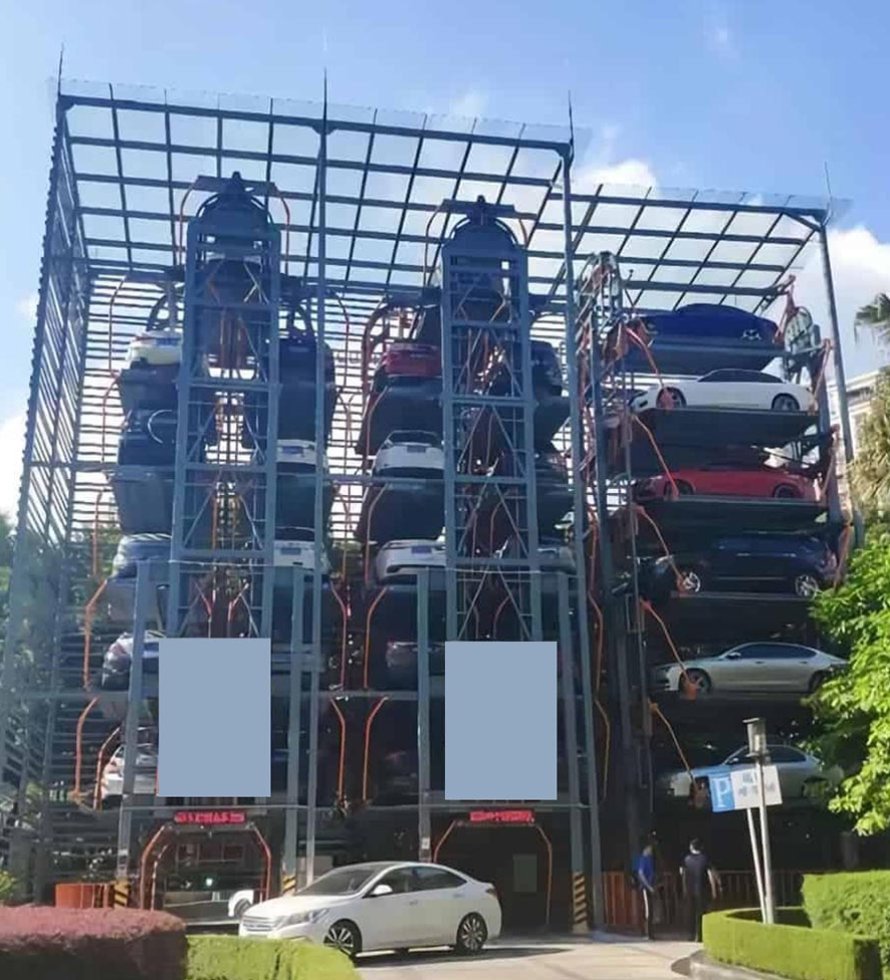

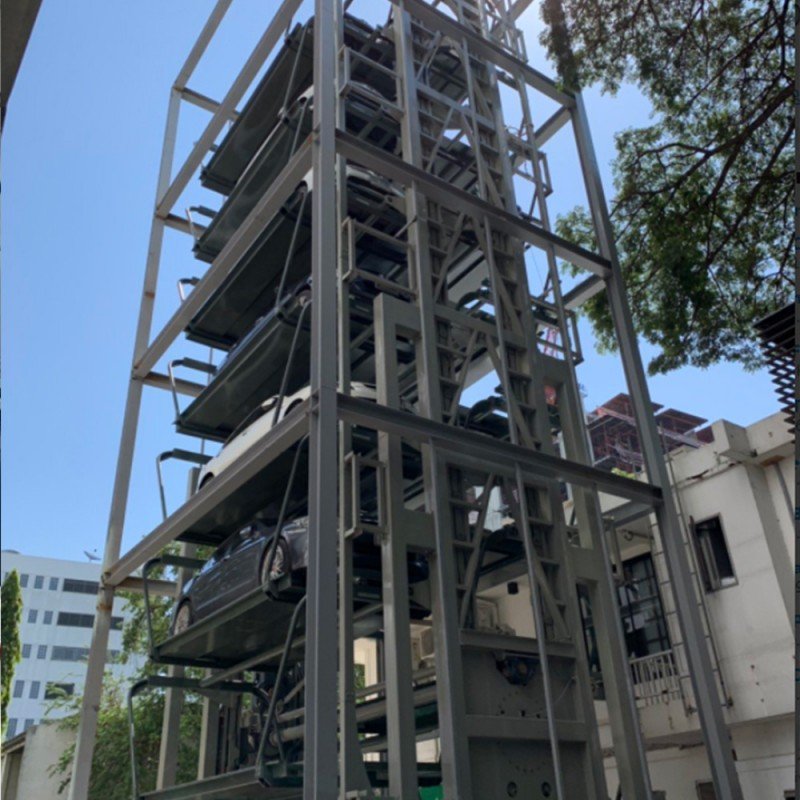

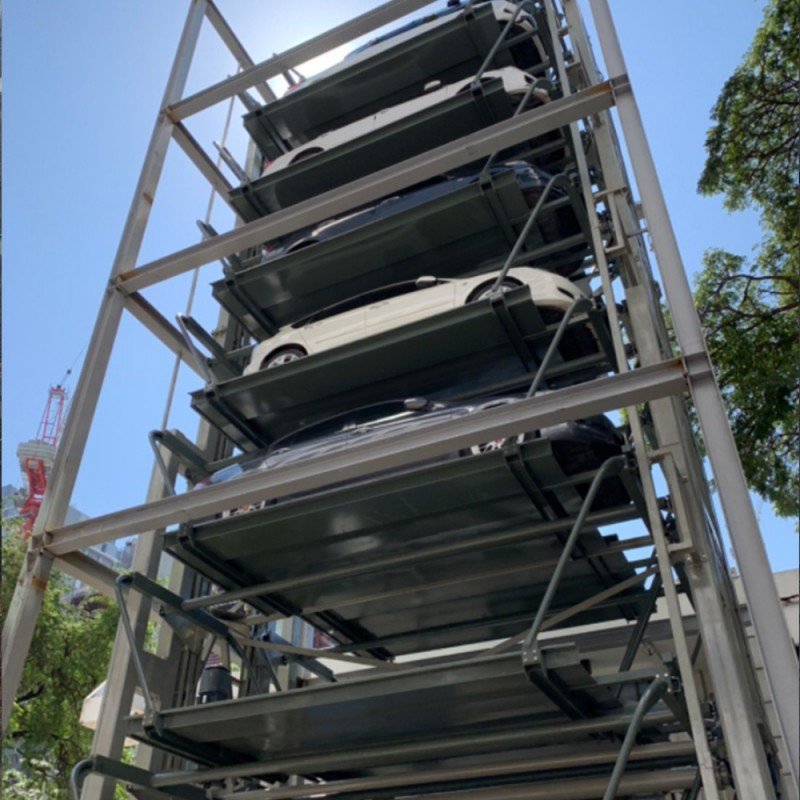

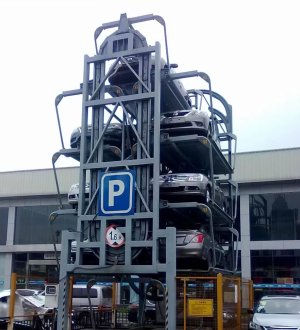

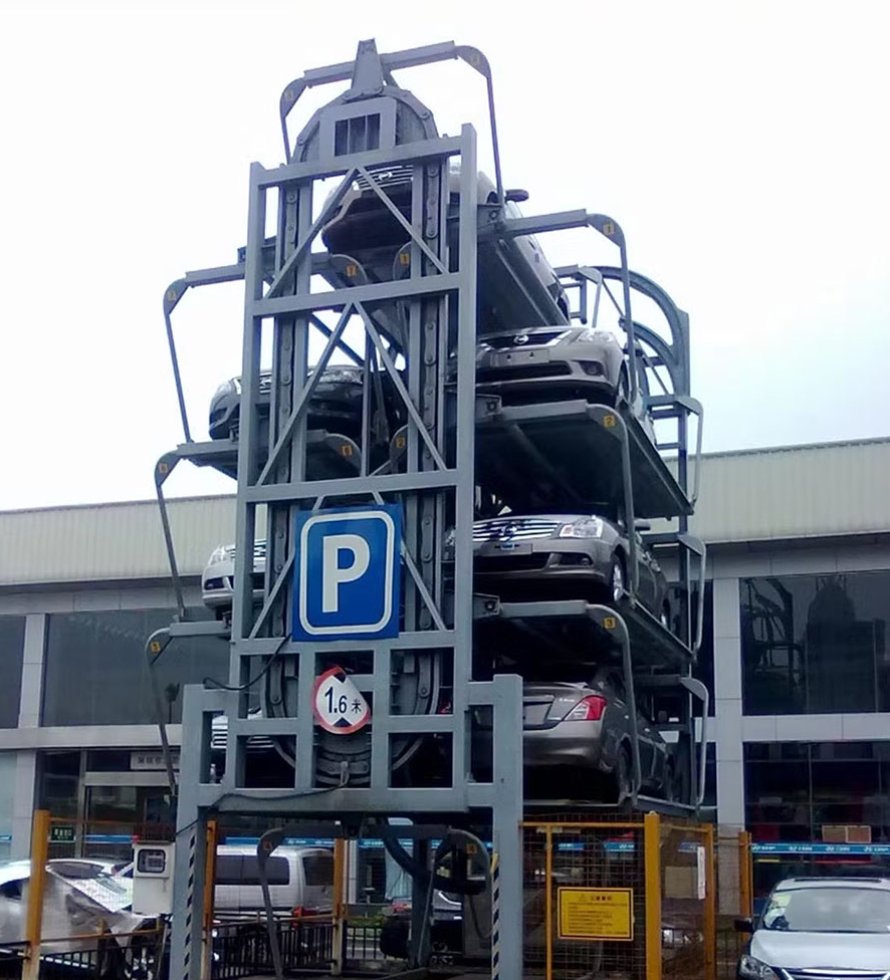

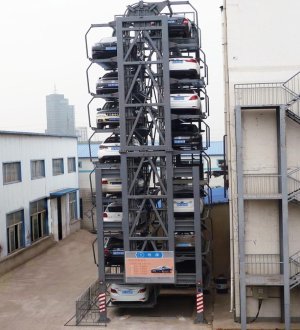

The rotary parking system is one of the most space-efficient parking solutions available, capable of accommodating up to 16 SUVs or 20 sedans within the footprint of just two conventional parking spaces. The system operates independently, requiring no parking attendant.
Users simply enter a space code or swipe a pre-assigned access card. The system automatically identifies the vehicle and selects the fastest rotation path—clockwise or counterclockwise—to deliver the vehicle smoothly to ground level for retrieval.
Feature:
1. Suitable for all types of vehicles
2. Least cover area than other automated parking systems
3. Up to 10 times space saving than traditional parking
4. Quick time of car retrieval
5. Easy to operate
6. Modular and simpler installation, averaging 5 days per system
7. Quiet operation, low noise to neighbors
8. Car protection against dents, weather elements, corrosive agents and vandalism
9. Reduced exhaust emissions driving up & down aisles and ramps looking for a space
10. Optimal ROI and short payback period
11. Possible relocation & reinstallation

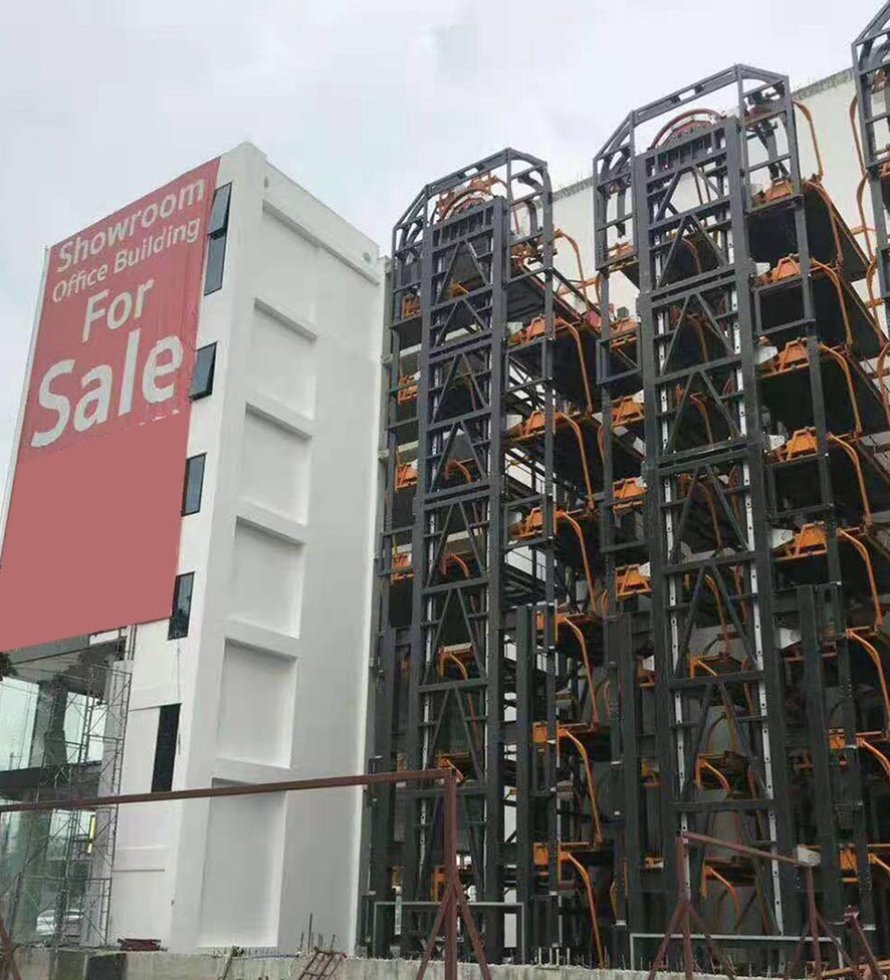

12. Wide range of applications including public areas, office buildings, hotels, hospitals, shopping malls, and car showrooms, etc.
![]()
![]()
![]()

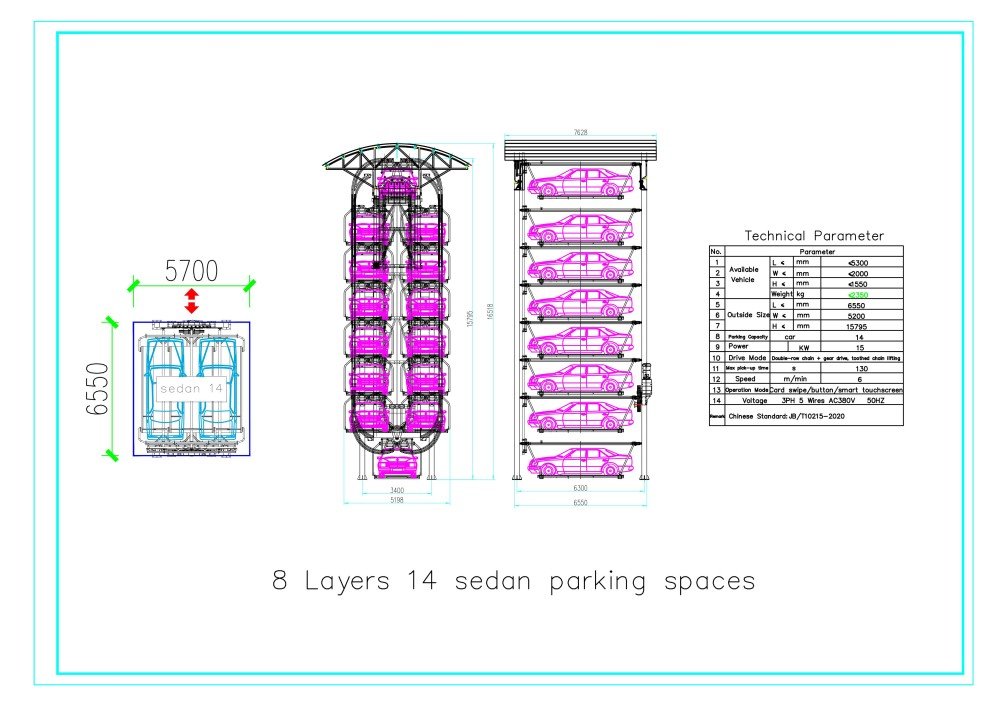

Model No. | PCX - sedan | PCX - SUV |
Lifting Capacity | 2200kg | 2500kg |
Voltage | 380v, 3ph | |
Control system | PLC | |
Operation Mode | Button + Card | |

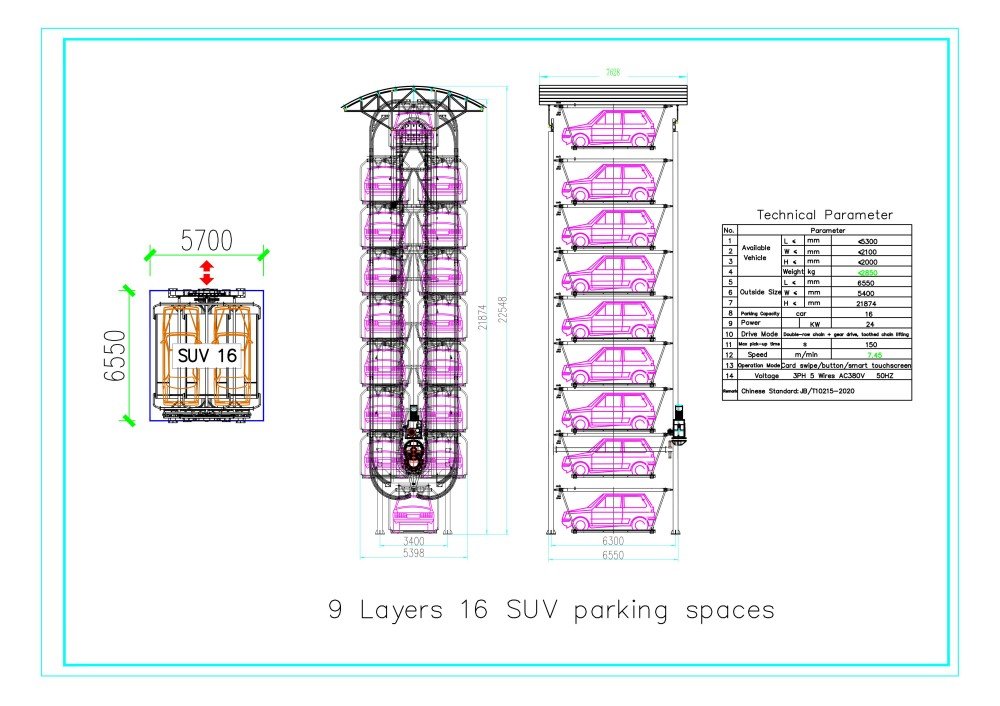

Parking space | 8, 10, 12, 14, 16 | |
![]()
![]()
Whether you face challenges in parking management,CHERISH is your reliable partner.
