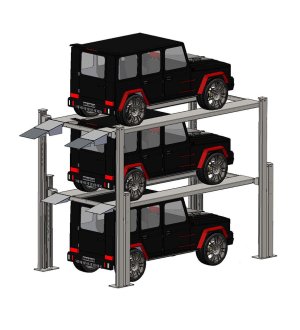

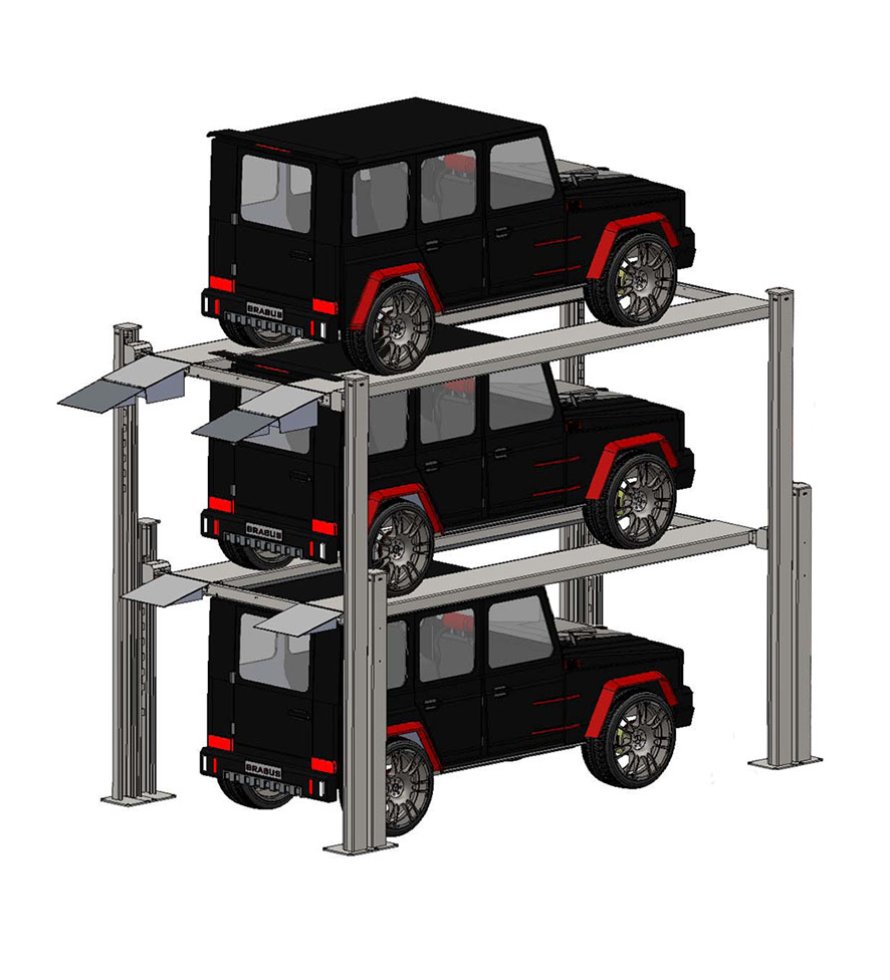

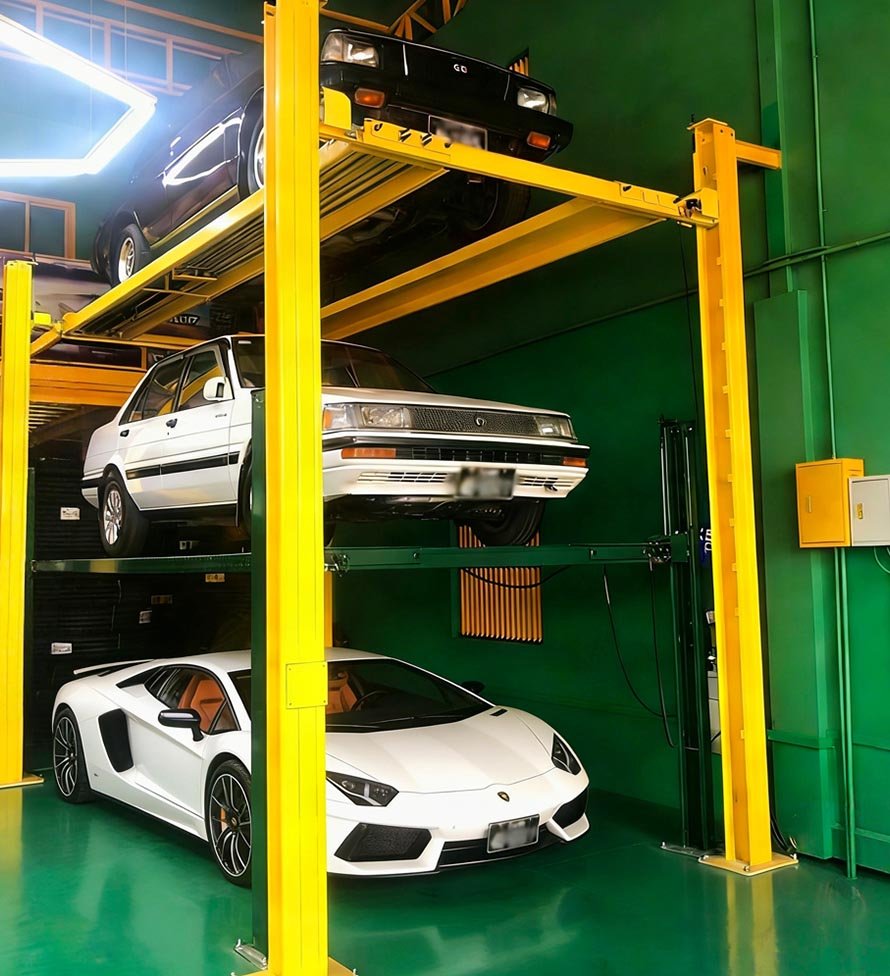

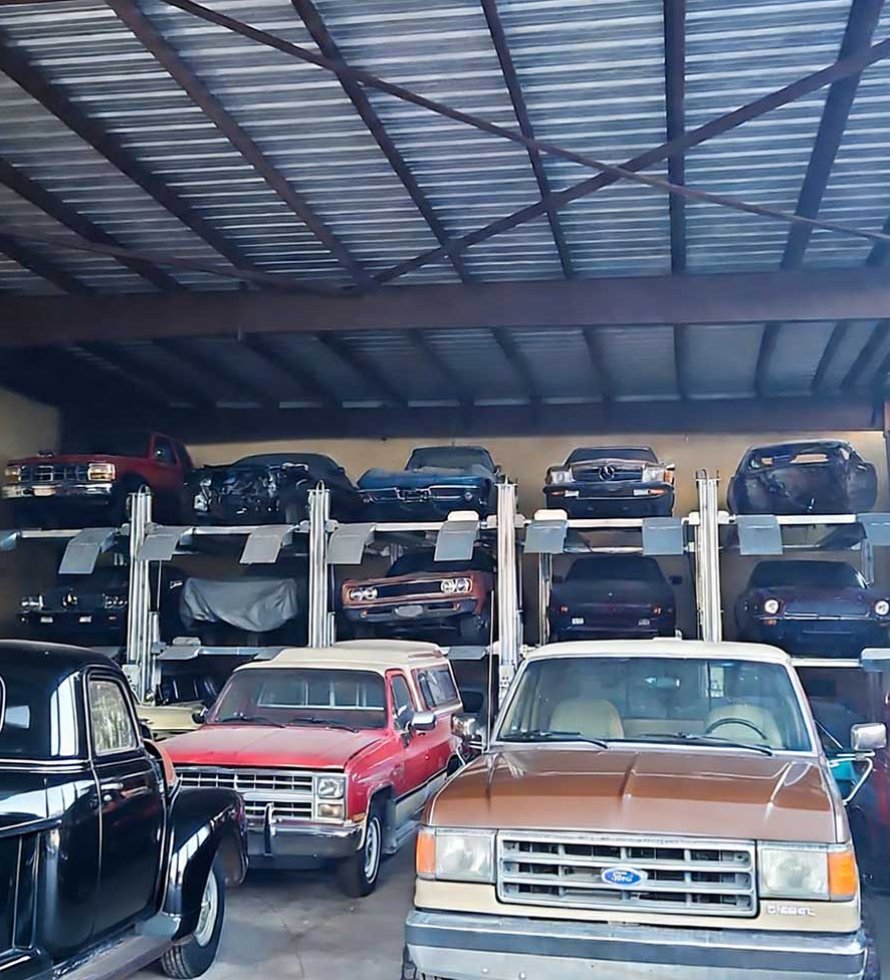

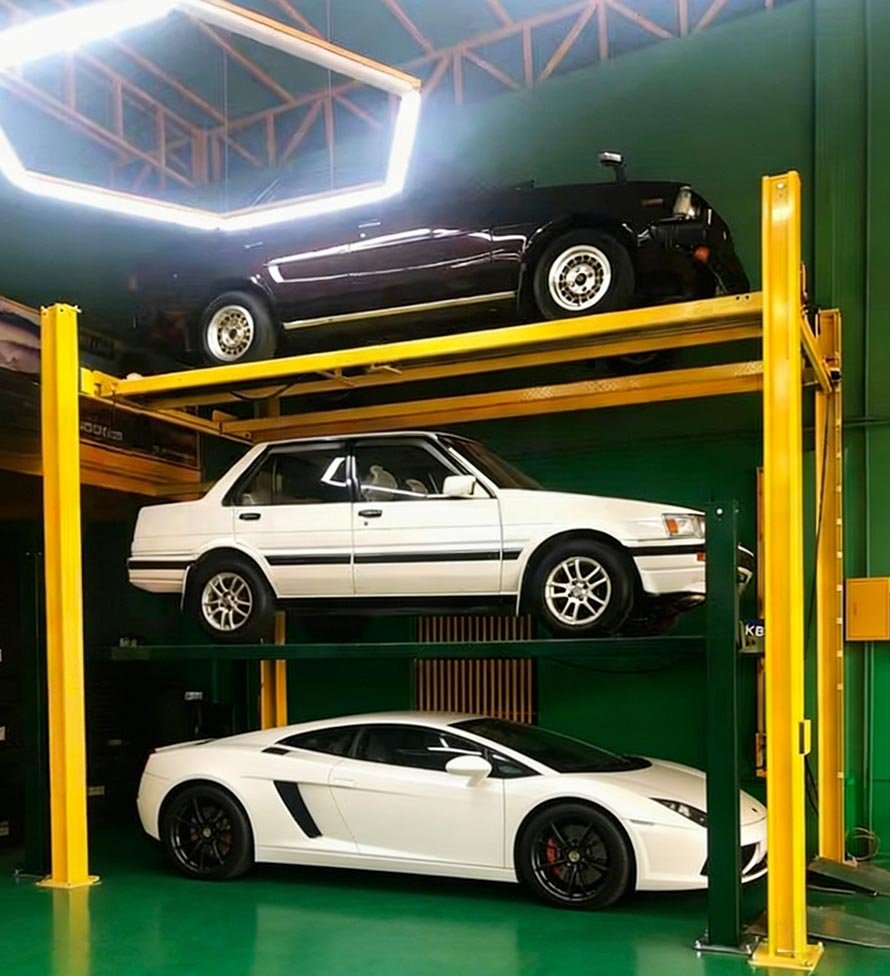

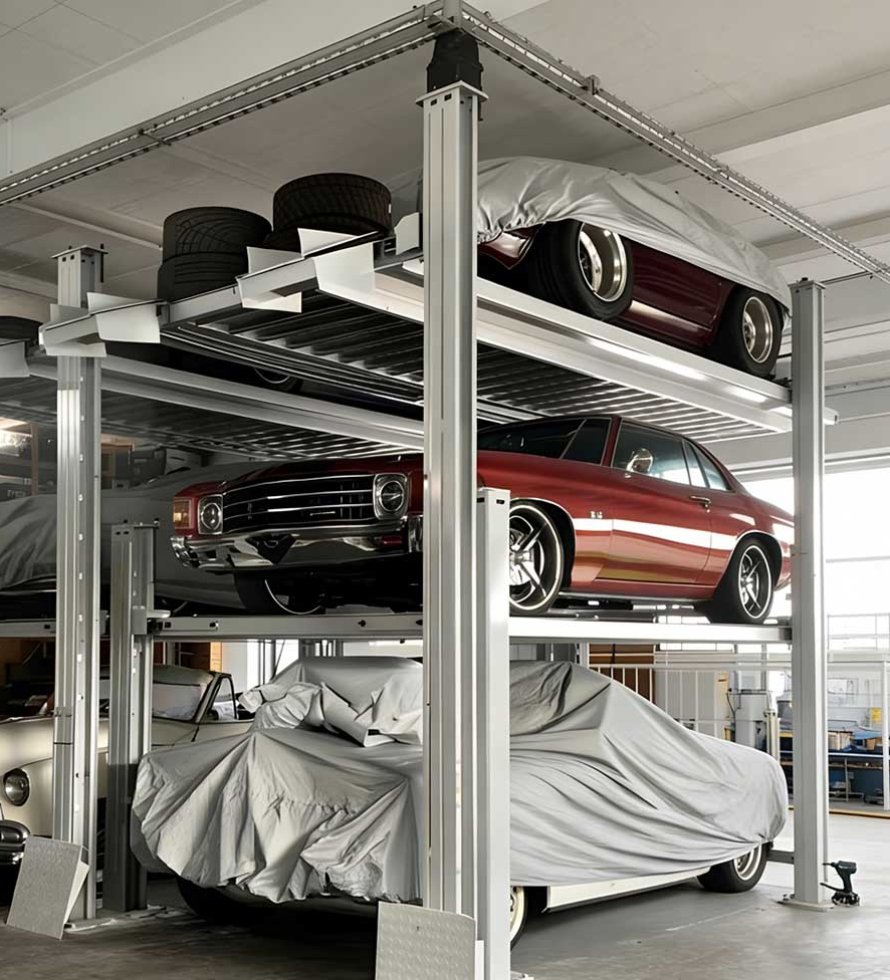

CHFL4-3 is a high-efficiency triple car stacker that accommodates three vehicles within the footprint of a single parking space. Offering exceptional space-saving performance, reliable safety features, easy installation, and cost-effective pricing, it is the ideal parking solution for car storage facilities, rental yards, valet parking areas, commercial sites, and automotive dealerships.
Feature:
· Suitable for residential, commercial and vehicle storage applications.
· Composed of two independent four-post parking lifts, installed in an upper and lower configuration.
· Hydraulic cylinder drive with wire rope lifting system via heavy-duty sheaves.
· Automatic ladder latch locking system with push-button electromagnetic release on the control panel.
· Hot-dip galvanized corrugated platform for enhanced safety and long service life.
· Foldable ramps ideal for sports cars and space-efficient installation.
· Anti-slip corrugated deck protects vehicles and operators from slipping or damage.
· Equipped with Italian oil seals to prevent leakage; chrome-plated piston rod for corrosion resistance and extended durability.
![]()
![]()
![]()

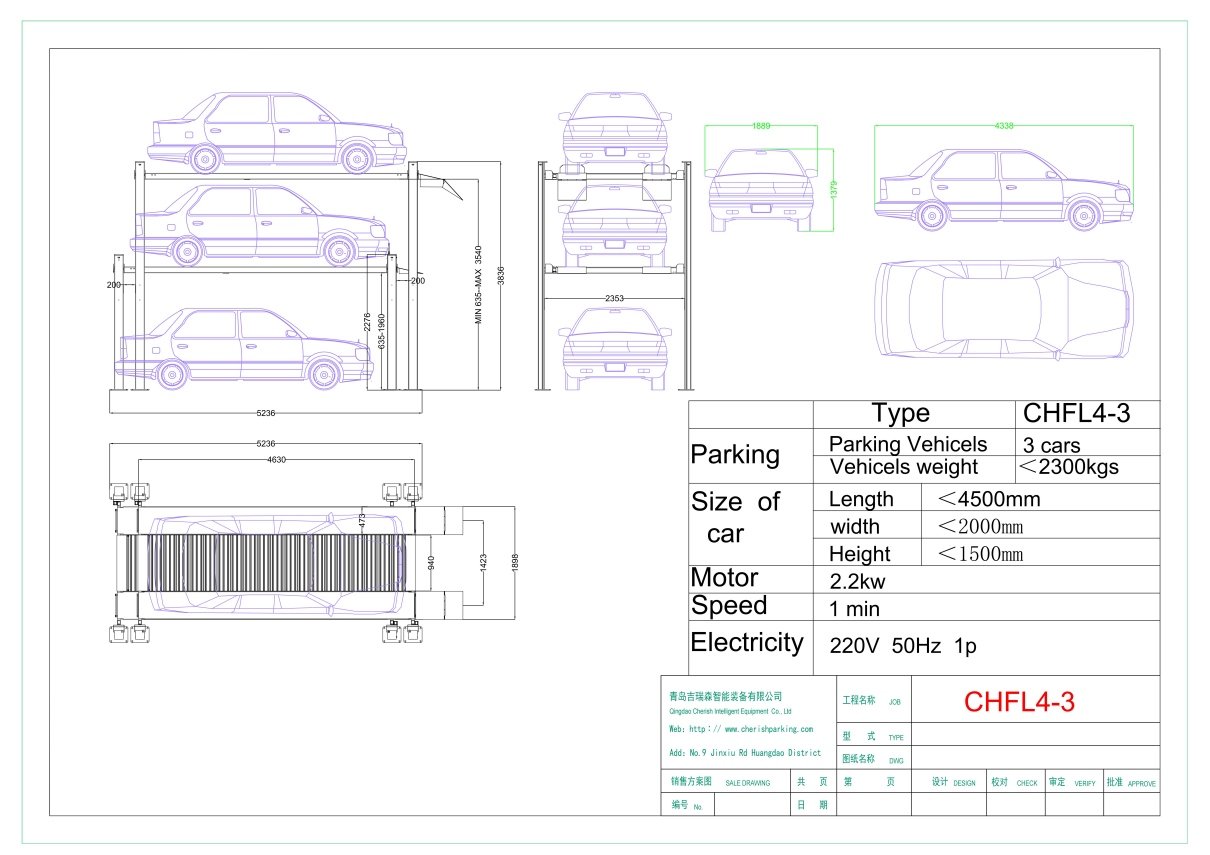

CHFL4-3 | Upper Platform | Lower Platform |
Lifting capacity | Ground floor unlimited, 2nd floor 3000kg, 3rd floor sedan 2000kg | |
Total width | 2671 mm | |
Outside length | 6120 mm | |
Height of post | 3836mm | 2276mm |
Maximum lifting height | 3540mm | 1960mm |
Distance between posts | 2353mm | |
Runway width | 473mm | |
Runway length | 4630mm | |
Motor | 220V, 50Hz, 1 Ph (special voltages available upon request) | |
Motor | 2.2 kw | |
Surface treatment | Powder coating or galvanizing | |
Operation Model | Key switch + control button | |
Safety | 4 safety lock per floor and auto protection device | |
![]()
