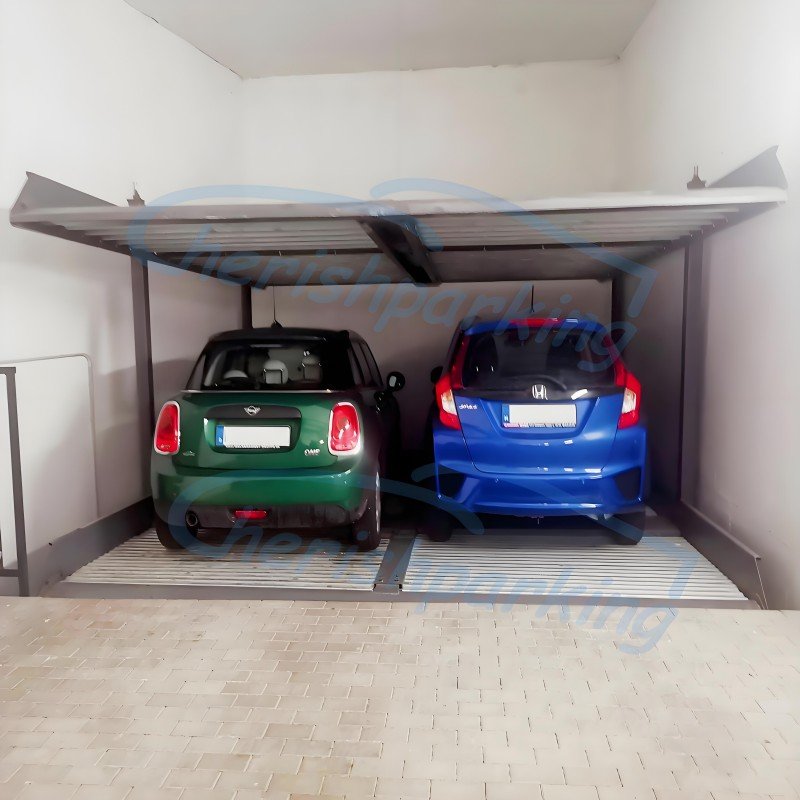

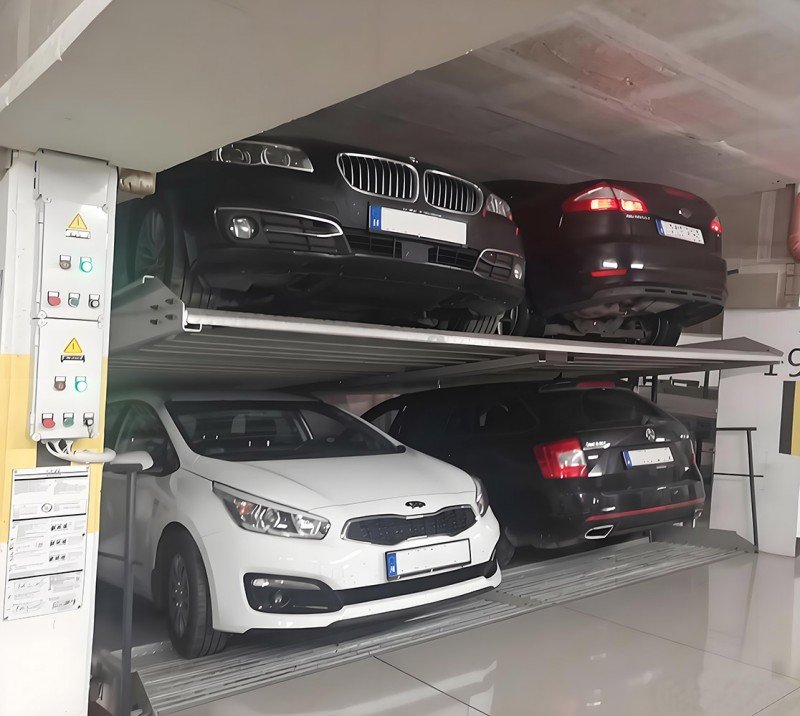

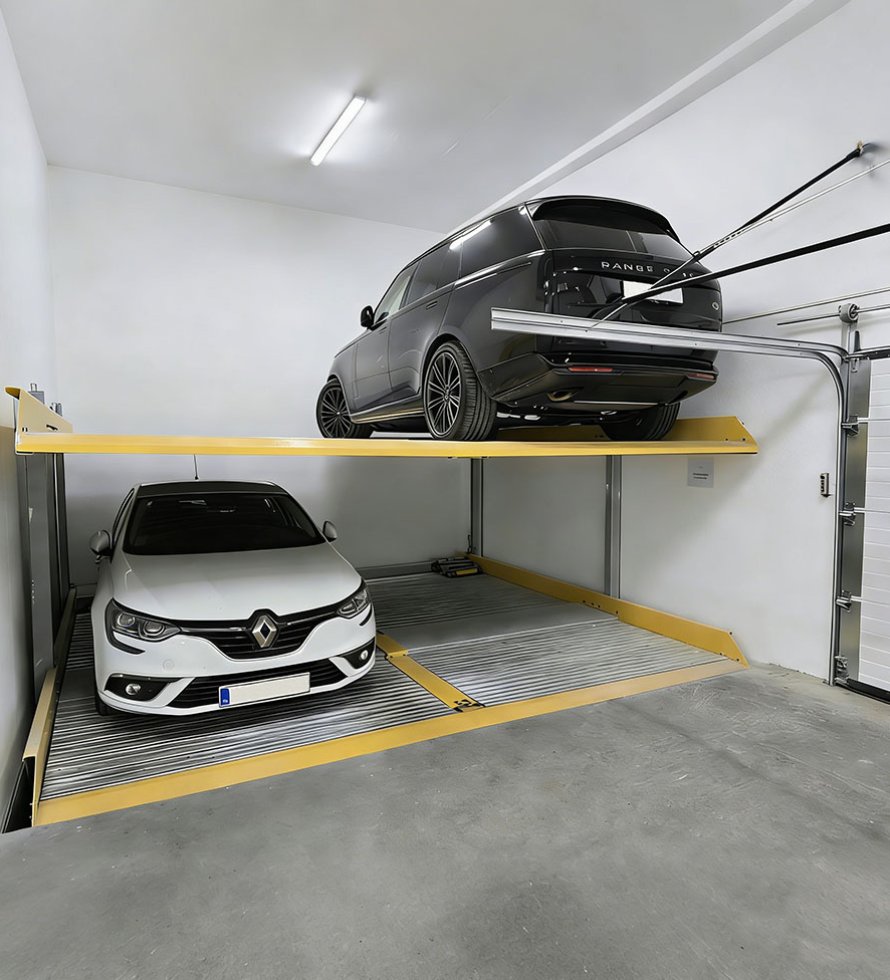

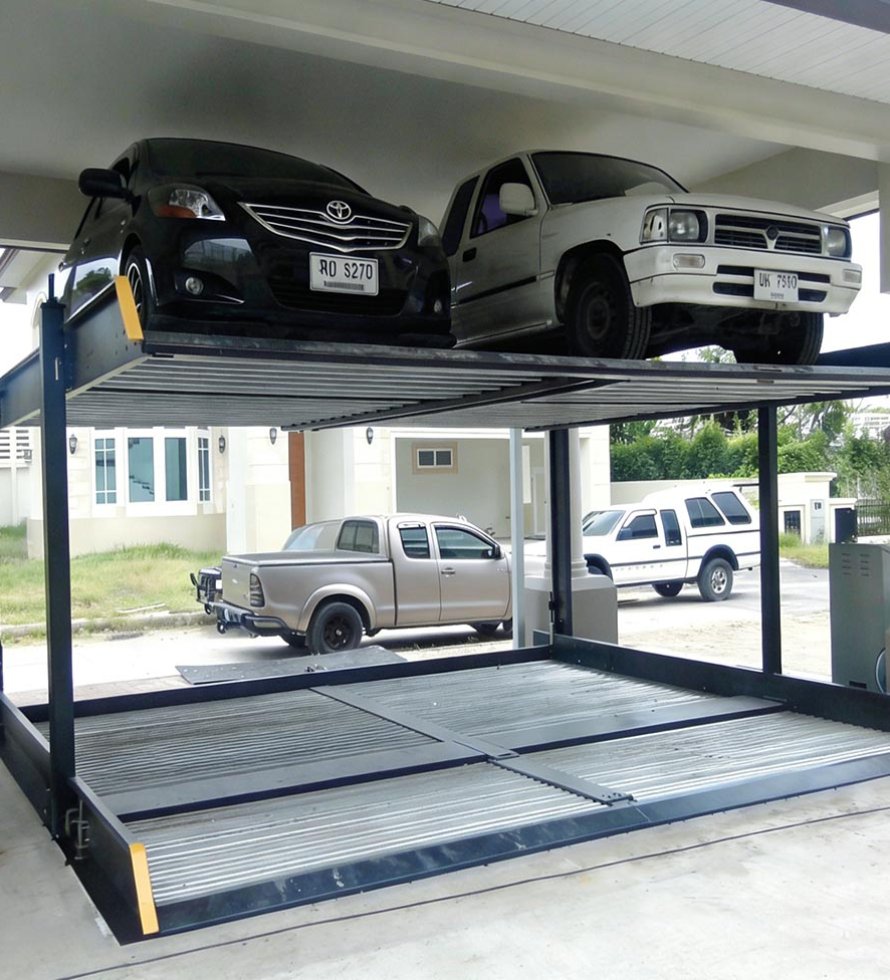

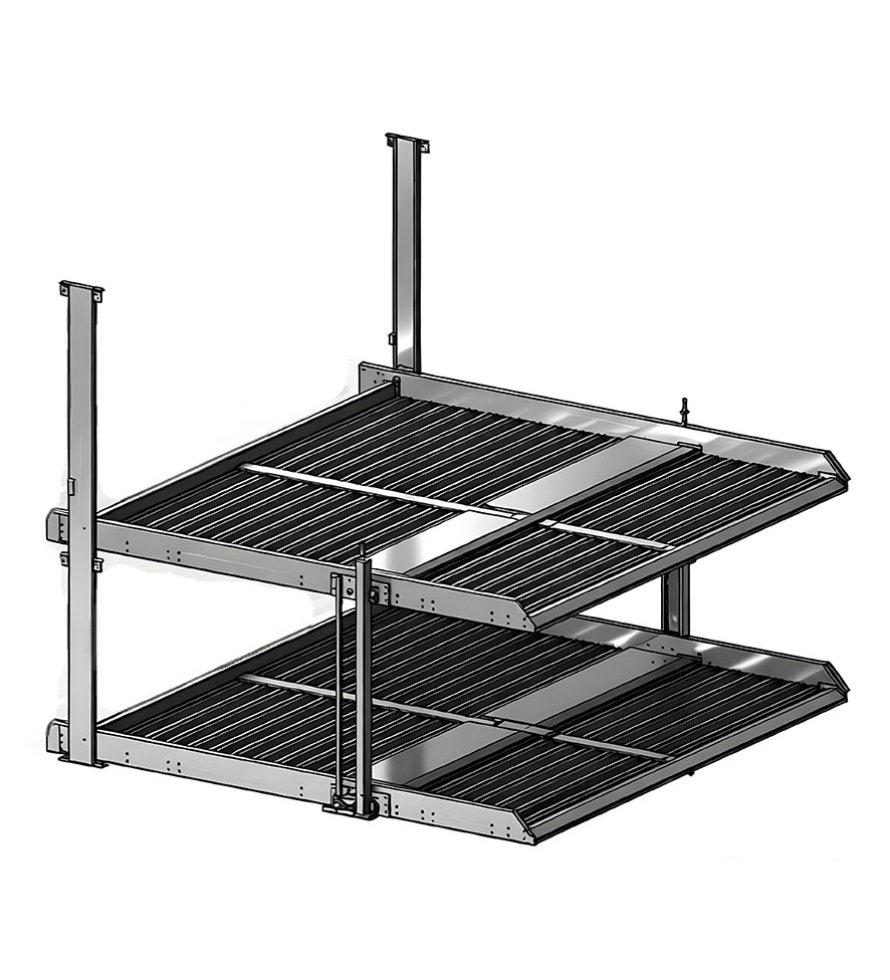

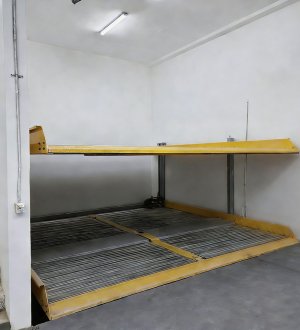

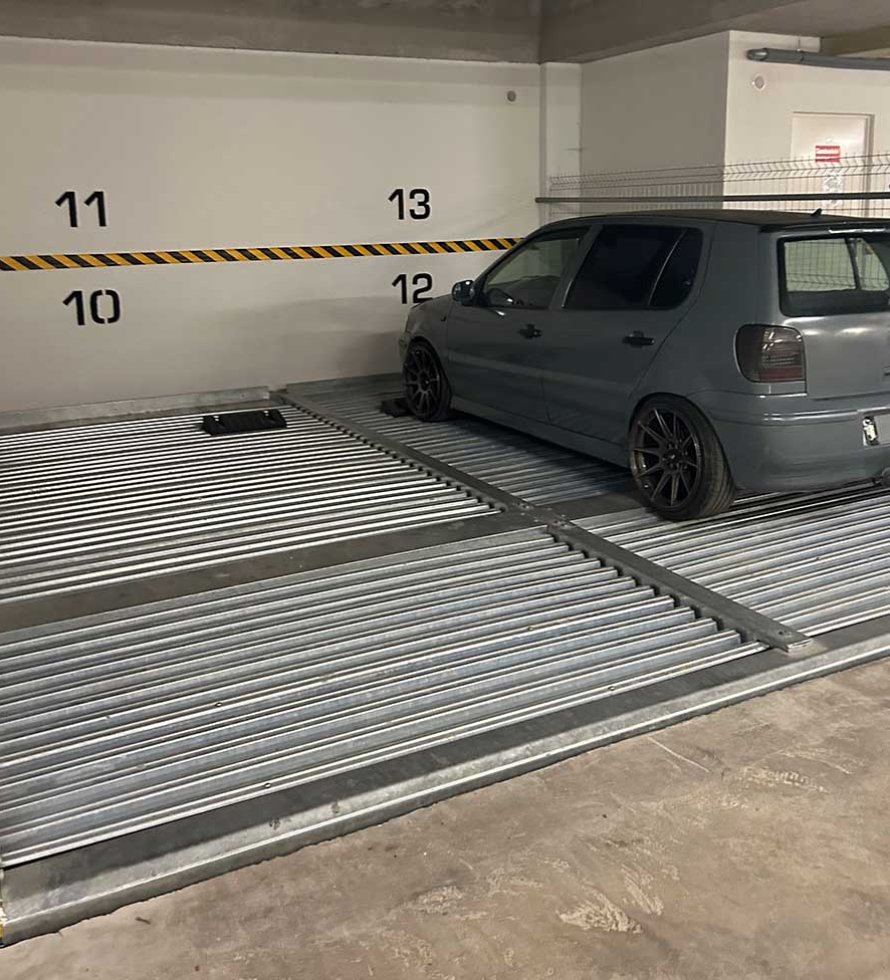

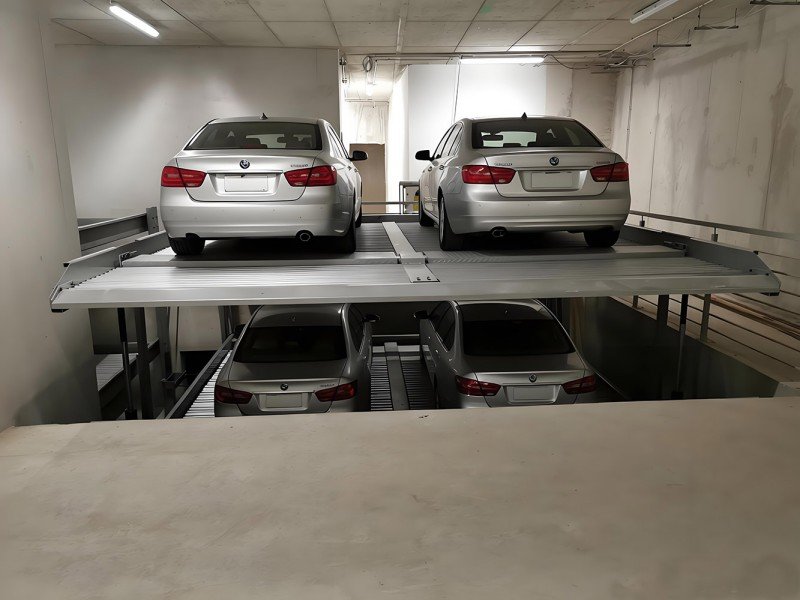

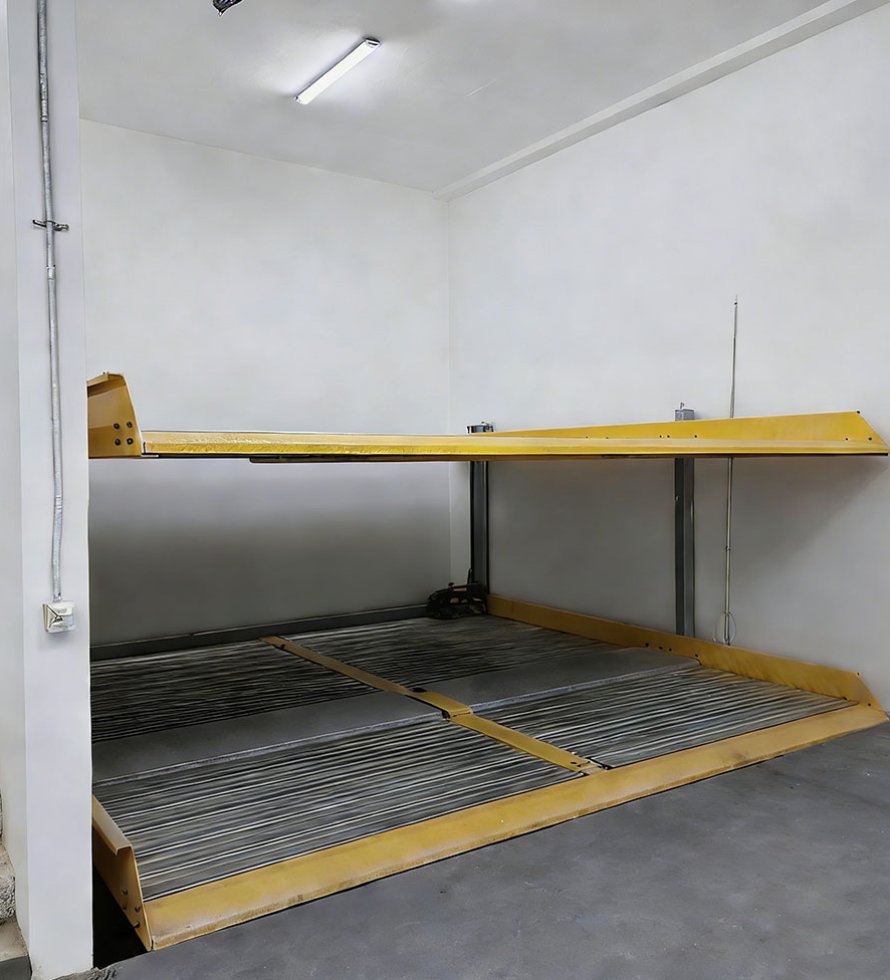

The CPL-4 parking system offers a space-saving approach to vehicle parking. Boasting a two-level structure, it can accommodate 4 vehicles vertically, rendering it a perfect option for multi-level parking scenarios such as shopping malls, apartments, residences and other related locations. When you intend to drive the vehicle parked on the upper level, there is no requirement to move the one positioned on the lower level. This system can be installed in basements or pits, thereby maximizing the utilization of ground space by saving more of it.
Powered directly by dual master-slave hydraulic lifting cylinders, the system comes with an independent hydraulic power unit and control panel. It supports a load-bearing capacity of up to 2000kg per vehicle, making it compatible with all vehicle models. Once the operator releases the key switch, the equipment will shut down automatically. Ideal for standalone parking, a single platform can hold up to 4 vehicles. All parking levels allow for horizontal access, ensuring convenience in use. It also boasts low operating costs: the platform descends via gravity, which eliminates the need for an electric motor. Our professional packaging team guarantees that products arrive at customers’ hands intact, while the compact package size streamlines the unloading and handling.
![]()
![]()
![]()

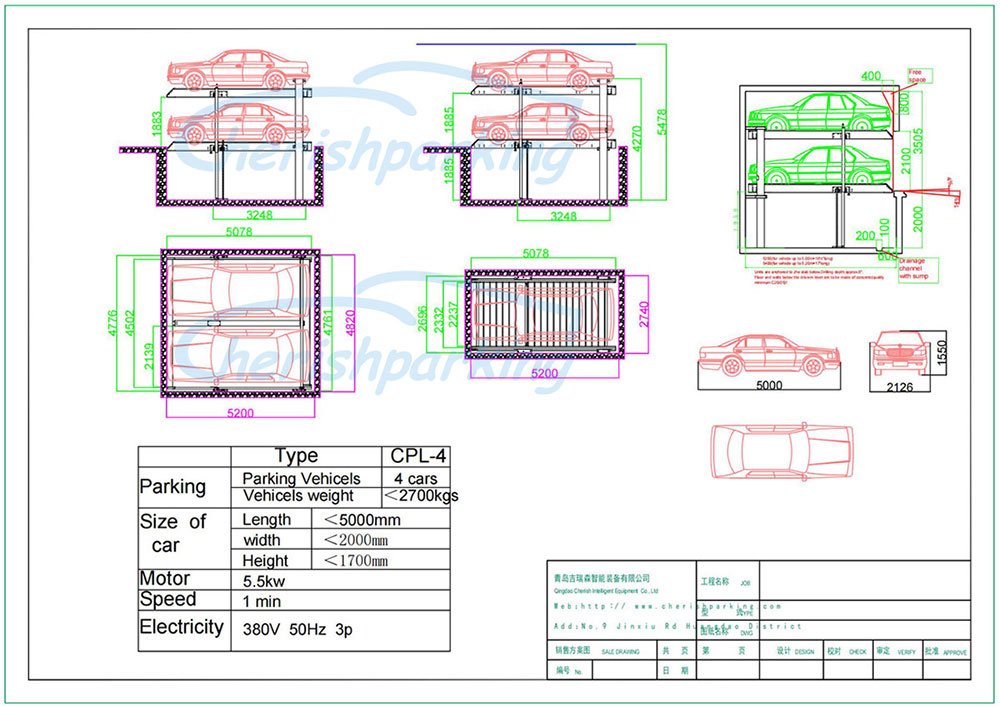

Model No. | CPL-4 |
Lifting Capacity | 4000kgs |
Lifting Height | 1885mm |
Usable Platform width | 4502mm |
Overall Height | 4270mm |
Overall Length | 5078mm |
Overall Width | 4776mm |
Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw |
Lock Release | Electric Release |
Drive Mode | Hydraulic Drive + Chain |
![]()
Whether you face challenges in parking management,CHERISH is your reliable partner.
