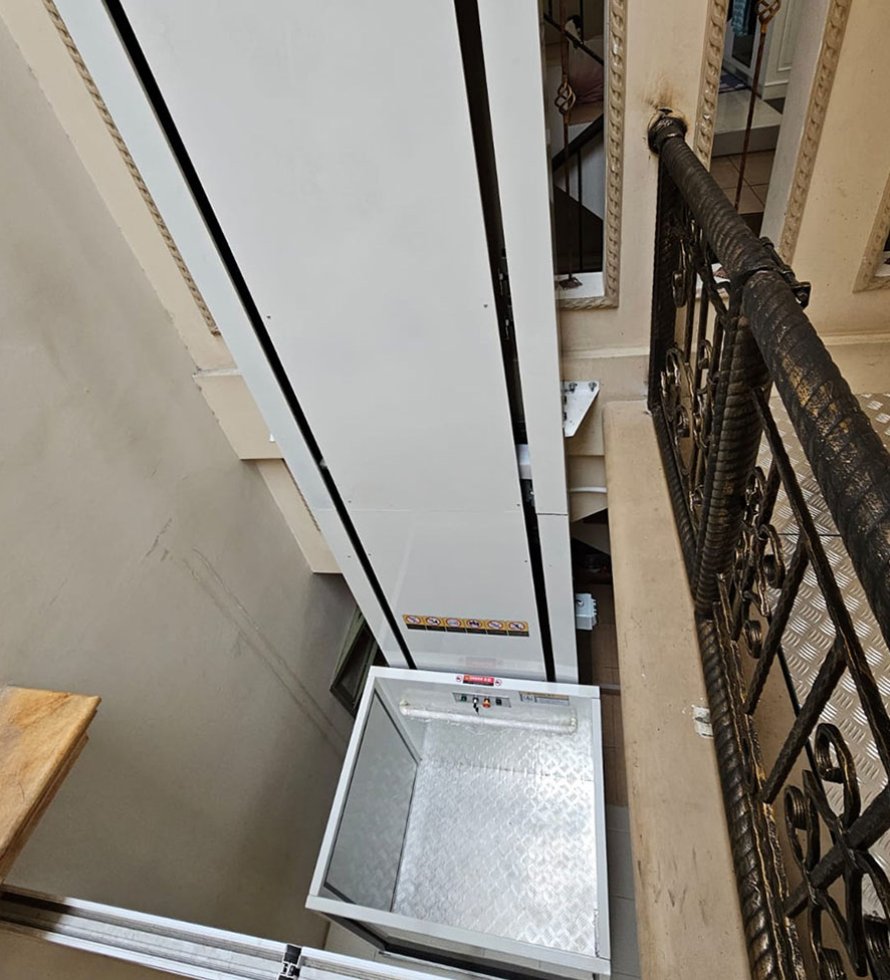

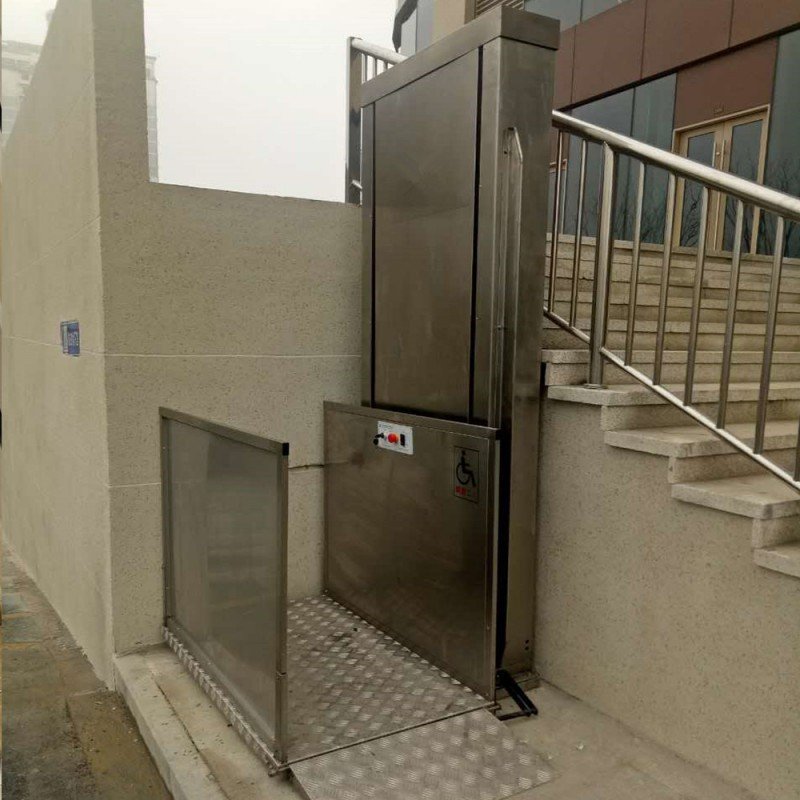

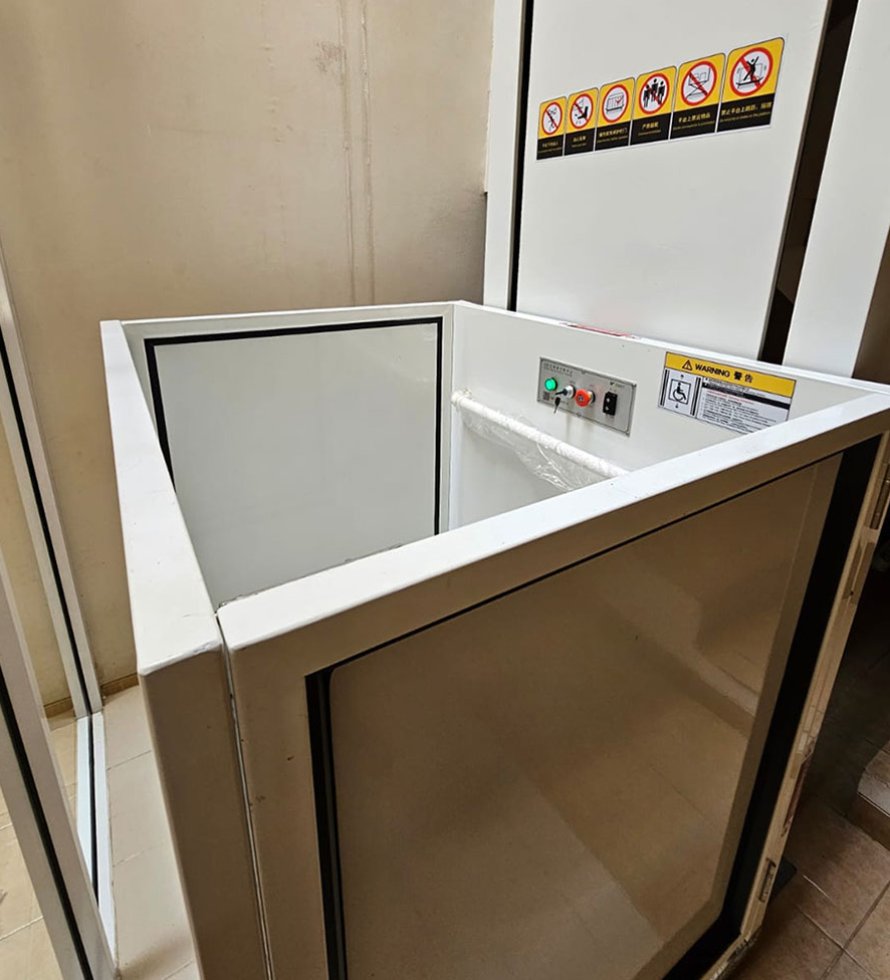

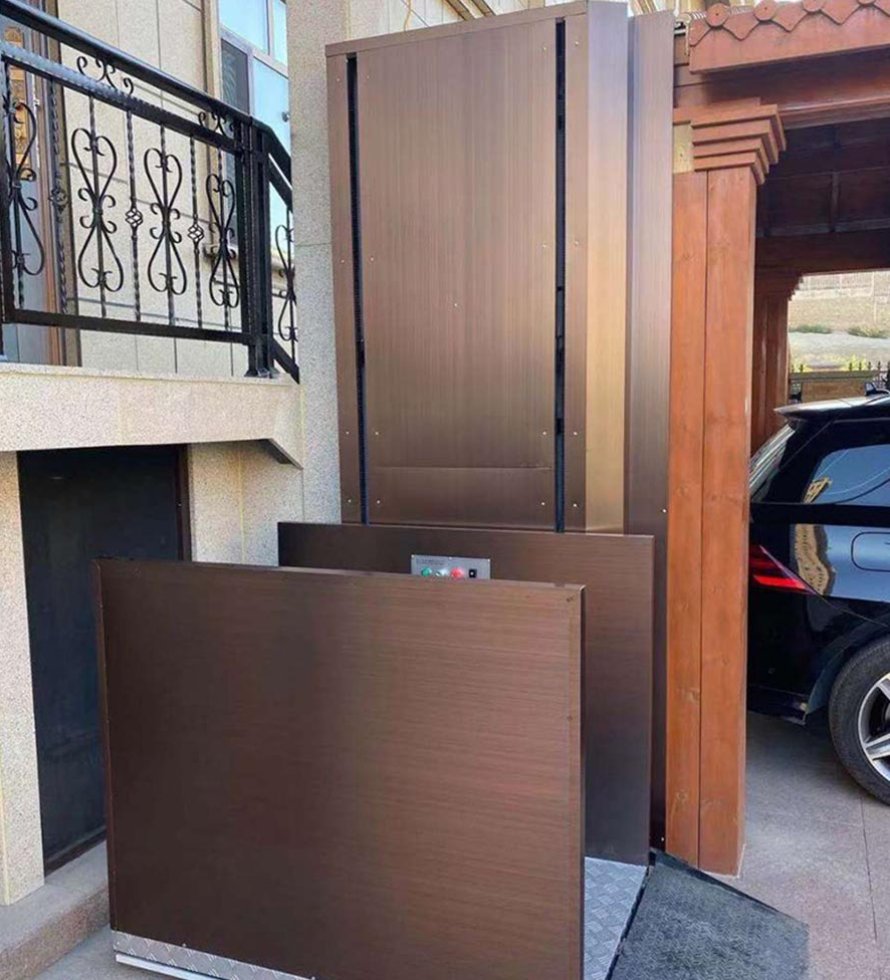

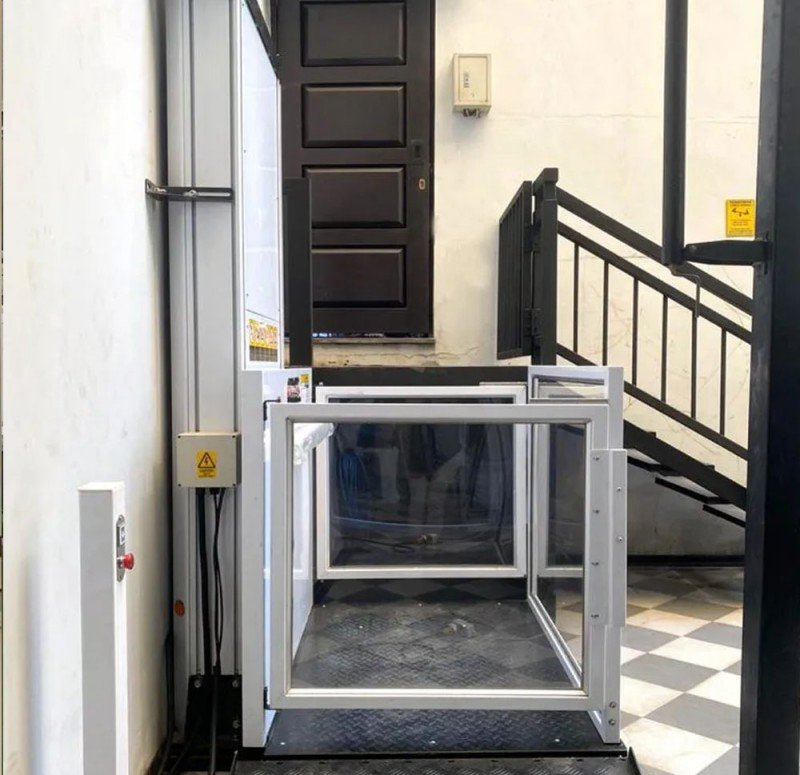

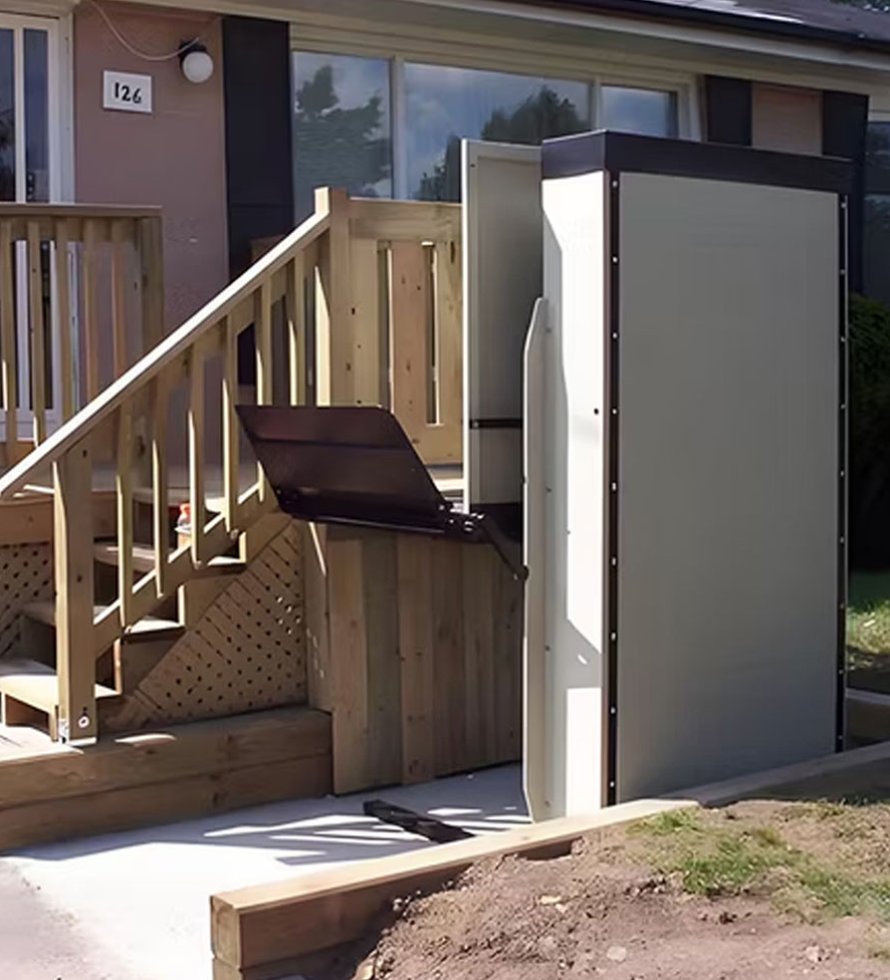

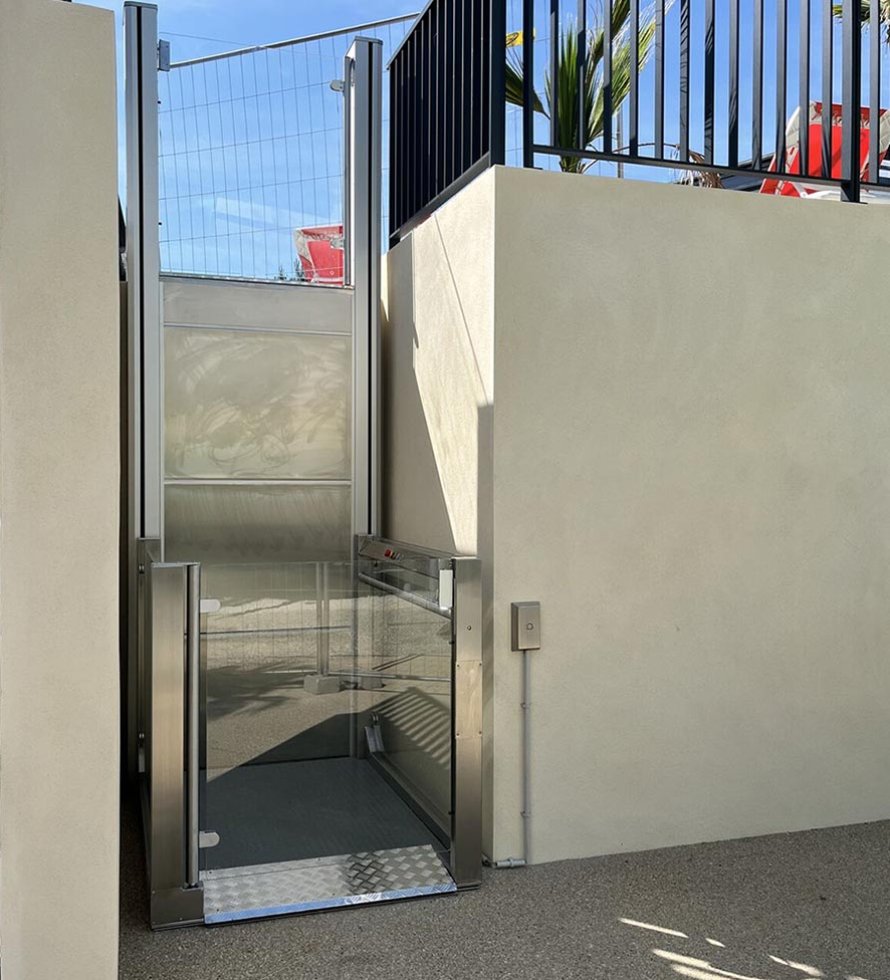

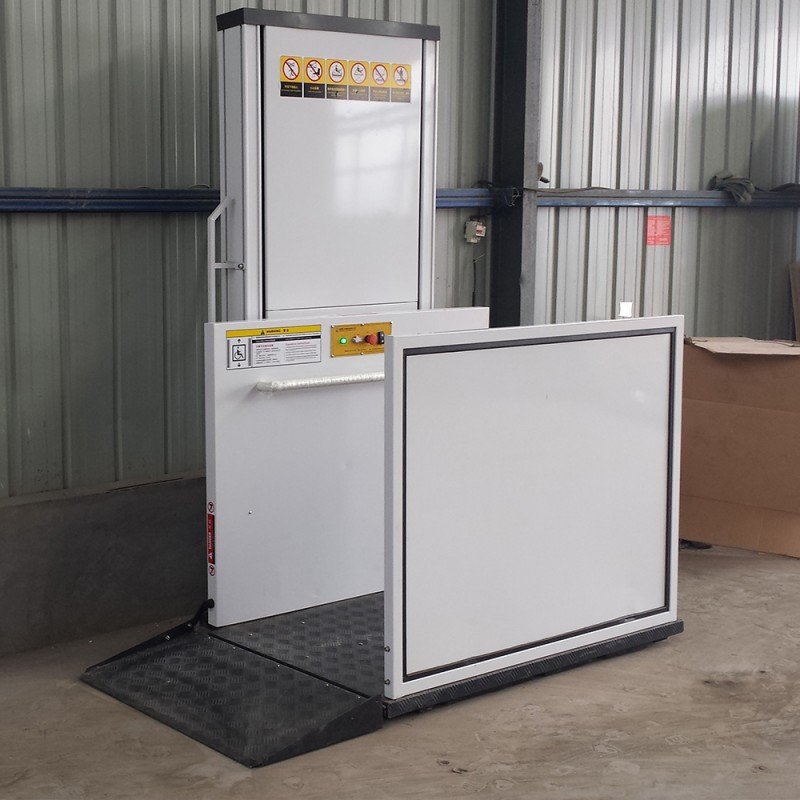

Wheelchair lifts provide safe and convenient vertical mobility for individuals with limited mobility. By removing barriers created by stairs, they enable easy access to basements, balconies, and upper floors. Suitable for both residential and public settings, these lifts improve accessibility and independence in everyday environments.
Feature:
1. Hydraulic Drive System: Smooth and reliable operation with built-in drive mechanism for optimized performance and a compact design.
2. No Pit or Machine Room Required: Can be installed directly on the ground, simplifying construction and installation.
3. Barrier-Free Access: Ideal for public spaces and outdoor use, providing easy accessibility in barrier-free channel reconstructions.
4. Standard Platform Size: 0.9 m × 1.4 m, suitable for wheelchairs and mobility devices.
5. Advanced Safety Features: Includes bottom obstacle sensors that automatically stop the lift if any obstruction is detected, as well as a fall protection mechanism.
6. Emergency Solutions: Equipped with manual descent for power outages and car door release in emergencies, ensuring safe use under all conditions.
![]()
![]()
![]()
Model No. | Vertical Wheelchair Lift |
Lifting Capacity | 250kg |
Voltage | 220-480v |
Lifting Height | 6000mm |
Platform Size | 1400*900mm/customized |
Drive System | Hydraulic |
Material of Platform | Steel or stainless steel |
Working Condition | Both indoors and outdoors |
Control Device | Calling column (installed beside lift) and remote controller(optional configuration) |
Emergency Stop | The lifting and lowering process can be stopped immediately by pressing the emergency stop button. |
Safety device | Safety Interlock: Lock the platform when it is out of control. |
Installation | Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
![]()
