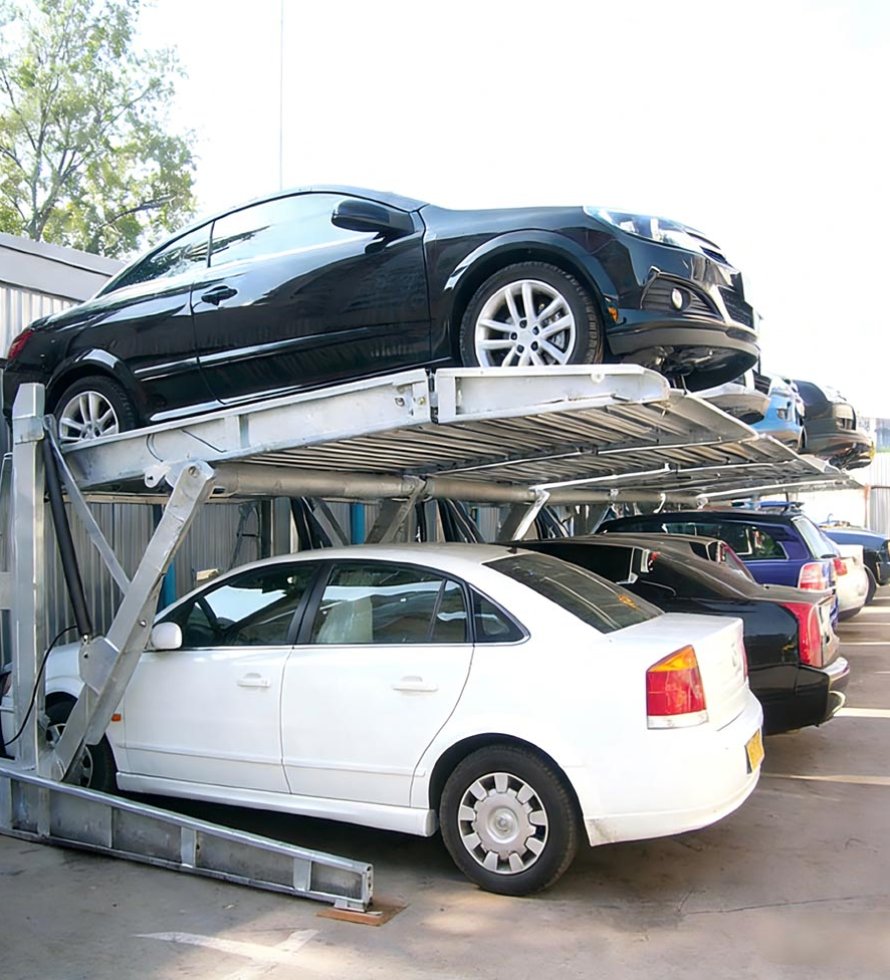

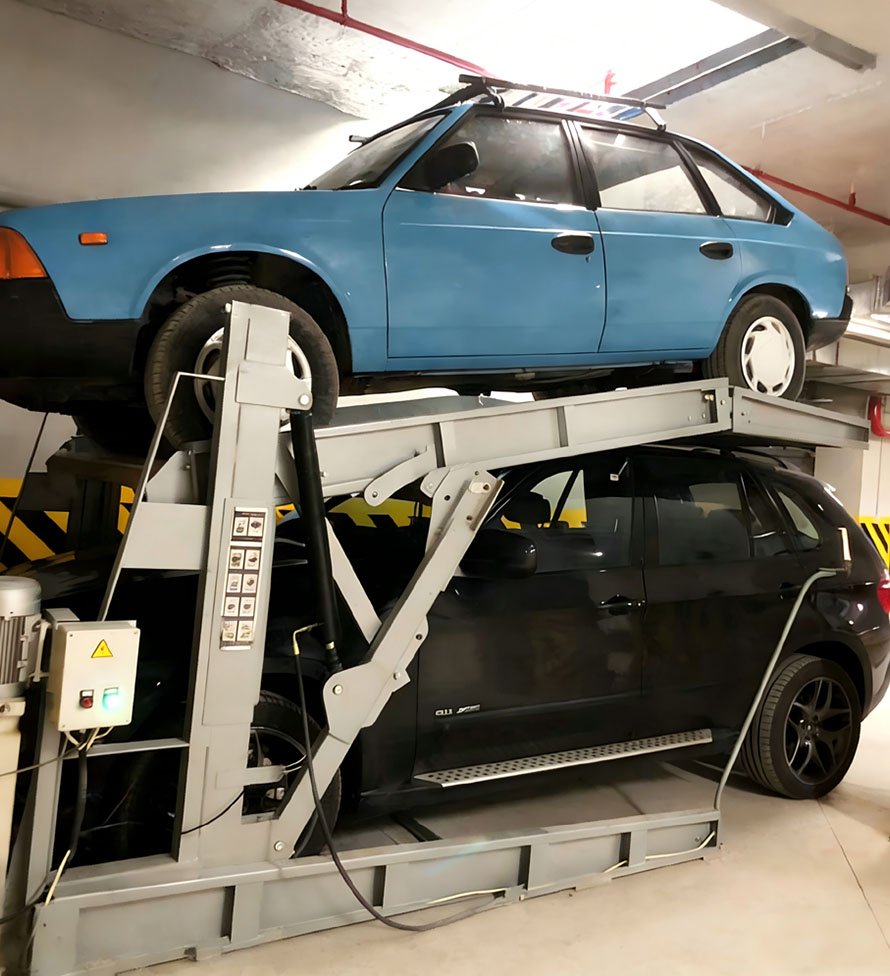

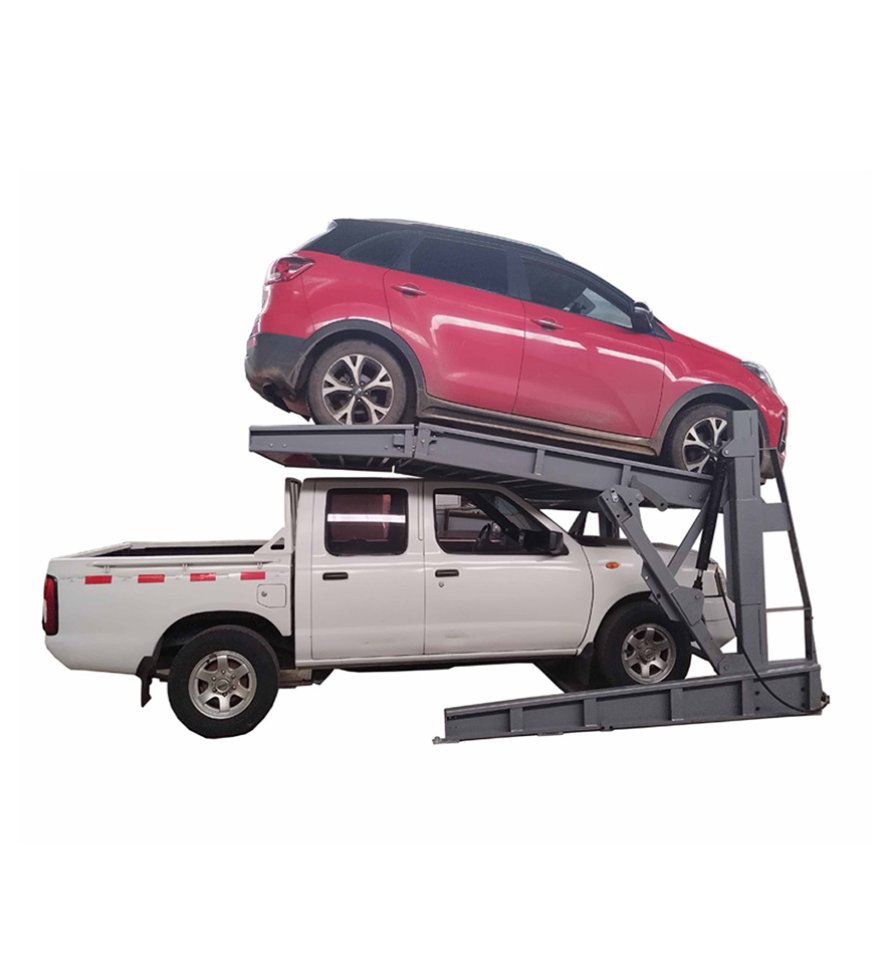

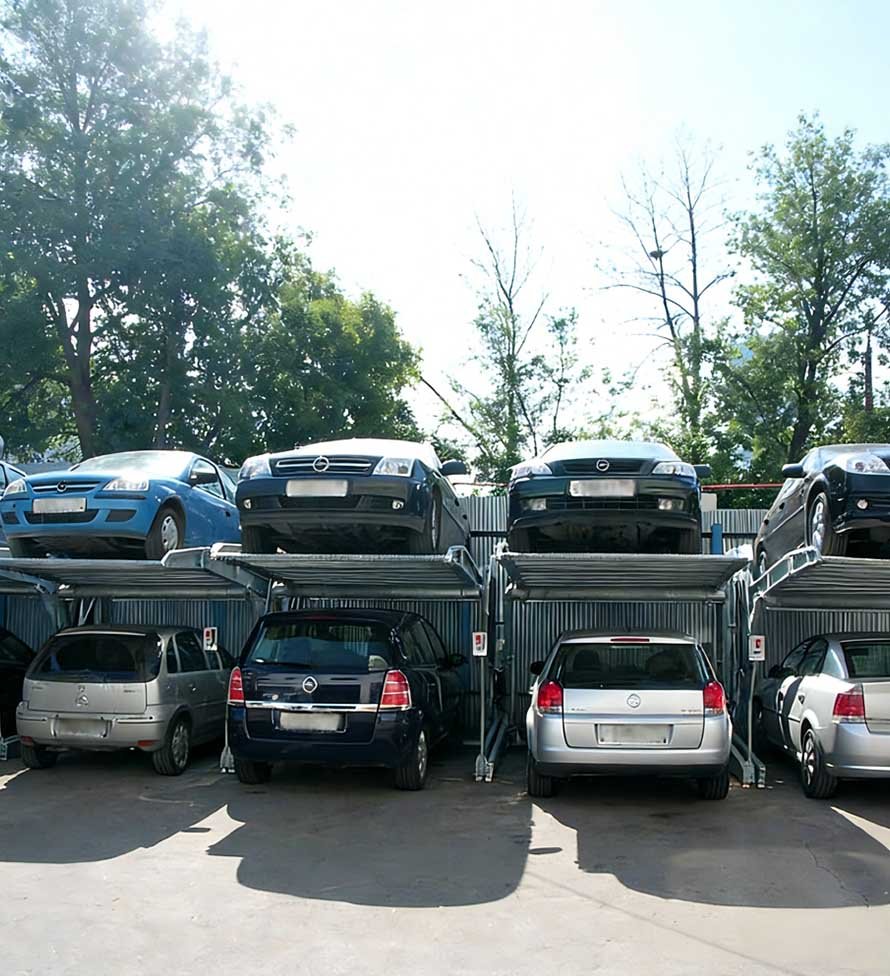

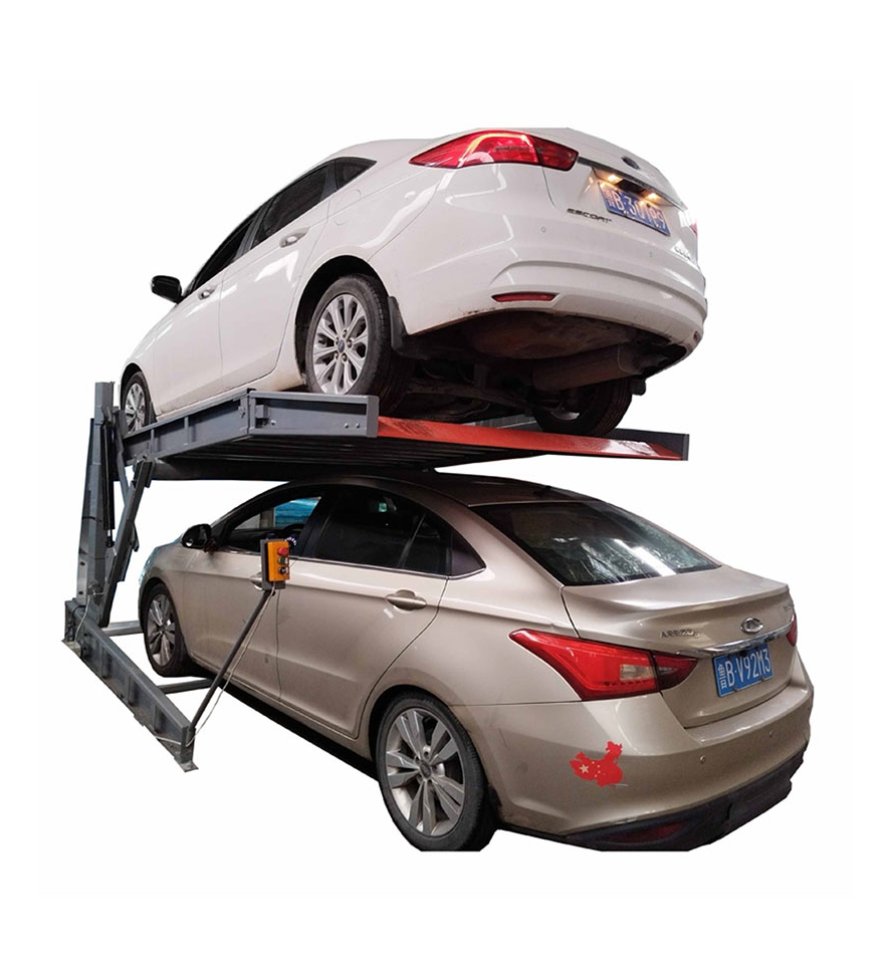

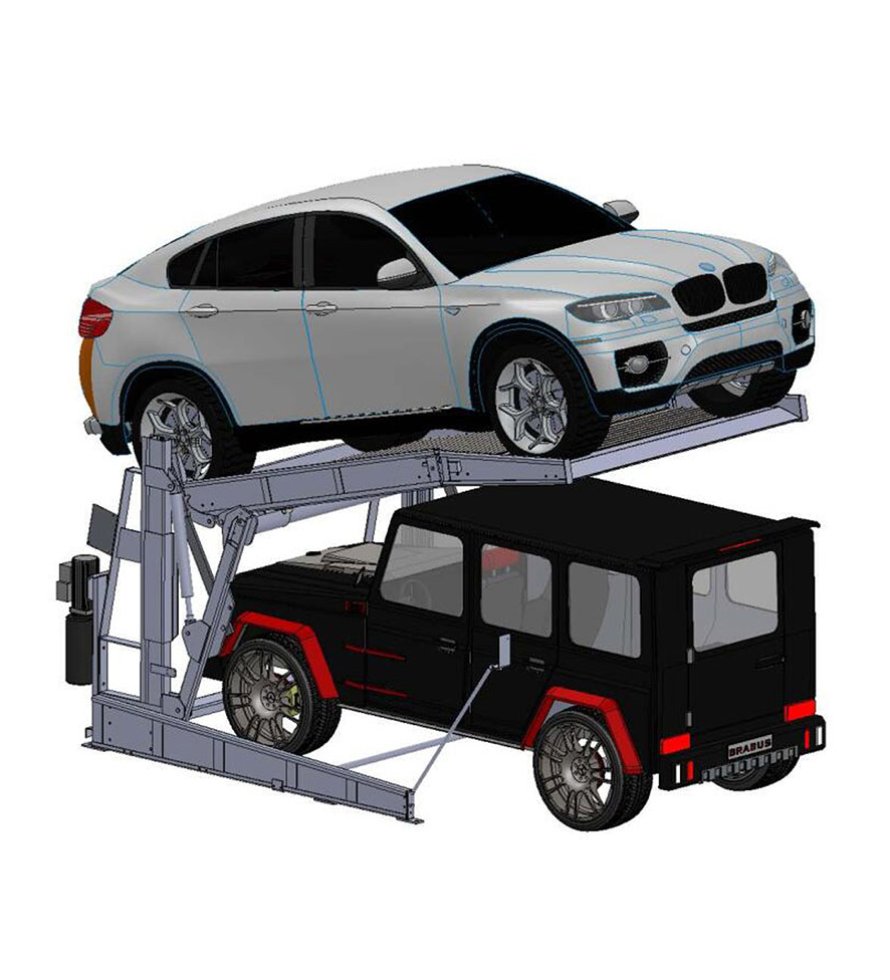

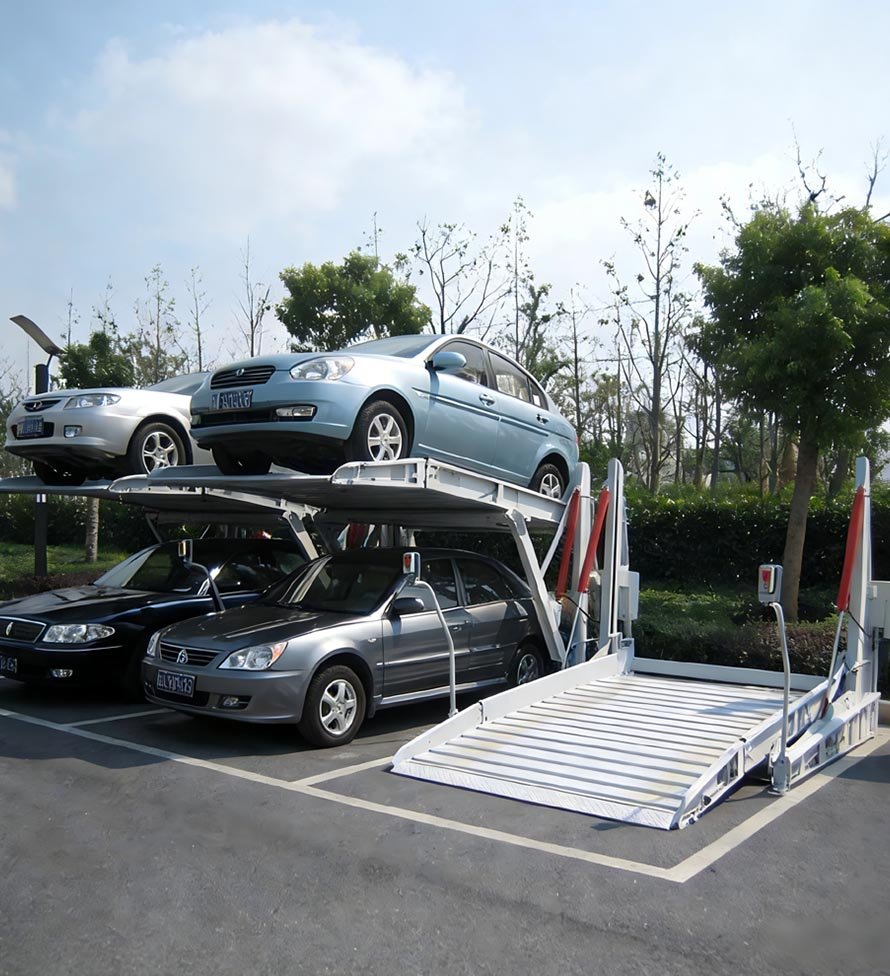

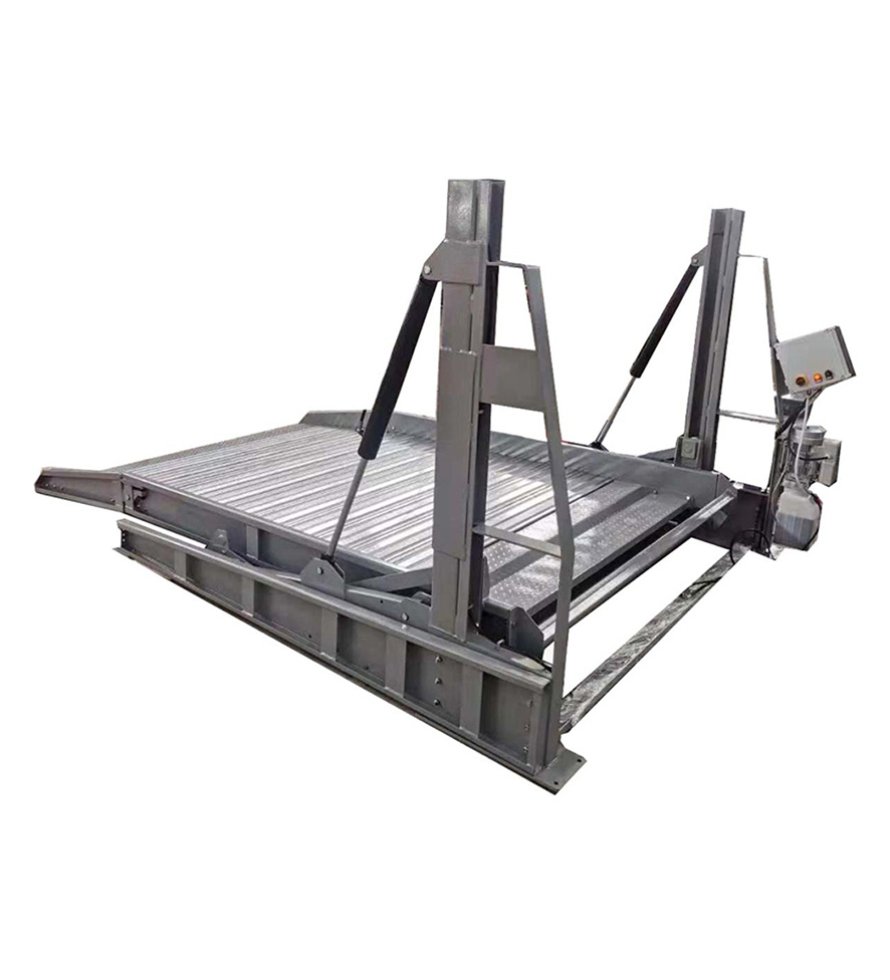

CHPLB2500 is a two-level parking lift that effectively doubles parking capacity. It is an ideal parking solution for locations with limited ceiling clearance and restricted vehicle heights. Featuring long service life and straightforward operation, it is widely applied in home garages, commercial parking facilities, vehicle manufacturing sites, and car storage centers.
Feature:
· Specially designed for spaces with low ceiling heights
· Compact tilting parking lift ideal for limited-height areas, especially basements and apartment corners
· 2500kg lifting capacity, suitable exclusively for sedans
· 10-degree tilting platform for stable and convenient parking
· Direct drive by dual hydraulic lifting cylinders
· Independent hydraulic power pack and control panel
· Flexible and easy to move or relocate
· Electric key switch for enhanced security and operational safety
· Automatic shut-off when the operator releases the key switch
· Optional electric or manual lock release
· Equipped with vehicle detection sensor
· Audible and visual warning system for safe operation
· Adjustable maximum lifting height to suit different requirements
· Top-position mechanical anti-falling lock for reliable safety
· Built-in hydraulic overload protection

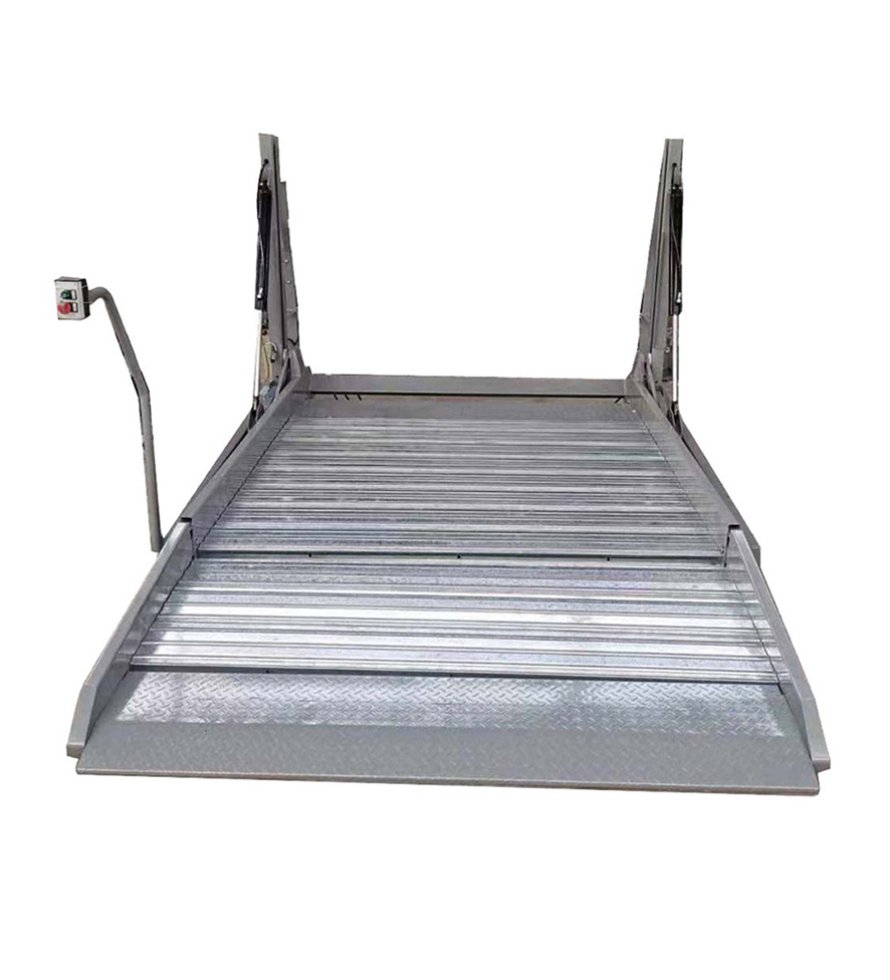

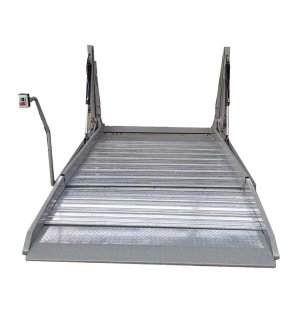

· Galvanized platform with corrugated surface for improved parking stability
![]()
![]()
![]()

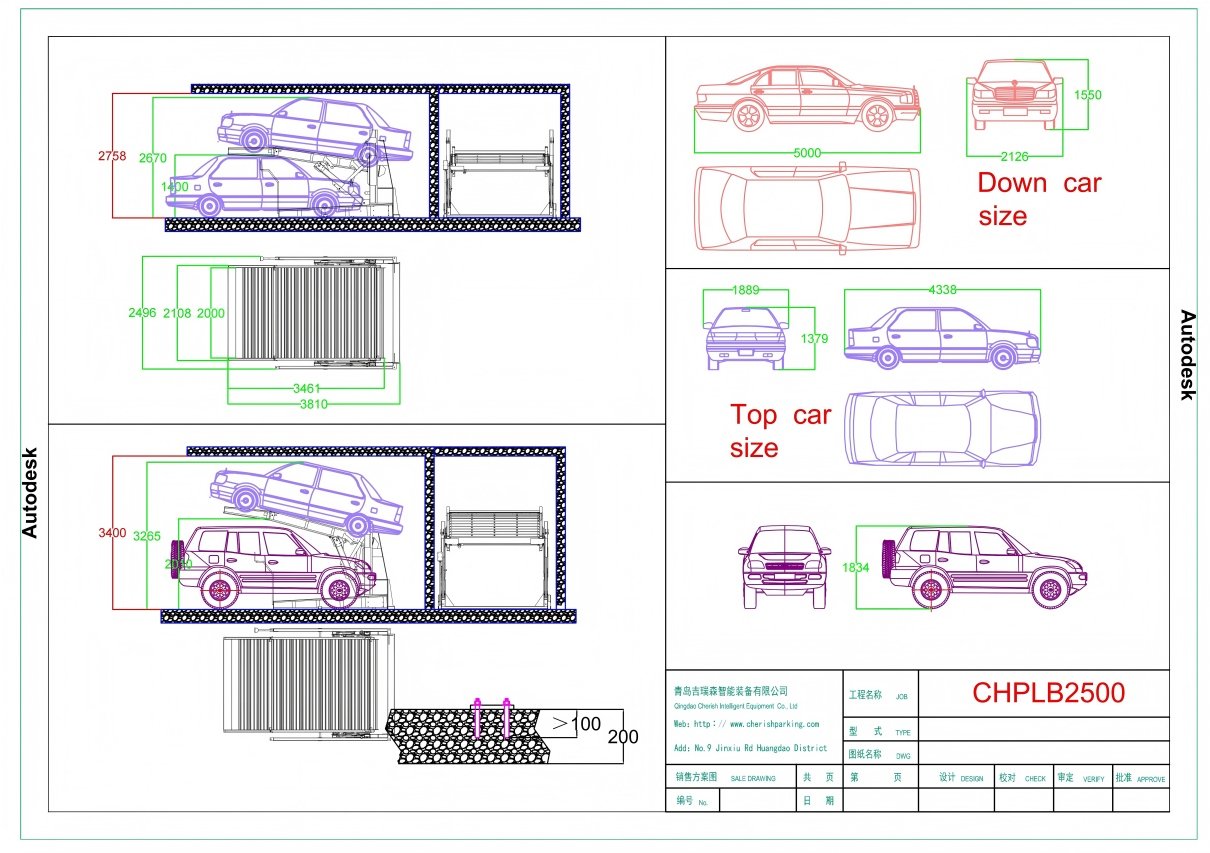

Model No. | CHPLB2500 |
Lifting Capacity | 2500 kg |
Lifting Height | 1800 mm |
Usable Platform Width | 2000 mm |
Overall Width | 2496 mm |
Overall Length | 3810 mm |
Power Supply / Motor Capacity | 220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw 50/45 s |
Lock Device | Electric Lock |
Lock Release | Electric Release |
Drive Mode | Hydraulic Drive |
![]()
