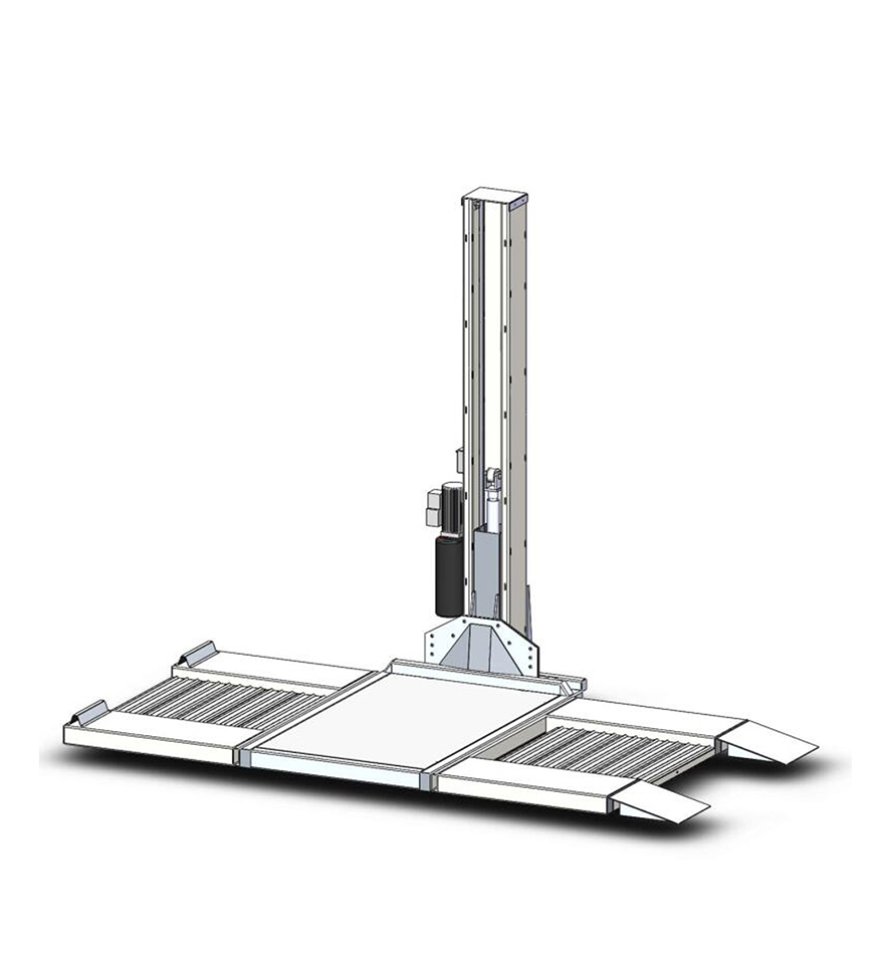

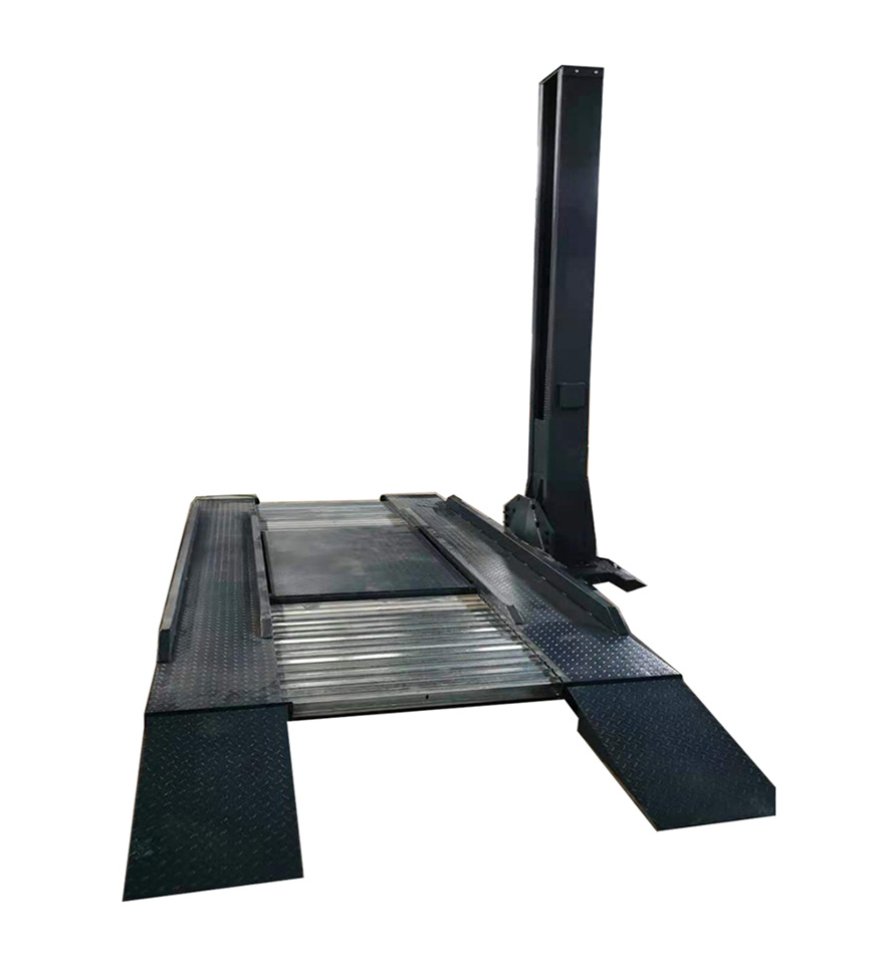

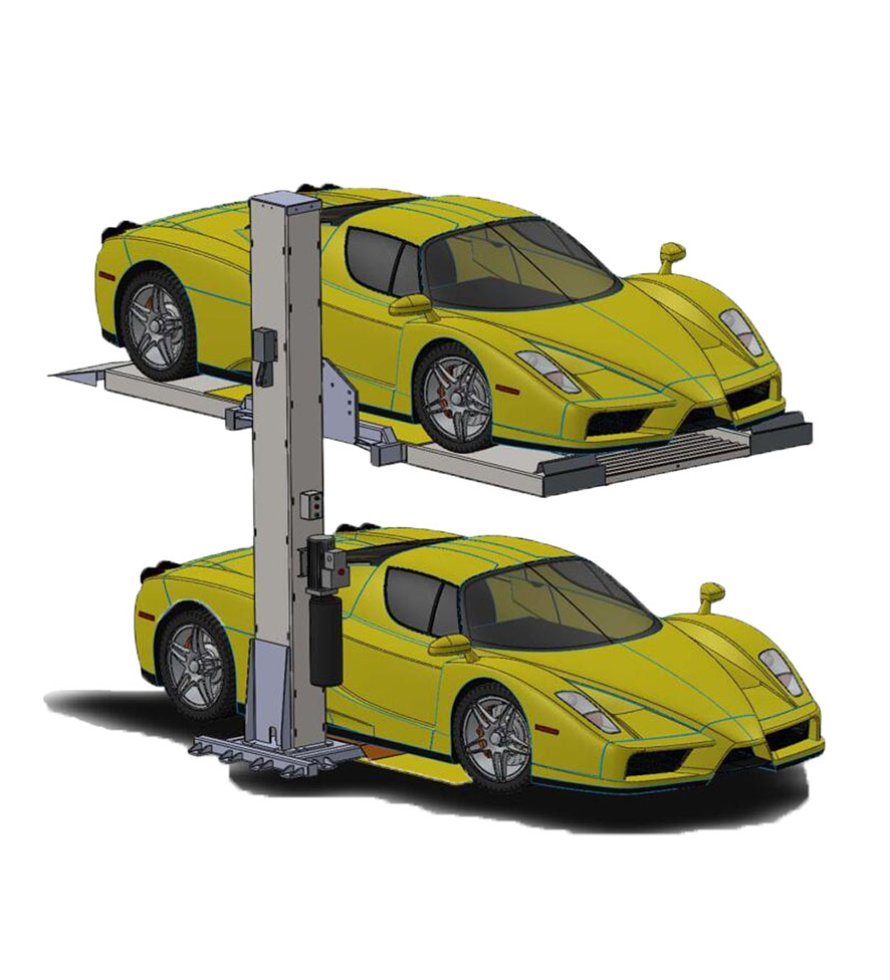

One Post Car Parking Lift

Description

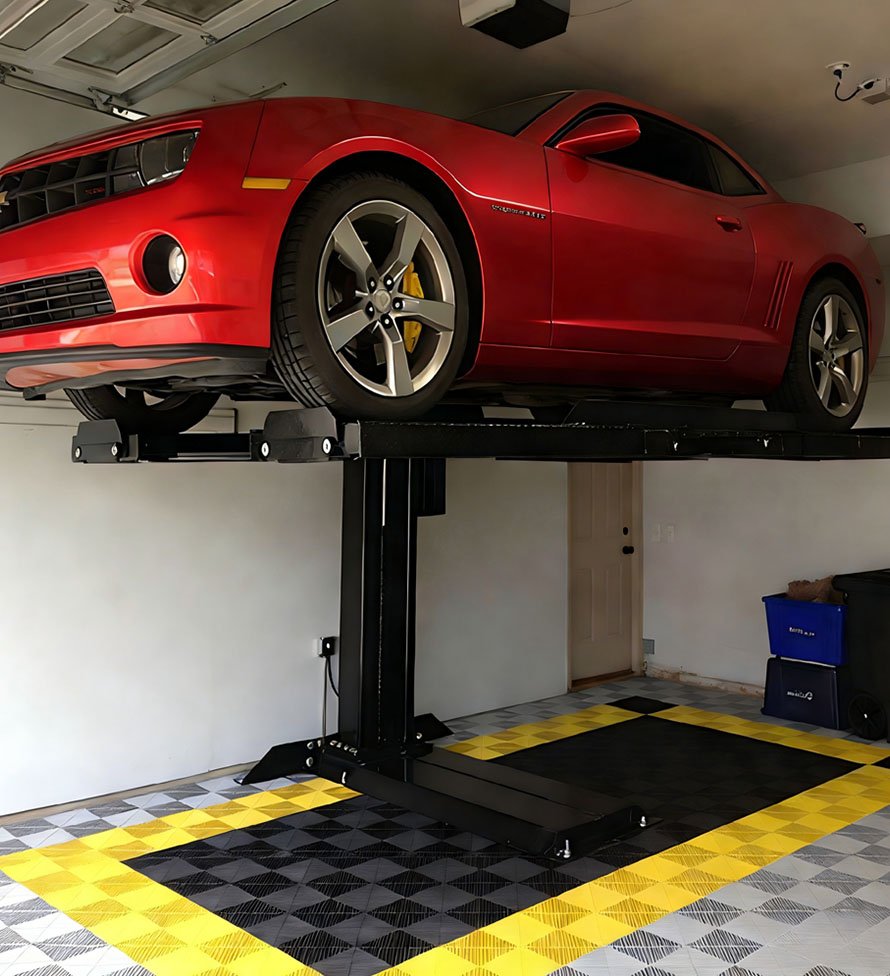

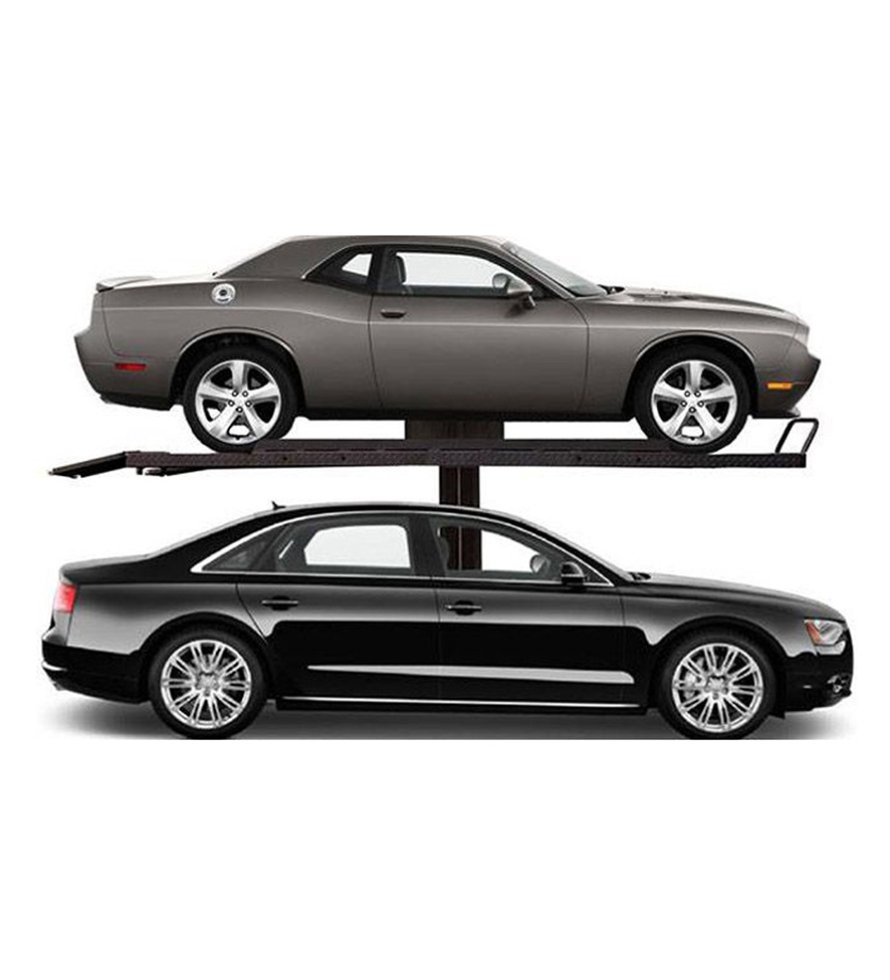

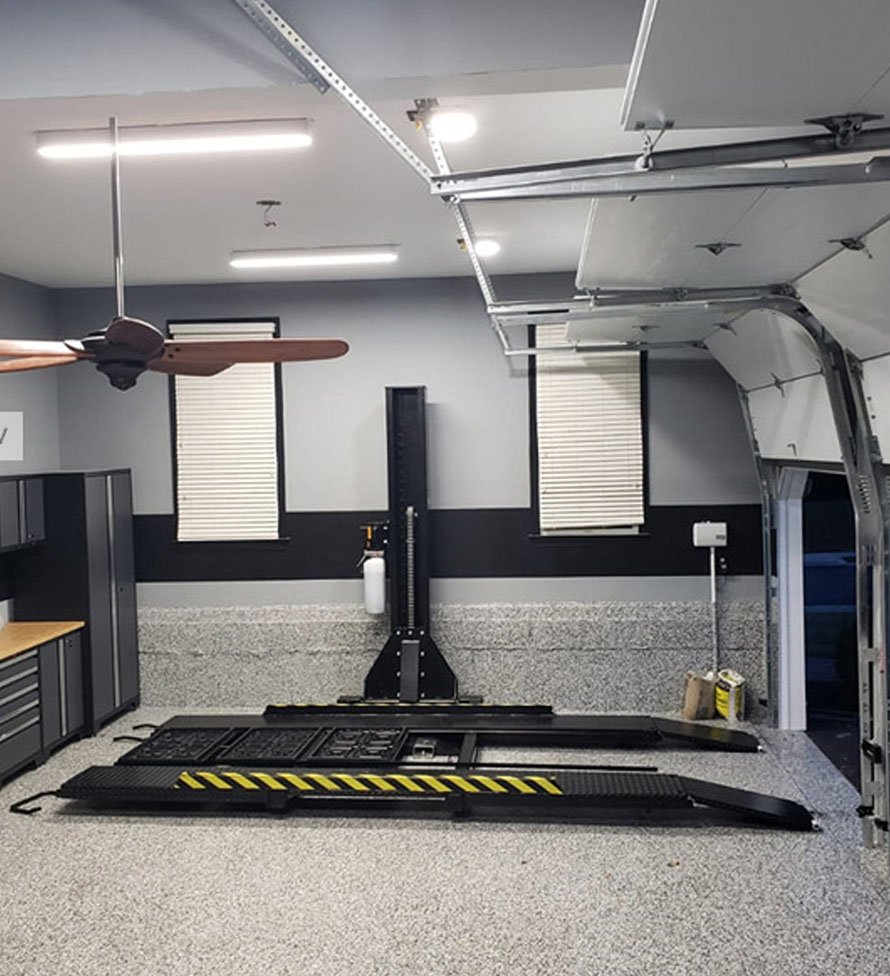

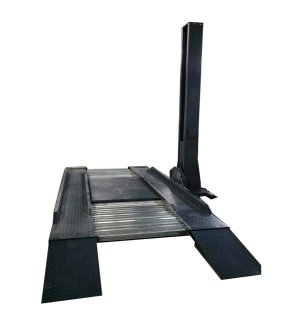

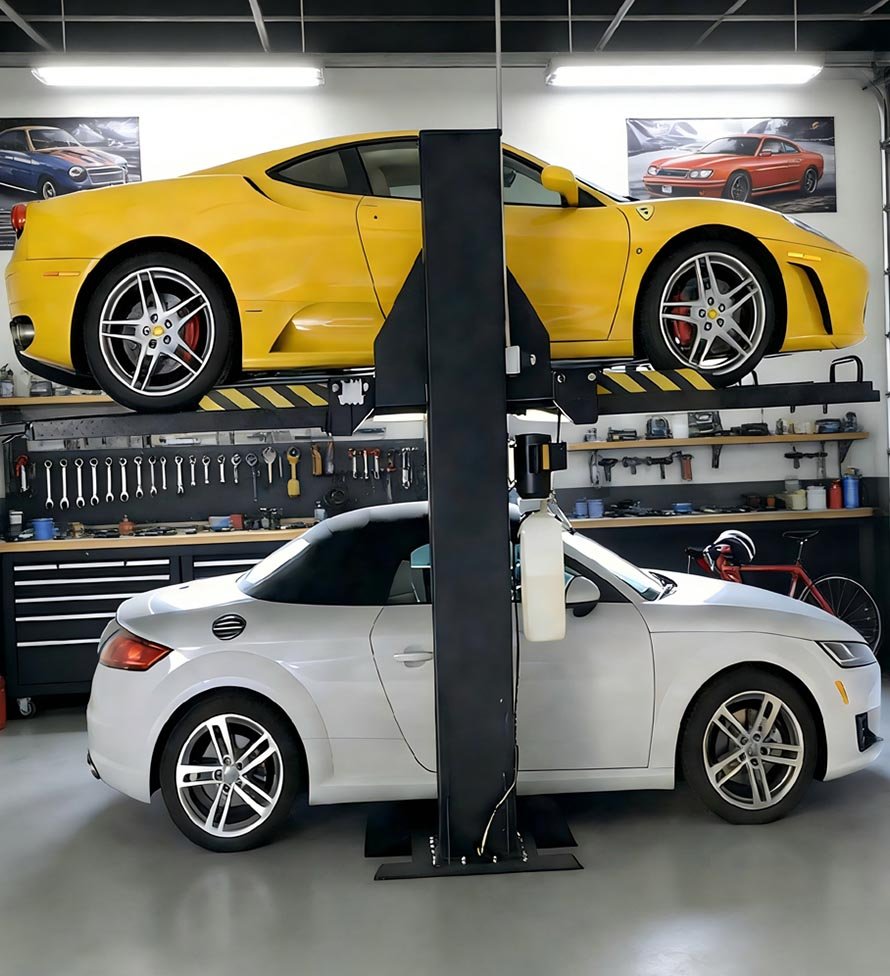

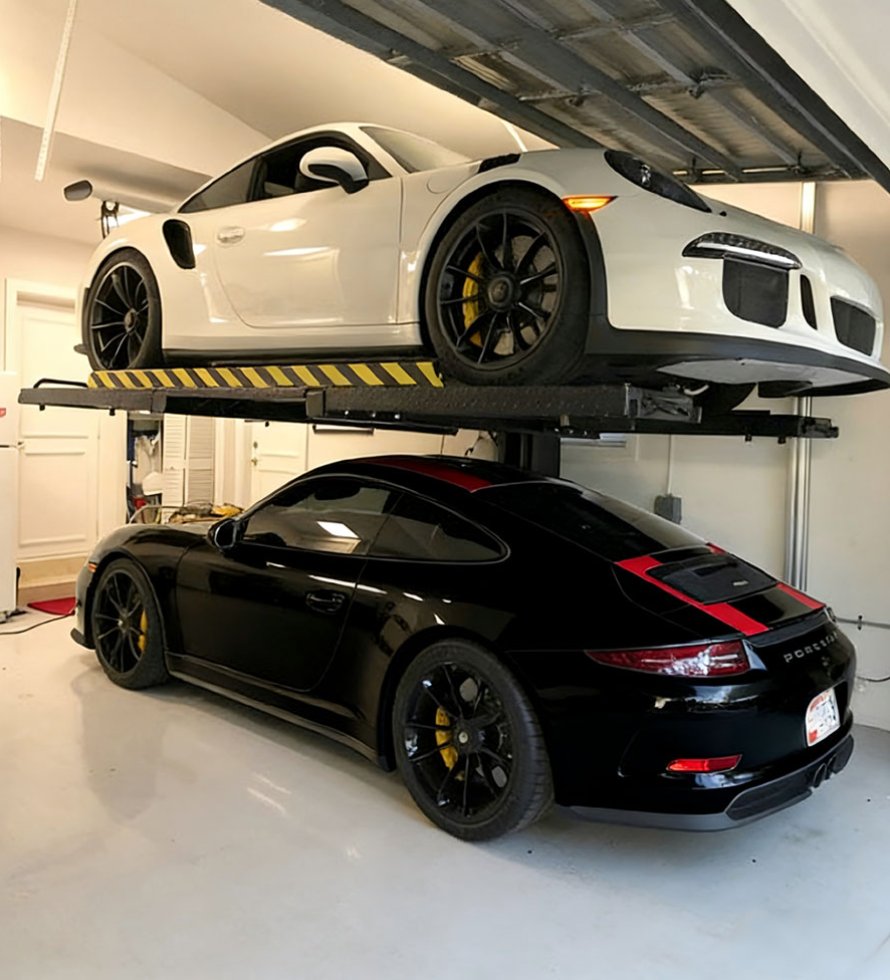

CHSPL2500 Single Post Parking lift efficiently doubles parking space utilization while maintaining a minimal footprint. Its single column structure delivers exceptional stability and enables an independent, wall free installation. User friendly and reliable, the lift allows smooth parking and unrestricted car door opening. Designed to upgrade existing garages, it greatly increases parking capacity with limited space required. Compact, durable and easy to operate, it serves as a highly practical and cost effective parking solution for both residential and commercial use.

(0 Customer Reviews)

Product Feature

Feature:

• Loading capacity of 2000kg, ideal for sedans parked on the upper platform.

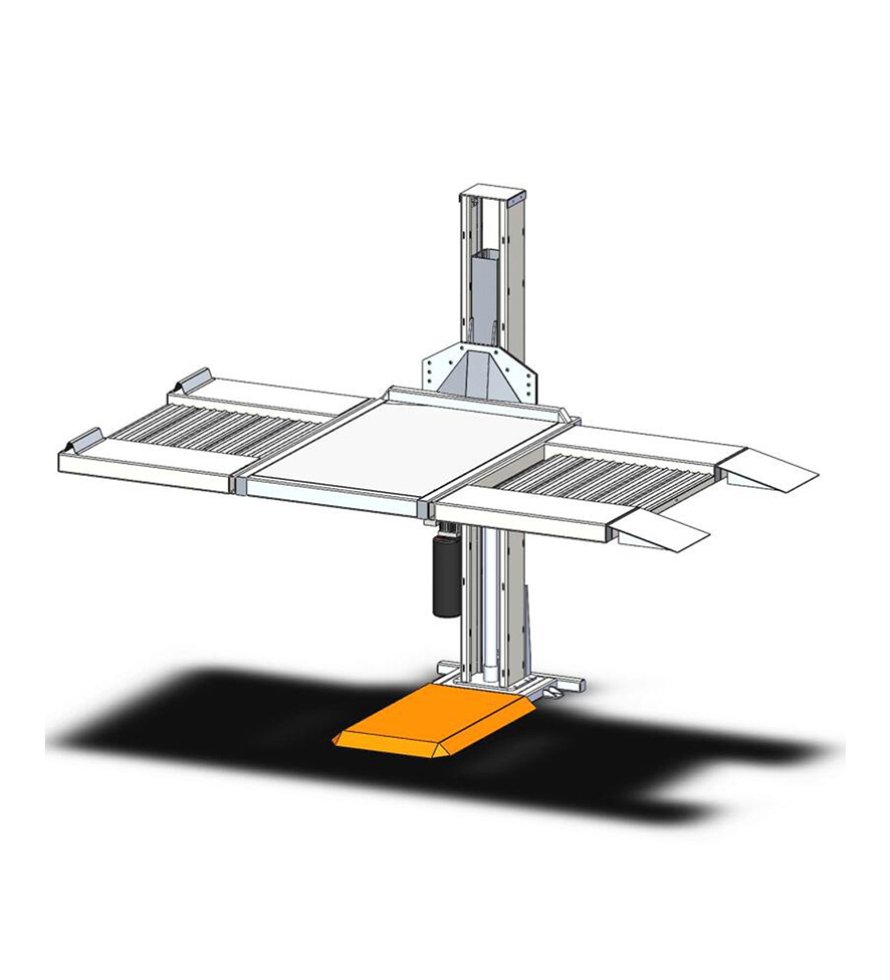

• Unique single-column design maximizes space saving and minimizes footprint.

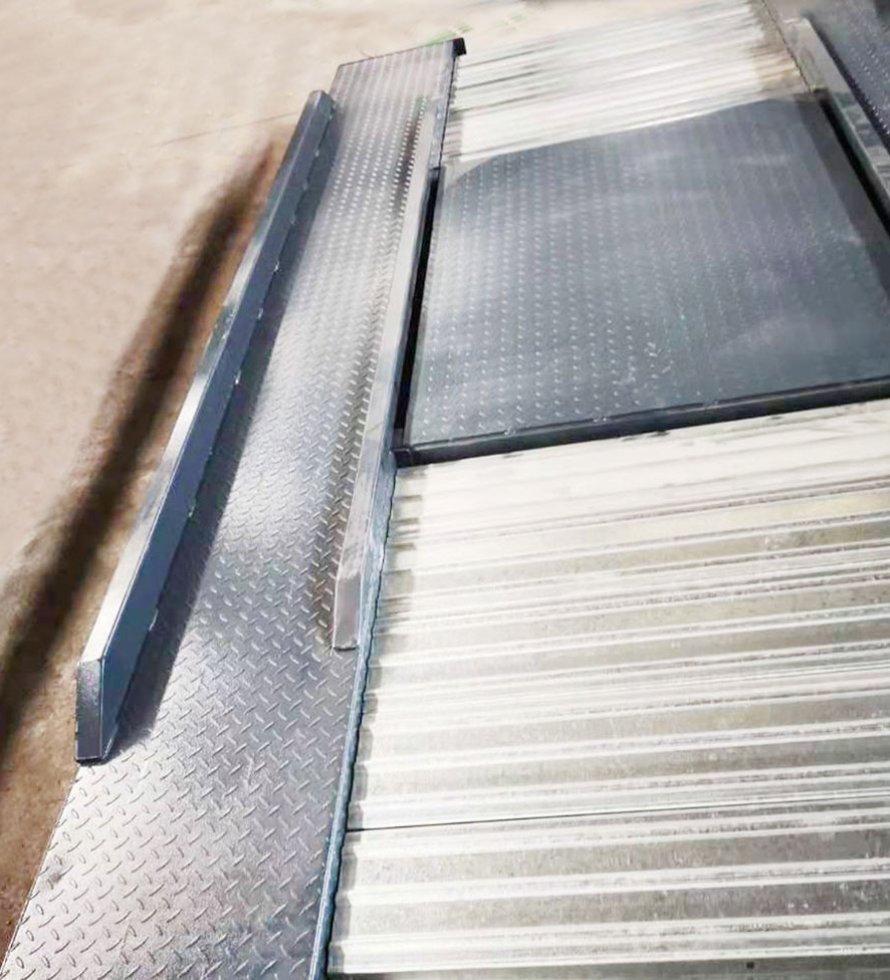

• H-shaped anti-slip lifting platform with reinforced column and base for superior stability.

• Commercial-grade structure suitable for both commercial use and residential garages.

• Low-profile access ramps designed for vehicles with low ground clearance.

• Multiple locking positions for flexible height adjustment and display.

• High-precision hydraulic system for smooth lifting, easy operation and low maintenance.

• Multi-level mechanical anti-fall locks to ensure safe and reliable operation at all times.

Product Introduction

Model No.	CHSPL2500
Lifting Capacity	2000 kg
Lifting Height	1800mm/2100mm
Usable Platform Width	1950mm
Post Height	3300mm
Overall Length	3870mm
Overall Width	2740mm
Power Supply / Motor Capacity	220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw
Drive Mode	Hydraulic Drive + Chain

2-6 Level Puzzle Type PSH

Puzzle With A Pit PSH

Back to Back Puzzle Type PSH

1 Level Sliding Platform PSH-1

Car Rotating Turntable ZT

Two Post Parking Lift CHPLA2300/2700

Tilting Parking Lift CHPLB2500

Motor Drive Parking Lift CHPLC2000

Four Post Parking Lift CHFL3700

New Triple Car Stacker CHFL4-3

Three Level Parking Lift CHFL4-3

4 Cars Parking Stacker CHFL2+2

Single Post Parking Lifts CHSPL2500

Scissor Parking Lift CHSPL2700

Vertical Parking Lift CPS

Vertical 2 Cars Pit Parking Lift CPL-2

Vertical 4 Cars Pit Parking Lift CPL-4

Tilting 2 Cars Pit Parking Lift CPT-2

Tilting 4 Cars Pit Parking Lift CPT-4

Tilting 2/4 Cars Pit Parking Lift CPT-2A/4A

Motor Drive Pit Parking Lift PJS

Single Decks Scissor Car Lift CSL-3

Double Deck Scissor Car Lift CSL-3

Four Post Car Lift FP-4

Rail Car Lift CSL-3

Standard Type GH

Home Lift with Elevator Car GH-HE

Home Lift with Shaft GH-VA

5-9 Level Rotary Parking System PCX

Mechanical Automated Parking System PPY

Multi Levels Tower Parking System PCS

One Post Car Parking Lift

One Post Car Parking Lift

Description

Product Feature

Product Introduction

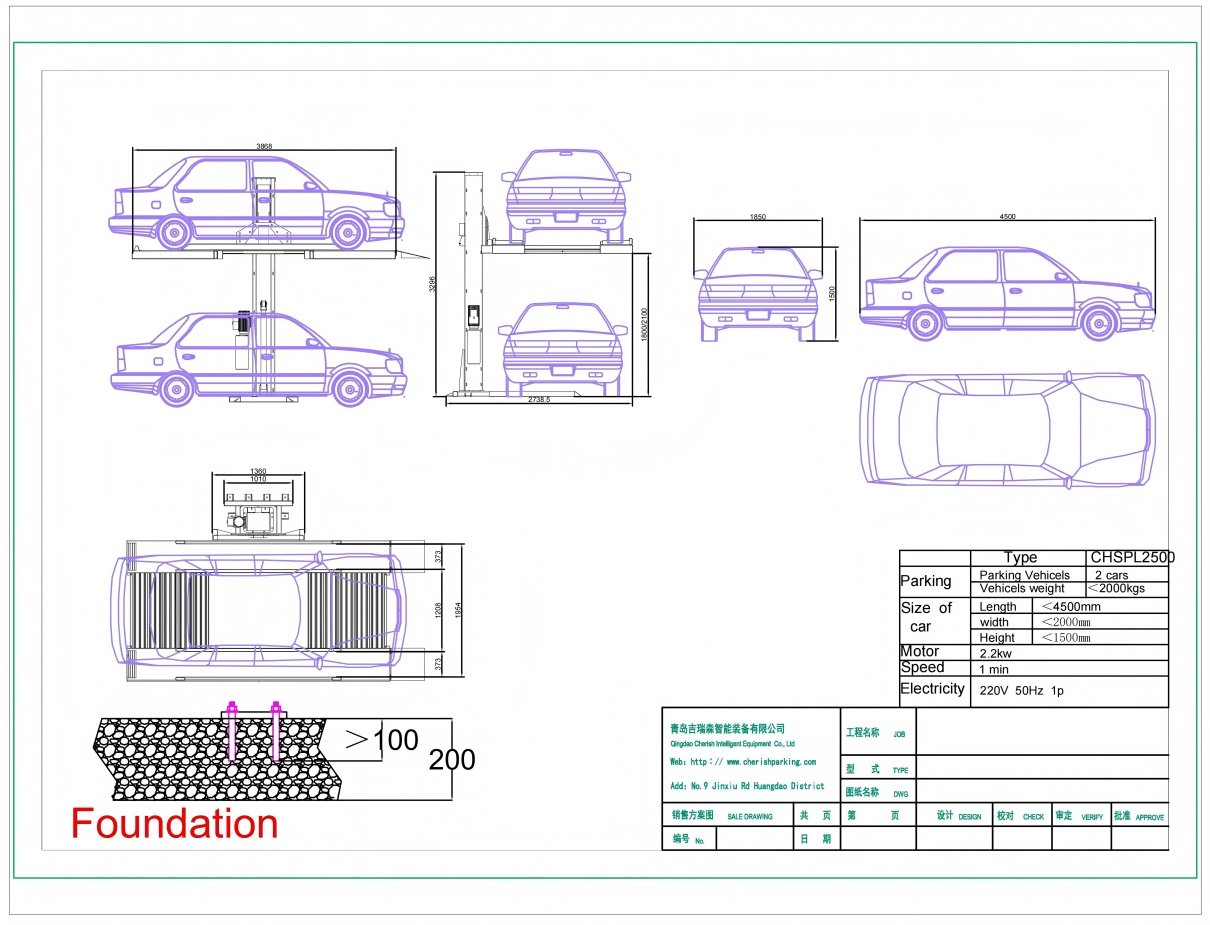

Drawing
