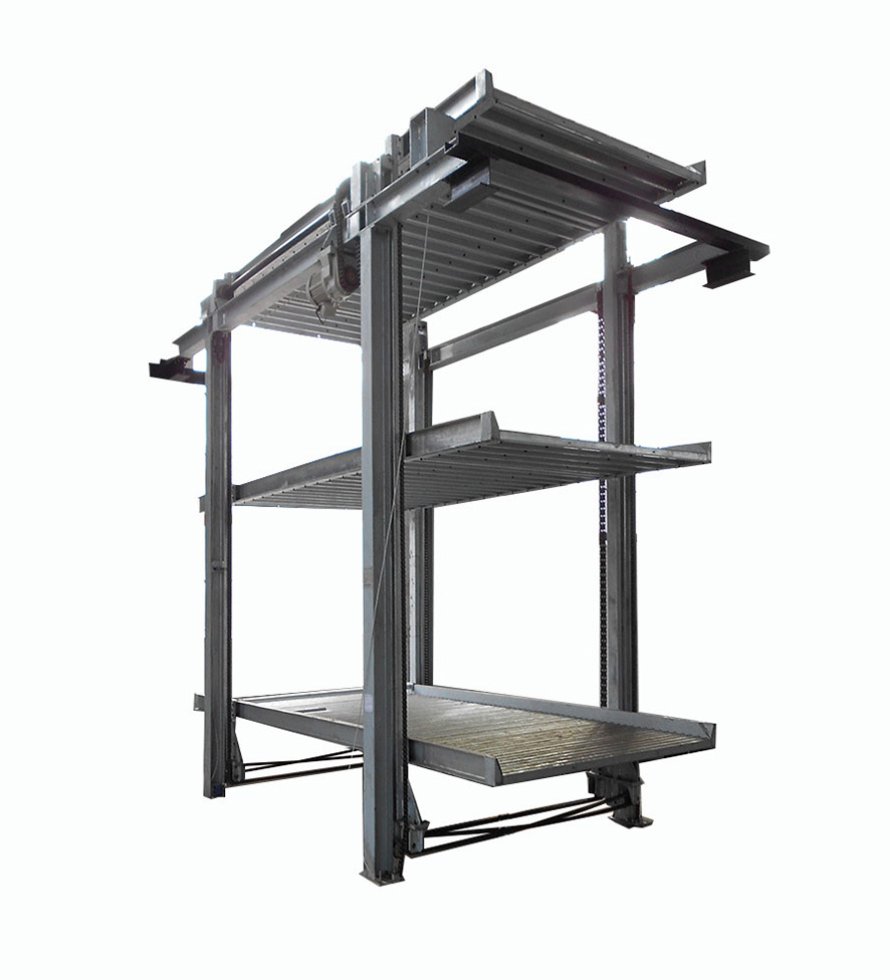

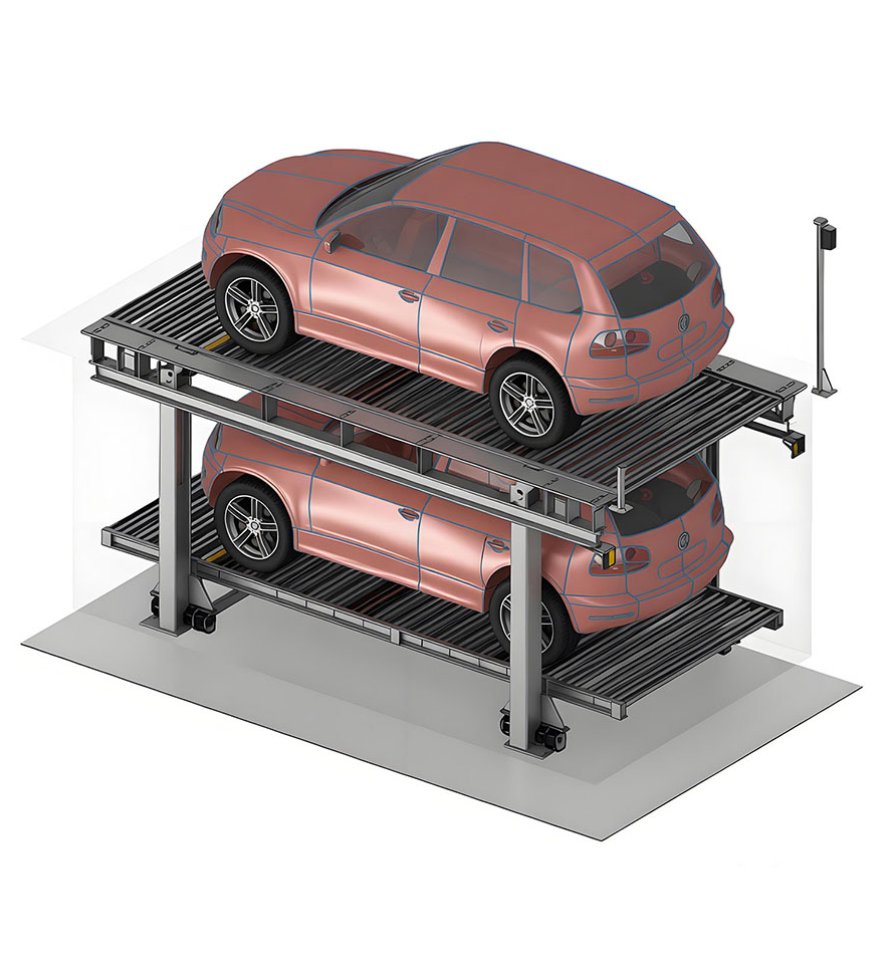

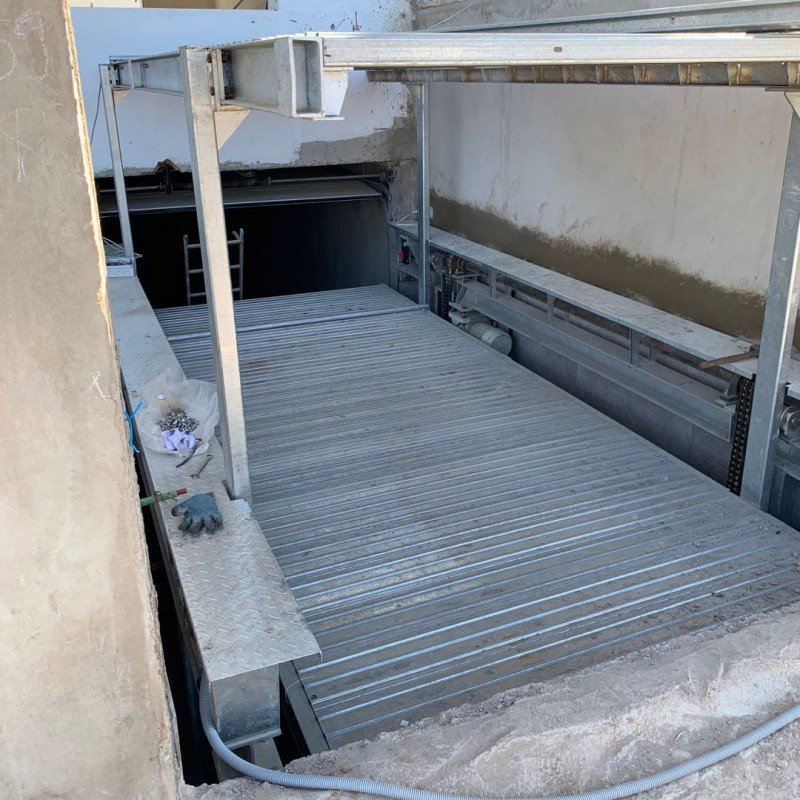

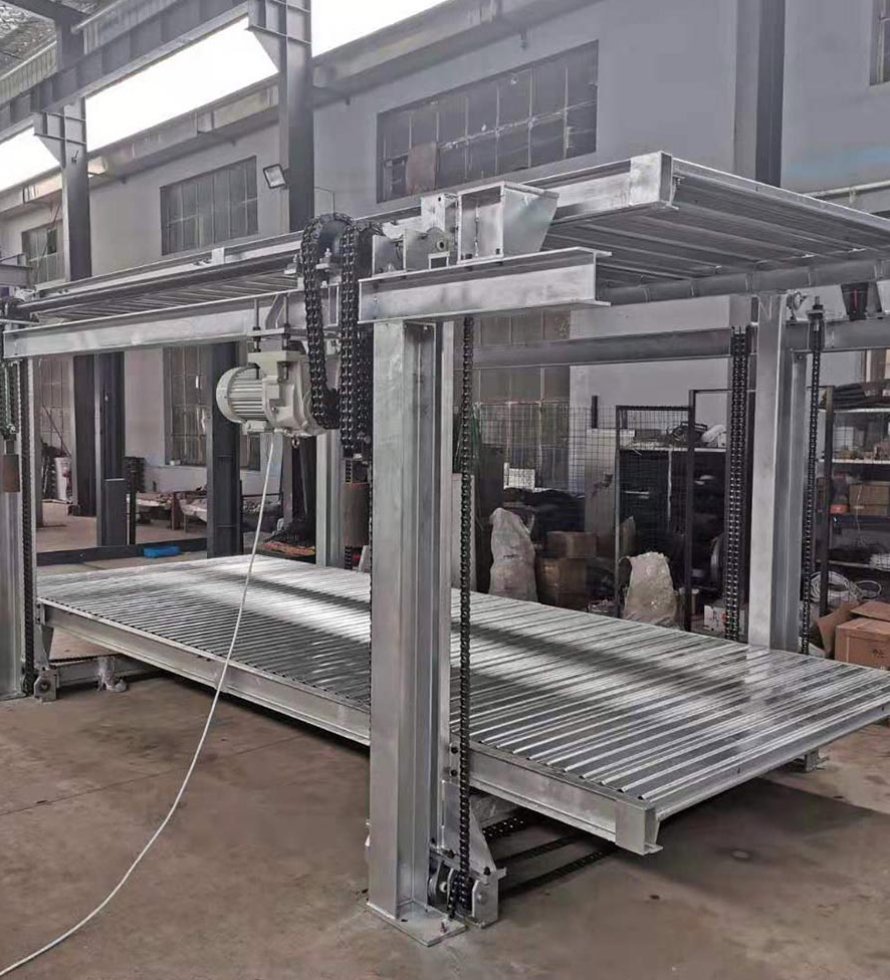

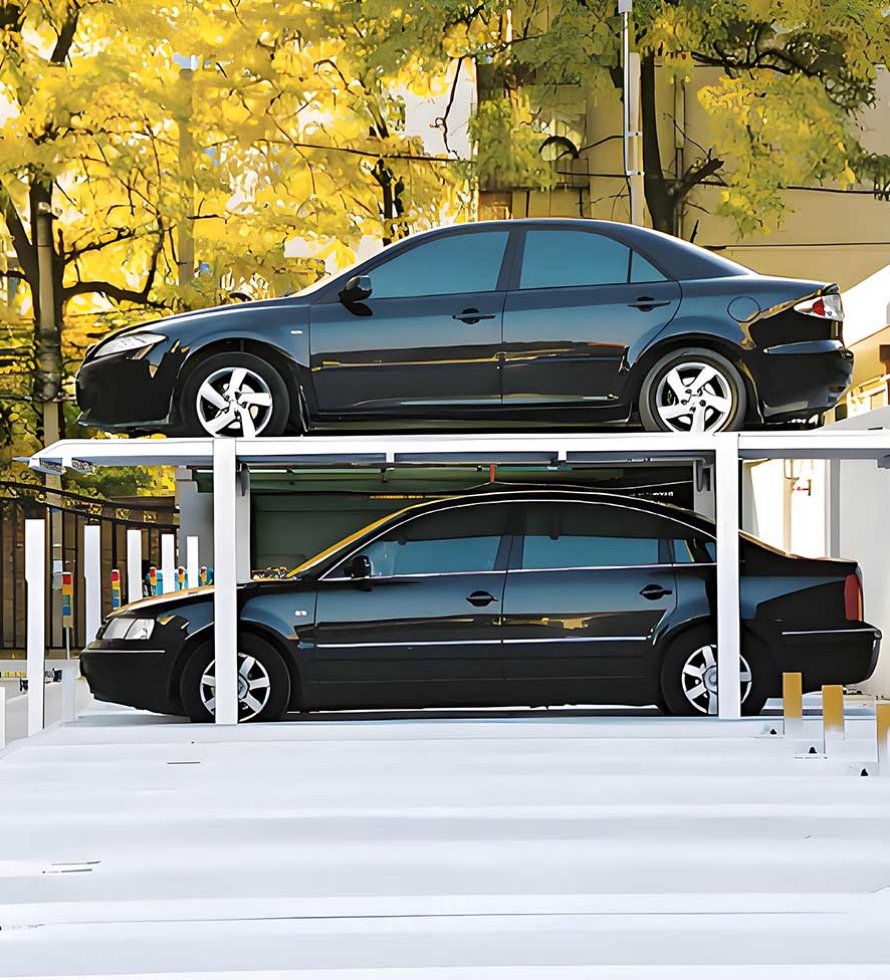

PJS – This parking system is designed with 2–3 vertical levels per unit. All upper and lower parking spaces operate in sync and lift together. The bottom level is usually underground, while the top level stays level with the ground for direct vehicle access. The bottom space can be used for parking once lifted to the ground level.
Features
1. Complies with EU Machinery Directive 2006/42/EC.
2. Electric drive with chain balance system.
3. Saves land space and fully utilizes underground space.
4. Each level is independent; vehicles can be parked or retrieved directly without moving other cars.
5. Galvanized wave plate platform, cold-formed, strong and humidity-resistant.

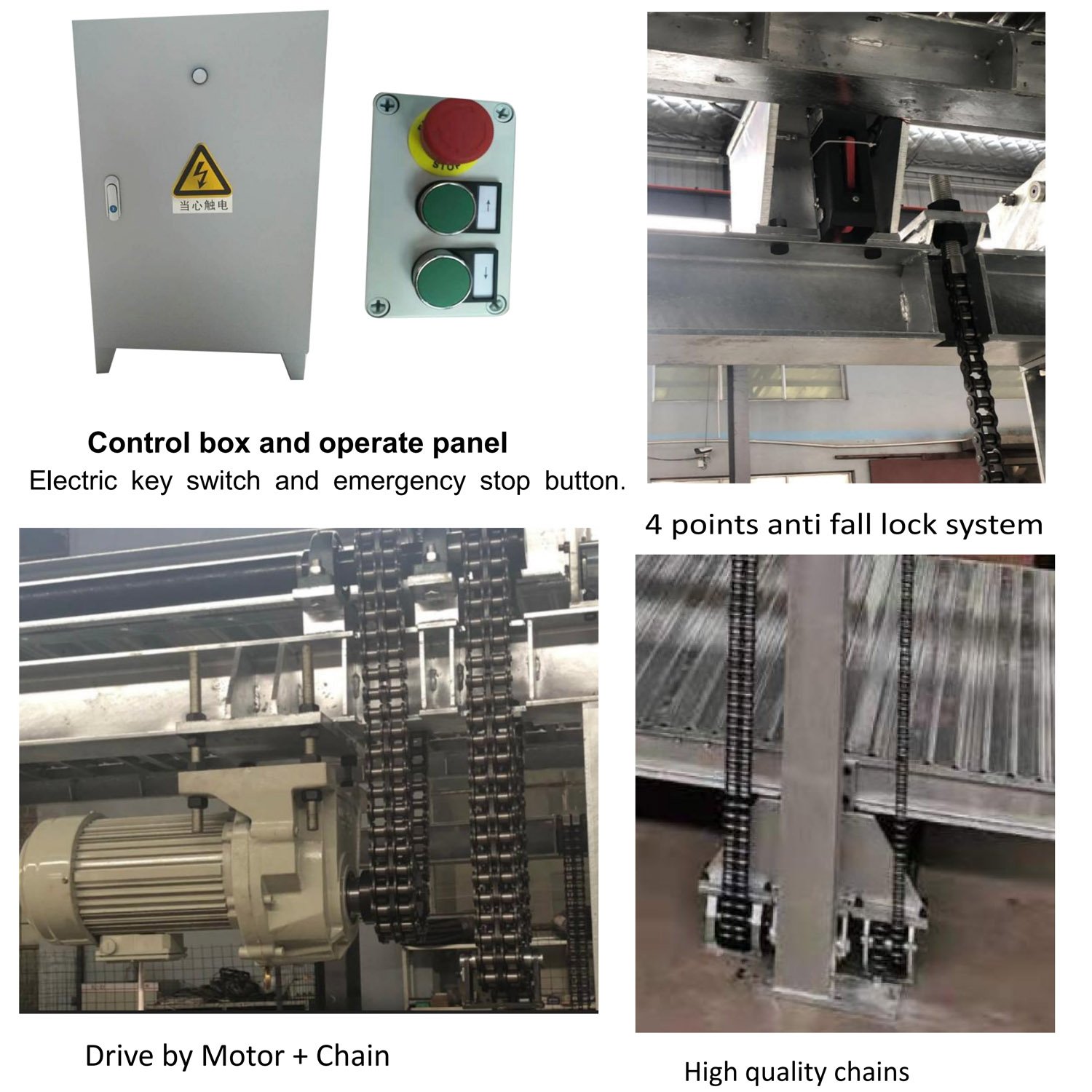

6. Anti-falling devices on four columns for maximum safety.
7. Keyed remote control box with push buttons for easy operation.
8. Flexible design customizable to customer requirements, suitable for residential and commercial use.
9. Electronic sensors ensure no people or objects are present before the platform lifts.
![]()
![]()
![]()
Model No. | PJS | |
Lifting Capacity | 2000 kg | |
Lifting Height | 1800mm | |
Vertical Speed | 2 - 3 M/Min | |
Lock Release | Electric Unlock | |

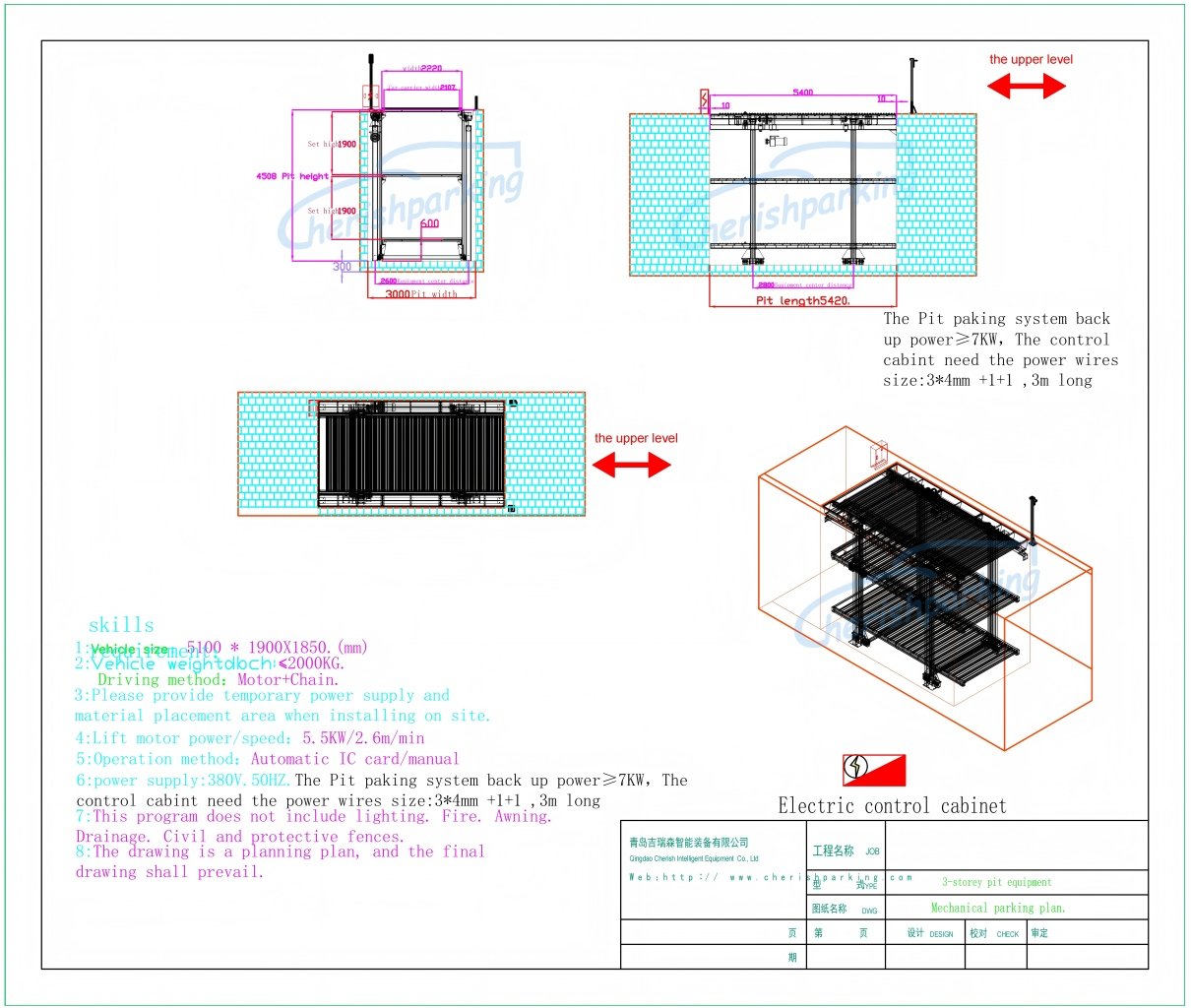

External Dimension | 5440 x 3000 x 2450 mm | |
Drive Mode | Motor + Chain | |
Vehicle Size | 5100 x 1950 x 1800 mm | |
Parking Mode | 1 underground, 1 on the ground | |
Parking Space | 2 or 3 | |
Rise/Drop Time | 70 S / 60 S | |
Power Supply / Motor Capacity | 220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 3.7Kw | 220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 5.5Kw |
![]()
![]()
