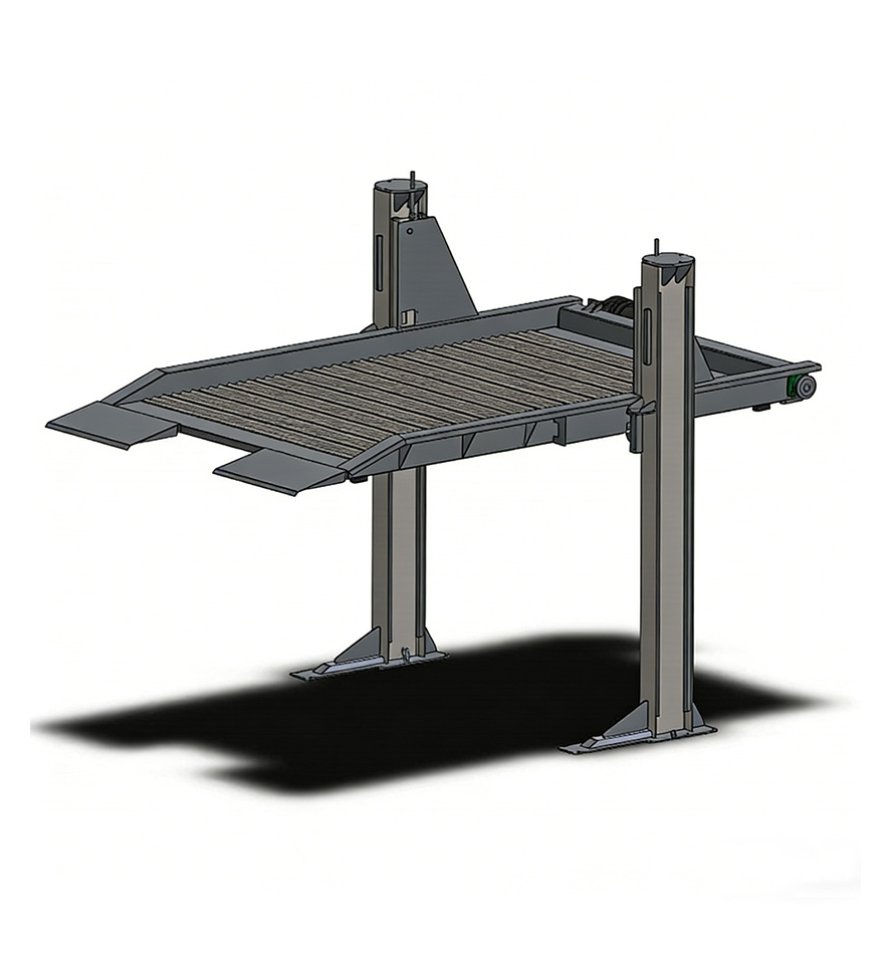

Two Post Motor Drive Parking Lift

Description

The CHPLC2000 MotorDriven Two Post Parking Lift is suitable for basements, open areas, and space limited locations. It efficiently doubles parking capacity by accommodating two vehicles within the footprint of a single standard parking space.

Easy to operate, safe and reliable, this lift supports vehicles of various sizes and weights. The all electric motor drive eliminates hydraulic fluids and prevents oil leaks, delivering a cleaner and more environmentally friendly solution.

(0 Customer Reviews)

Product Feature

Feature:

· All-electric motor drive system, no hydraulic oil, no leakage, eco-friendly and clean

· Easy installation & maintenance, no complex hydraulic piping required

· Smooth start & stop, low vibration, protecting vehicle body and chassis

· Anti-fall safety locks at multiple heights to ensure maximum security

· Compact two-post structure, small footprint, high space utilization

· Suitable for home garage, basement, commercial parking and car dealerships

· Reliable electrical control system with overload & overheat protection

Product Introduction

Model No.	CHPLC2000
Lifting Capacity	2500 kg
Lifting Height	1900 mm
Usable Platform Width	2180 mm
Overall Height	3026 mm
Overall Length	4447 mm
Overall Width	2878 mm
Power Supply / Motor Capacity	220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw 50/45s
Lock Release	Electric Release (Also could choose manual release)
Drive Mode	Motor Drive + Chain

2-6 Level Puzzle Type PSH

Puzzle With A Pit PSH

Back to Back Puzzle Type PSH

1 Level Sliding Platform PSH-1

Car Rotating Turntable ZT

Two Post Parking Lift CHPLA2300/2700

Tilting Parking Lift CHPLB2500

Motor Drive Parking Lift CHPLC2000

Four Post Parking Lift CHFL3700

New Triple Car Stacker CHFL4-3

Three Level Parking Lift CHFL4-3

4 Cars Parking Stacker CHFL2+2

Single Post Parking Lifts CHSPL2500

Scissor Parking Lift CHSPL2700

Vertical Parking Lift CPS

Vertical 2 Cars Pit Parking Lift CPL-2

Vertical 4 Cars Pit Parking Lift CPL-4

Tilting 2 Cars Pit Parking Lift CPT-2

Tilting 4 Cars Pit Parking Lift CPT-4

Tilting 2/4 Cars Pit Parking Lift CPT-2A/4A

Motor Drive Pit Parking Lift PJS

Single Decks Scissor Car Lift CSL-3

Double Deck Scissor Car Lift CSL-3

Four Post Car Lift FP-4

Rail Car Lift CSL-3

Standard Type GH

Home Lift with Elevator Car GH-HE

Home Lift with Shaft GH-VA

5-9 Level Rotary Parking System PCX

Mechanical Automated Parking System PPY

Multi Levels Tower Parking System PCS

Two Post Motor Drive Parking Lift

Two Post Motor Drive Parking Lift

Description

Product Feature

Product Introduction

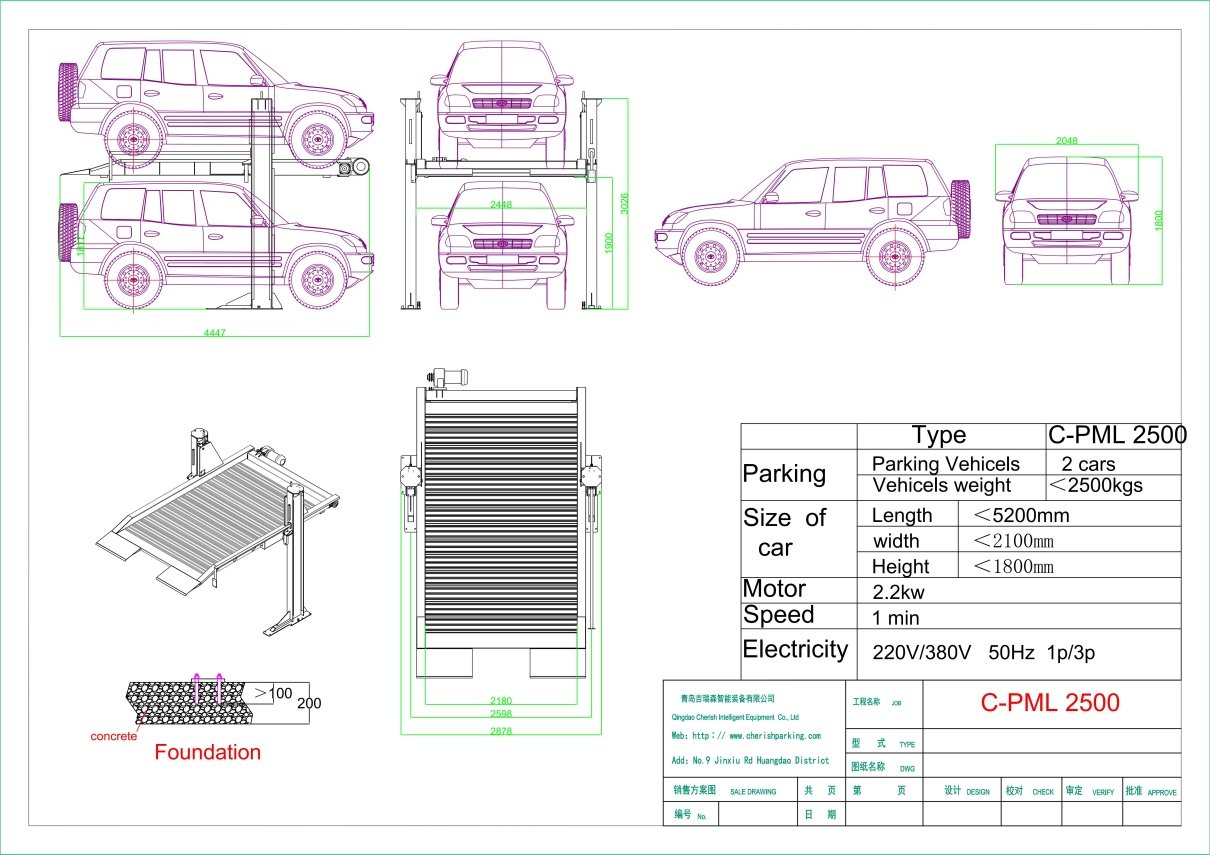

Drawing
