Hydraulic Tri-Level Car Parking Lift

Target Applications & Industry Scenarios

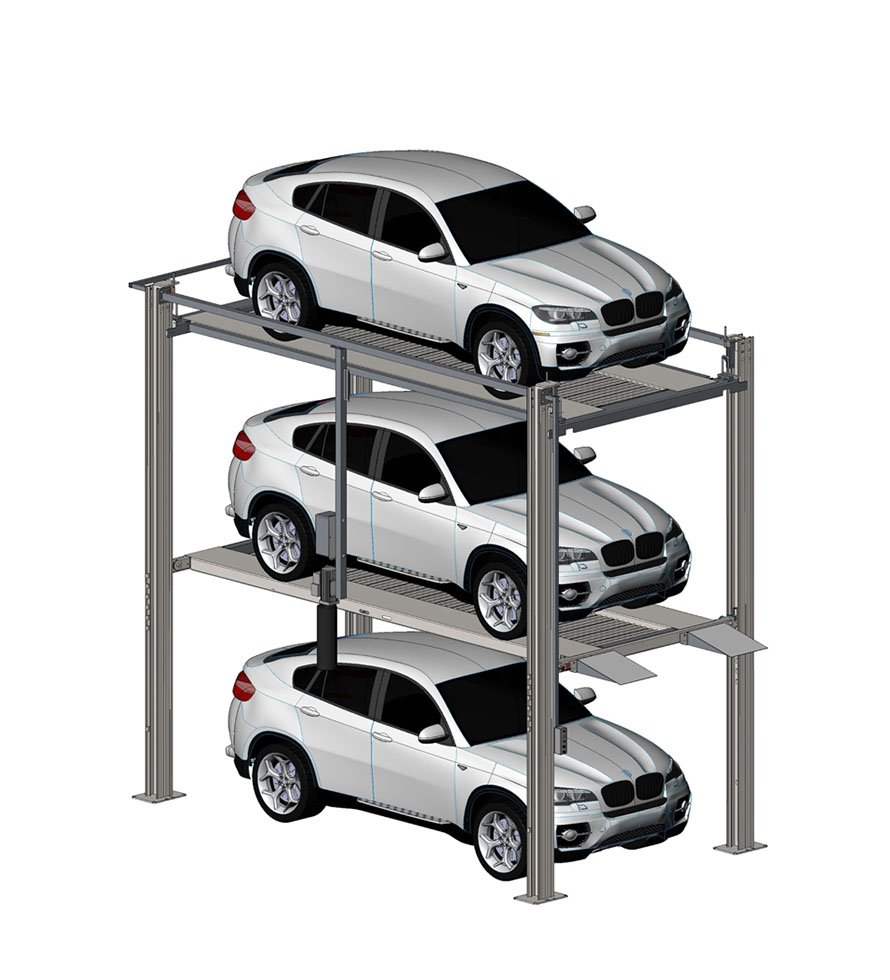

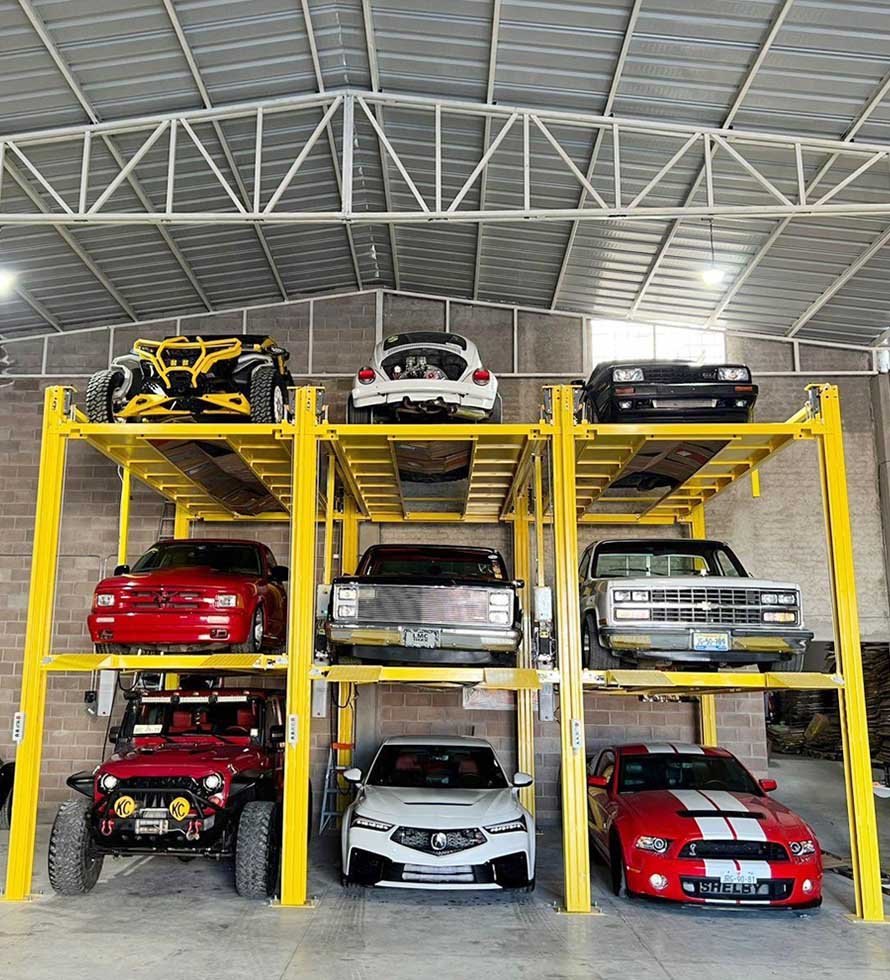

The NEW CHFL4-3 Tri-Level Car Stacker is an engineered high-density parking solution designed to maximize space efficiency across a wide spectrum of commercial, residential, and industrial applications. By vertically stacking three vehicles in a single footprint, this versatile multi-level vehicle parking lift solves acute space constraints for developers, business owners, and private collectors.

1. Commercial Parking Facilities & Valet Operations

• High-Density Valet Parking: Ideal for commercial garages, urban office complexes, hotels, and event venues utilizing valet parking services. The NEW CHFL4-3 allows attendants to maximize vehicle density without expanding physical land requirements.

• Commercial Real Estate Adaptive Reuse: Perfect for urban redevelopment projects where parking space requirements scale up without available ground footprint.

2. Auto Dealerships, Service Centers & Fleet Storage

• Inventory & Fleet Management: Enables automotive dealerships, car rental hubs, and fleet operators to triple on-site vehicle storage.

• High-Capacity SUV & Vehicle Holding: Designed as a robust heavy-duty car stacker for SUVs, sedans, and light commercial vans, keeping valuable inventory secure, organized, and easily accessible.

3. Luxury Residential & Multi-Family Developments

• Multi-Family Housing & Apartments: Solves strict municipal parking ratio requirements for property developers building apartment complexes, condominiums, and townhomes.

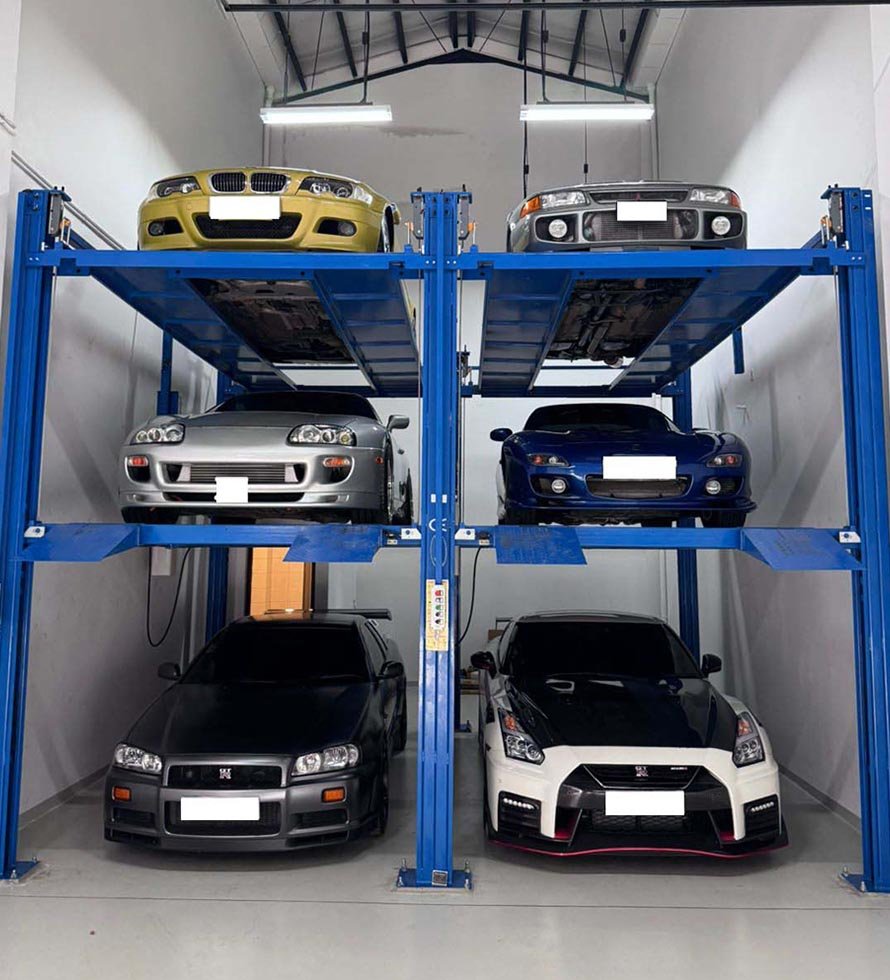

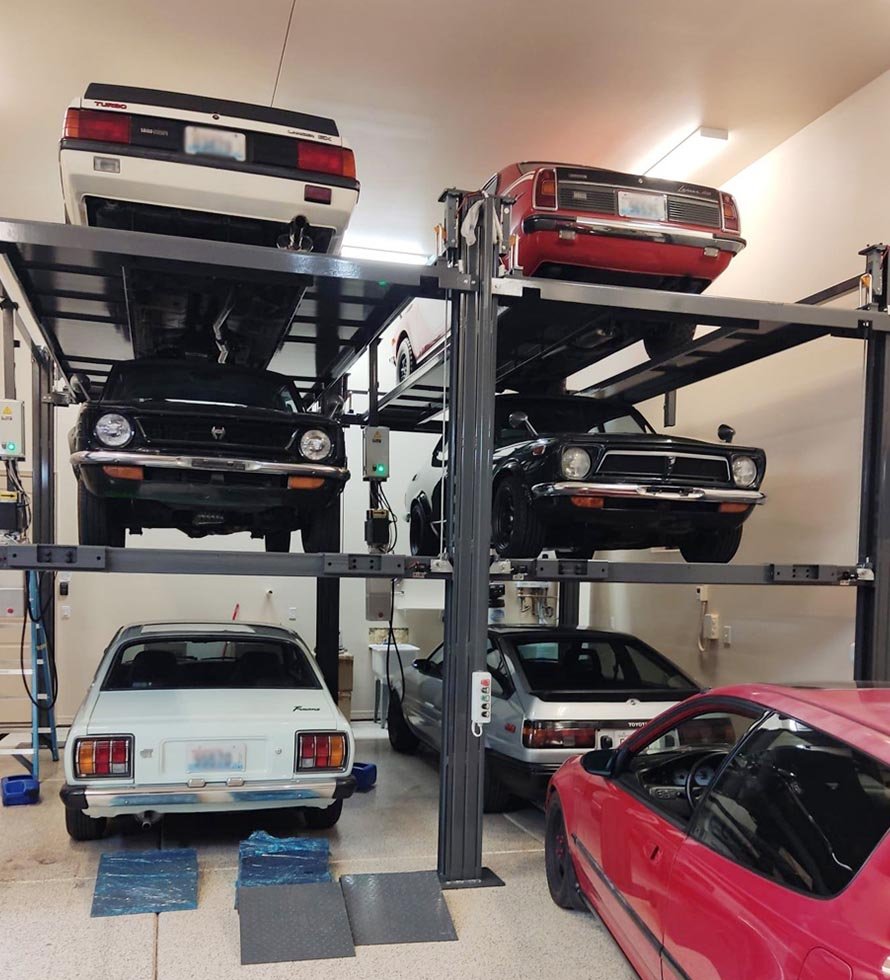

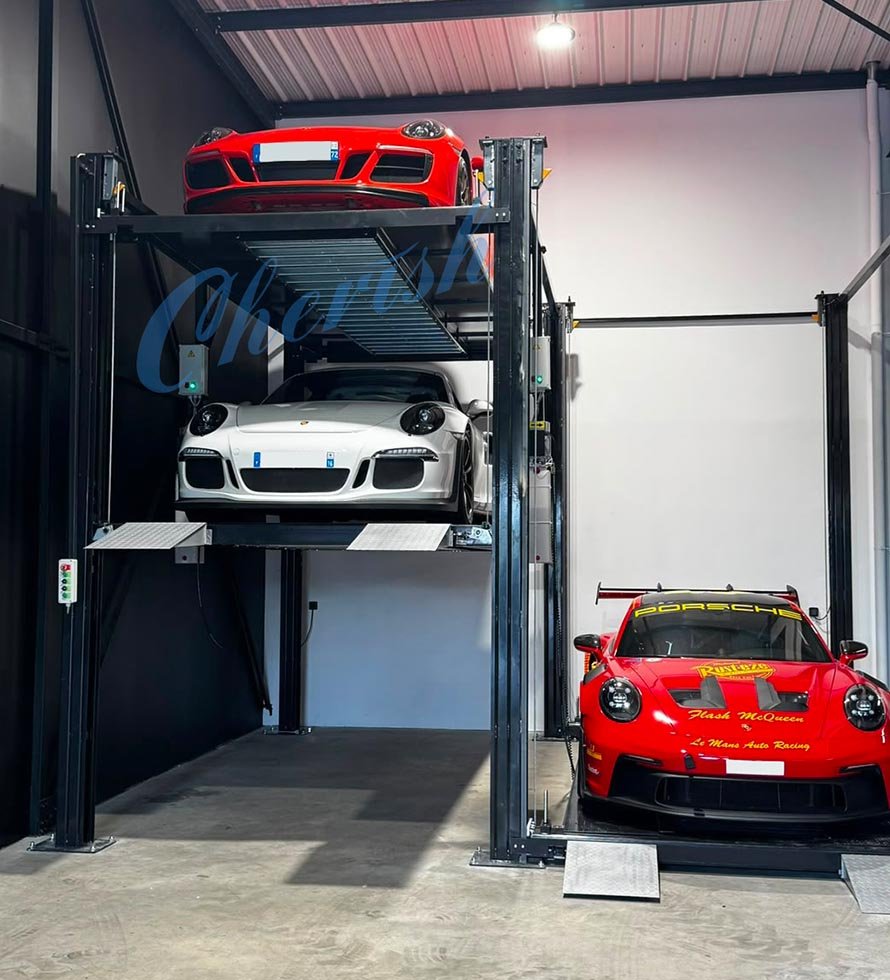

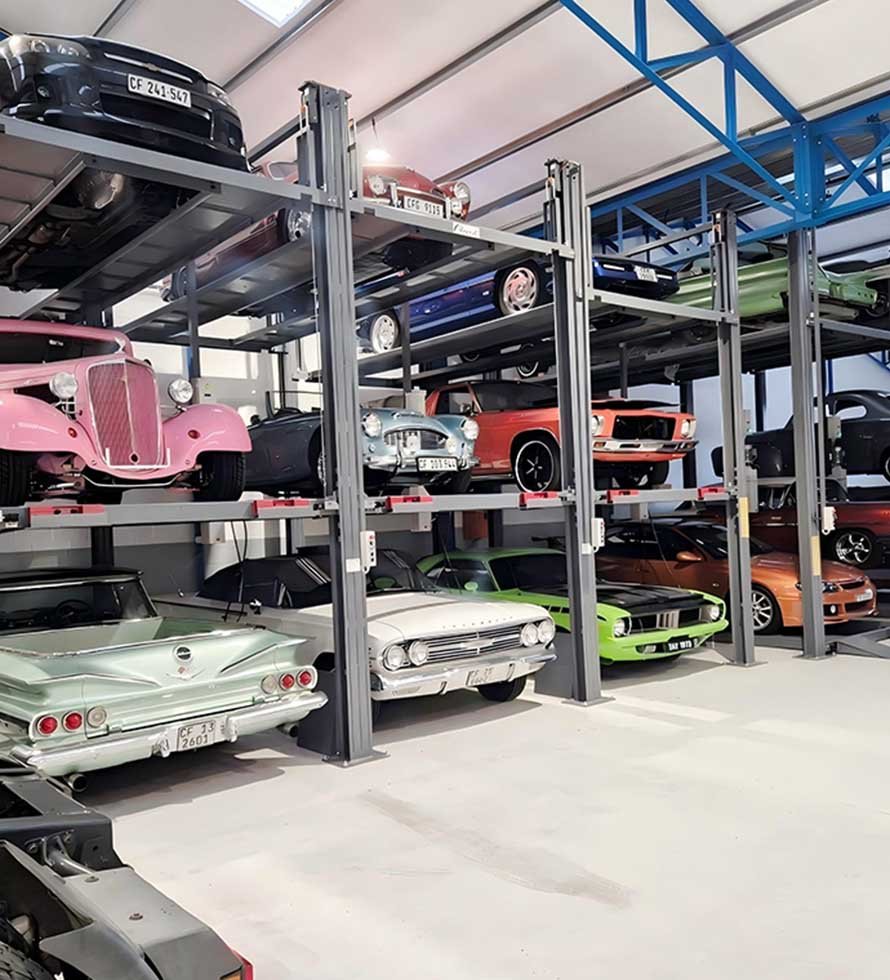

• Private Garages & Collector Storage: Designed with a compact post footprint and low-clearance adaptability, making it an ideal choice for private collectors and multi-car homeowners seeking high-capacity residential garage storage.

4. Outdoor Fleet Storage & Temporary Depots

• Weather-Protected Outdoor Installations: Suitable for outdoor parking lots under waterproof shelters or localized canopy systems, providing high-density storage for airport parking, car rental depots, and logistics hubs.

Frequently Asked Questions (FAQ)

Q1: What are the concrete slab and ceiling height requirements for installing the NEW CHFL4-3?

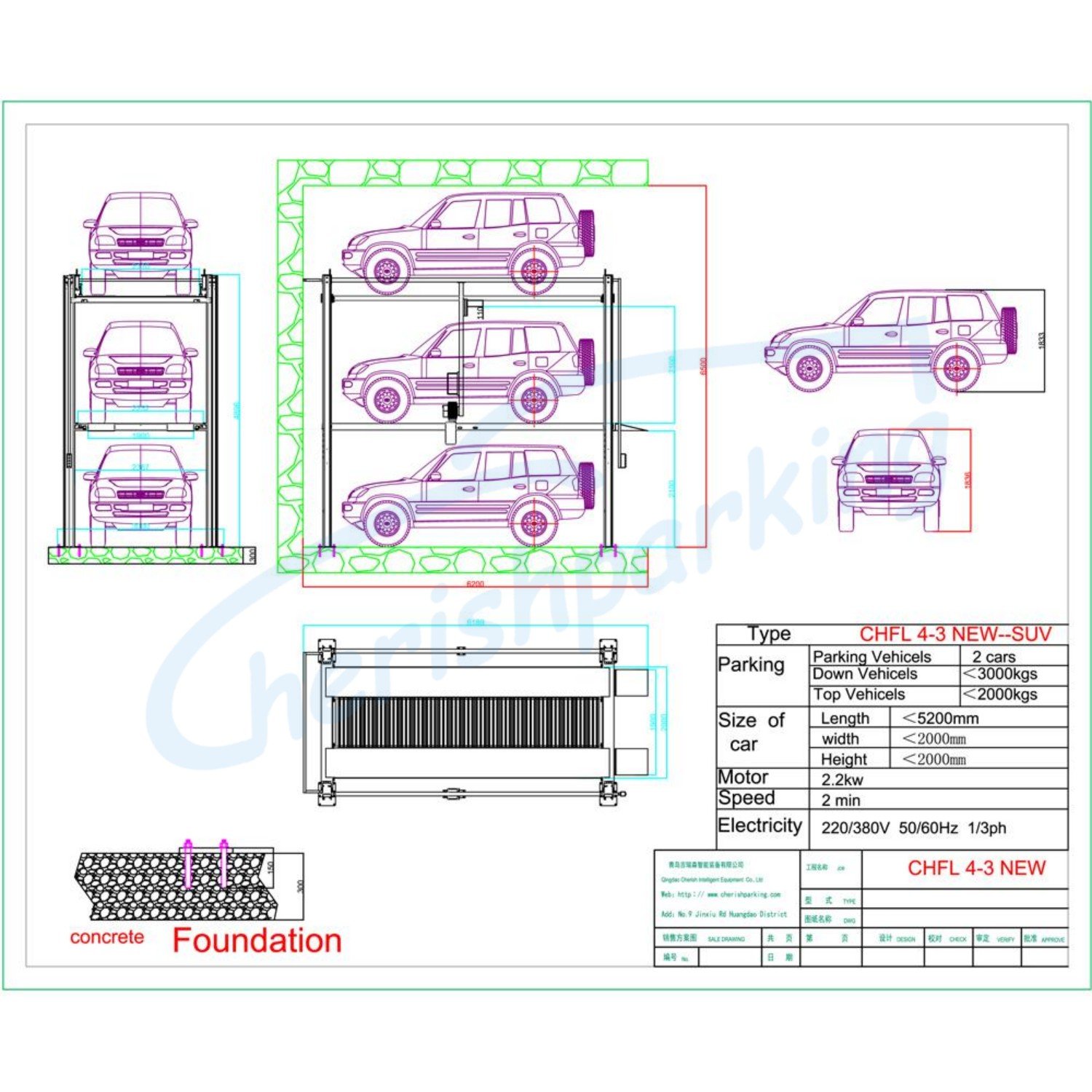

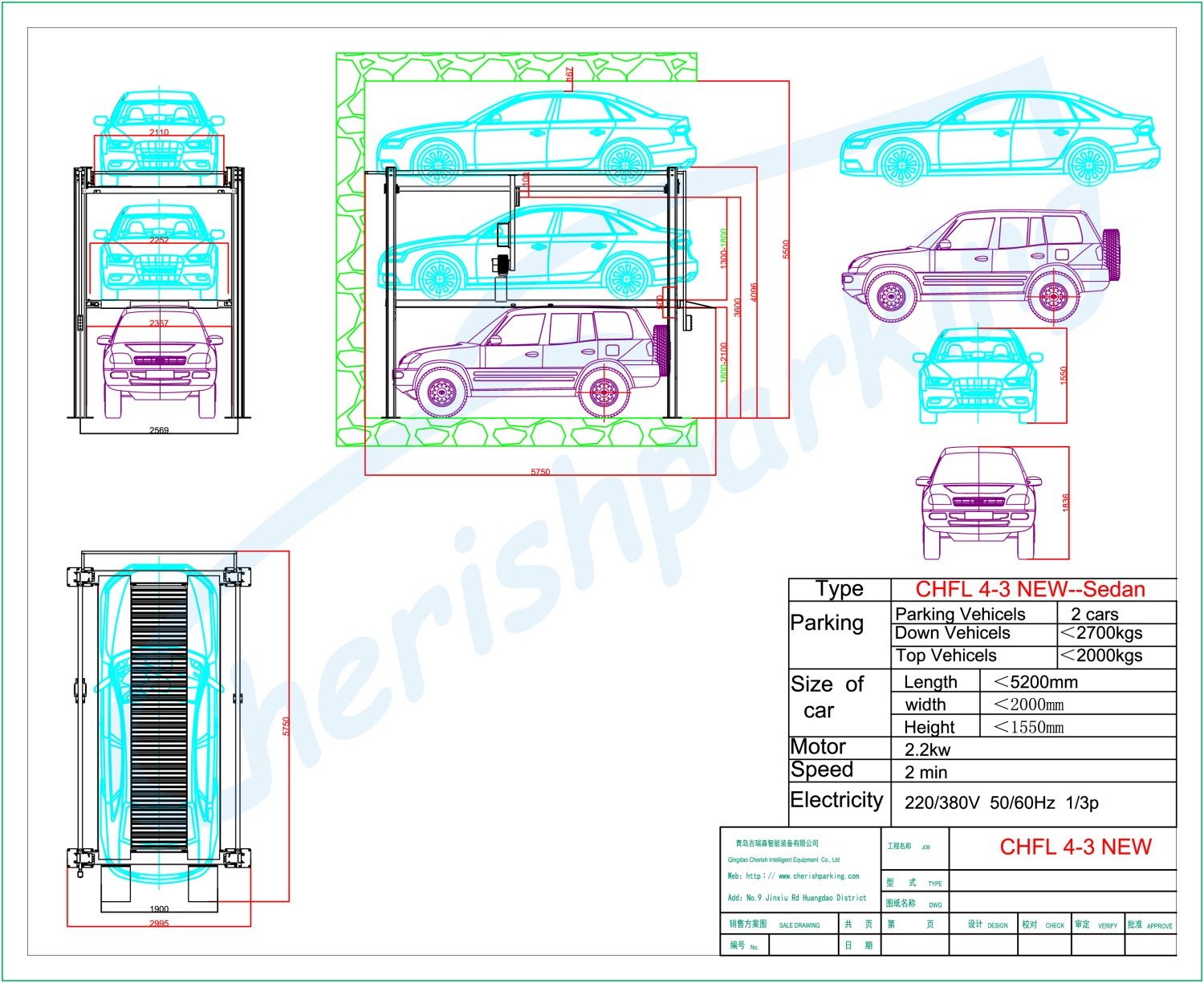

A: The NEW CHFL4-3 requires a level concrete foundation with a minimum thickness of 150mm to 200mm (3,000 PSI rating). Because the middle platform height is fully adjustable and the system features a low-clearance compact column design, required ceiling heights vary depending on your vehicle mix (typically 4.8m to 5.6m clear height for full three-vehicle clearance).

Q2: What type of vehicles can be parked on each level of the CHFL4-3?

A:

• Top Platform (2,000 kg / 4,400 lbs): Designed for sedans, compact cars, and sports cars.

• Middle Platform (3,000 kg / 6,600 lbs): Engineered for full-size SUVs, crossover vehicles, and heavy sedans.

• Ground Level (Unlimited Capacity): Accommodates heavy SUVs, oversized commercial vans, or trucks, limited only by your ceiling clearance.

Q3: Is this parking lift suitable for self-parking or valet-operated parking?

A: The NEW CHFL4-3 is a dependent parking system best suited for valet parking operations, commercial fleet storage, dealership inventory, or private car collections. To retrieve upper vehicles, the lower vehicles must be driven out first.

Q4: Can the NEW CHFL4-3 be installed outdoors?

A: Yes. The lift can be installed outdoors when paired with a protective waterproof shelter or canopy. The system is treated with high-durability anti-corrosion powder coating to resist environmental wear.

Q5: What safety features are integrated to prevent vehicle damage or platform drops?

A: Safety is paramount. The system includes:

• Four electromagnetic safety locks on top and middle platforms.

• Multiple mechanical anti-fall lock ladders along each vertical post.

• Over-height safety detection sensors on the middle level to prevent overhead collisions.

• Photocell anti-collision sensors to stop operation if an obstacle is detected.

• Hydraulic overload relief valves to protect the lifting structure.

Q6: How easy is it to operate the lift?

A: The system features a simple PLC-automated key-switch control panel (Up/Down/E-Stop). Authorized operators simply insert the key and hold the switch to lift or lower the platform smoothly.

Q7: What electrical power supply is required?

A: The standard configuration runs on a 3-Phase 380V / 50Hz (or 415V/460V 60Hz depending on local standards) power supply with a 3.0kW hydraulic power unit. Custom electrical configurations can be provided upon request.

Q8: What happens during a power outage? Can vehicles still be retrieved?

A: In the event of a power outage, the lift is equipped with a manual lowering valve on the hydraulic pump unit. Authorized technicians can safely release hydraulic pressure to manually lower the platforms and retrieve vehicles.

Q9: What routine maintenance is required for this tri-level car stacker?

A: We recommend routine inspection every 3 to 6 months, which includes checking hydraulic fluid levels, lubricating sliding guide blocks and chains, testing safety lock solenoids, and inspecting wire cables/chains for tension and alignment.

Q10: What warranty and technical support do you provide after purchase?

A: We provide a 5-year structural warranty and a 1-year warranty on hydraulic and electrical components. Our technical support team offers 24/7 online troubleshooting, detailed installation manuals, video guides, and fast-ship replacement spare parts globally.
