The Puzzle Parking System is a flexible parking solution that combines horizontal and vertical platform movement to create more parking spaces within a compact footprint, ensuring efficient, safe, and convenient operation.
Features
1. Flexible modular design allows customized layouts to match various site conditions and project requirements.
2. Maximizes land utilization and significantly increases parking capacity, accommodating up to five times more vehicles than conventional surface parking.
3. Cost-effective solution with low installation, operation, and maintenance expenses.
4. Smooth and quiet operation ensures comfortable and efficient vehicle parking and retrieval.
5. Equipped with multiple safety features, including anti-fall devices, vehicle and pedestrian detection systems, parking position monitoring, interlock protection, and emergency braking mechanisms.
6. Advanced PLC control system supports push-button, IC card, and remote-control operation for simple, reliable, and user-friendly management.
![]()
![]()
![]()

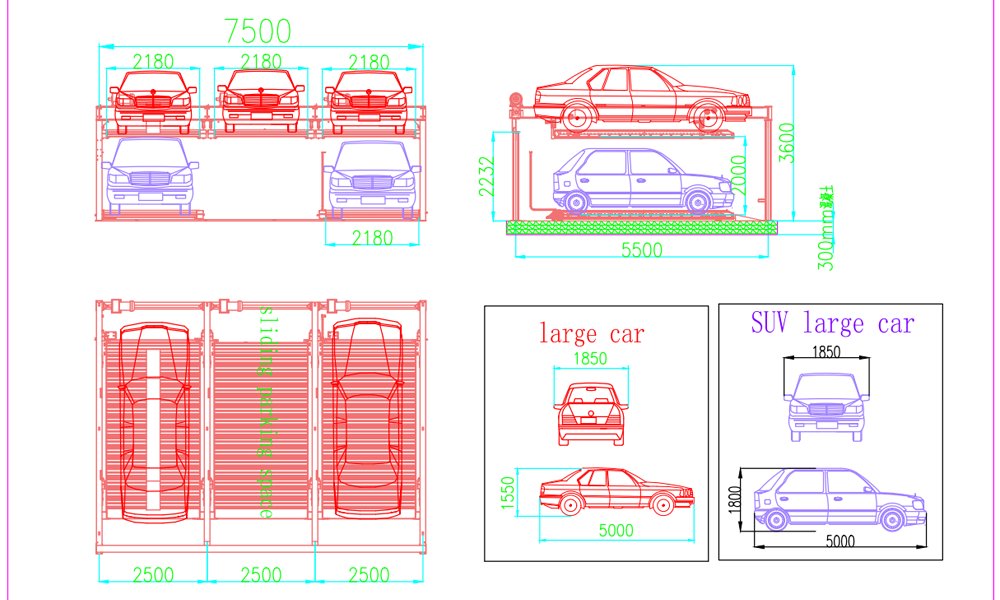

Model No. | no.1 | no.2 | |
Vehicle Size | L: | ≤ 5000 | ≤ 5000 |
W: | ≤ 1850 | ≤ 1850 | |
H: | ≤ 1550 | ≤ 1800 | |
Drive Mode | Motor Driven + Chain/Rope | ||
Lifting Motor Capacity / Speed | 2.2Kw 8M/Min (2/3 levels); | ||
Sliding Motor Capacity / Speed | 0.2Kw 8M/Min | ||
Loading Capacity | 2000 kg | 2500 kg | |
Operation Mode | Keyboard / ID Card / Manual | ||
Safety Lock | Safety lock device by electromagnetism and fall protection device | ||
Power Supply | 380V, 50Hz / 60Hz, 3Ph | ||
![]()
