Semi-Automated Sliding Lifting Puzzle Parking System

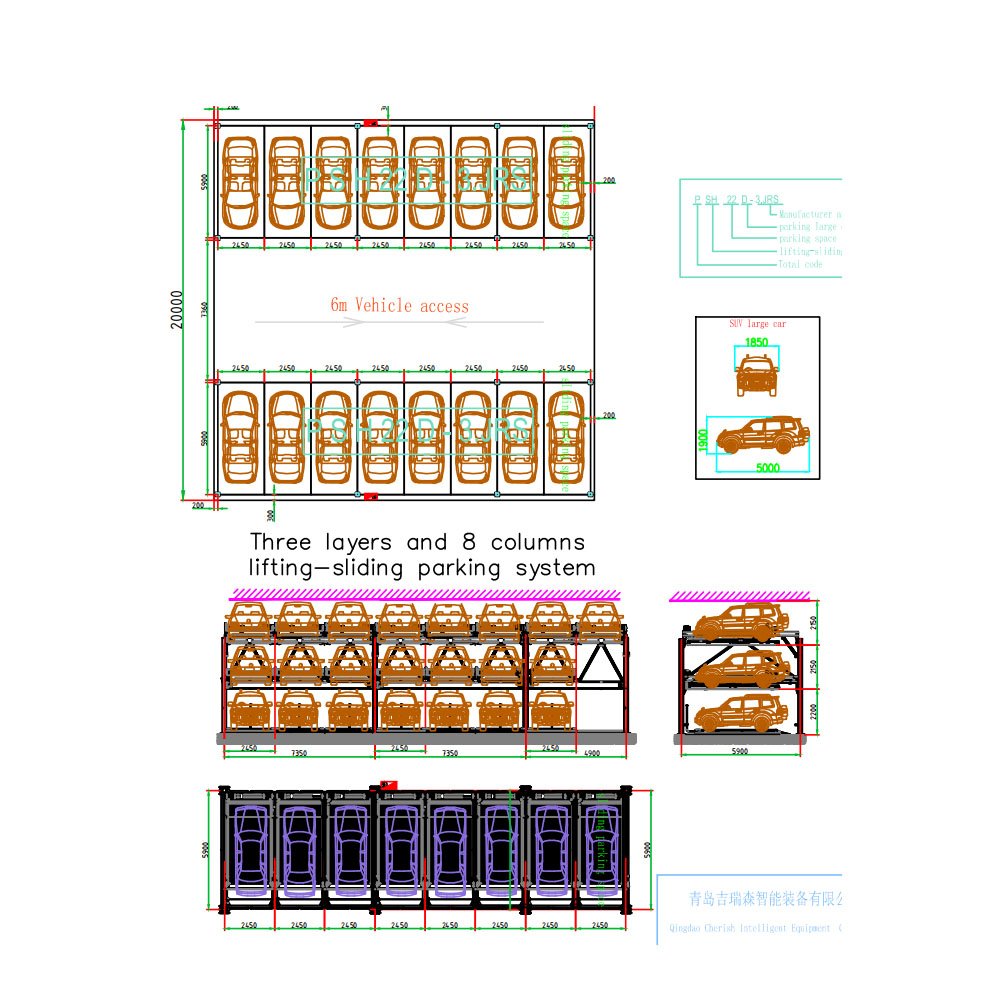

Drawing of 3 Level Sliding and Lifting Puzzle Car Parking System

Application Scenarios

The Semi-Automated Sliding Lifting Mechanical Puzzle Parking System is designed for projects where conventional parking layouts cannot provide enough spaces within the available area. Its multi-level platform arrangement helps adapt parking capacity to different building and site conditions.

Residential Parking

Create additional parking spaces in apartment buildings, condominiums, and residential developments where available parking areas are limited.

Commercial Properties

Suitable for offices, retail buildings, and mixed-use developments that need to accommodate more vehicles without significantly expanding the parking footprint.

Hotels & Hospitality

Provide organized vehicle storage for hotels and other hospitality facilities, particularly where site space is constrained.

Car Dealerships

Use vertical and horizontal platform arrangements to increase vehicle storage capacity while making better use of limited showroom or storage areas.

Urban Parking Projects

An option for urban sites where land is expensive or difficult to expand. The 2–6 level configuration allows the parking layout to be planned according to available space and required capacity.

Private & Corporate Parking

Suitable for private garages, company parking areas, and other dedicated parking facilities requiring additional vehicle spaces within an existing footprint.

What is a Semi-Automated Puzzle Parking System?

A Semi-Automated Puzzle Parking System combines vertical lifting and horizontal platform movement to arrange vehicles across multiple parking levels. The system uses mechanical movement to bring the selected vehicle to the access level for parking or retrieval.

How does the puzzle parking system operate?

After the vehicle is positioned in the designated loading area, the operator activates the parking or retrieval command. The control system coordinates the lifting and sliding movements of the platforms according to the selected parking position.

How many levels can be designed?

The system can be designed with 2 to 6 parking levels. The appropriate configuration depends on available building height, site dimensions, required parking capacity, and vehicle specifications.

What types of vehicles can the system accommodate?

The system can be designed for different passenger vehicles, including sedans and SUVs. Platform dimensions and load capacity should be selected according to the actual vehicle size and weight requirements of the project.

Where can a puzzle parking system be installed?

It can be considered for residential parking areas, commercial buildings, hotels, offices, dealerships, public parking facilities, and other projects where conventional parking space is limited.

Does the system require a driver to move other parked vehicles?

The platform arrangement is designed to move vehicles mechanically between parking positions. Depending on the selected configuration, the requested vehicle can be brought to the access level without manually relocating other parked cars.

Can the puzzle parking system be customized?

Yes. The number of levels, platform dimensions, parking arrangement, vehicle capacity, lifting height, control method, and surface treatment can be adjusted to suit specific project requirements.

What should be considered before installation?

Available length, width, and height should be confirmed first. Vehicle dimensions, loading capacity, entrance conditions, electrical requirements, and the intended parking layout should also be considered during the design stage.

What information is needed for a parking system proposal?

A preliminary proposal can be prepared using the site dimensions, required number of parking spaces, vehicle dimensions and weight, desired number of levels, installation location, and available architectural drawings.
