PLC Control Multi Level Motor Drive Automatic Puzzle Car Parking System

PRODUCT APPLICATIONS

·  Residential Complexes & Apartment Buildings: Solves parking space shortages for high-density residential towers while increasing property resale value.

·  Commercial Buildings & Shopping Malls: Boosts daily parking throughput and accommodates peak customer traffic smoothly in high-footfall business districts.

·  Corporate Office Parks: Maximizes employee parking within limited lot areas without encroaching on surrounding green spaces.

·  Hospitals & Educational Campuses: Provides fast, structured parking access in space-restricted civic institutions.

·  Urban Retrofits & Infill Developments: Easily integrates into existing parking structures or tight city lots with minimal spatial footprint.

FAQ

Q1: How does a PLC-controlled puzzle parking system work?

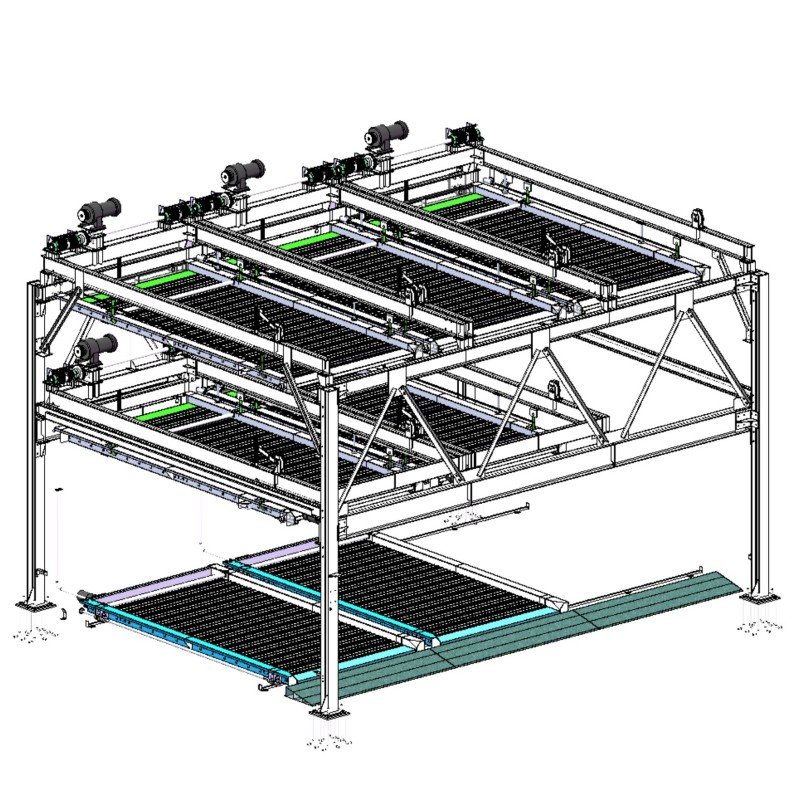

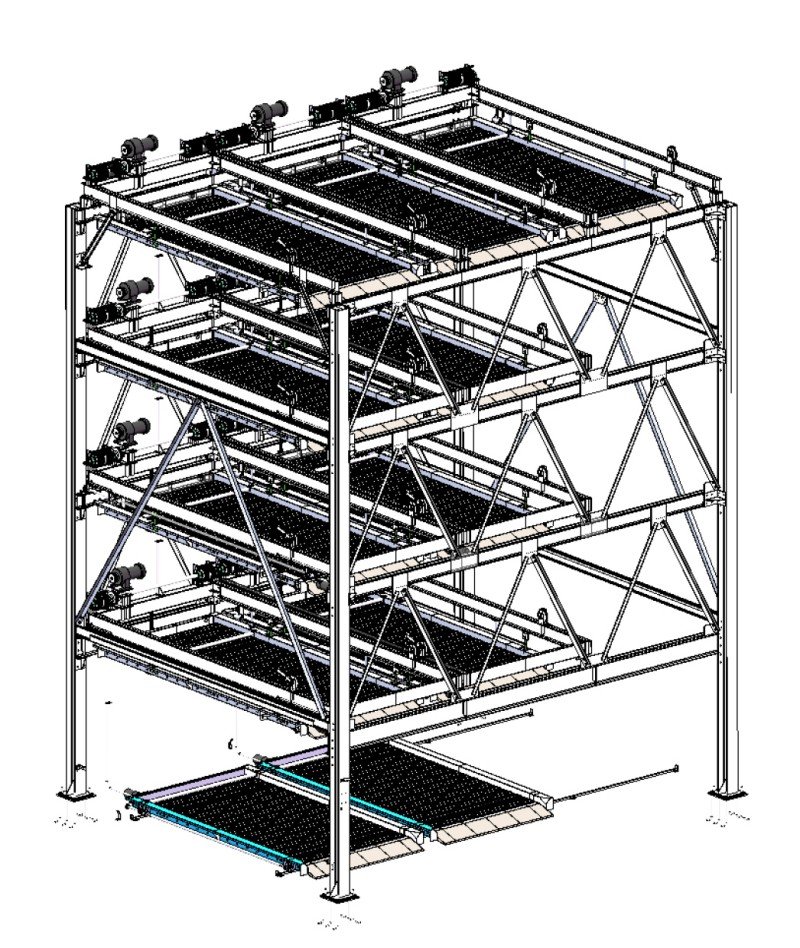

A: A puzzle parking system uses a grid-like combination of vertical lifting and horizontal sliding platforms. The PLC controller automatically rearranges upper and lower platforms to clear a vertical path, bringing the target vehicle down to the ground level for driver entry or exit.

Q2: Is the puzzle parking system safe for SUVs and larger vehicles?

A: Yes. Standard platforms support loads up to 2,000 kg for sedans, with heavy-duty options rated up to 2,500 kg designed specifically for modern SUVs and electric vehicles (EVs). Height limits can also be customized during the engineering phase.

Q3: What happens during a power outage or electrical failure?

A: To ensure uninterrupted 24/7 parking operation and prevent access delays during grid outages, we strongly recommend that clients equip the facility with a backup diesel generator. The PLC control system and motor drives can seamlessly switch to generator power upon detection of a blackout.

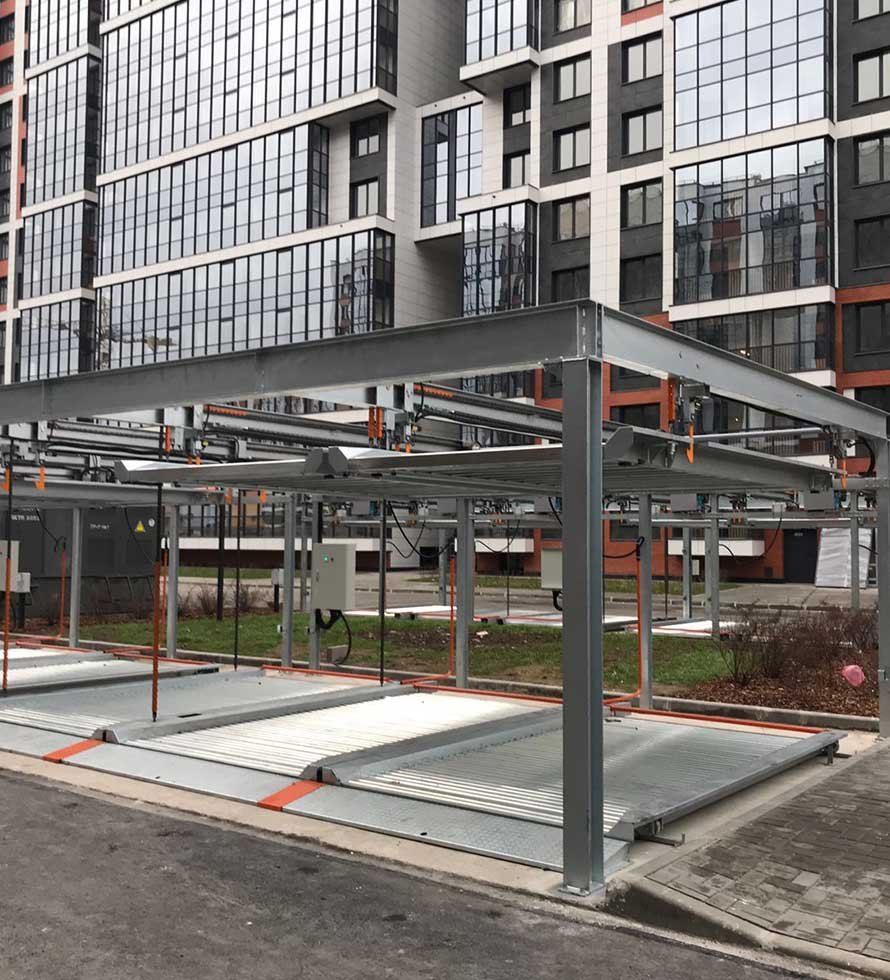

Q4: Can this puzzle car parking system be installed outdoors?

A: Absolutely. Our steel structures undergo hot galvanization and weather-proof coating, protecting the mechanical and electrical components against rain, humidity, UV exposure, and extreme temperatures. Canopy enclosure options are also available.

Q5: What is the typical vehicle retrieval time?

A: Vehicle retrieval typically takes between 30 to 90 seconds, depending on the number of levels and the platform’s position relative to the ground floor.

Q6: What maintenance is required for a mechanical puzzle parking garage?

A: Routine maintenance includes periodic inspection of chain tension/hydraulic oil, lubricating moving joints, checking PLC sensor alignment, and verifying safety latch engagement. We recommend quarterly professional service checks.
