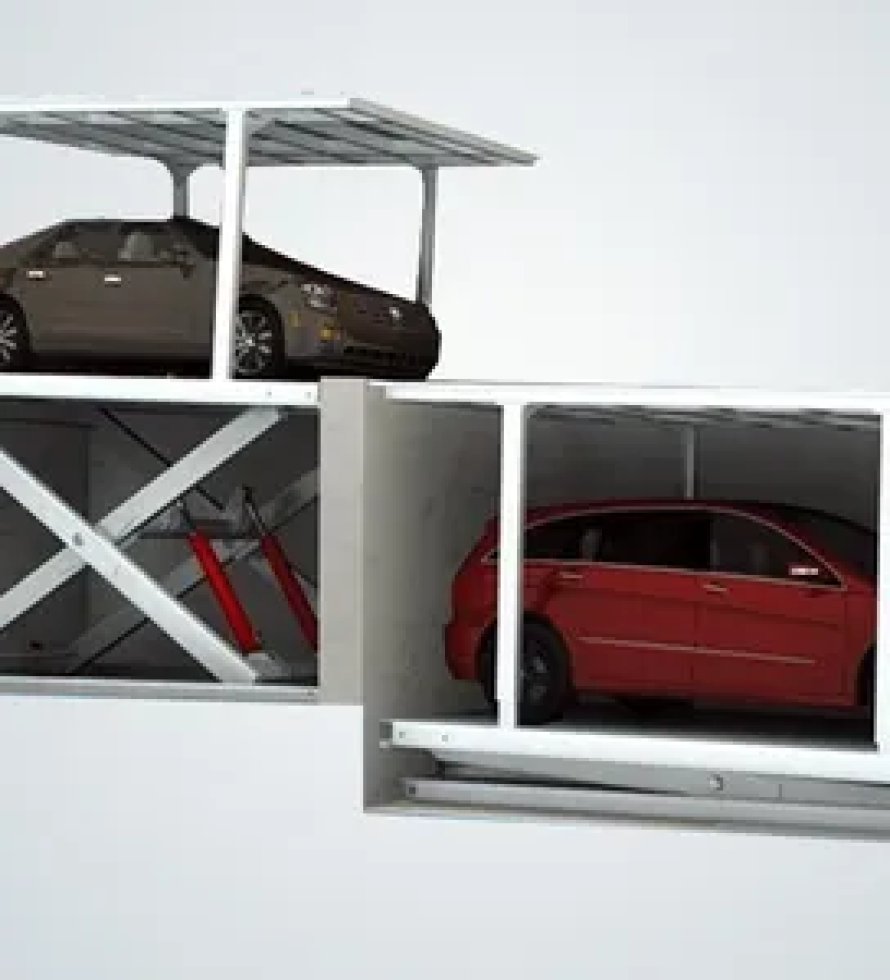

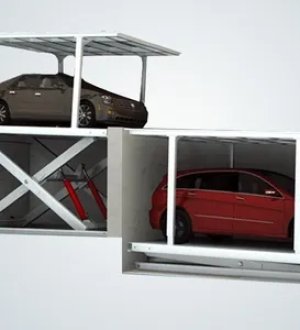

The Double-Deck Scissor Car Lift (CSL-3-2) is a space-efficient underground parking system engineered to significantly increase parking density in urban and high-value real estate projects. Designed for pit installation, the lift becomes fully invisible when retracted, allowing the top surface to be seamlessly integrated with concrete flooring, stone paving, garden landscaping, or other architectural finishes.
This advanced concealed parking solution is ideal for residential villas, commercial buildings, office complexes, and mixed-use developments where land utilization and visual appearance are equally important. By utilizing a vertical scissor lifting mechanism, the CSL-3-2 enables two-level vehicle storage within a single parking footprint, effectively doubling available capacity without expanding ground space.
With the global rise in vehicle ownership and the growing shortage of parking resources in metropolitan areas, this system offers a reliable and practical alternative to traditional surface parking. It combines the functionality of a hydraulic parking lift and an underground car storage platform, delivering smooth operation, strong load-bearing performance, and long-term durability for modern parking infrastructure projects.
Features
• Increased Parking Efficiency – Enables two vehicles to be stored vertically within a single standard parking footprint, significantly improving land utilization and parking turnover capacity.
• Fully Concealed Underground Structure – When lowered, the upper platform integrates flush with the ground surface, maintaining a clean architectural finish suitable for landscaped or paved environments.
• Dual-Function Vehicle Transfer System – Works as both a parking platform and a vertical transport solution, allowing smooth movement of vehicles between surface level and basement parking areas.

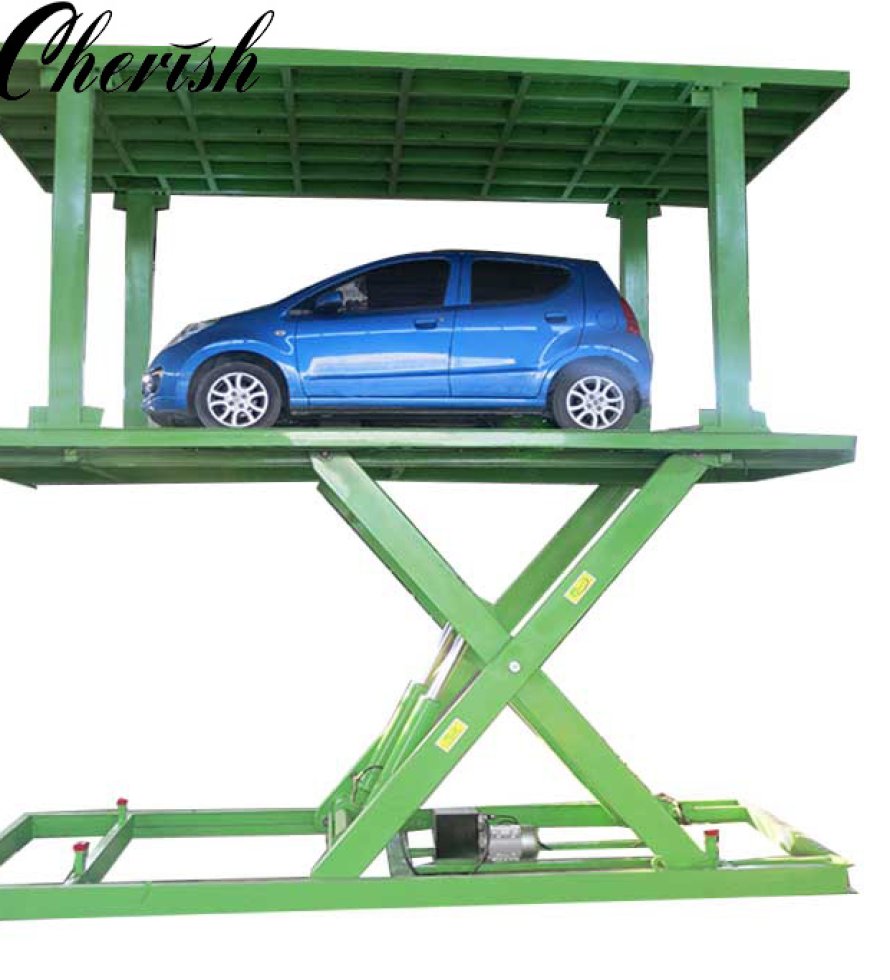

• Heavy-Duty Hydraulic Scissor Mechanism – Provides stable lifting performance with synchronized operation, reduced vibration, and long service life under frequent use conditions.
• Project-Based Custom Engineering – Adjustable platform dimensions, lifting stroke, load ratings, and control configurations available to meet specific architectural and engineering requirements.
• Multi-Layer Safety Protection Design – Includes mechanical locking devices, emergency stop controls, hydraulic overload protection, and anti-fall safety systems to ensure reliable operation.
• Compact Footprint Optimization – Designed for environments with limited space where traditional access ramps or ramp parking layouts are not feasible.
• Wide Application Scenarios – Suitable for residential villas, luxury housing projects, commercial complexes, office buildings, automotive showrooms, and underground garage developments requiring efficient vertical parking solutions.
![]()
![]()
![]()
Model No. | CSL-3 |
Max Lifting Capacity | 5000kgs |
Usable Platform width | Customized |
Overall Height | Customized |
Overall Length | Customized |
Overall Width | Customized |
Power Supply/Motor Capacity | 380V, 50Hz, 3Ph, 5.5Kw |
Lock Release | Electric Release |
Drive Mode | Hydraulic Drive |
![]()
![]()
