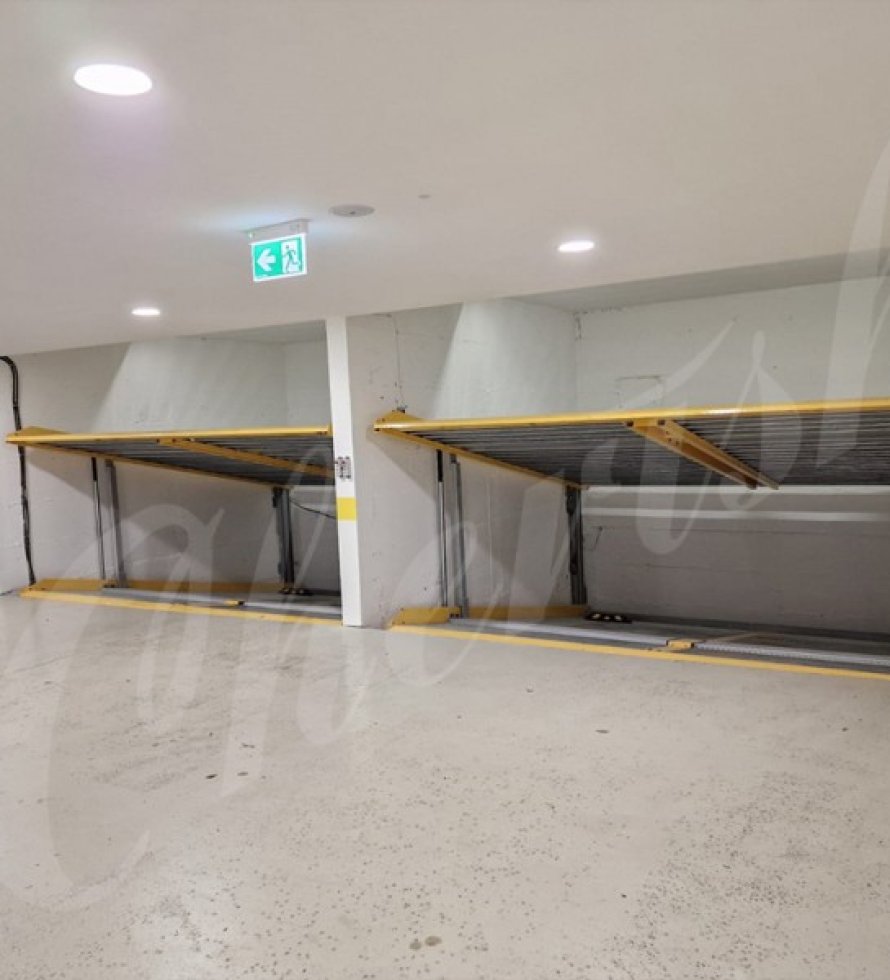

The CPT-4 underground inclined parking lift is a space-efficient multi-level vehicle storage system designed for modern residential and commercial applications. Its innovative slanted platform design minimizes excavation depth while maximizing parking capacity, allowing up to four vehicles to be stored within a compact underground structure. The system enables independent access to upper platforms without disturbing vehicles parked below, ensuring smooth and convenient operation. Ideal for basement garages and recessed parking installations, it significantly improves space utilization in areas with limited footprint availability.
• Heavy-duty galvanized corrugated steel deck with anti-skid finishing, delivering enhanced tire grip, structural strength, and extended service life in demanding environments.
• Twin hydraulic cylinder direct-drive mechanism provides consistent lifting motion, improved stability, and reduced wear for lower maintenance over time.
• Separate hydraulic power pack and control system for each parking bay, enabling independent operation and greater system flexibility.
• 2000 kg rated lifting capacity per platform, engineered for standard sedans and light-duty passenger vehicles.
• Key-operated electric control switch with safety interlock function, automatically disabling operation when the key is released for secure access control.
• Suitable for underground garage integration or pre-installed pit applications, ideal for basement-level parking configurations.
• Sloped platform design minimizes required excavation depth while maintaining efficient vehicle storage and retrieval performance.
• System complies with CE certification requirements, meeting recognized international safety and operational standards.
• Space-optimized engineering layout maximizes parking density, significantly improving usable capacity in restricted ground or underground areas.
![]()
![]()
![]()
Model No. | CPT-4 |
Lifting Capacity | 4000kgs |
Lifting Height | 1750mm |
Usable Platform width | 4502mm |
Overall Height | 4580mm |
Overall Length | 5300mm |
Overall Width | 4900mm |
Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw |
Lock Release | Electric Release |
Drive Mode | Hydraulic Drive + Chain |
![]()
