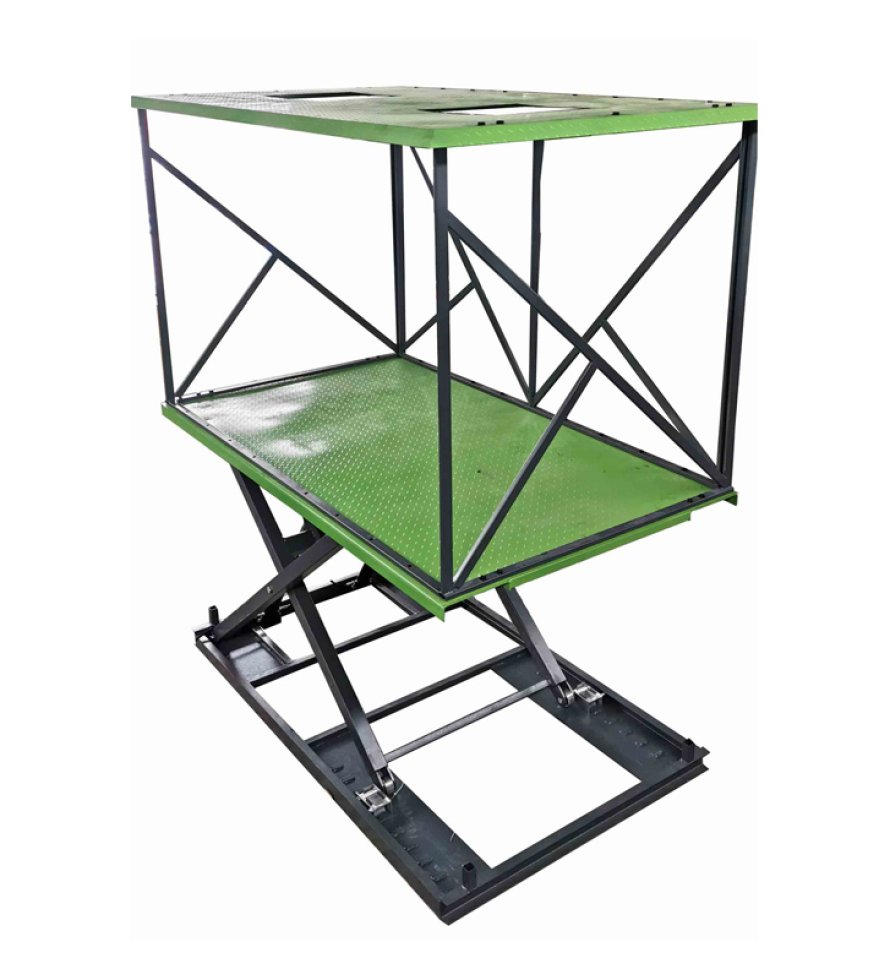

This hydraulic scissor lifting system is designed for underground waste bin storage, keeping garbage containers completely hidden below ground level during normal use. The ground surface remains clean, tidy, and hygienic, with only a discreet access point visible above.
When needed, the hydraulic platform smoothly raises the waste bins from the underground chamber to ground level for convenient waste collection and maintenance. The scissor mechanism provides stable lifting performance, strong load capacity, and reliable operation.
This concealed design is widely applied in residential communities, commercial buildings, and urban sanitation systems. Constructed with heavy-duty steel and equipped with safety protection features, it reduces odor exposure, improves environmental appearance, and supports efficient modern waste management.
Features:
• Underground hydraulic lifting mechanism enables smooth and controlled vertical movement of waste bins between basement storage and ground level.
• Robust scissor-type lifting structure enhances platform rigidity, ensuring excellent stability under heavy load conditions.
• High-strength steel construction with anti-corrosion treatment for extended durability in outdoor and industrial environments.
• Compatible with multiple waste container sizes, making it suitable for municipal sanitation and commercial garbage handling applications.
• Integrated safety protection system including emergency stop, overload limitation, and mechanical safety locks for secure operation.
• Compact concealed installation design helps maximize surface space while maintaining a clean and organized urban environment.
• User-friendly operation system with minimal maintenance requirements, improving efficiency in daily waste collection workflows.
![]()
![]()
![]()
![]()
Model No. | Lifting Capacity | Lifting Height | Runway Width | Outer Dimensions(L*W*H) | Rise/Drop time | Power |
CTS-3 | 1000kgs/2200LBS | 1795mm | 1485mm | 2743x1693x3346mm | 60S/50S | 2.2kw |
![]()
Whether you face challenges in parking management,CHERISH is your reliable partner.
