Hydraulic Rail Guide Vehicle Elevator Car Lift Platform

Application Scenarios

1. High-End Residential & Luxury Villas

•  Customer Type: Private homeowners, villa developers, luxury estate architects.

•  Environment: Subterranean home garages, basement auto display galleries.

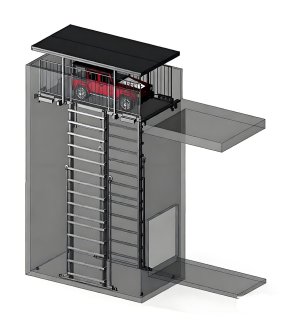

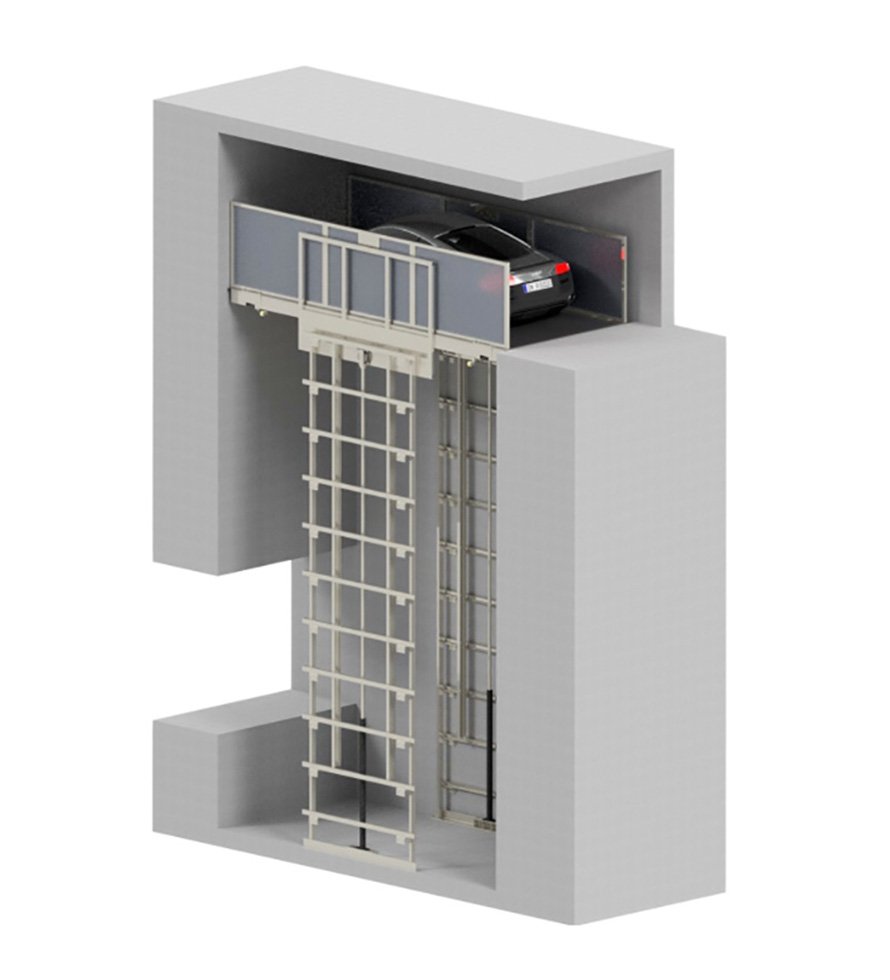

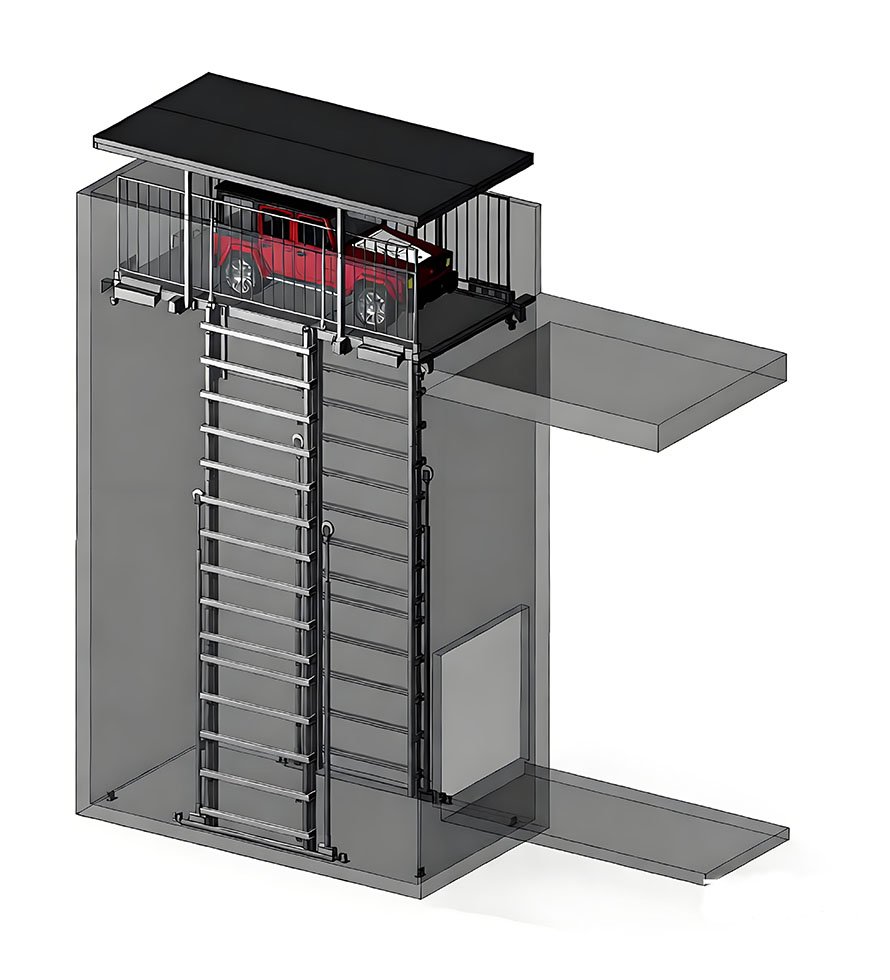

•  Use Case: Transferring luxury sports cars, SUVs, and personal vehicles seamlessly between ground level and underground basements without building steep driveways that take up valuable garden space.

2. Commercial Buildings & Parking Garages

•  Customer Type: Commercial property managers, multi-level public car parks, shopping centers.

•  Environment: Urban commercial centers with high land costs and limited horizontal space.

•  Use Case: Servicing multi-tier vehicle parking structures to move cars between elevated parking decks or subterranean levels efficiently.

3. Automotive Dealerships & Auto Service Centers

•  Customer Type: Auto 4S shops, luxury car showrooms, vehicle repair and detailing shops.

•  Environment: Multi-floor auto retail centers, mezzanine maintenance bays.

•  Use Case: Transporting new inventory to rooftop display areas or upper-level showrooms, and moving vehicles to mezzanine service floors.

4. Industrial Warehouses & Logistics Hubs

•  Customer Type: Warehouse operators, manufacturing plants, logistics centers.

•  Environment: Multi-story warehouses, factory mezzanine floors.

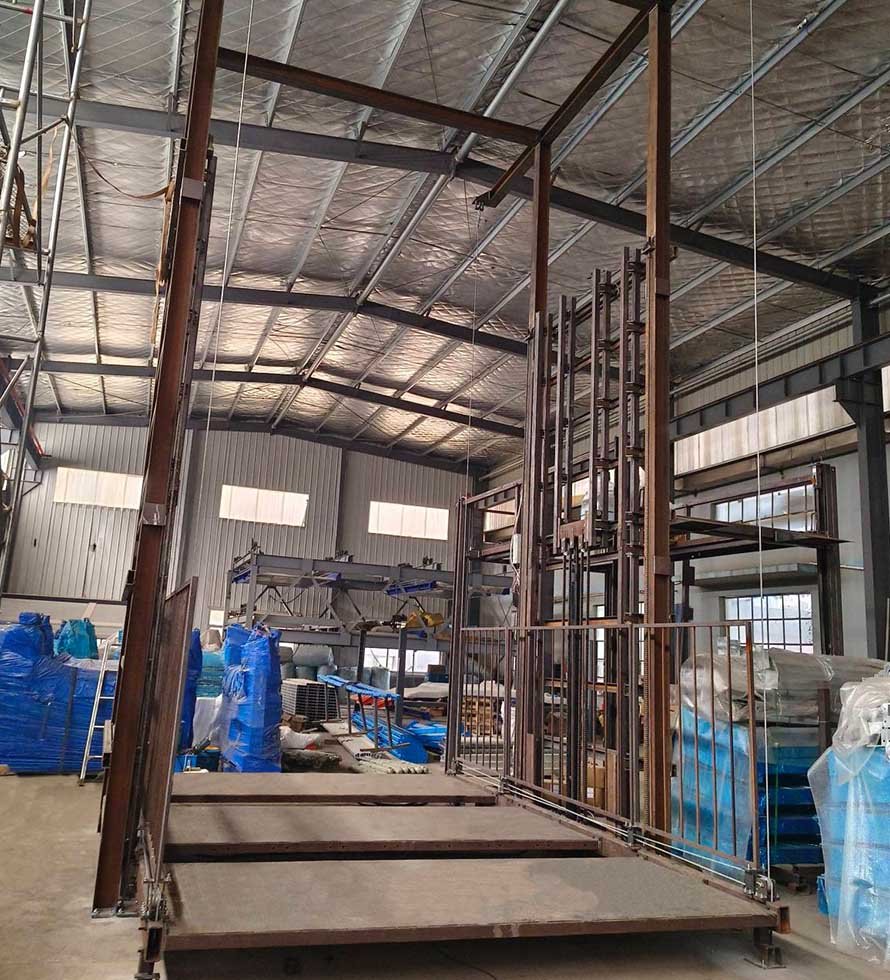

•  Use Case: Acting as a heavy cargo lift platform to move palletized goods, heavy machinery, forklifts, and light delivery trucks between working levels.

Frequently Asked Questions (FAQ)

Q1: What kind of pit and civil work is required for installation?

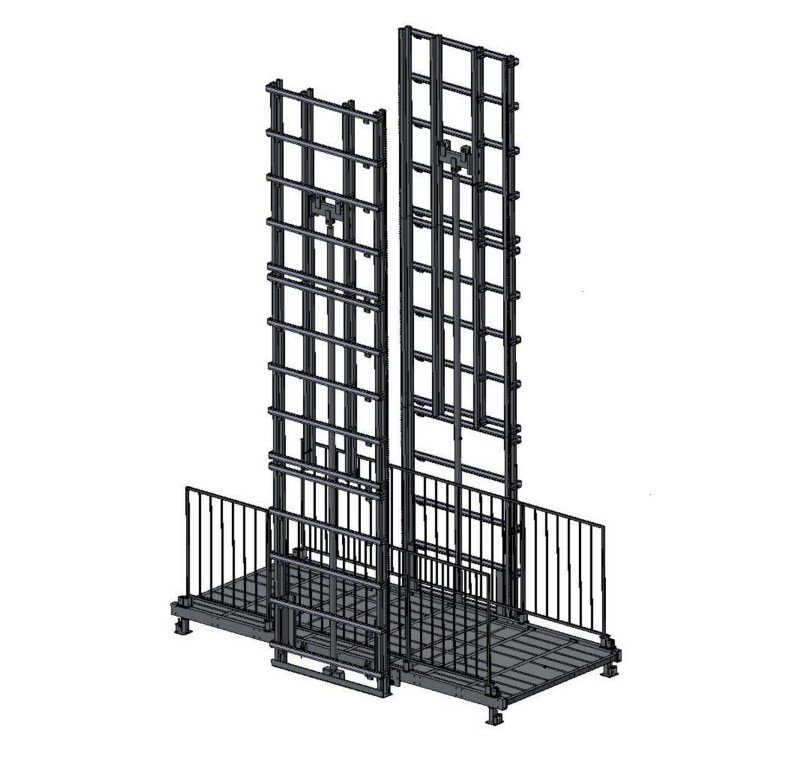

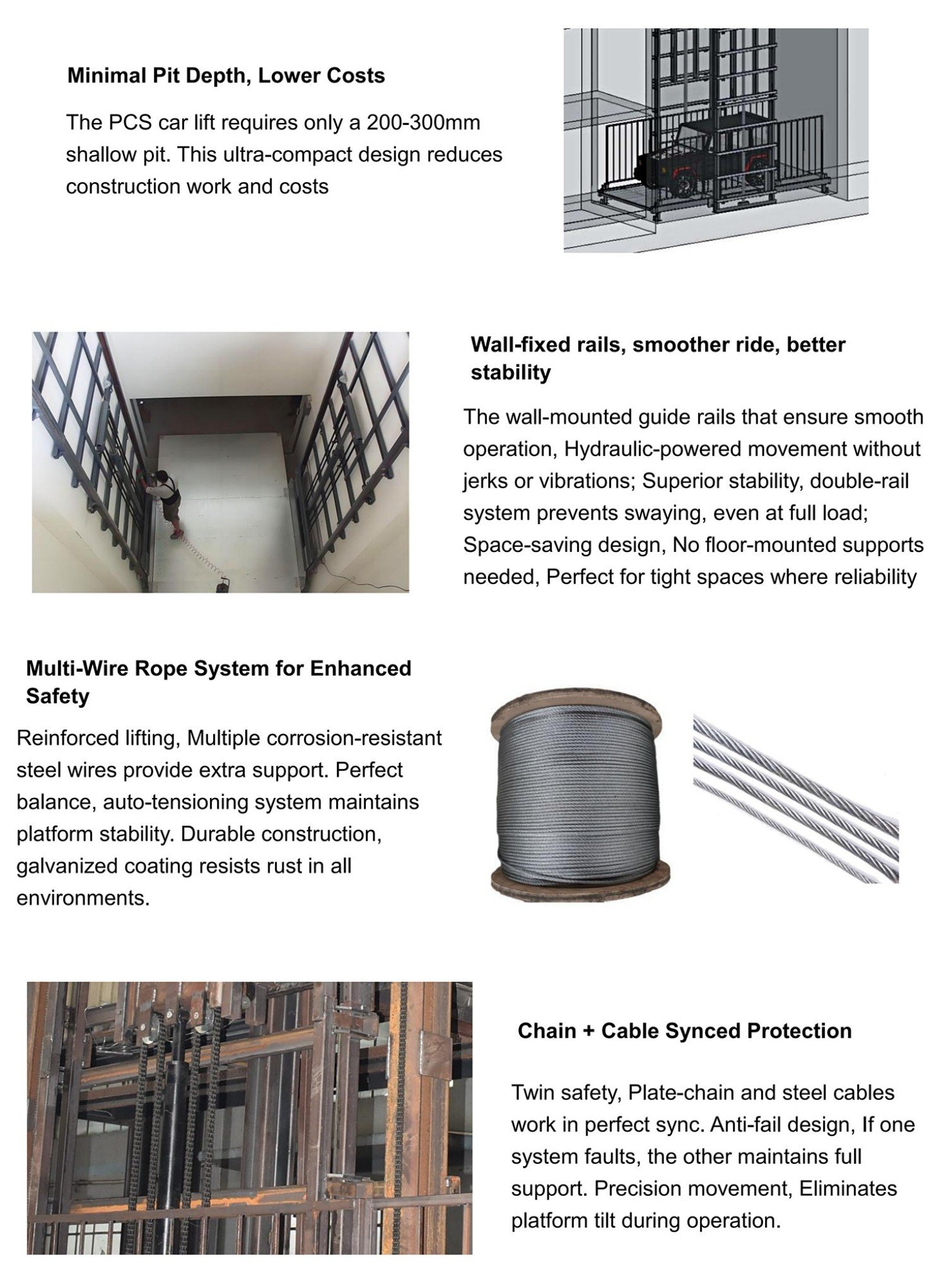

A: The PCS series features an ultra-shallow pit design requiring a pit depth of only 200 mm to 300 mm. If excavating a pit is impossible due to underground utilities or concrete slab restrictions, we can supply a low-incline steel ramp for ground-level drive-on access. A solid load-bearing wall or concrete column is required to anchor the vertical guide rails.

Q2: What happens if there is a sudden power outage while a vehicle is on the platform?

A: Safety is our top priority. In the event of a power outage:

1. The platform remains securely locked in place thanks to the hydraulic check valves and automatic mechanical safety locks.

2. The operator can use the manual lowering valve on the hydraulic pump unit to safely lower the platform to the ground floor and retrieve the vehicle.

3. An optional UPS backup system can be integrated to automatically return the lift to the nearest floor.

Q3: Can the platform dimensions and weight capacity be customized for large vehicles?

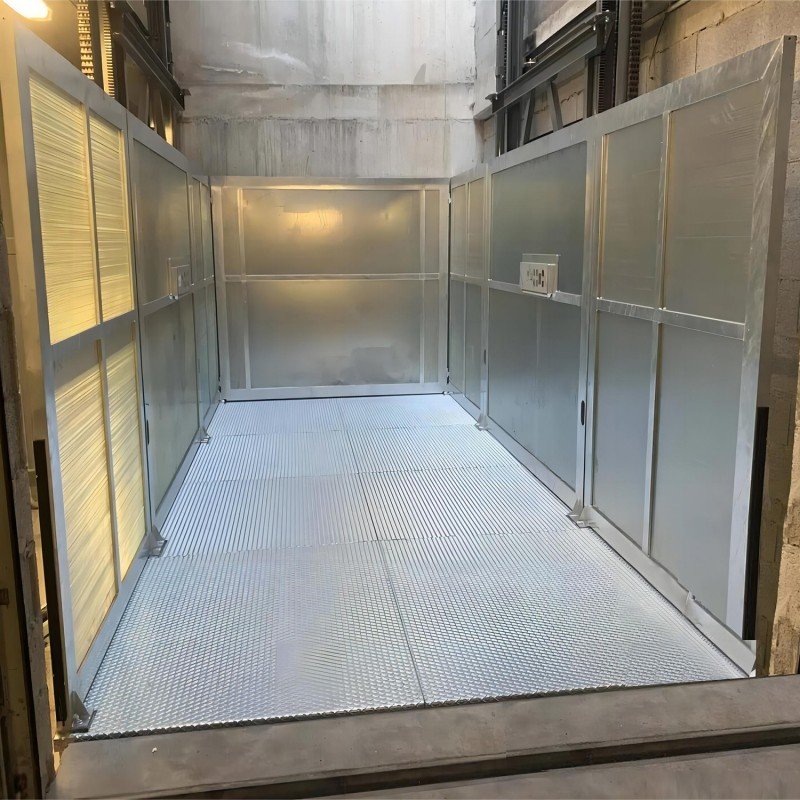

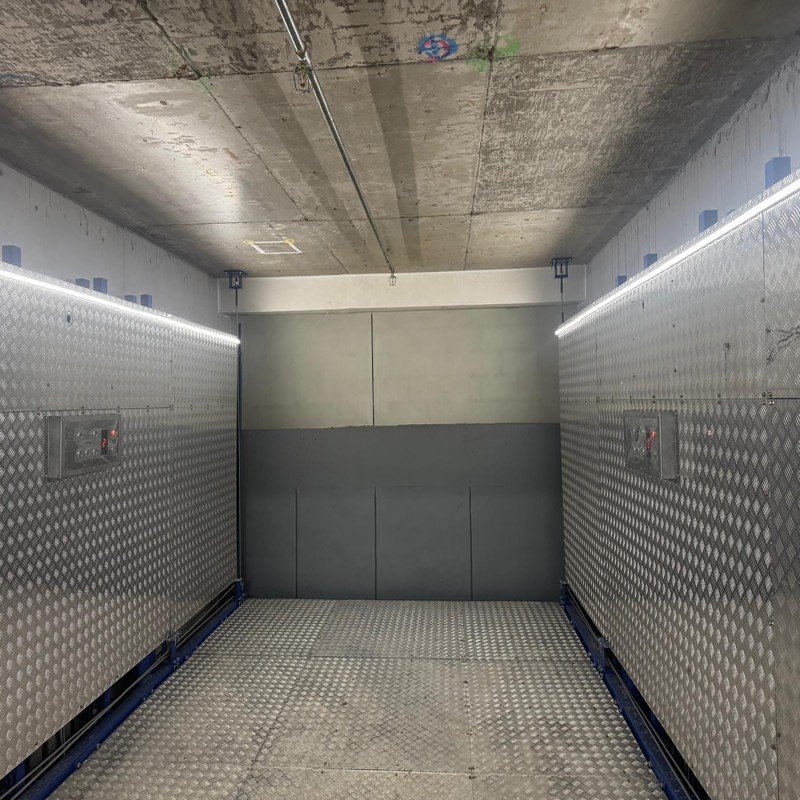

A: Absolutely. Every project is engineered to order. While our standard platform is 3.0 m × 6.0 m (ideal for large SUVs and vans), we can customize the width, length, guardrail height, and lifting capacity up to 10,000 kg to accommodate long-wheelbase vehicles, armor-plated cars, or specialized industrial loads.

Q4: How often does the hydraulic rail guide lift require maintenance?

A: Hydraulic guide rail lifts have significantly fewer moving parts than traditional traction elevators, making them low-maintenance and highly reliable. We recommend:

•  Monthly: Visual inspection of chain tension, guide rail lubrication, and safety sensor checks.

•  Quarterly/Bi-annually: Hydraulic oil level check, electrical terminal inspection, and full safety lock test.

•  Annually: Complete system inspection and hydraulic oil replacement (depending on usage frequency).

Q5: What warranty and after-sales support do you provide?

A: We provide a 5-year structural warranty on the main steel frame and guide rails, and a 1-year warranty on electrical components, hydraulic valves, and motor pumps. After-sales support includes complete CAD foundation drawings, step-by-step installation manuals, video guidance, and remote live support from our engineering team. Replacement spare parts are stocked and shipped globally via express courier.
