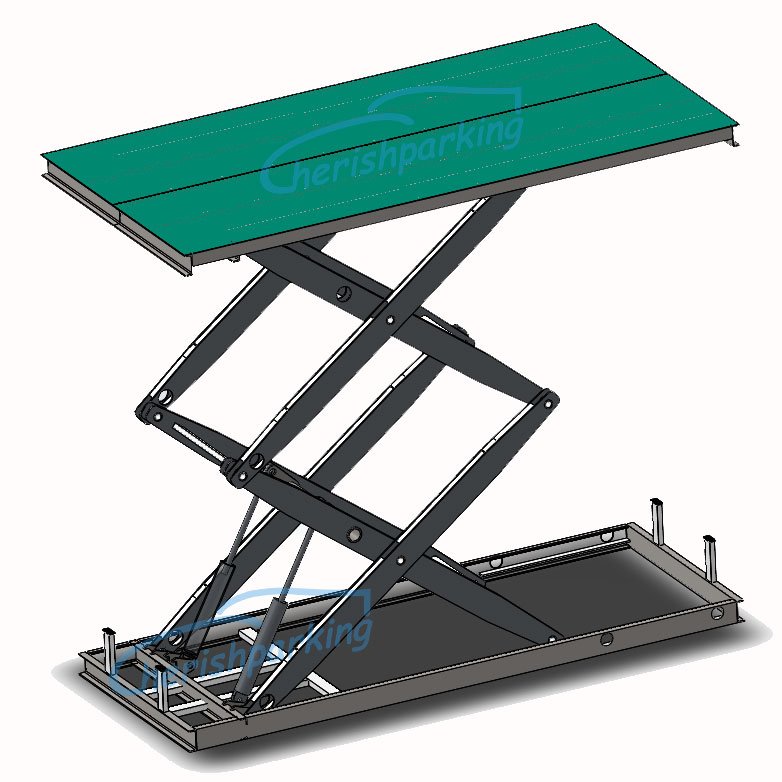

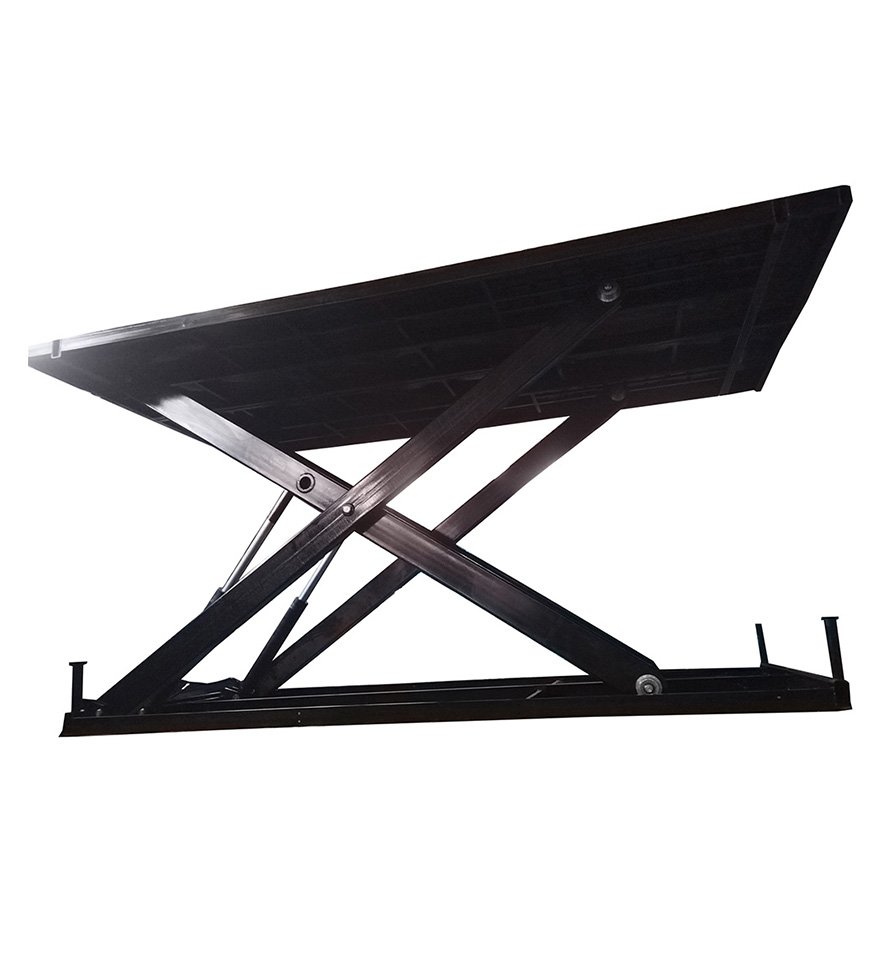

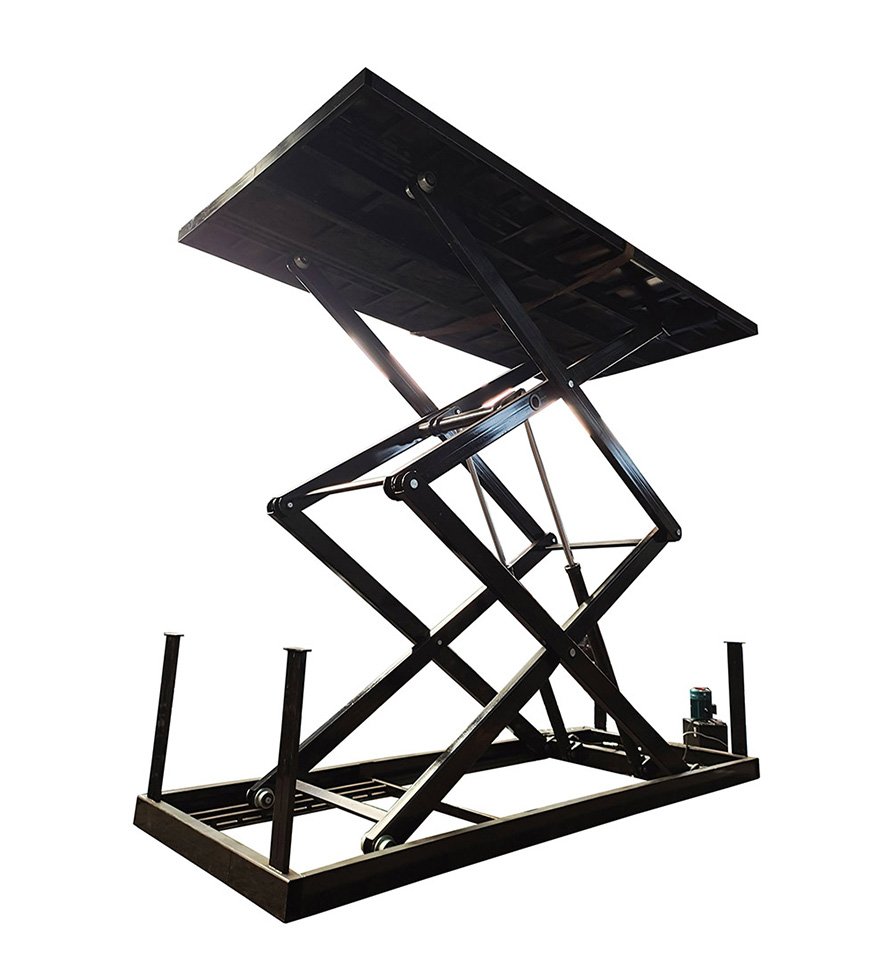

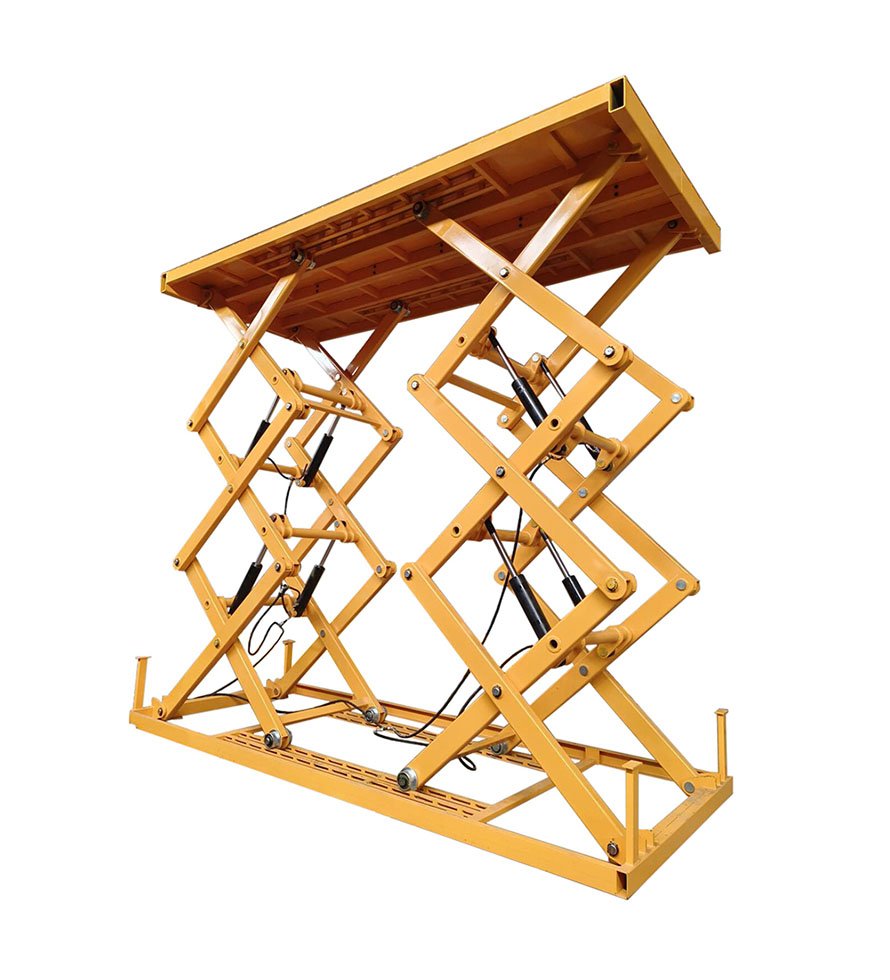

Hydraulic Single Deck Scissor Car Lift Platform

Application

1. Automotive Dealerships & Showrooms

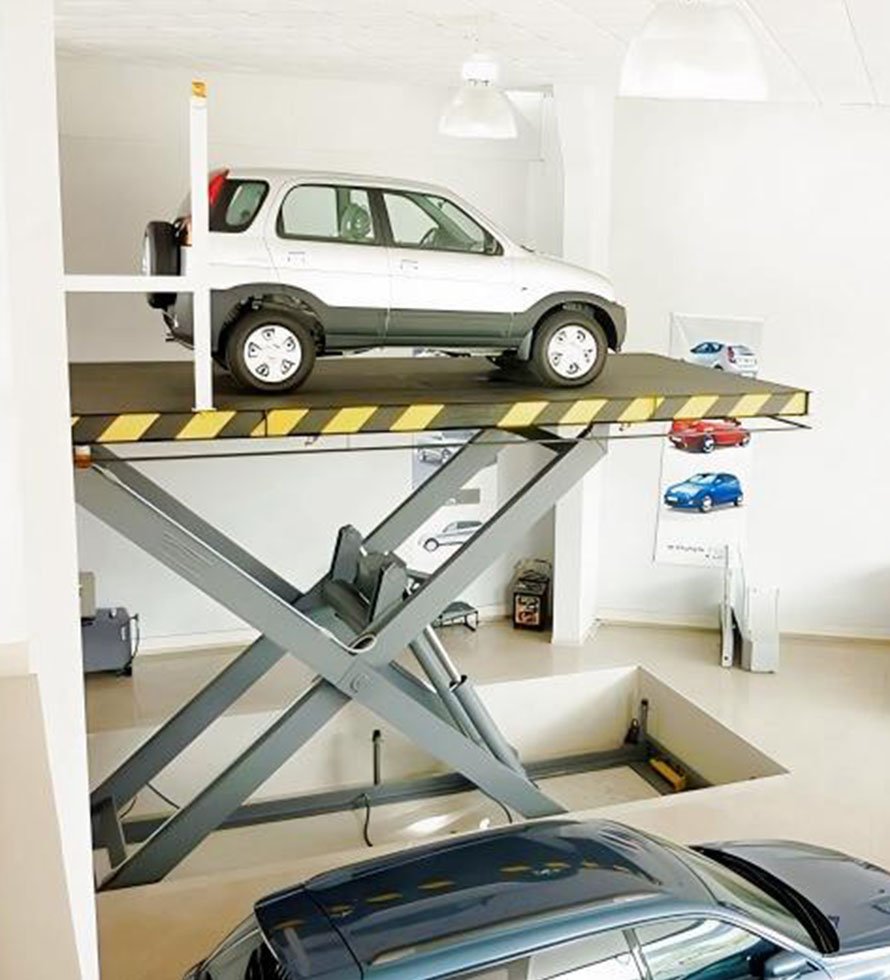

Scenario: Multi-story vehicle showrooms requiring seamless movement of new models, EVs, or test-drive cars between ground-floor showrooms, upper display levels, and underground holding garages.

2. Luxury Residential Garages & Private Villas

Scenario: Homeowners seeking space-saving parking solutions or hidden garage storage. When fully lowered, the lift rests flush with the driveway, concealing parked vehicles beneath the lawn or underground.

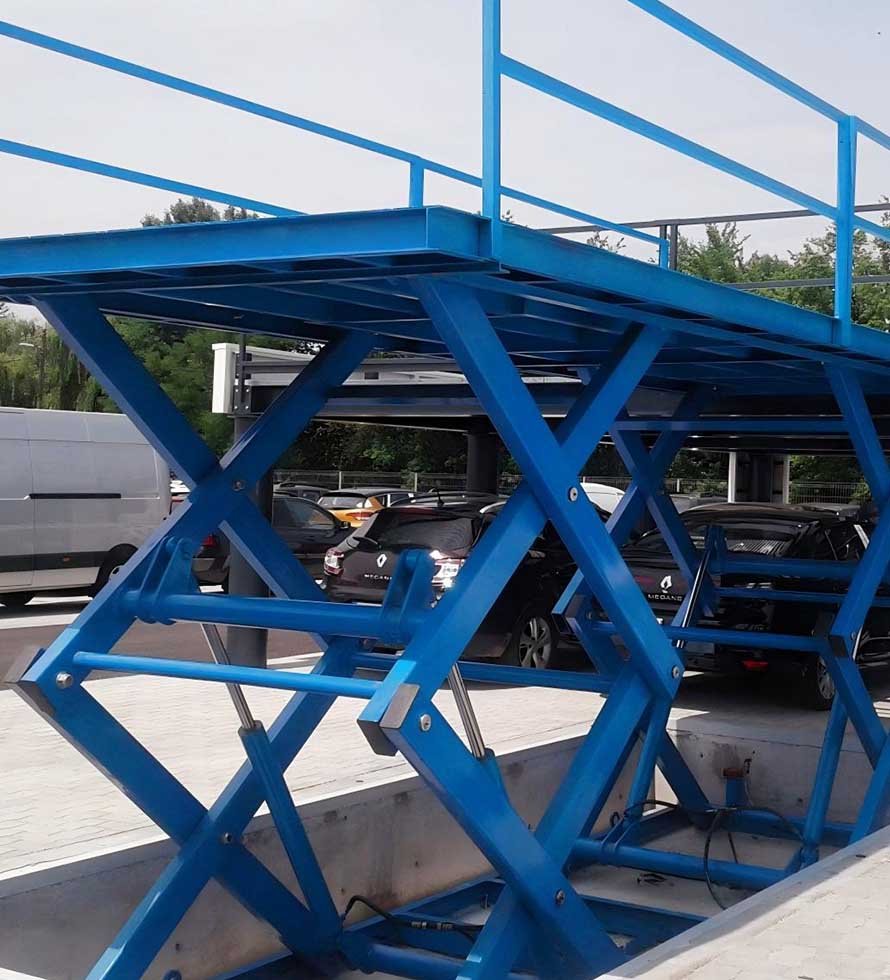

3. Commercial Parking & Multi-Level Garages

Scenario: Commercial buildings, hotels, and auto rental hubs replacing space-consuming concrete ramps with vertical lifts, maximizing parking space efficiency and streamlining fleet transfer between levels.

4. Factories & Logistics Warehouses

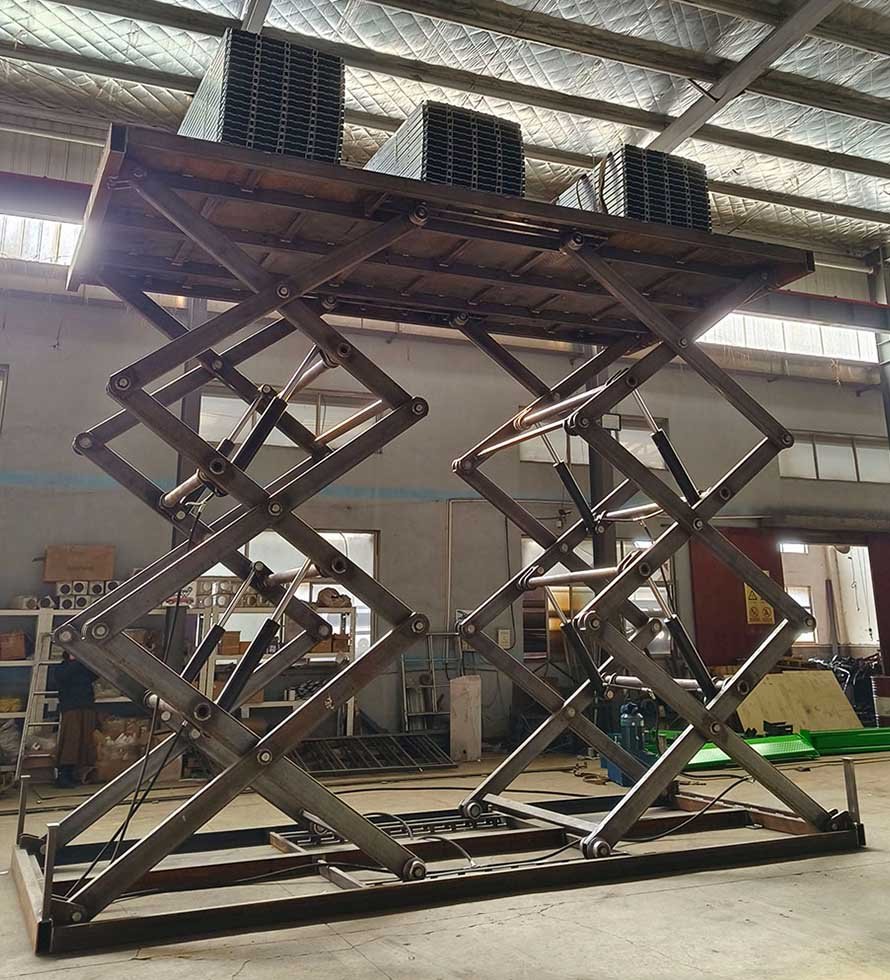

Scenario: Operating as a heavy-duty material elevator to transport machinery, components, forklifts, and palletized loads (up to 6 tons) across production floors and mezzanine levels.

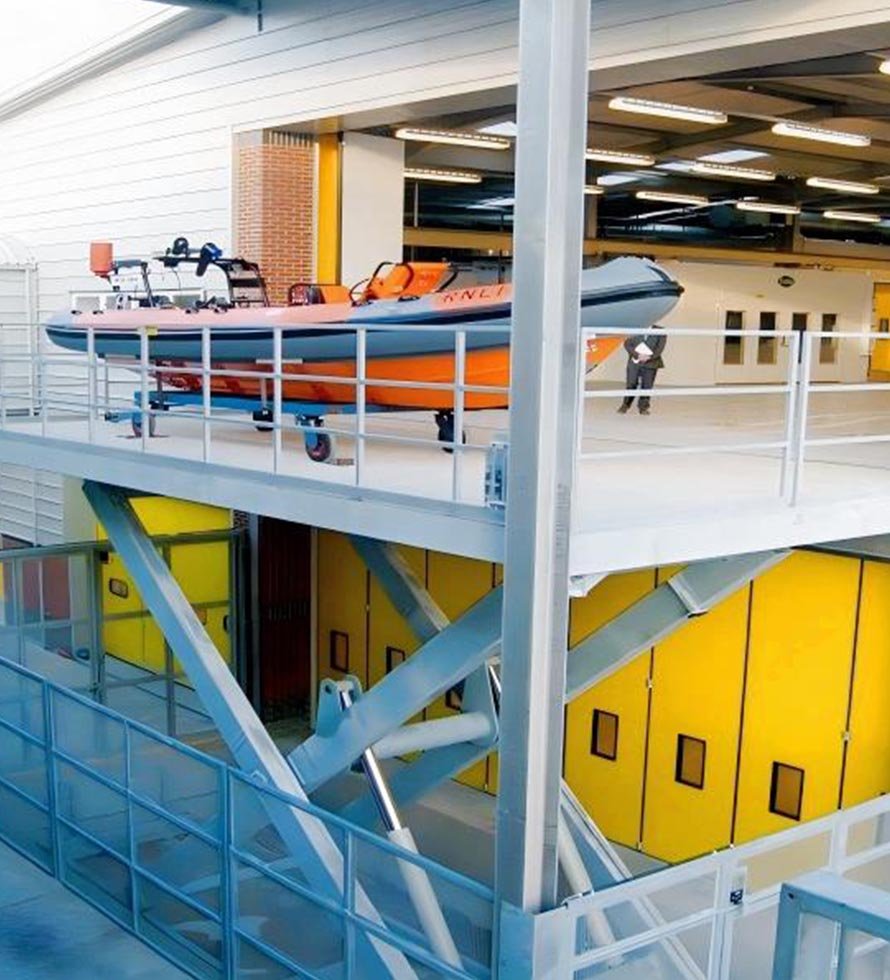

5. Outdoor Loading Docks & Industrial Bays

Scenario: Configured with a hot-dip galvanized coating for high corrosion resistance, serving as an outdoor vehicle-to-dock platform for material loading and unloading under harsh weather conditions.

FAQ

Q1: Can the scissor lift platform be fully customized to fit our existing shaft or pit dimensions?

A: Yes, absolutely. Platform dimensions, load capacity (up to 6 tons), vertical travel height (up to 12 meters), and control options can all be 100% custom-engineered to match your specific architectural layout and operational needs.

Q2: Does the lift sit completely flush with the floor when fully lowered?

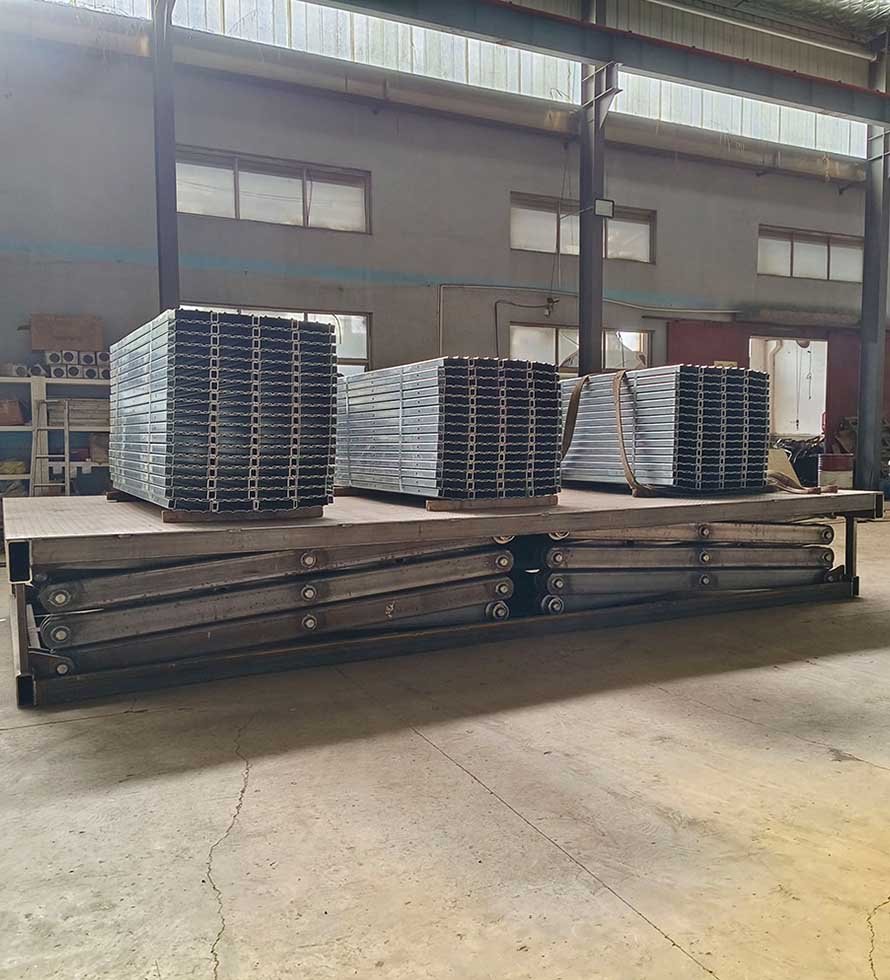

A: Yes. Designed for flush in-pit installation, the top deck aligns perfectly level with the surrounding floor when completely retracted, leaving a smooth, unobstructed surface for pedestrian or vehicular traffic.

Q3: How do you prevent corrosion for outdoor installations?

A: We offer two surface finish options: high-grade industrial powder coating (ideal for indoor environments) and hot galvanization (HDG), which provides superior rust protection and durability in harsh or outdoor conditions.

Q4: How long does on-site installation usually take?

A: Our equipment features a modular, pre-engineered design that undergoes factory pre-assembly. As a result, typical on-site installation and testing take only 1 to 3 days, depending on pit preparation and electrical readiness.

Q5: What are the electrical power requirements? Can the voltage be customized to match our local power grid?

A: The standard power requirement is 380V, 50Hz, 3-phase AC power. However, the motor and electrical control system can be fully customized (e.g., 220V/415V/440V, 60Hz) to match your local power supply standards, but must be 3-phase.

Q6: What is the manufacturing lead time from order placement to dispatch?

A: Because each lift platform is custom-engineered to meet specific site dimensions and capacity requirements, the standard manufacturing lead time is approximately 35 business days following technical drawing approval and deposit receipt.

Q7: How is the equipment packaged and shipped? Do you support sea freight and customs clearance services?

A: The equipment is packed using standard export packaging and is typically shipped via Full Container Load (FCL) to prevent damage. We support sea freight as well as full customs clearance services (DDP/CIF terms) depending on your project requirements.

Q8: Does the product carry CE certification or other international safety compliance?

A: Yes. Our scissor lift platforms are manufactured in full compliance with international safety standards and hold CE certification (under European Machinery Directive 2006/42/EC) as well as ISO 9001 quality management certification, ensuring seamless regulatory approval in global markets.

Q9: How complex is routine maintenance? What is the warranty period and how do we obtain spare parts?

A: Maintenance is minimal and straightforward, primarily involving periodic hydraulic oil checks and lubrication of moving joints. We provide a 5 years steel structure and 12-months electrical spare parts standard warranty. Spare parts are readily available and can be shipped globally via express air courier within 3 to 5 business days.

Q10: What does the final quotation include, and what are your accepted payment terms?

A: Quotations are modular and transparent. A standard quote covers the lift unit, customized power unit, export packaging, and loading fees. Shipping, insurance, and on-site guidance can be quoted separately based on your preferred Incoterms (FOB, CIF, or DDP). We accept payment via T/T (Wire Transfer) and Alipay.
