Hydraulic Four Post Auto Car Floor to Floor Transfer Lift Platform

Application

Industry & Customer Types

•  Auto Dealerships & 4S Stores: Transporting new inventory between ground-floor showrooms, upper-level display floors, and rooftop holding yards.

•  Commercial Parking & Auto Repair Centers: Vehicle movement between basement service bays and upper maintenance areas.

•  Automotive Logistics & Car Rental Hubs: Multi-level fleet staging and rapid vehicle transfers across facility levels.

•  Private Luxury Garages & Residential Estates: Vertical access for multi-car subterranean or mezzanine display garages.

•  Industrial Warehouses & Factories: Dual-purpose application handling vehicles, heavy machinery, or palletized freight across multi-tier mezzanines.

Installation Environments

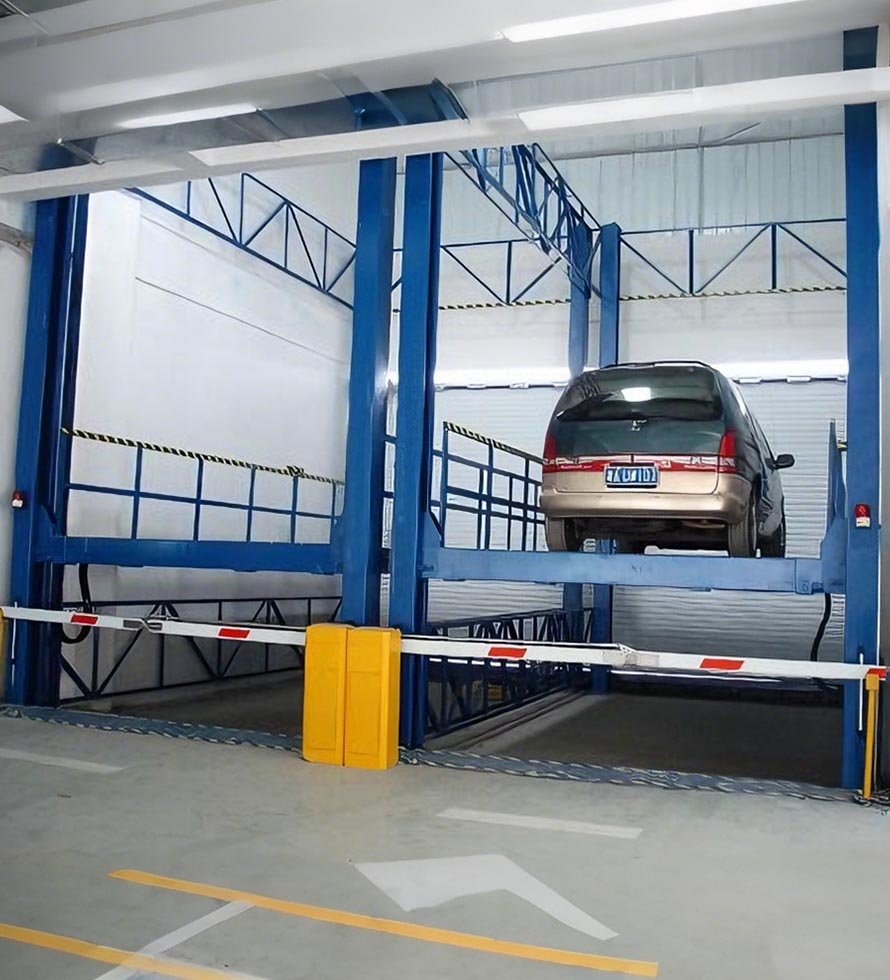

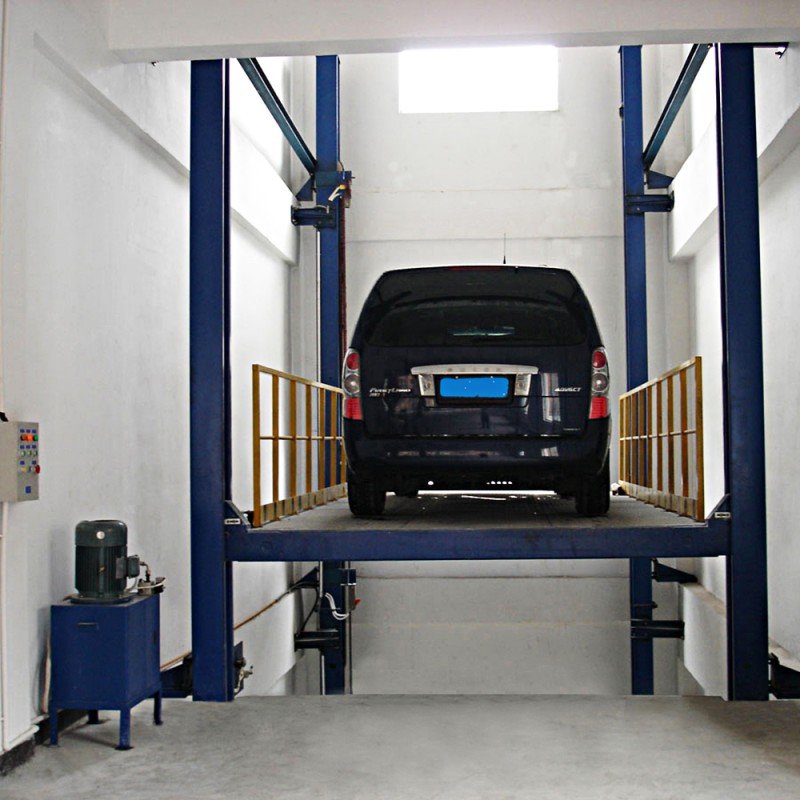

•  Indoor Enclosed Shafts: Installed inside standard brick or concrete building wells.

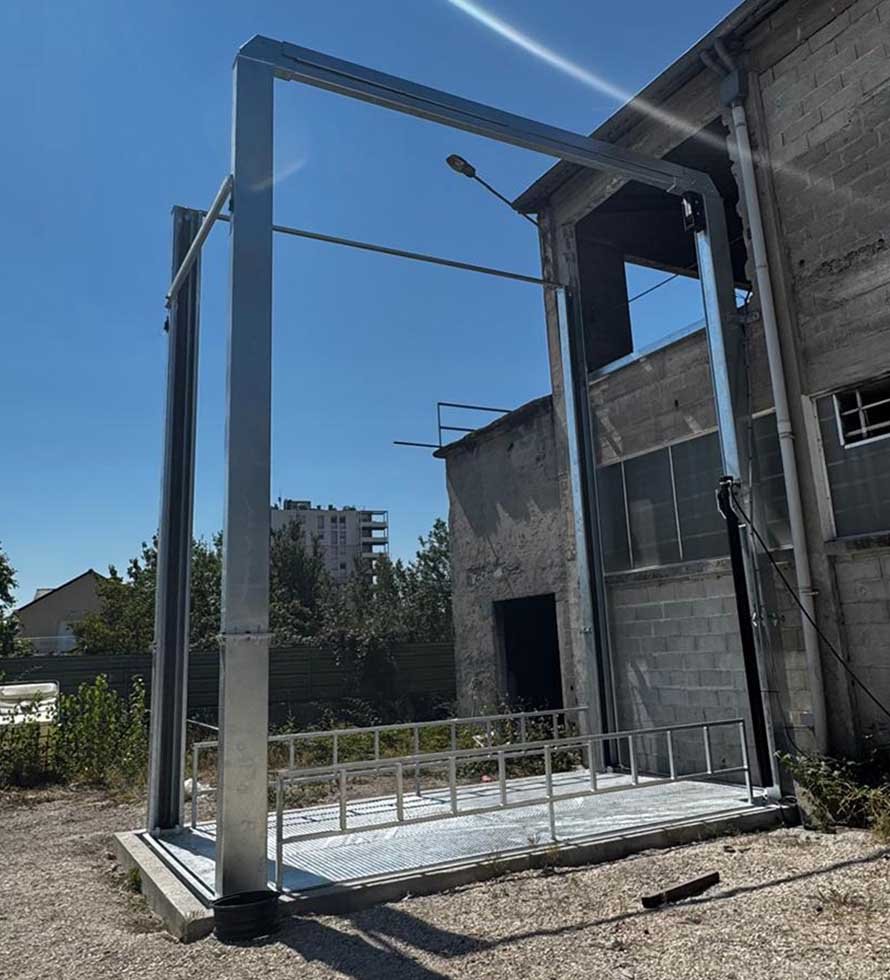

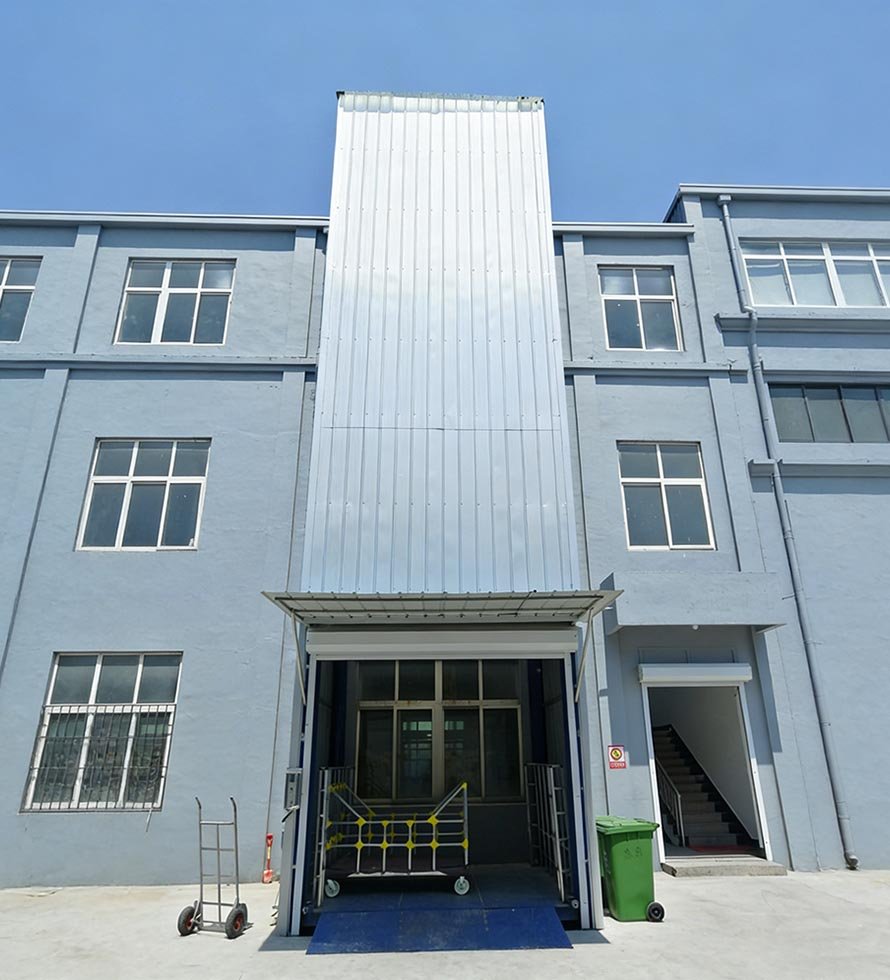

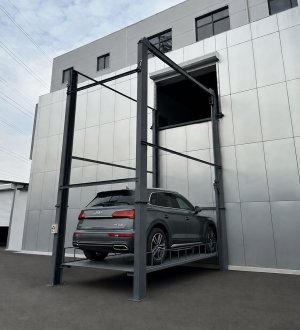

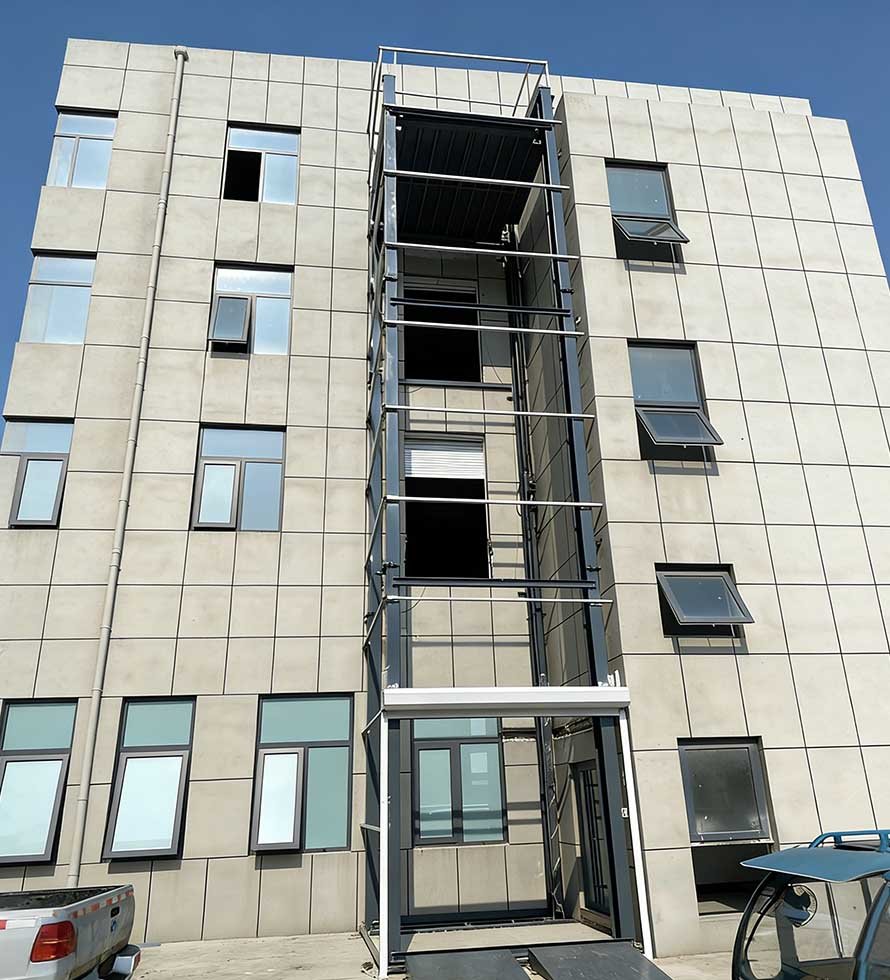

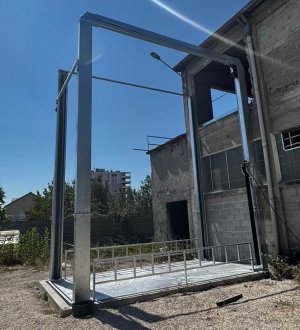

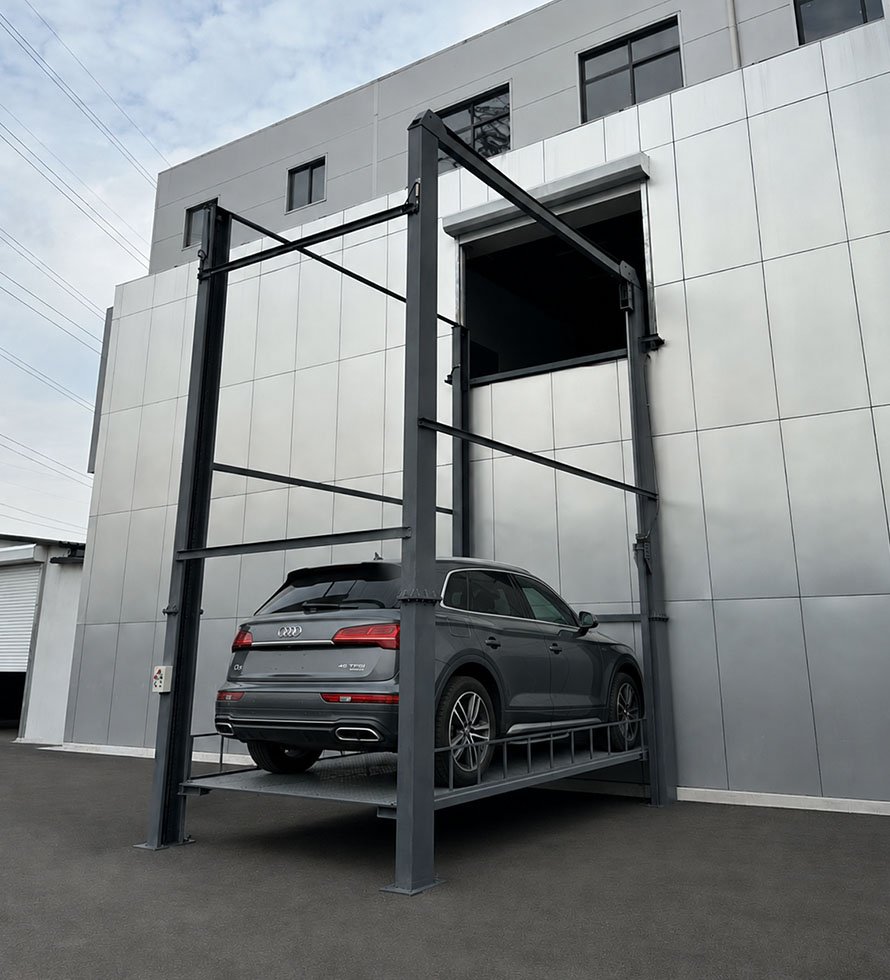

•  Outdoor Steel Frameworks: Mounted externally against building exteriors with weather-proof cladding or protective mesh mesh enclosures.

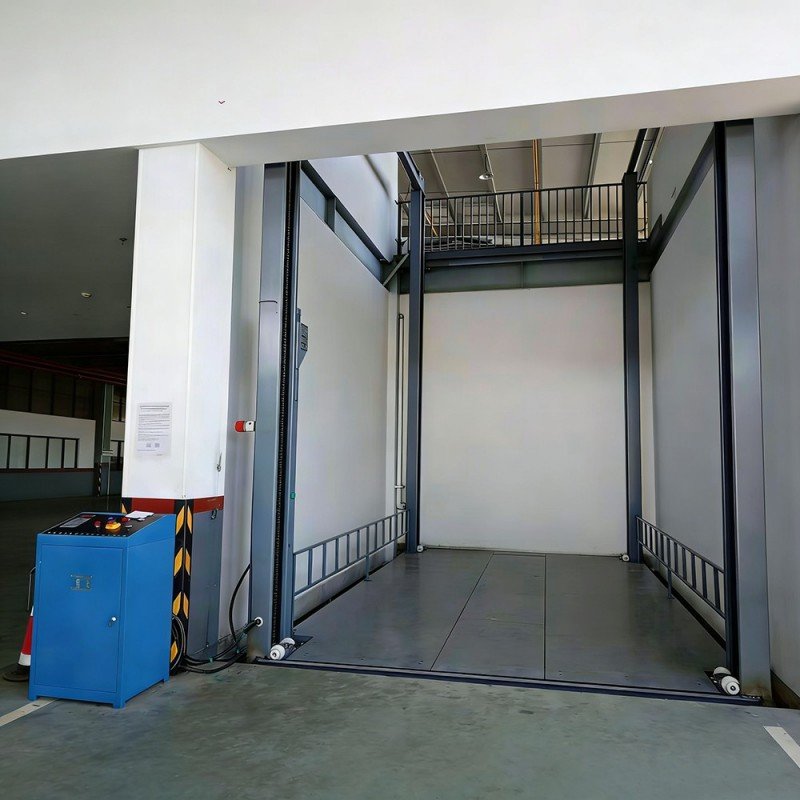

•  Open Mezzanine Platforms: Installed directly alongside interior building balconies or mezzanine decks.

FAQ

Q1: How does this lift guarantee safety during vehicle transfer? What happens if a hydraulic line fails?

A: Safety is engineered directly into the mechanical and hydraulic systems:

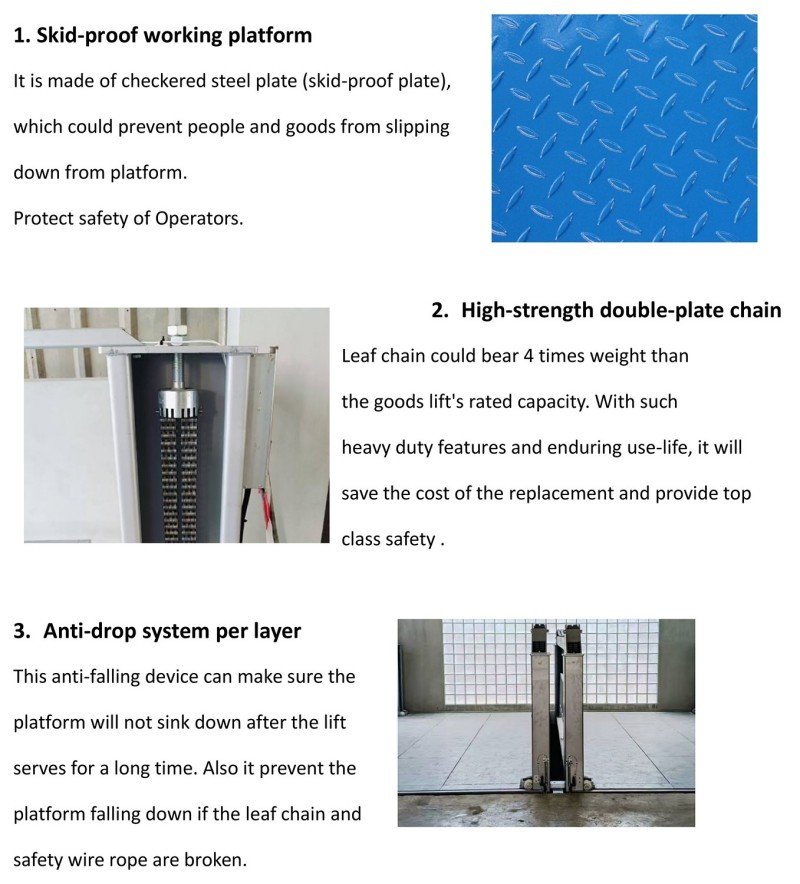

Mechanical Anti-Fall Locks: Spring-loaded safety locks continuously engage with column notches, instantly locking the platform in place if tension drops.

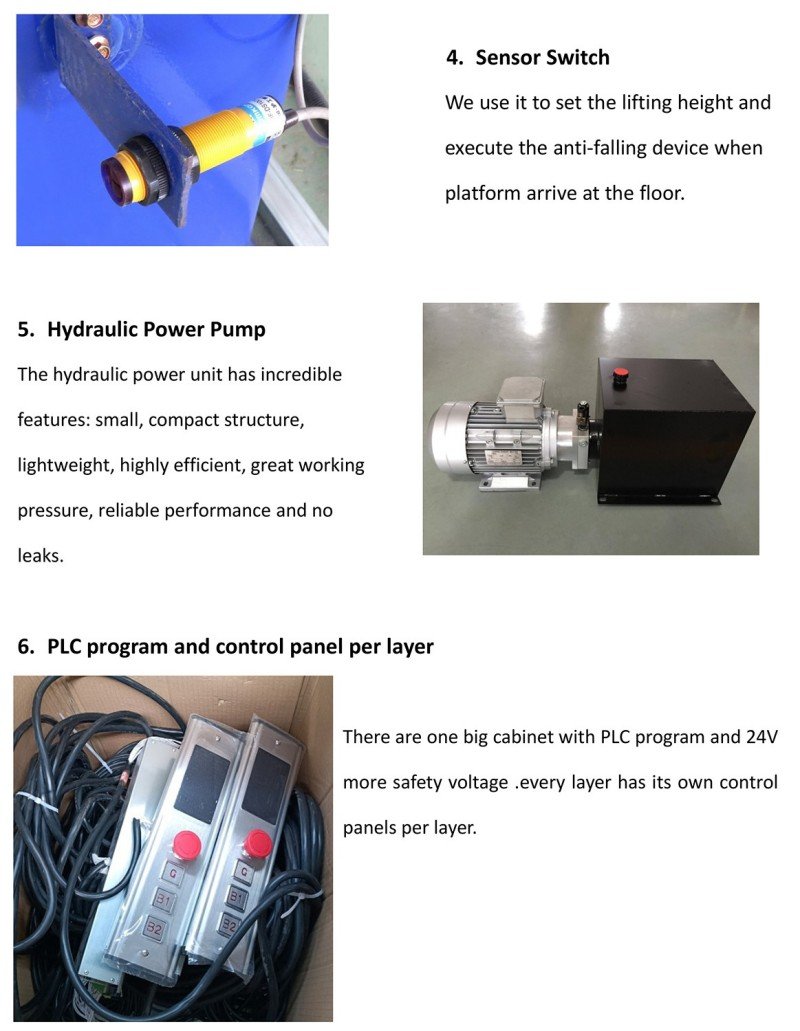

Overload Protection: Hydraulic relief valves prevent operation beyond rated weight limits.

Level Synchronization: Heavy-duty steel chains ensure equal elevation across all four corner posts.

Q2: Does this platform require a deep pit or a reinforced roof machine room like standard elevators?

A: No. It requires only a small pit of 200mm (which can be eliminated using a small entry ramp) and does not require any overhead machine room or structural reinforced shaft head. The entire load is distributed directly down to the ground floor slab.

Q3: Can passengers ride on the platform alongside the vehicle during operation?

A: No. This equipment is strictly designed for unattended vehicle and cargo transfer. Operators drive the vehicle onto the platform, step off, and trigger vertical movement via external floor call stations or remote control.

Q4: Can the platform dimensions and lift height be customized for long-wheelbase vans or SUVs?

A: Yes. Platform length, width, capacity (3t - 5t formulation), and column heights are fully custom-manufactured based on your vehicle specs and architectural drawings.

Q5: How complex is the installation process, and how long does it take?

A: The modular design allows for rapid assembly. A standard installation typically takes 3 to 5 days for a trained 2–3 person technical crew. Complete structural installation manuals, electrical wiring diagrams, and step-by-step videos are provided.

Q6: What is the warranty coverage, and how is after-sales technical support handled for overseas orders?

A:Warranty: 5-year structural warranty on the steel frame; 1-year warranty on hydraulic power units, electrical components, and moving parts.

Parts & Support: Fast-dispatch replacement parts shipped globally. Lifetime technical support is provided via 24/7 video consultation, direct engineering guidance, and detailed troubleshooting documentation.
