Hydraulic 2-Level Pit Parking Lift | Vertical Underground Car Stacker

Model Options

Dimensions and technical specifications can be customized according to the project requirements.

Key Features

Two-Level Underground Parking

Creates two parking levels within a compact footprint, making efficient use of underground space.

Space-Saving Design

Increases parking capacity without requiring a proportional increase in the building's ground footprint.

Hydraulic Vertical Lifting

Hydraulic lifting provides controlled and stable vertical movement between parking levels.

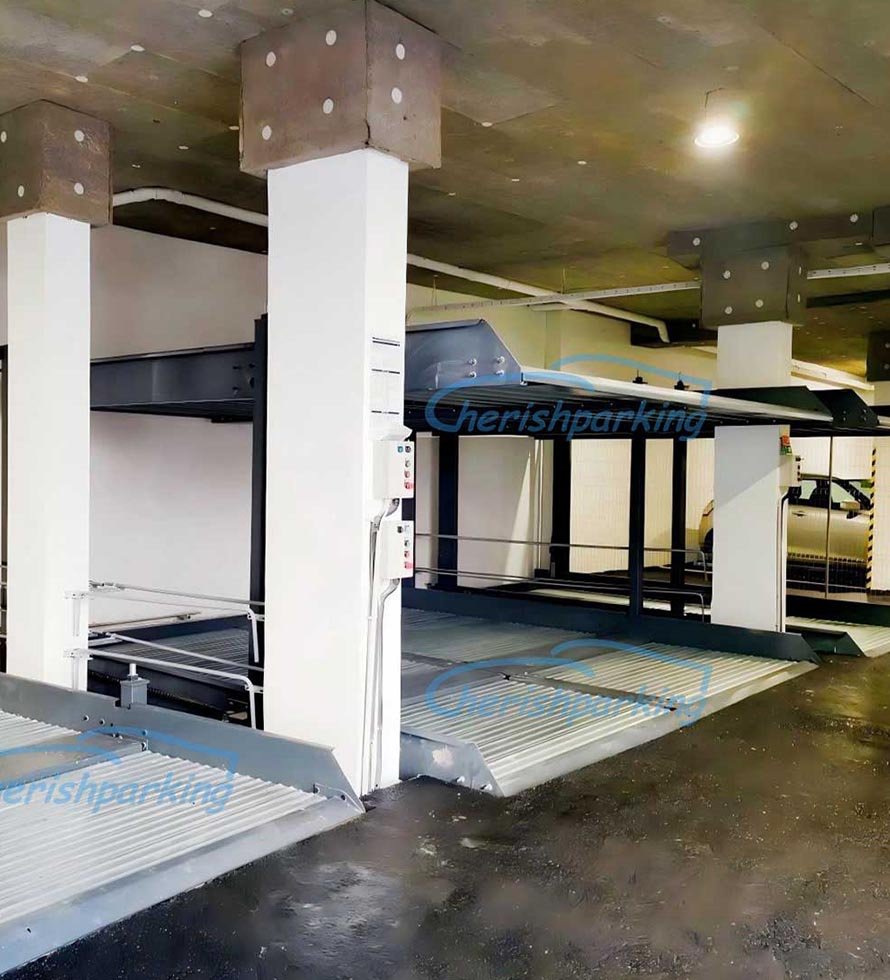

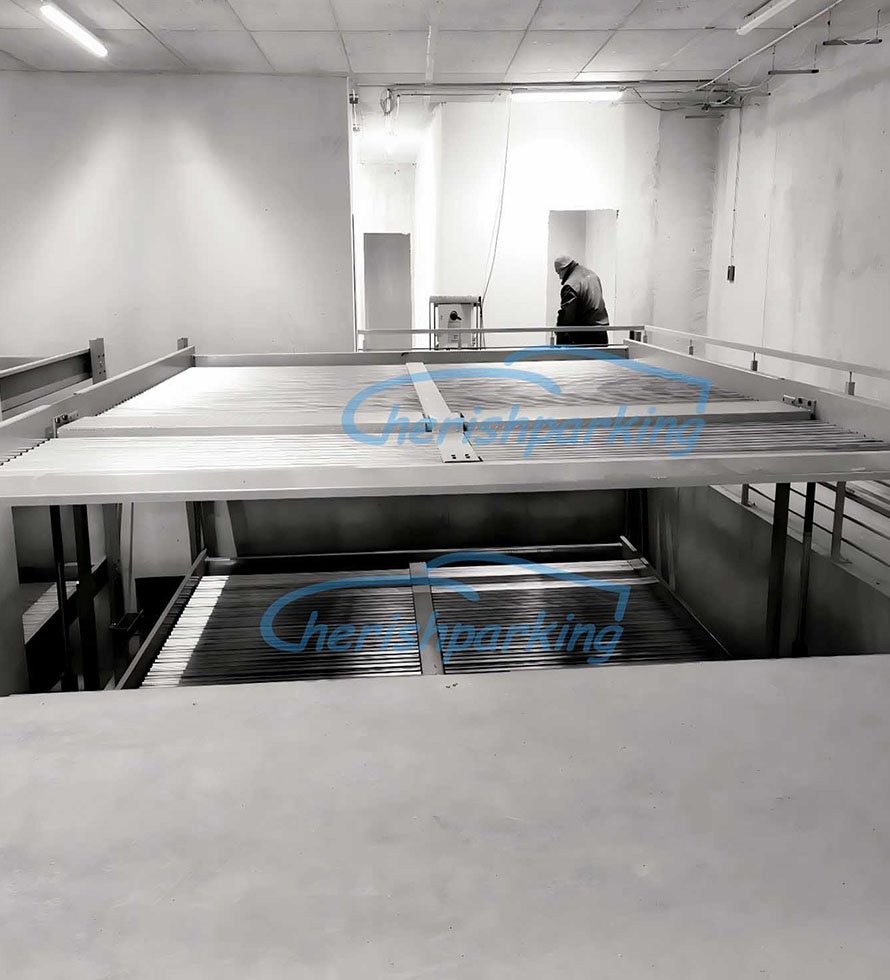

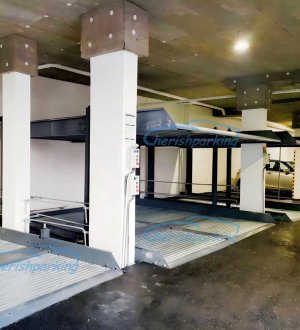

Pit-Mounted Installation

The lower parking position is installed inside a purpose-built pit, making it suitable for basement and underground parking projects.

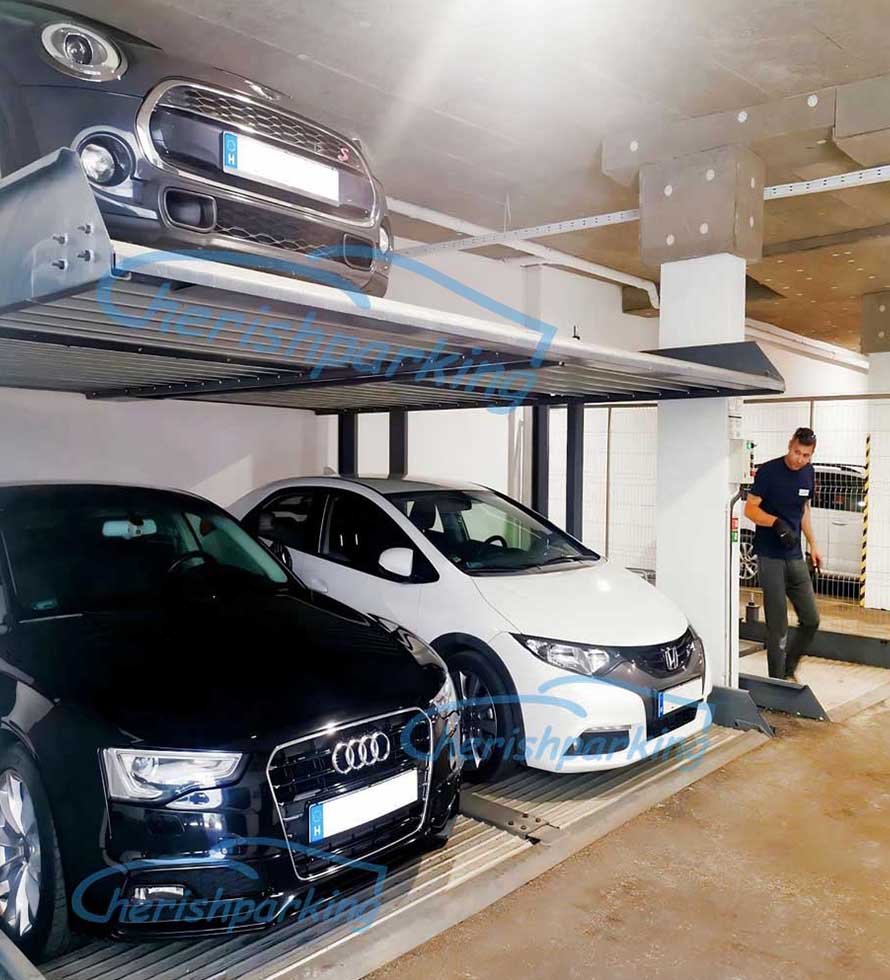

Independent Vehicle Access

The parking platform can be operated to bring the required vehicle to the accessible level, providing convenient access to vehicles parked below ground.

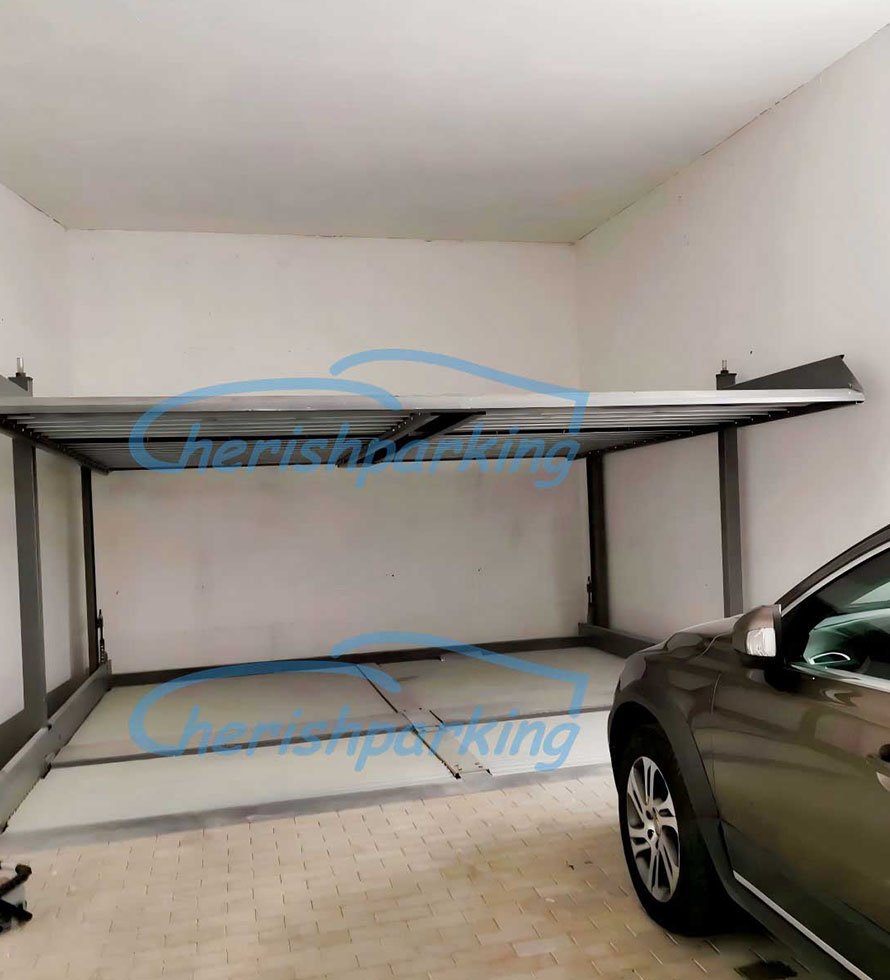

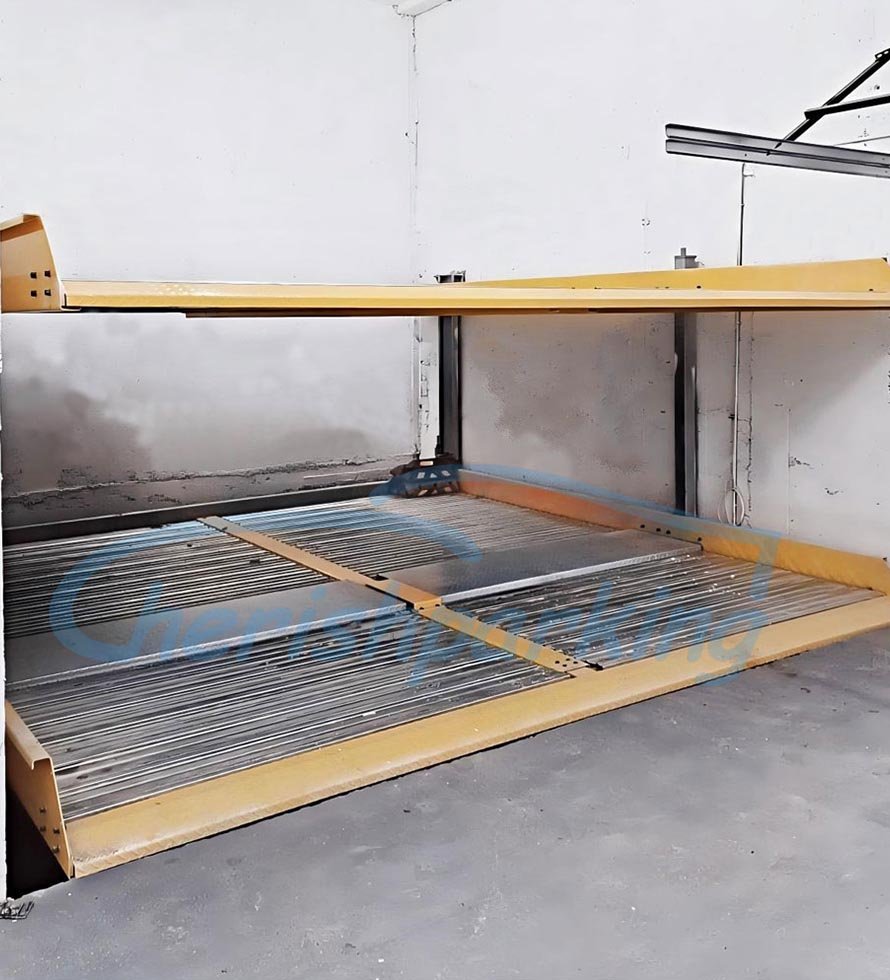

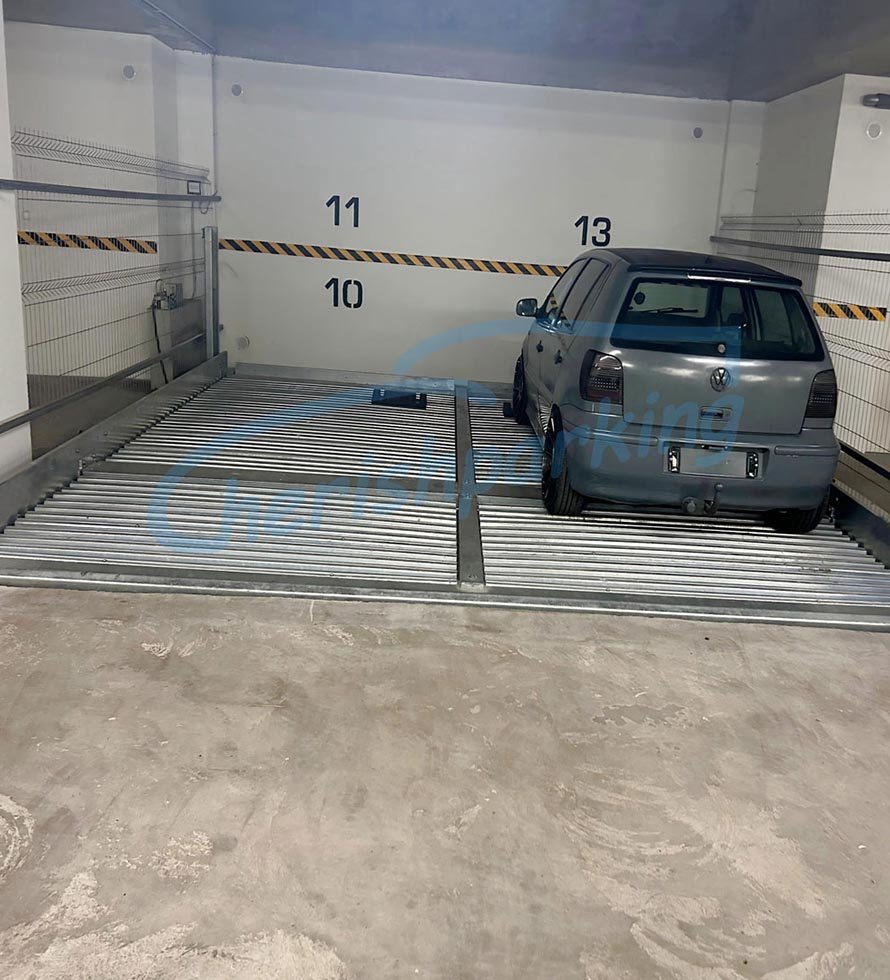

Anti-Slip Parking Platform

A galvanized corrugated steel platform provides a durable and anti-slip surface for regular vehicle parking.

Multiple Configurations

The system can be configured for different parking capacities according to the project layout. Standard options include 2-space and 4-space configurations.

Safety Locking System

Mechanical safety locks, limit switches and electrical safety controls help secure the equipment during operation.

Customizable

Lifting height, platform dimensions, load capacity, surface treatment and electrical specifications can be customized according to project requirements.

Multi-Unit Installation

Multiple parking lifts can be arranged together to create larger underground parking layouts.

Applications

Residential Buildings

Suitable for apartment buildings and residential developments where additional parking capacity is required within a limited footprint.

Private Garages & Villas

Ideal for private garages and villas where available parking space is limited but underground or pit space can be utilized.

Basement Parking

Designed for basement and underground parking areas where vertical space can be converted into additional parking capacity.

Commercial Buildings

Suitable for office buildings, hotels, mixed-use developments and other commercial properties requiring additional parking.

Shopping & Public Facilities

Can be used in shopping centers and public facilities where additional parking capacity is required within a limited area.

Urban Parking Projects

Suitable for urban projects where land is limited and underground space needs to be utilized more efficiently.

FAQ

1. What is a Hydraulic 2-Level Pit Parking Lift?

It is an underground parking lift that uses hydraulic vertical lifting to create two parking levels within a compact footprint.

2. How many cars can the system accommodate?

The product family is available in different configurations. The standard options include 2 parking spaces and 4 parking spaces.

3. What is the difference between CPL-2 and CPL-4?

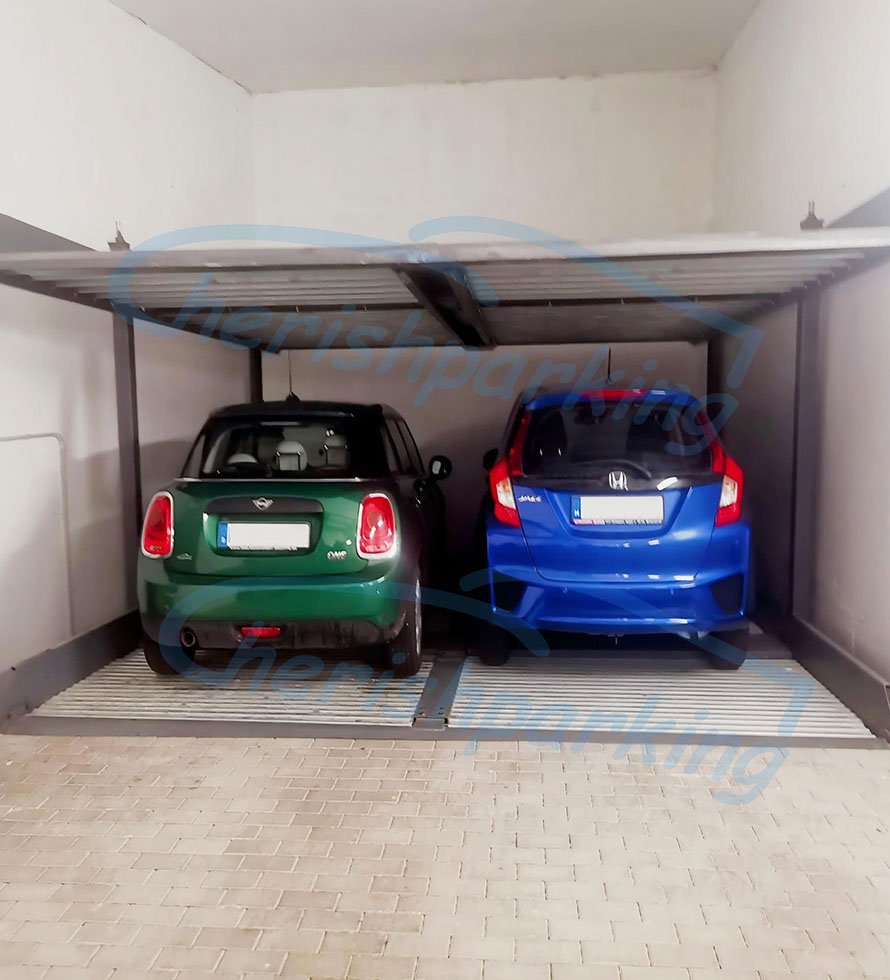

CPL-2 provides one vehicle on the upper level and one on the lower level, while CPL-4 provides two vehicles on the upper level and two on the lower level.

4. Does the parking lift require a pit?

Yes. The standard configuration is designed for installation in a purpose-built underground parking pit.

5. Can the lower vehicle be accessed independently?

The system is designed to bring the lower parking position to the accessible level through vertical lifting, allowing the required vehicle to be retrieved without using a conventional ramp.

6. Can the parking lift accommodate SUVs?

Vehicle compatibility depends on the vehicle's weight and dimensions. The final configuration should be confirmed according to the actual vehicles to be parked.

7. Can the dimensions be customized?

Yes. Platform dimensions, lifting height, load capacity, surface treatment and electrical configuration can be customized according to the project.

8. Can multiple units be installed together?

Yes. Multiple units can be arranged according to the available site area and required parking capacity.

9. What safety features are available?

The system can include mechanical safety locks, limit switches, emergency stop functions, overload protection and other safety devices according to the selected configuration.

10. What is the warranty?

12 months from the date of commissioning for easy parts, 5 years structural warranty.
