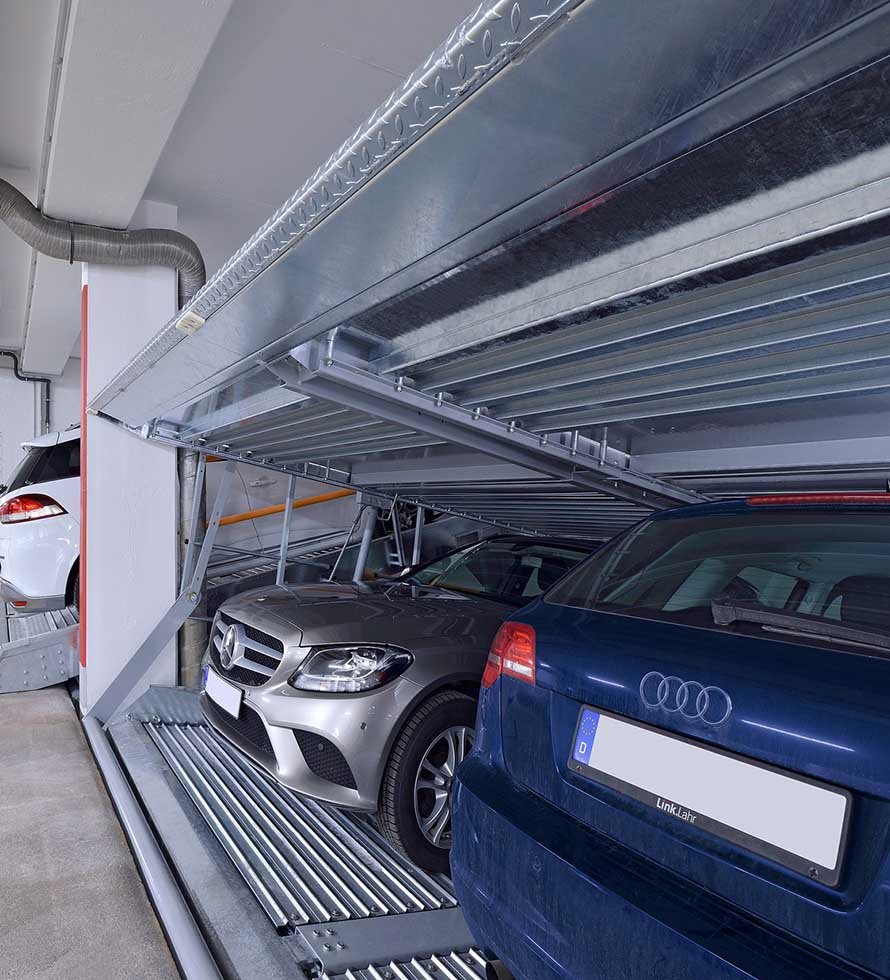

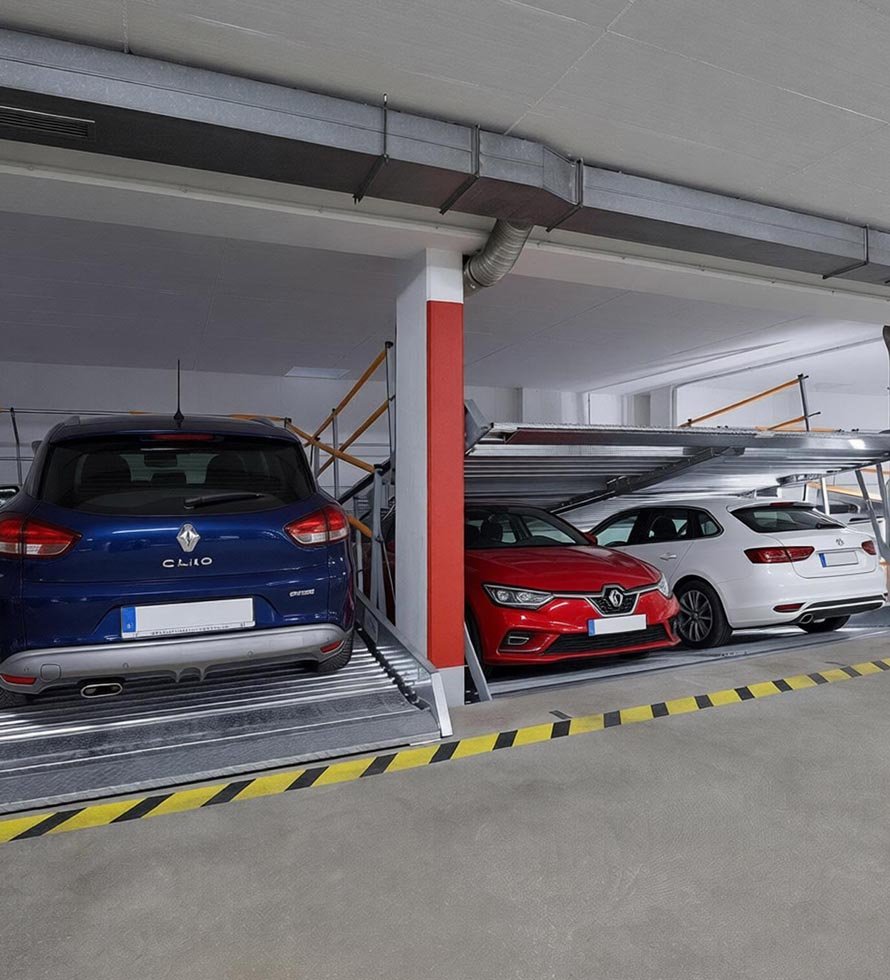

Hydraulic Tilting Car Stacker Parking Lift with Pit

Applications

•  Multi-Family & Urban Residential Complexes

Ideal for apartment buildings and condominiums with strict parking spot requirements. The subterranean pit integration doubles parking availability without altering the architectural baseline or building height limits.

•  Luxury Private Villas & Townhouses

Allows homeowners to discreetly expand garage capacity underground, preserving driveway aesthetics and maximizing outdoor garden space.

•  Commercial Office Buildings & Business Parks

Provides flexible, self-service parking for executives, tenants, and staff in cramped urban office basements.

•  Commercial Underground Garages

Easily retrofitted into existing or new pre-excavated underground parking levels, multiplying yield per square meter in high-density urban areas.

•  Auto Dealerships & Car Storage Facilities

Offers high-density indoor or subterranean vehicle storage and display for inventory, security, and space optimization.

Frequently Asked Questions (FAQ)

Q1: Does this pit parking lift allow independent access to all vehicles?

A: Yes, 100% independent access. The upper vehicle can be parked or driven out at ground level at any time without needing to move the lower vehicle.

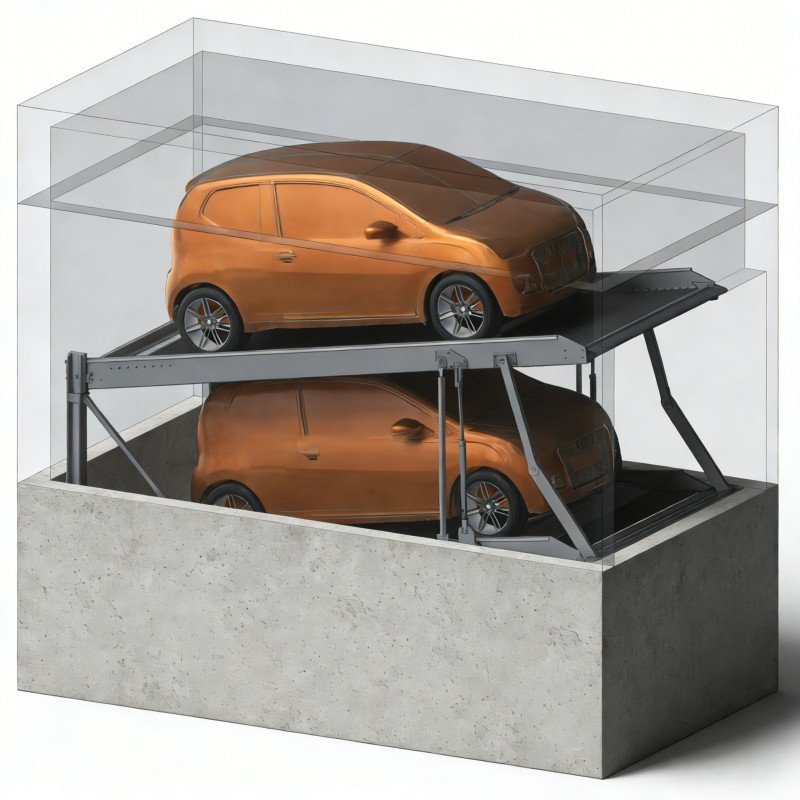

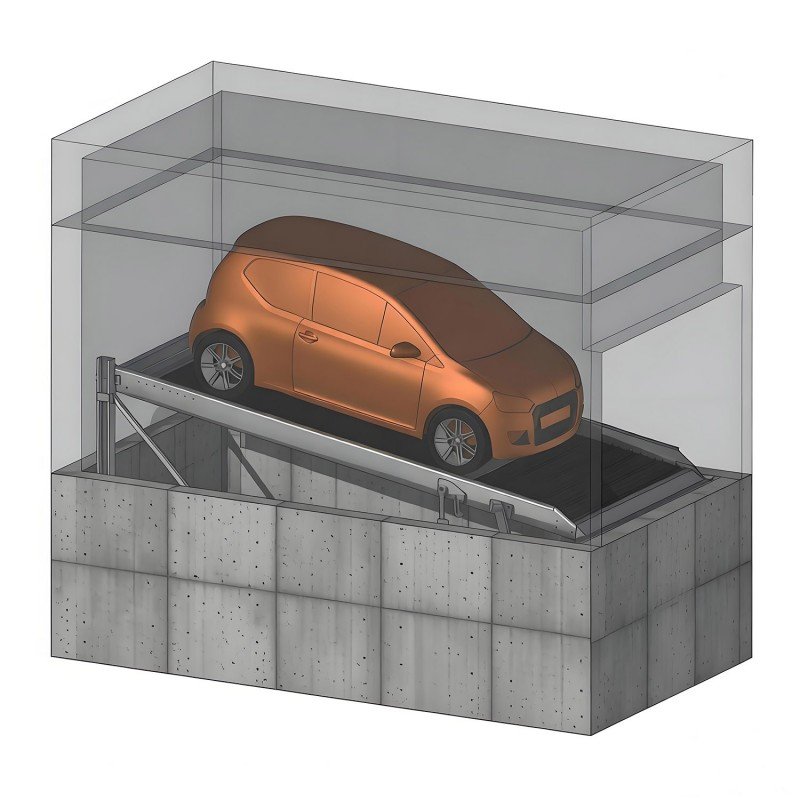

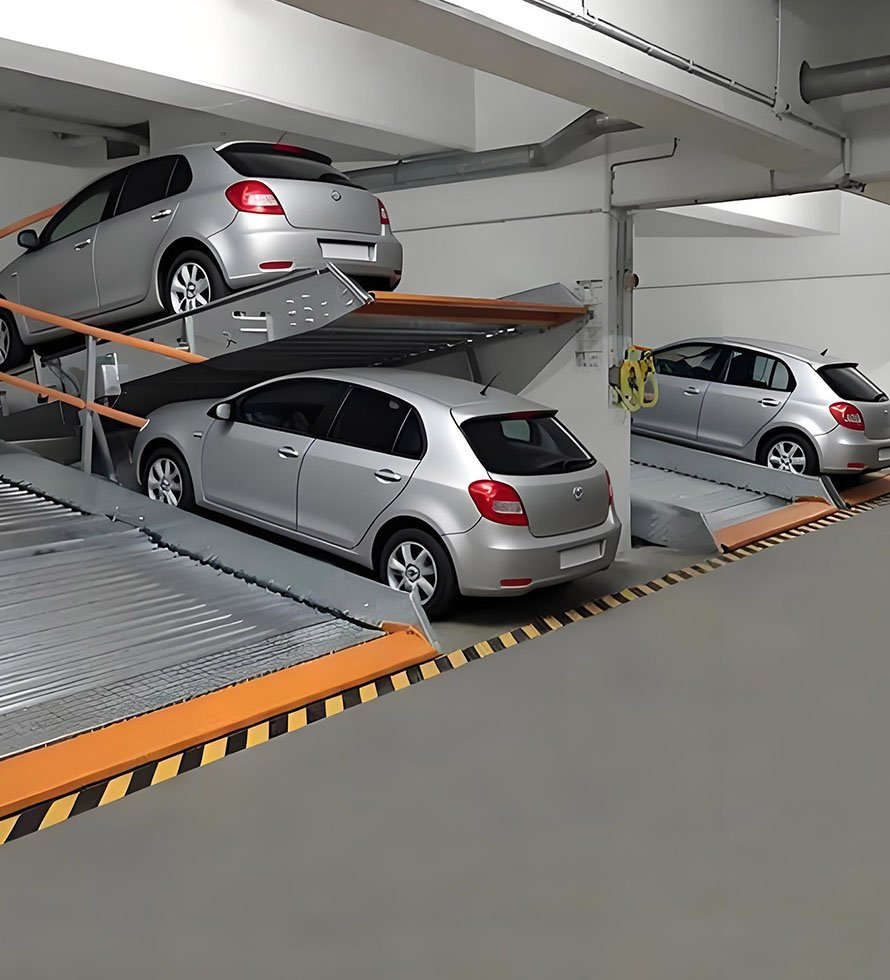

Q2: What is the main advantage of the tilted platform design (CPT Series)?

A: The angled/tilted platform reduces the required vertical headroom and pit depth compared to traditional vertical pit lifts. This makes it the ideal solution for low-ceiling basements and projects with constrained excavation depth limits.

Q3: What types of vehicles can the CPT pit lift accommodate?

A: With a rated load capacity of 2,000 kg (approx. 4,400 lbs) per platform, the system comfortably accommodates standard sedans, station wagons, compact SUVs, and crossovers.

Q4: Is an attendant required to operate the lift?

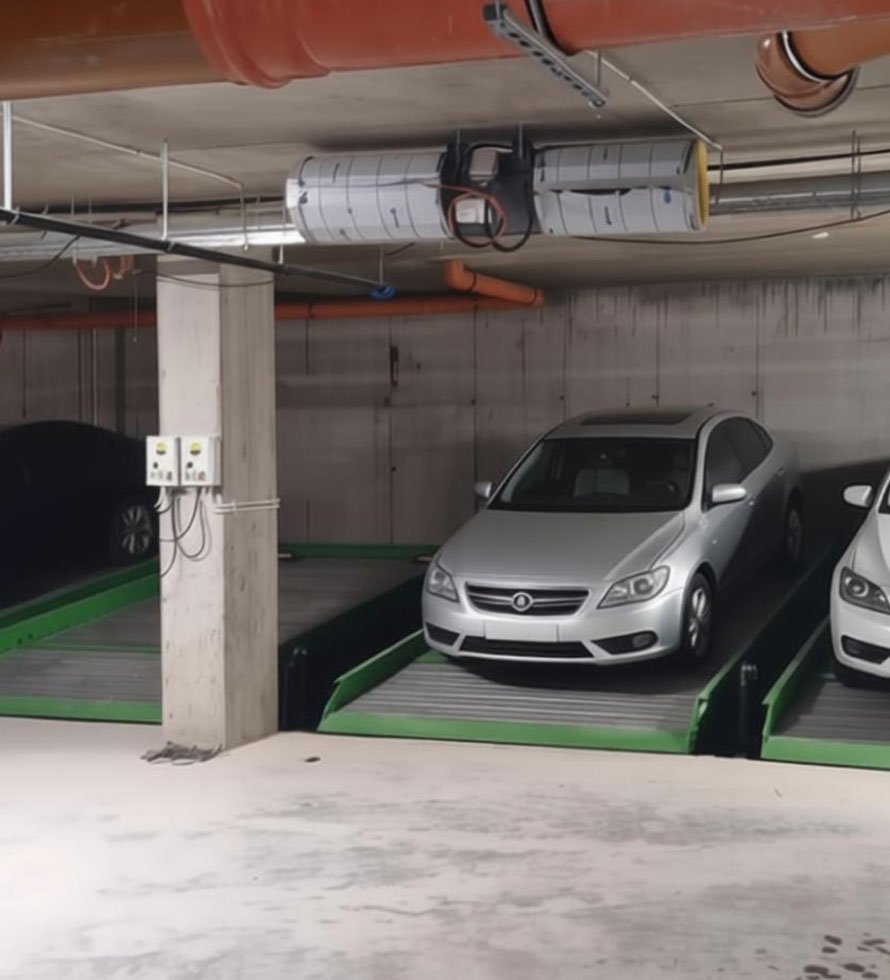

A: No. Thanks to its independent design and user-friendly electric key switch control box, trained individual drivers (residents, office workers, etc.) can operate the lift directly and safely without needing a dedicated valet or attendant.

Q5: What safety mechanisms are built into the system?

A: The CPT Series is CE-certified and equipped with comprehensive safety features:

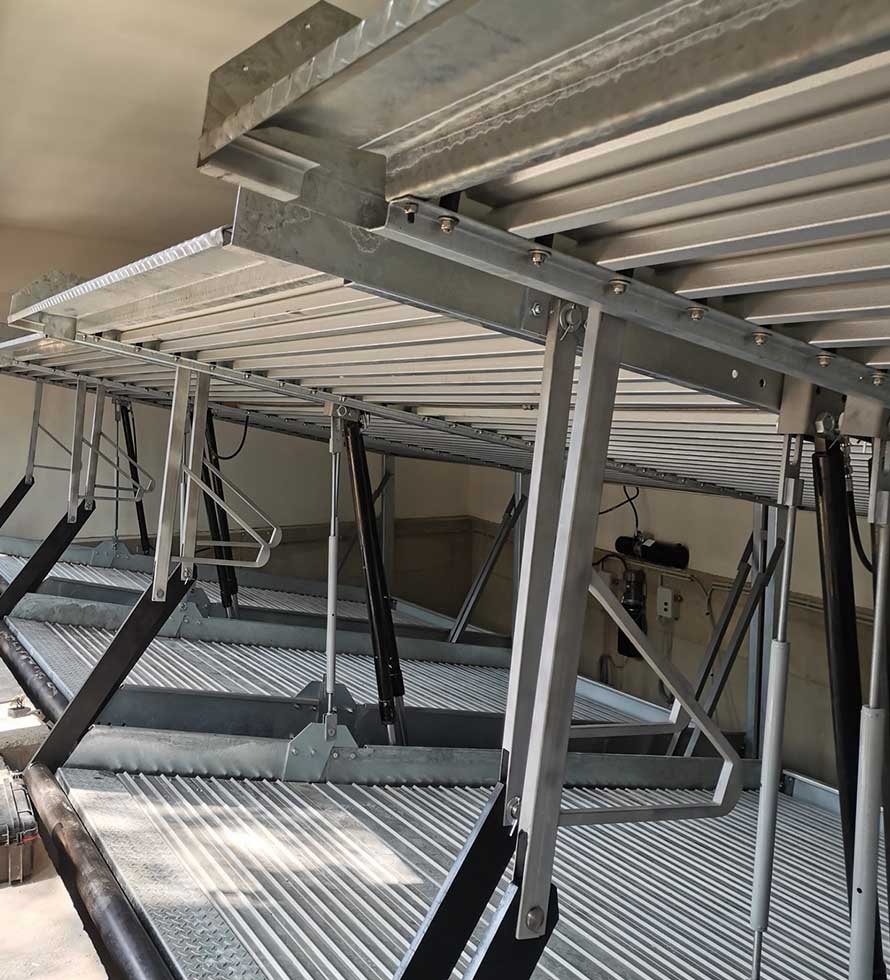

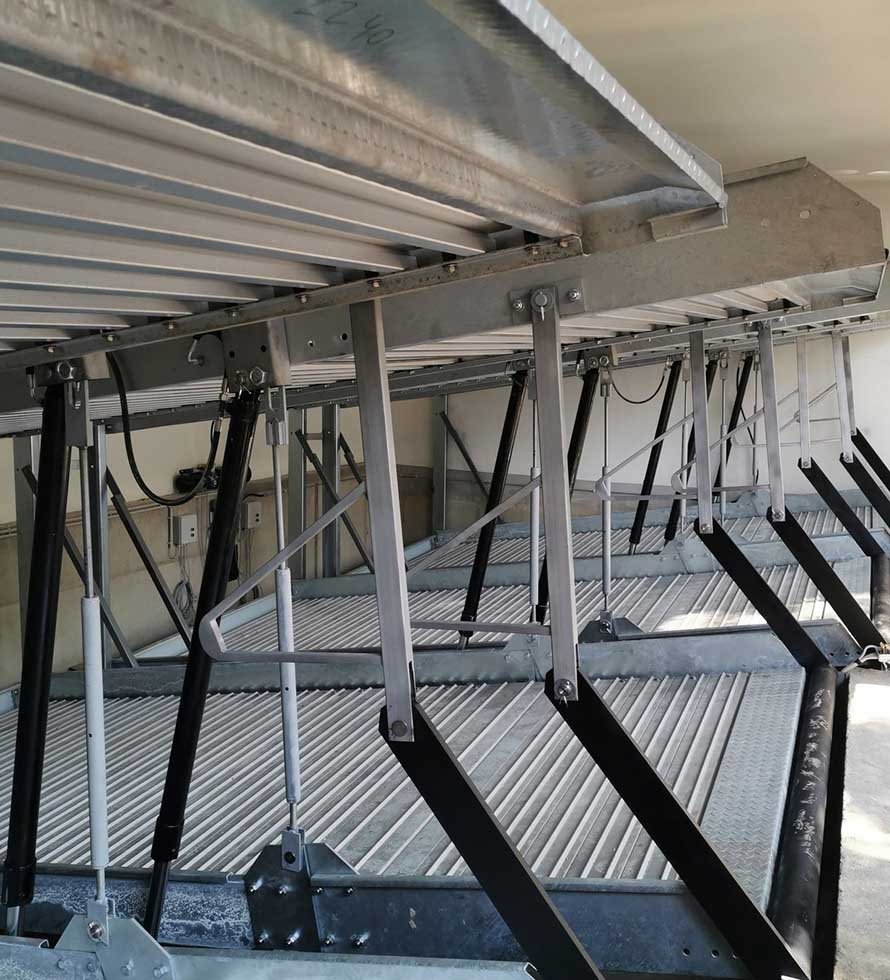

•  Mechanical anti-falling locks at multiple heights.

•  Hold-to-run key switch controls (automatically stops operation when the key is released).

•  Emergency stop buttons and hydraulic overload protection valves.

•  Anti-slip galvanized wave plate platforms for maximum traction.

Q6: Can multiple units be installed continuously to save space?

A: Yes. The CPT-2A and CPT-4A are modular. Multiple units can be installed side-by-side or back-to-back in continuous subterranean pits, significantly reducing structural and installation costs per space.

Q7: What civil engineering/pit preparation is required before installation?

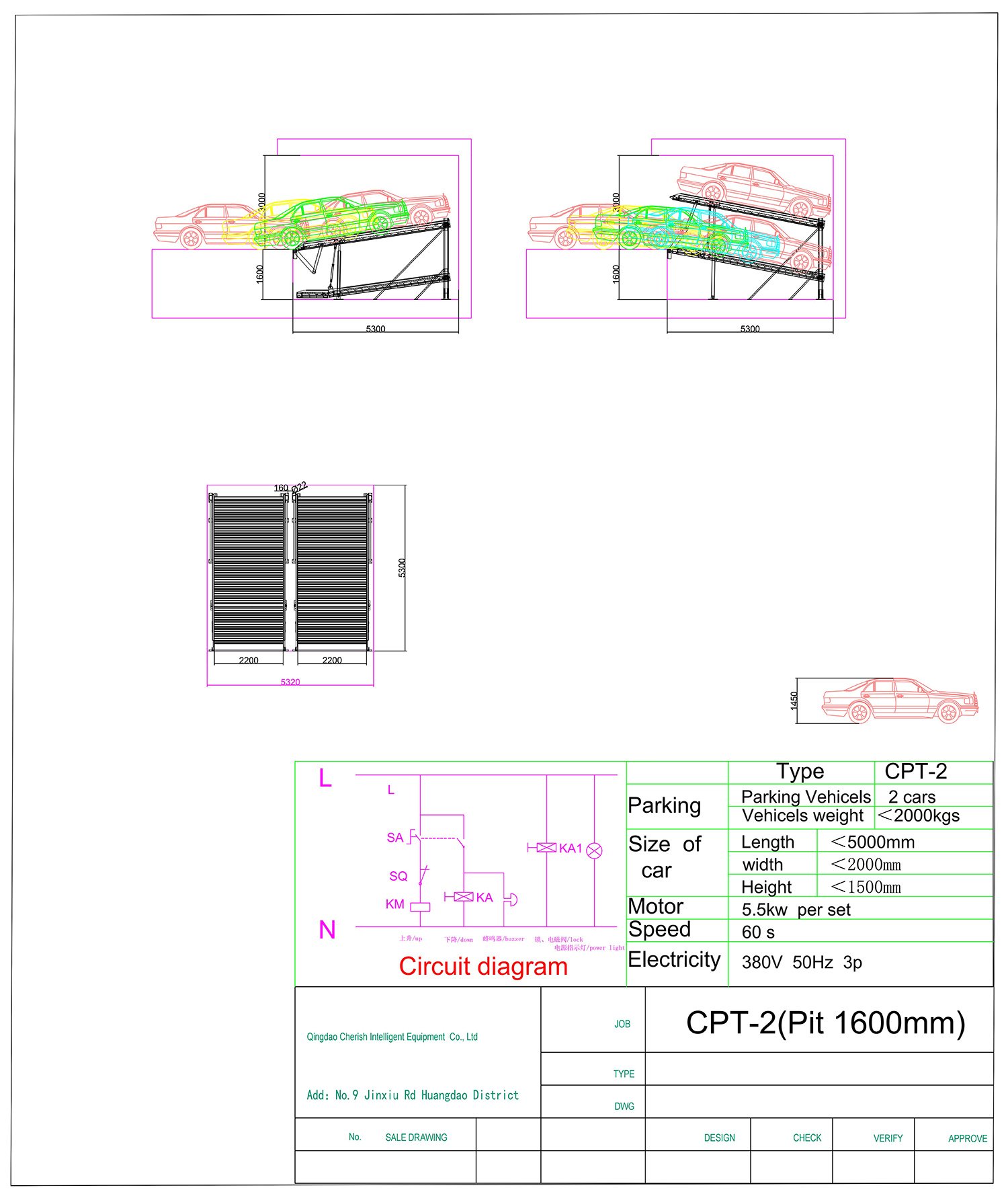

A: The site requires a pre-excavated concrete pit with appropriate waterproofing, drainage (or a sump pump system), and dedicated electrical power supply according to our technical layout drawings.
